◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#38795) — 35 parça

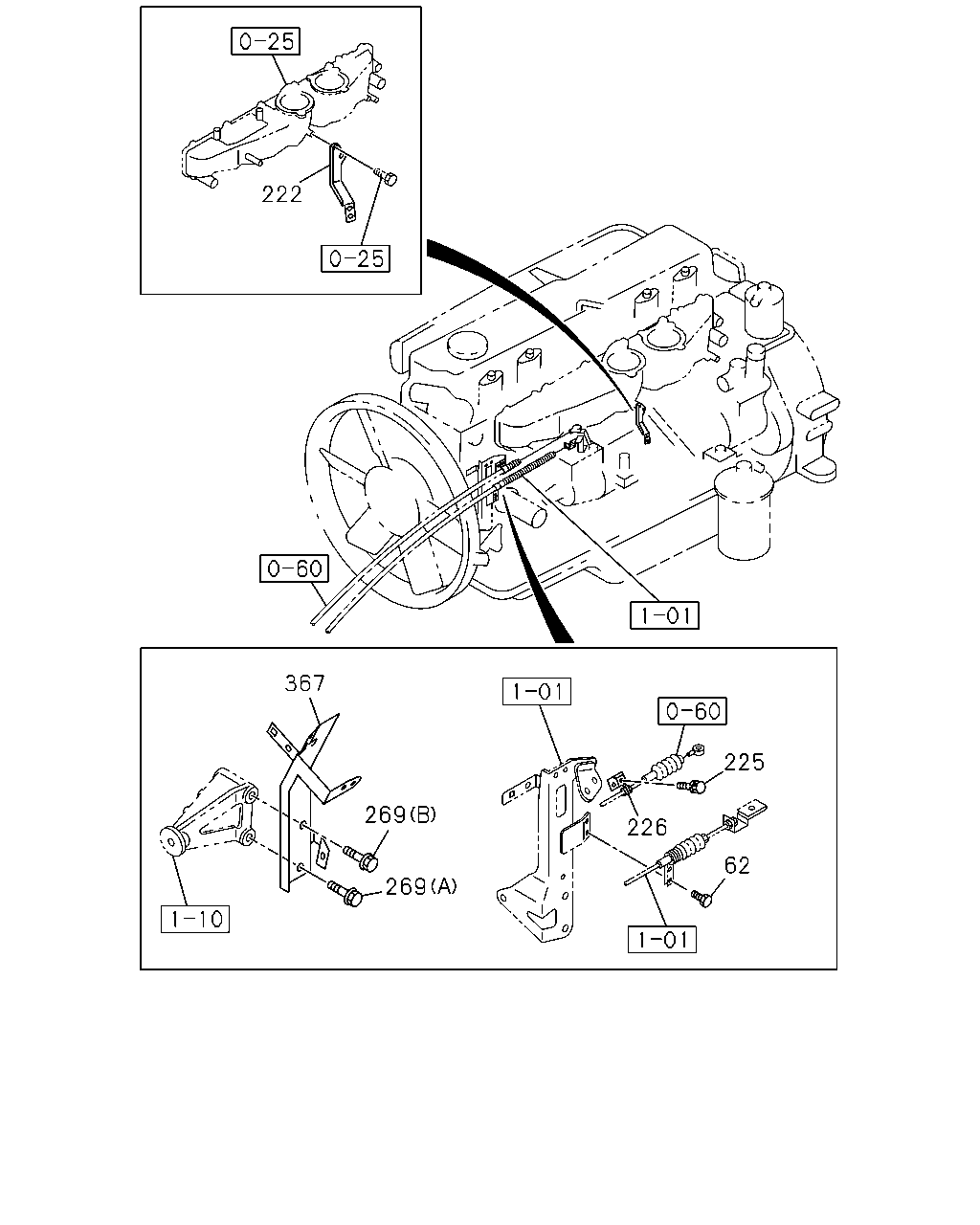

çizim 152296
222 367 225 269 226 62 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 01 1 9610-0004 ● ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 01 1 0005-0108 ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0109-0302 ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ● ●
62 BOLT; CABLE END
EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X20 FLANGE 		0-28080-620-0 02 1 9510-9606 ● ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> M6X25 FLANGE 		0-28680-625-0 02 1 9607-9609 ● ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>, EURO2 SPECIFICATION<THN> M6X25 FLANGE 		0-28680-625-0 02 1 9610-9702 ● ●
62 BOLT; CABLE END
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT>, EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28680-620-0 02 1 9703-0004 ● ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28680-620-0 02 1 0005-0512 ● ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28680-620-0 02 1 0005-0512 ●
62 BOLT; CABLE END
EXC. EURO2 SPECIFICATION<THN> M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ●
62 BOLT; CABLE END
M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
222 BRACKET; ACTUATOR WIRE
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> 		8-94395-221-0 01 1 9608-0004 ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9609 ● ●
225 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9610-9612 ● ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9701-0004 ● ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0601 ● ● ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0602-0607 ● ● ● ● ●
225 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0608- ● ● ● ●
225 BOLT; CLIP FIX
DOUBLE CAB(FT**W*) M8X20 FLANGE 		0-28650-820-0 02 1 0608- ●
226 CLIP; CABLE END 1-09700-787-1 01 1 9510-9609 ● ● ●
226 CLIP; CABLE END 1-09700-787-1 01 1 9610-0004 ● ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> 		1-09700-787-1 01 1 9610-0004 ●
226 CLIP; CABLE END
EXC. EURO2 SPECIFICATION<THN> 		1-09700-787-1 01 1 0005- ● ●
226 CLIP; CABLE END 1-09700-787-1 01 1 0005- ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> 		1-23219-032-0 01 1 9610-0004 ●
226 CLIP; CABLE END
EURO2 SPECIFICATION<THN> 		1-23219-032-0 01 1 0005- ● ●
269 BOLT; BRKT FIX
EXC. EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE 		0-28181-060-0 01 1 0011-0512 ●
269 BOLT; BRKT FIX
EXC. EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE 		0-28151-060-0 01 1 0601- ●
269 BOLT; BRKT FIX
EXC. EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE 		0-28181-090-0 01 1 0011-0512 ●
269 BOLT; BRKT FIX
EXC. EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE 		0-28151-090-0 01 1 0601- ●
367 BRACKET; ENG CONT WIRE,INL PIPE
EXC. EURO2 SPECIFICATION<THN> 		8-94391-047-3 01 1 0011- ●
