Sayfa 0-28 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10702 - FTR(RHD)EXC. EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-28 - VENTILATION SYSTEM ▶

0-28 — VENTILATION SYSTEM (#38790) — 109 parça

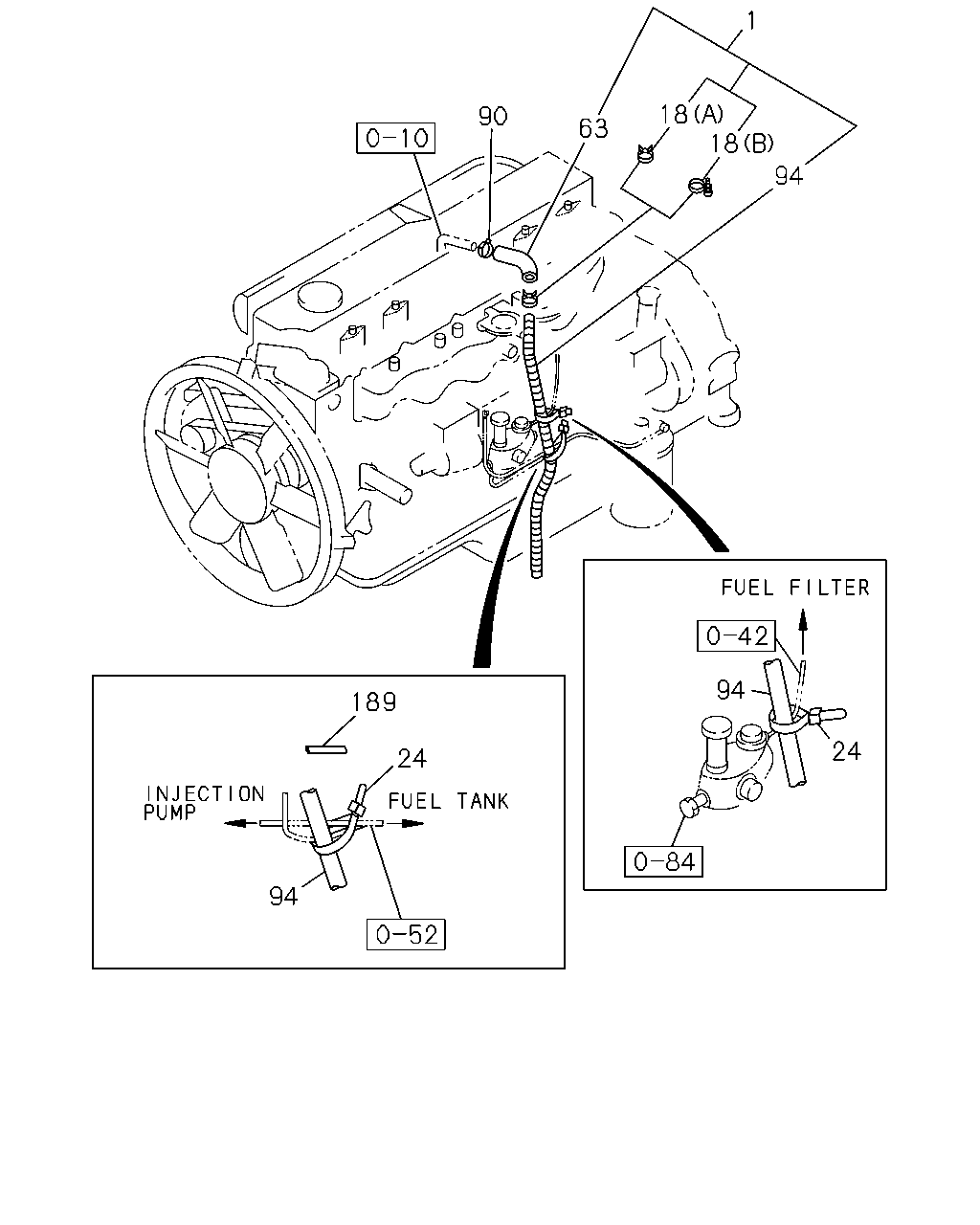

1 18 18 90 63 94 94 189 24 24 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BREATHER; AIR STD CAB(FT*M)	8-94394-859-1	01	1	9510-9709	●
1	BREATHER; AIR	8-94394-859-4	01	1	9803-	●
1	BREATHER; AIR	8-94394-859-1	01	1	9710-9802	●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9510-9510	●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9511-9609	●
1	BREATHER; AIR	8-94394-777-1	01	1	9511-9609		●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9610-9709	●
1	BREATHER; AIR	8-94394-777-1	01	1	9610-9709		●	●
1	BREATHER; AIR	8-94394-777-1	01	1	9710-0602		●	●
1	BREATHER; AIR	8-94394-777-2	01	1	0603-		●	●	●
1	BREATHER; AIR EURO2 SPECIFICATION<THN>	8-94392-083-3	01	1	0005-					●
1	BREATHER; AIR EXC. EURO2 SPECIFICATION<THN>	8-97600-171-3	01	1	0011-					●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	9608-9609	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	9610-0004	●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	0005-0602	●	●	●		●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	0603-	●	●	●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9803-0602		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	0603-		●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER DOUBLE CAB(FT*W) (B) ID=38	9-09915-041-1	01	1	9510-9609	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9510-9609		●
18	CLIP; RUBBER HOSE,AIR BREATHER DOUBLE CAB(FT*W) (B) ID=38	9-09915-041-1	01	1	9610-9709	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9610-9709		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9710-9802		●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0006-0010	●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0011-0504	●	●
24	CLIP; RUBBER HOSE,VENTILATOR STD CAB(FT*M) EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0011-0504					●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0505-1205	●
24	CLIP; RUBBER HOSE,VENTILATOR EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0505-1205		●			●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	02	1	1206-	●
24	CLIP; RUBBER HOSE,VENTILATOR EXC. EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	02	1	1206-		●			●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	9510-0005	●	●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	03	1	0006-0602			●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	03	1	0603-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	03	1	0603-1205			●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	03	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	03	1	1206-			●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	0005-1205					●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	01	1	1206-					●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	0704-1001	●			●
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<THN> L=70	0-02828-070-0	01	1	0704-1001					●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	1002-1005	●				●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	1006-	●				●
63	HOSE; RUBBER,AIR BREATHER L=70	0-02728-070-0	01	1	9710-9809	●
63	HOSE; RUBBER,AIR BREATHER STD CAB(FT*M) L=70	0-02728-070-0	01	1	9510-9709	●
63	HOSE; RUBBER,AIR BREATHER DOUBLE CAB(FT*W)	8-94394-471-0	01	1	9510-9510	●
63	HOSE; RUBBER,AIR BREATHER DOUBLE CAB(FT*W)	8-94394-471-0	01	1	9511-9609	●
63	HOSE; RUBBER,AIR BREATHER	8-94394-471-0	01	1	9511-9609		●
63	HOSE; RUBBER,AIR BREATHER DOUBLE CAB(FT*W)	8-94394-471-0	01	1	9610-9709	●
63	HOSE; RUBBER,AIR BREATHER	8-94394-471-0	01	1	9610-9709		●	●
63	HOSE; RUBBER,AIR BREATHER	8-94394-471-0	01	1	9710-0602		●	●
63	HOSE; RUBBER,AIR BREATHER	8-94394-471-0	01	1	0603-		●	●	●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	9510-0004	●	●	●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	0005-0602	●	●	●		●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	0603-	●	●	●	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	9510-9609	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	9610-0602	●	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	0603-	●	●	●	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<THN> L=1260	8-94392-082-0	01	1	0005-					●
94	HOSE; BREATHER TO PIPE EXC. EURO2 SPECIFICATION<THN> L=1320	8-97600-189-0	01	1	0011-					●
189	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	03	1	0603-				●
189	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0002-0504	●	●
189	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0505-	●
189	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	0505-		●

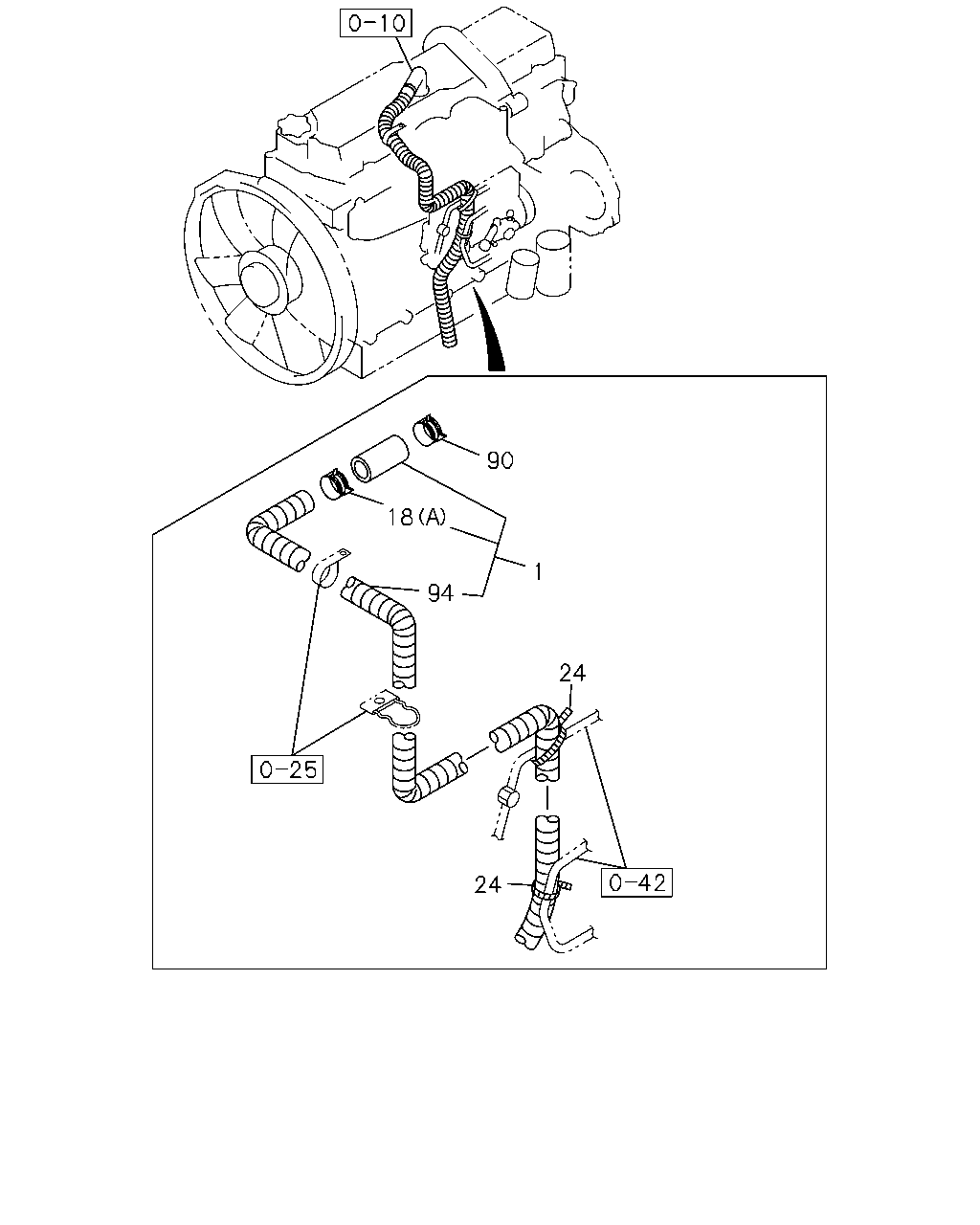

90 18 1 94 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	BREATHER; AIR STD CAB(FT*M)	8-94394-859-1	01	1	9510-9709	●
1	BREATHER; AIR	8-94394-859-4	01	1	9803-	●
1	BREATHER; AIR	8-94394-859-1	01	1	9710-9802	●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9510-9510	●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9511-9609	●
1	BREATHER; AIR	8-94394-777-1	01	1	9511-9609		●
1	BREATHER; AIR DOUBLE CAB(FT*W)	8-94394-777-1	01	1	9610-9709	●
1	BREATHER; AIR	8-94394-777-1	01	1	9610-9709		●	●
1	BREATHER; AIR	8-94394-777-1	01	1	9710-0602		●	●
1	BREATHER; AIR	8-94394-777-2	01	1	0603-		●	●	●
1	BREATHER; AIR EURO2 SPECIFICATION<THN>	8-94392-083-3	01	1	0005-					●
1	BREATHER; AIR EXC. EURO2 SPECIFICATION<THN>	8-97600-171-3	01	1	0011-					●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	9608-9609	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	9610-0004	●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	0005-0602	●	●	●		●
18	CLIP; RUBBER HOSE,AIR BREATHER (A) ID=33.6	8-94362-518-0	01	1	0603-	●	●	●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9803-0602		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	0603-		●	●	●
18	CLIP; RUBBER HOSE,AIR BREATHER DOUBLE CAB(FT*W) (B) ID=38	9-09915-041-1	01	1	9510-9609	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9510-9609		●
18	CLIP; RUBBER HOSE,AIR BREATHER DOUBLE CAB(FT*W) (B) ID=38	9-09915-041-1	01	1	9610-9709	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9610-9709		●	●
18	CLIP; RUBBER HOSE,AIR BREATHER (B) ID=38	9-09915-041-1	01	1	9710-9802		●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0006-0010	●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0011-0504	●	●
24	CLIP; RUBBER HOSE,VENTILATOR STD CAB(FT*M) EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0011-0504					●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	0505-1205	●
24	CLIP; RUBBER HOSE,VENTILATOR EXC. EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	02	1	0505-1205		●			●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	02	1	1206-	●
24	CLIP; RUBBER HOSE,VENTILATOR EXC. EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	02	1	1206-		●			●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	02	1	9510-0005	●	●	●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	03	1	0006-0602			●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	03	1	0603-1205		●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	5-09707-030-1	03	1	0603-1205			●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	03	1	1206-		●
24	CLIP; RUBBER HOSE,VENTILATOR L=250	8-98216-430-0	03	1	1206-			●	●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	0005-1205					●
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<THN> L=250	8-98216-430-0	01	1	1206-					●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	9510-0004	●	●	●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	0005-0602	●	●	●		●
90	CLIP; RUBBER HOSE ID=33.6	8-94362-518-0	01	1	0603-	●	●	●	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	9510-9609	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	9610-0602	●	●	●
94	HOSE; BREATHER TO PIPE L=1100	8-94394-785-0	01	1	0603-	●	●	●	●
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<THN> L=1260	8-94392-082-0	01	1	0005-					●
94	HOSE; BREATHER TO PIPE EXC. EURO2 SPECIFICATION<THN> L=1320	8-97600-189-0	01	1	0011-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
