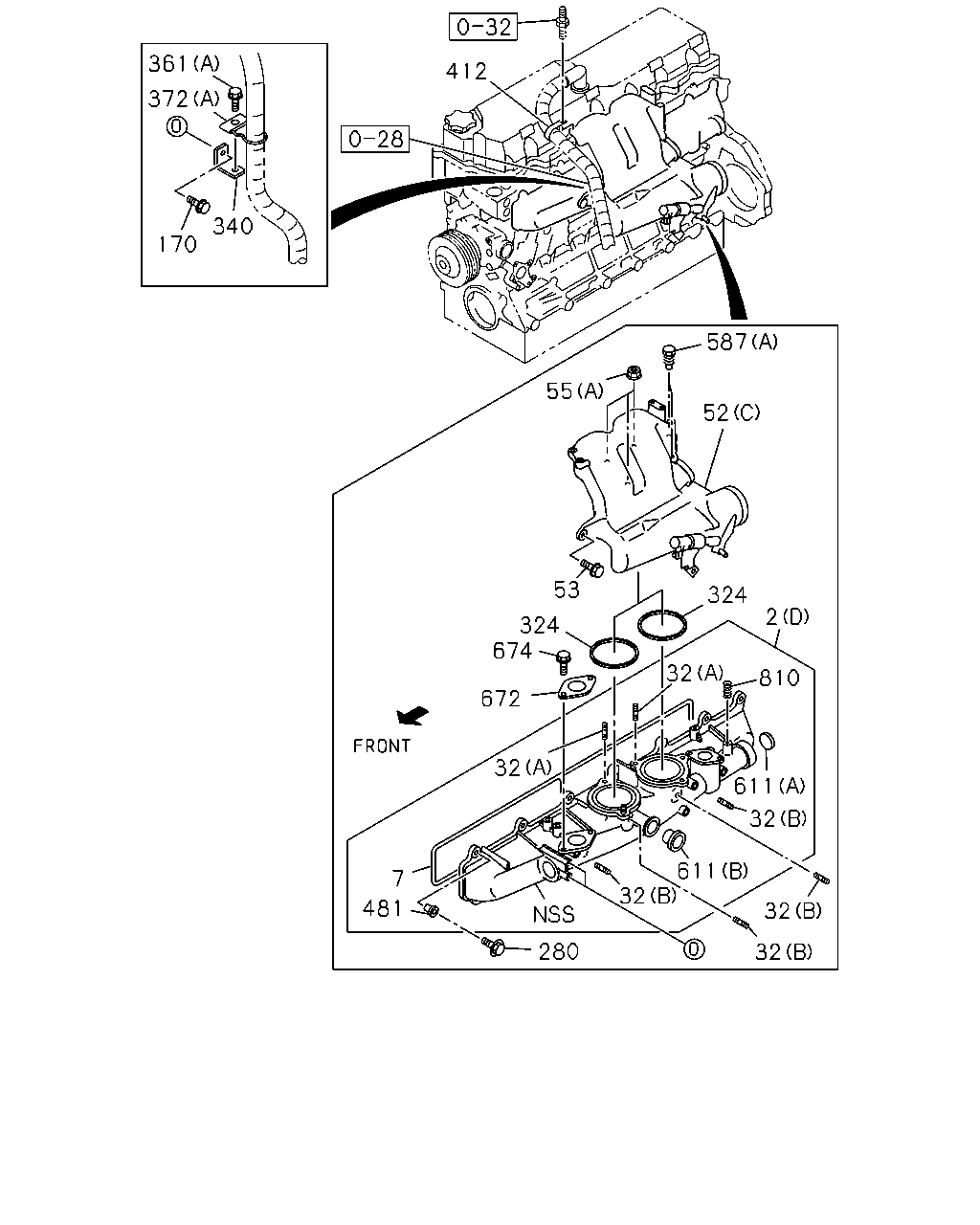

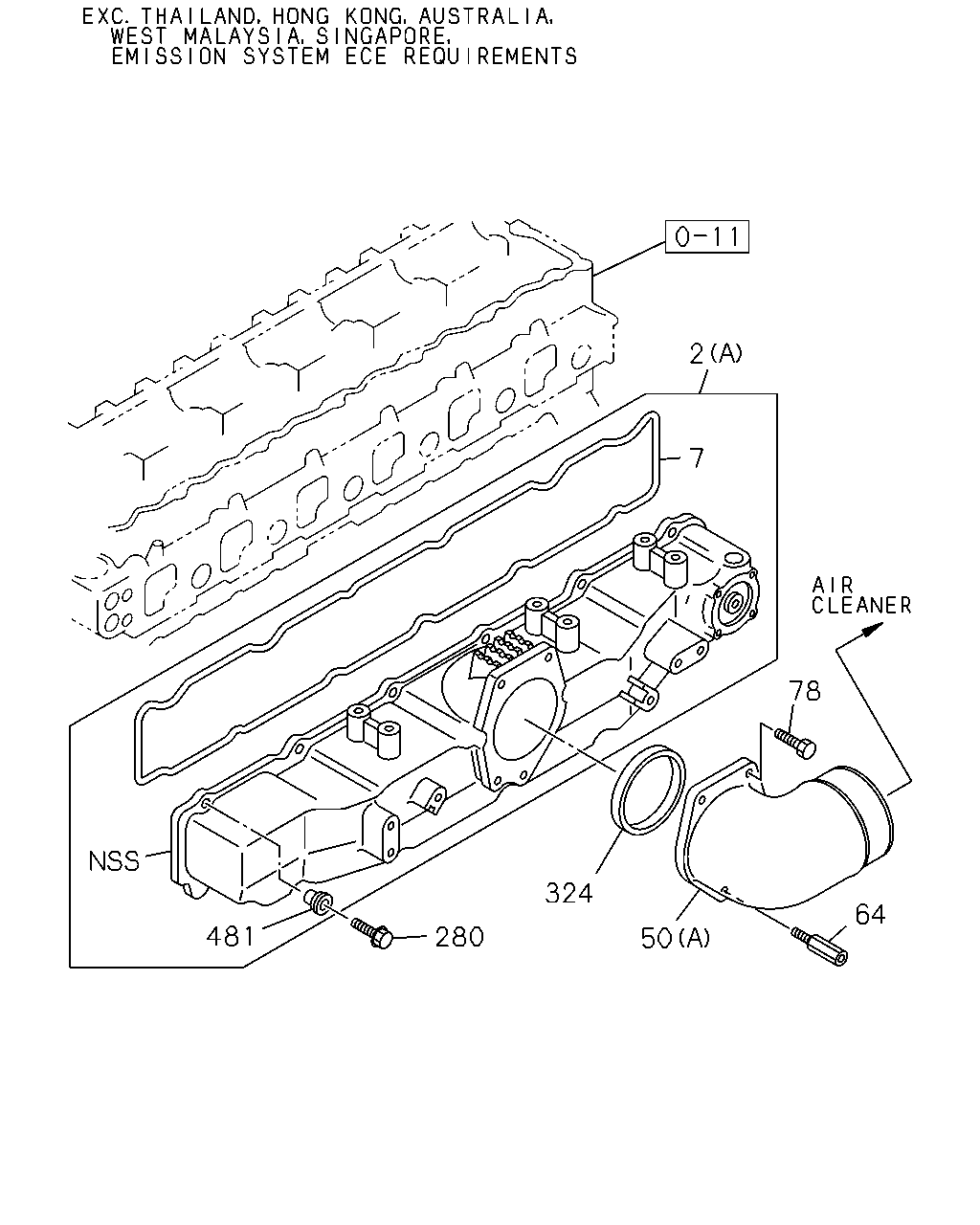

0-25 — INLET MANIFOLD (#38788) — 1387 parça

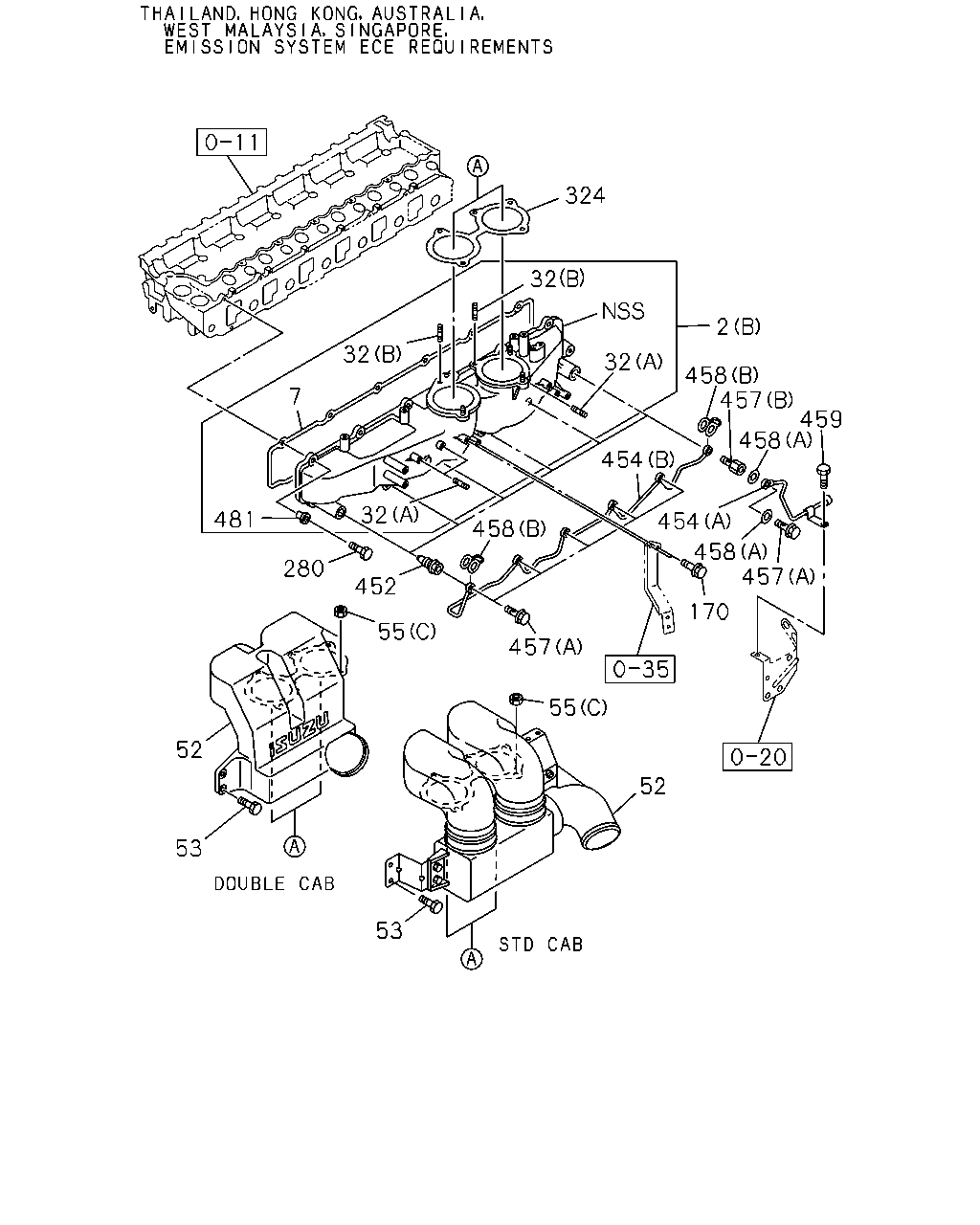

çizim 152279
324 32 2 32 32 458 457 459 458 7 454 32 458 481 454 458 457 280 452 170 55 457 55 52 52 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-597-1 01 1 9510-9611 ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-597-1 01 1 9612-9705 ●
52 PIPE; INL
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94395-597-1 01 1 9706-9802 ●
52 PIPE; INL
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 9803-0004 ●
52 PIPE; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 0005- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) 		8-94395-703-0 01 1 9510-0004 ●
52 PIPE; INL
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (A) 		8-94391-607-4 01 1 0005- ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94392-212-8 01 1 0011-0510 ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-97610-331-0 01 1 0511- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) (B) 		8-97600-779-1 01 1 0005- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 04 1 9510-9611 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X12 FLANGE 		0-28080-812-0 04 1 9612-9705 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M8X12 FLANGE 		0-28080-812-0 04 1 9706-9802 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) M8X12 FLANGE 		0-28080-812-0 04 1 9803-0004 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0005-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ●
53 BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28050-812-0 04 1 1007- ●
53 BOLT; INL PIPE
DOUBLE CAB(FT**W*) M8X22 FLANGE 		0-28080-822-0 02 1 9510-0004 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9511-0512 ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 01 1 0011-0512 ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0601-0602 ●
53 BOLT; INL PIPE
M10X35 FLANGE 		0-28651-035-0 01 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
170 BOLT; BRKT
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> M8X16 FLANGE 		0-28080-816-0 02 1 9608-0004 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0010 ● ● ●
170 BOLT; BRKT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
STD CAB(FT**M*) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ● ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9610-0512 ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9610-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9510- ●
280 BOLT; INL COVER
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 14 1 0005-0010 ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 14 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> 		1-14370-007-0 06 1 0511- ●
452 CYLINDER ASM; AIR
AUSTRALIA EQUIPMENT(RR3) 		1-14370-007-0 06 1 9510-0004 ●
452 CYLINDER ASM; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94390-985-1 01 1 0011- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> (B) 6-JOINT 		8-94394-415-1 01 1 0511- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> (A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 0511- ●
454 PIPE; AIR,IVES
AUSTRALIA EQUIPMENT(RR3) (B) 6-JOINT 		8-94394-415-1 01 1 9510-0004 ●
454 PIPE; AIR,IVES
AUSTRALIA EQUIPMENT(RR3) (A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 9510-0004 ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> (A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> (B) M8X19 		1-09675-220-0 01 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
AUSTRALIA EQUIPMENT(RR3) (A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 9510-0004 ●
457 BOLT; EYE,AIR PIPE,IVES
AUSTRALIA EQUIPMENT(RR3) (B) M8X19 		1-09675-220-0 01 1 9510-0004 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0511- ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (B) ID=8.3 		8-97600-925-0 06 1 0511-1301 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (B) 		8-98231-394-0 06 1 1302- ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9510-0004 ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (B) ID=8.6 		8-94395-214-0 06 1 9510-9910 ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (B) ID=8.3 		8-97600-925-0 06 1 9911-0004 ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 01 1 0511-0512 ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
459 BOLT; CLIP FIX
AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 01 1 9510-0004 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9510-0004 ●
481 TUBE; DIST,INL COVER
EURO2 SPECIFICATION<THN> OD=22 		8-94395-684-0 14 1 0005-0010 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 14 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0005-0010 ●
481 TUBE; DIST,INL COVER
STD CAB(FT**M*) OD=22 		8-94395-684-0 12 1 0011-0112 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0201- ●
çizim 152280
2 7 78 324 64 481 280 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
50 PIPE; INL
(C) 		8-94390-319-2 01 1 0603- ●
50 PIPE; INL
(B) 		8-94392-850-2 01 1 0603- ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94397-063-2 01 1 9510-9611 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94397-063-2 01 1 9612-9612 ●
50 PIPE; INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9701-9705 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9706-9802 ●
50 PIPE; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 9803-0004 ●
50 PIPE; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 0005- ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9511-9609 ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9610-9612 ● ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9701- ●
50 PIPE; INL
(A) 		8-94391-478-1 01 1 9701-0001 ●
50 PIPE; INL
(A) 		8-97601-301-0 01 1 0002- ●
64 STUD; INL PIPE
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X25 L=75 		8-94397-086-0 01 1 9510-9611 ●
64 STUD; INL PIPE
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X25 L=75 		8-94397-086-0 01 1 9612-9612 ●
64 STUD; INL PIPE
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) M10X25 L=75 		8-94397-086-0 01 1 9701-9705 ●
64 STUD; INL PIPE
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M10X25 L=75 		8-94397-086-0 01 1 9706-9802 ●
64 STUD; INL PIPE
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=75 		8-94397-086-0 01 1 9803-0004 ●
64 STUD; INL PIPE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X25 L=75 		8-94397-086-0 01 1 0005- ●
78 BOLT; INL PIPE TO INL MANIF
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M10X30 FLANGE 		0-28181-030-0 02 1 9510-9611 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M10X30 FLANGE 		0-28181-030-0 02 1 9612-9612 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) M10X30 FLANGE 		0-28181-030-0 02 1 9701-9705 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M10X30 FLANGE 		0-28181-030-0 02 1 9706-9802 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X30 FLANGE 		0-28181-030-0 02 1 9803-0004 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X30 FLANGE 		0-28181-030-0 02 1 0005-0512 ●
78 BOLT; INL PIPE TO INL MANIF
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9510- ●
280 BOLT; INL COVER
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 14 1 0005-0010 ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 14 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9510-0004 ●
481 TUBE; DIST,INL COVER
EURO2 SPECIFICATION<THN> OD=22 		8-94395-684-0 14 1 0005-0010 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 14 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0005-0010 ●
481 TUBE; DIST,INL COVER
STD CAB(FT**M*) OD=22 		8-94395-684-0 12 1 0011-0112 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0201- ●

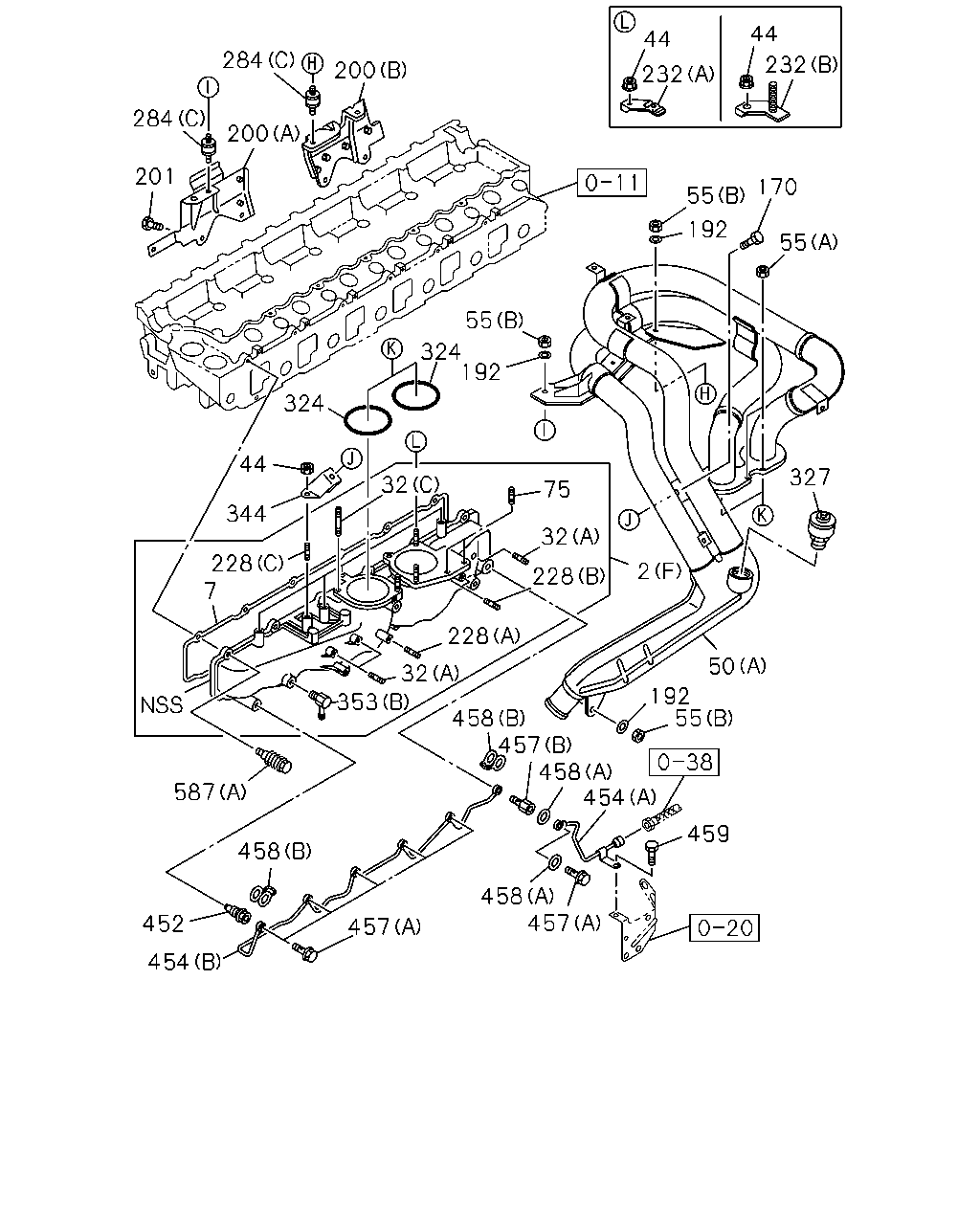

çizim 152282
44 44 284 232 200 232 284 200 201 170 55 192 55 55 324 192 324 44 327 32 75 344 32 228 7 2 228 228 50 32 192 55 353 458 457 458 454 587 459 458 458 457 452 457 454
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●

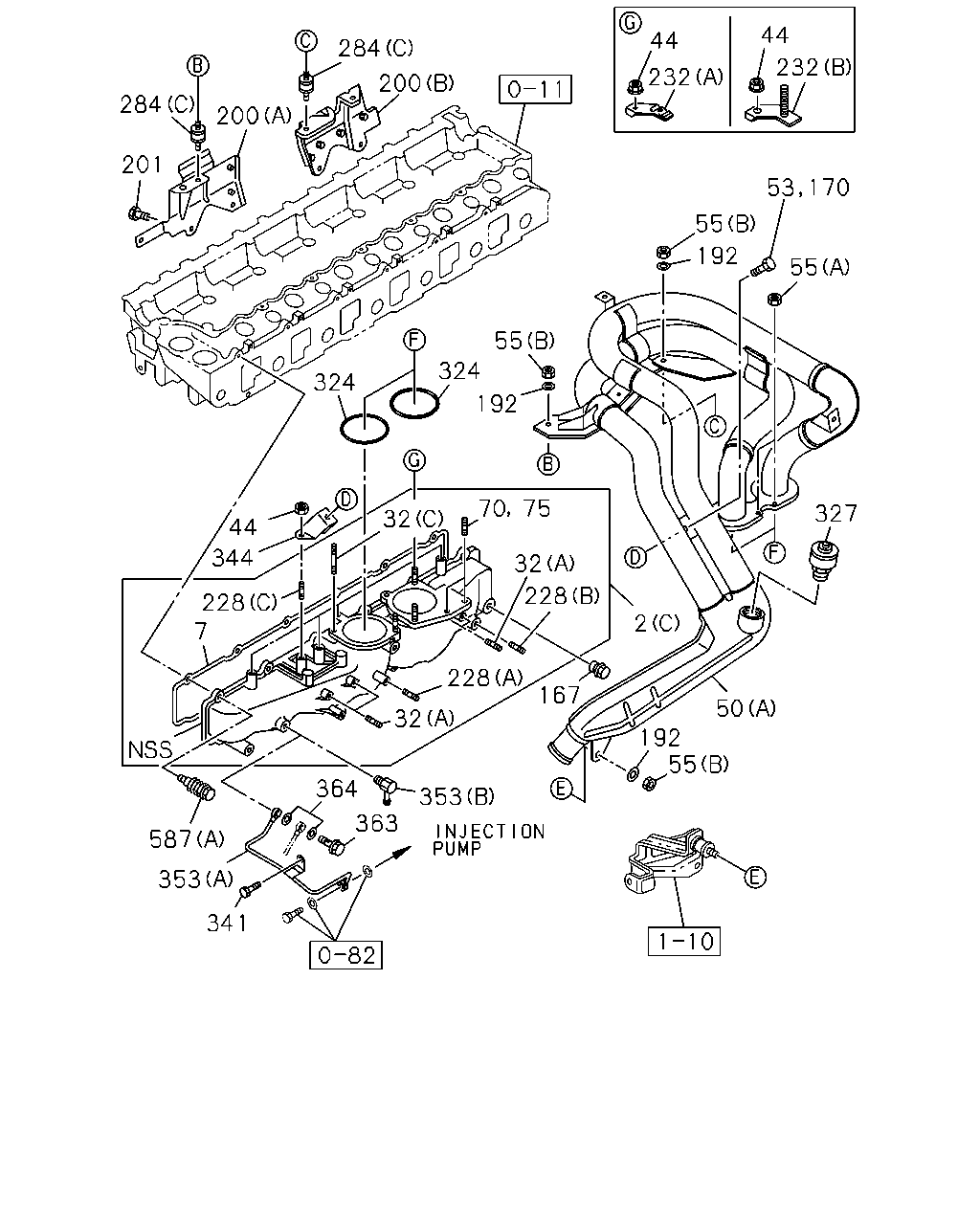

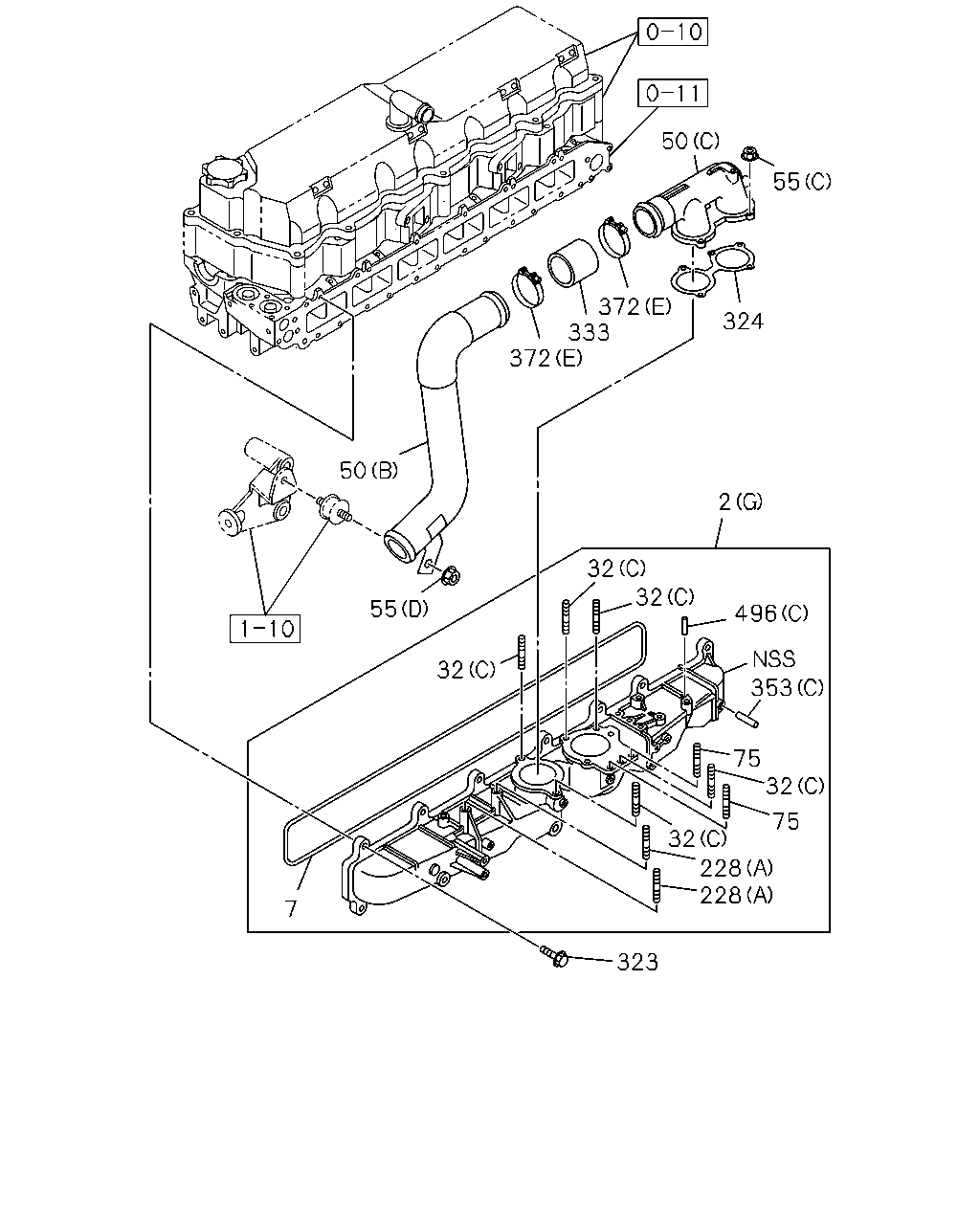

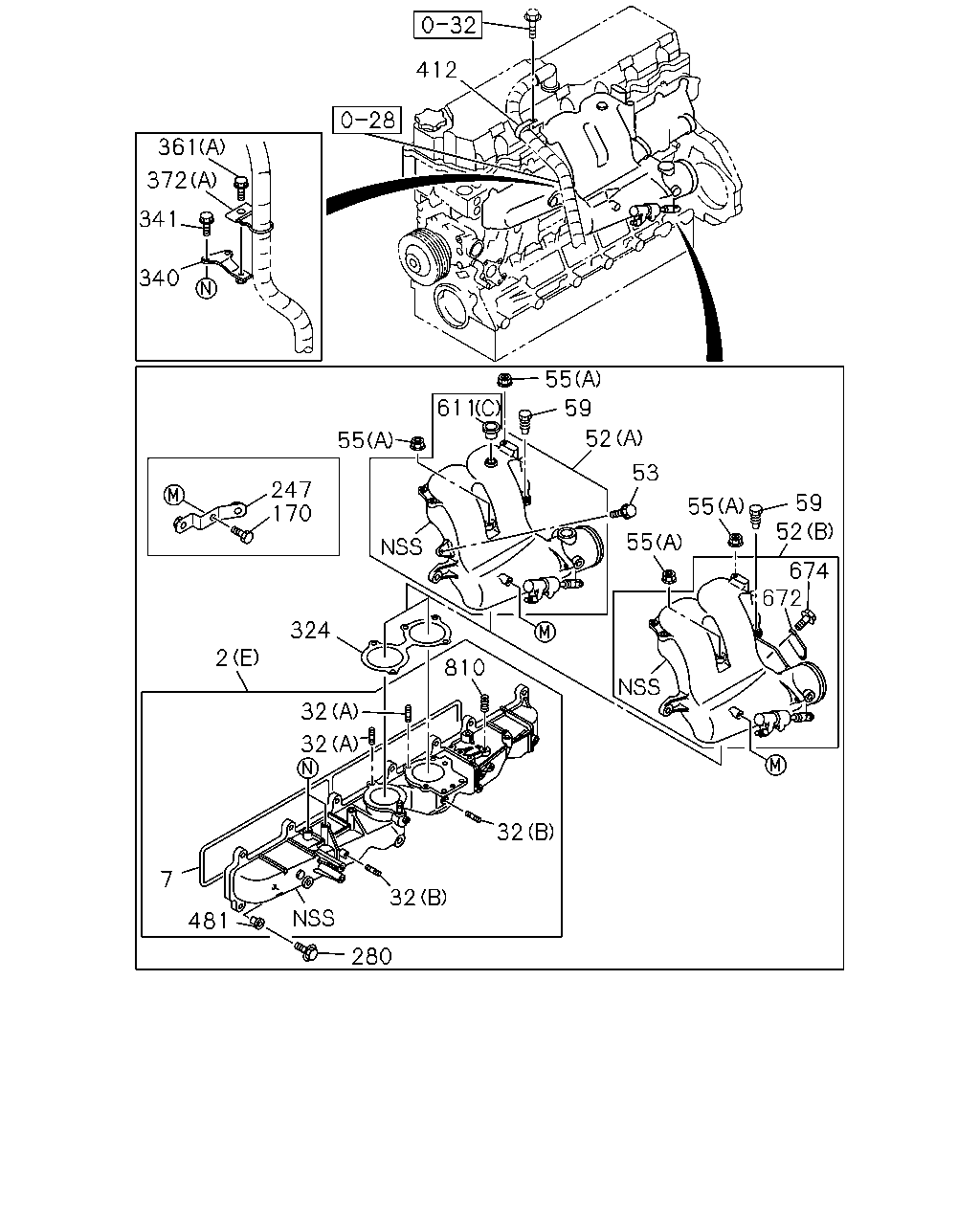

32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9511-0602 ●
44 NUT; PIPE BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 03 1 9610-0602 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
50 PIPE; INL
(C) 		8-94390-319-2 01 1 0603- ●
50 PIPE; INL
(B) 		8-94392-850-2 01 1 0603- ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94397-063-2 01 1 9510-9611 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94397-063-2 01 1 9612-9612 ●
50 PIPE; INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9701-9705 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9706-9802 ●
50 PIPE; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 9803-0004 ●
50 PIPE; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 0005- ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9511-9609 ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9610-9612 ● ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9701- ●
50 PIPE; INL
(A) 		8-94391-478-1 01 1 9701-0001 ●
50 PIPE; INL
(A) 		8-97601-301-0 01 1 0002- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 9610-0510 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ● ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		0-44011-025-0 02 1 0605- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		0-44011-025-0 02 1 0605- ● ●
170 BOLT; BRKT
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> M8X16 FLANGE 		0-28080-816-0 02 1 9608-0004 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0010 ● ● ●
170 BOLT; BRKT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
STD CAB(FT**M*) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ● ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9610-0512 ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9610-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9609 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 9610-0605 ● ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ● ●

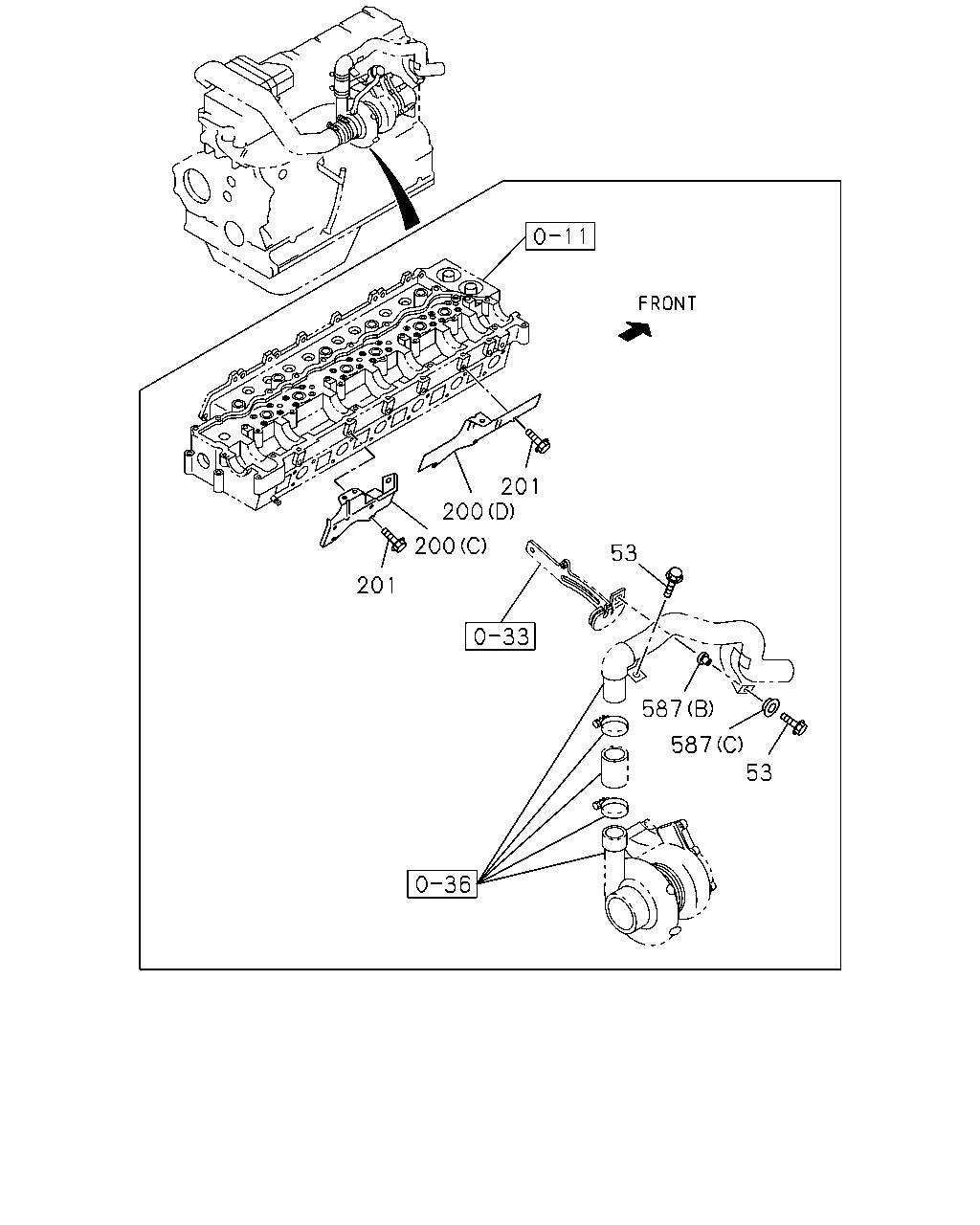

200 BRACKET; AIR DUCT
(C) 		8-97601-726-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(D) 		8-97601-818-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9610-9812 ● ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9610-9802 ● ●
200 BRACKET; AIR DUCT
(B) 		8-97600-201-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9803- ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9511-9609 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9610-0512 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0602 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0603- ● ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 02 1 0603-0604 ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 02 1 0605- ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9511-9609 ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9610-0604 ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0605-0811 ● ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
232 BRACKET; INJ PIPE
(A) 		8-94395-027-0 01 1 9803-0108 ●
232 BRACKET; INJ PIPE
(B) 		8-94391-452-0 01 1 0109- ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9511-9609 ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9610-0910 ● ●
284 RUBBER; INL PIPE MTG
(C) 		8-98148-109-0 02 1 0911- ● ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (B) ID=19.5 		8-94202-456-3 01 1 0011- ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (A) OD=23 		8-97105-689-6 04 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
327 VALVE; SAFETY,TURBOCHARGER 8-94393-227-0 01 1 9511- ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 9511-9609 ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 9610- ● ●
353 PIPE; AIR,BOOST
(C) 		8-97010-495-0 01 1 0603- ●
353 PIPE; AIR,BOOST
(A) 		8-94394-439-0 01 1 9511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 9610-0510 ●
353 PIPE; AIR,BOOST
EURO2 SPECIFICATION<THN> (B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> 		1-14370-007-0 06 1 0511- ●
452 CYLINDER ASM; AIR
AUSTRALIA EQUIPMENT(RR3) 		1-14370-007-0 06 1 9510-0004 ●
452 CYLINDER ASM; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94390-985-1 01 1 0011- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> (B) 6-JOINT 		8-94394-415-1 01 1 0511- ●
454 PIPE; AIR,IVES
EURO2 SPECIFICATION<THN> (A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 0511- ●
454 PIPE; AIR,IVES
AUSTRALIA EQUIPMENT(RR3) (B) 6-JOINT 		8-94394-415-1 01 1 9510-0004 ●
454 PIPE; AIR,IVES
AUSTRALIA EQUIPMENT(RR3) (A) JOINT & NUT W/BRKT 		8-94395-743-0 01 1 9510-0004 ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> (A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
EURO2 SPECIFICATION<THN> (B) M8X19 		1-09675-220-0 01 1 0511- ●
457 BOLT; EYE,AIR PIPE,IVES
AUSTRALIA EQUIPMENT(RR3) (A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 9510-0004 ●
457 BOLT; EYE,AIR PIPE,IVES
AUSTRALIA EQUIPMENT(RR3) (B) M8X19 		1-09675-220-0 01 1 9510-0004 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0511- ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (B) ID=8.3 		8-97600-925-0 06 1 0511-1301 ●
458 GASKET; AIR PIPE,VSS
EURO2 SPECIFICATION<THN> (B) 		8-98231-394-0 06 1 1302- ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9510-0004 ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (B) ID=8.6 		8-94395-214-0 06 1 9510-9910 ●
458 GASKET; AIR PIPE,VSS
AUSTRALIA EQUIPMENT(RR3) (B) ID=8.3 		8-97600-925-0 06 1 9911-0004 ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 01 1 0511-0512 ●
459 BOLT; CLIP FIX
EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
459 BOLT; CLIP FIX
AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 01 1 9510-0004 ●
587 MOUNTING; INTAKE DUCT
(C) OD=32 		8-94395-766-0 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(B) OD=23 		8-97105-689-6 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9511-9609 ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9610- ● ●
587 MOUNTING; INTAKE DUCT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-966-0 02 1 0011- ●
çizim 152284
44 44 284 232 232 200 284 200 201 55 192 55 55 324 324 192 70 75 44 327 32 344 32 228 228 7 2 228 167 50 32 192 55 364 353 363 587 353 341 170 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 02 1 9511-0602 ●
44 NUT; PIPE BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 0603-0603 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91150-108-0 03 1 9610-0602 ●
44 NUT; PIPE BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
50 PIPE; INL
(C) 		8-94390-319-2 01 1 0603- ●
50 PIPE; INL
(B) 		8-94392-850-2 01 1 0603- ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94397-063-2 01 1 9510-9611 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94397-063-2 01 1 9612-9612 ●
50 PIPE; INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9701-9705 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9706-9802 ●
50 PIPE; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 9803-0004 ●
50 PIPE; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 0005- ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9511-9609 ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9610-9612 ● ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9701- ●
50 PIPE; INL
(A) 		8-94391-478-1 01 1 9701-0001 ●
50 PIPE; INL
(A) 		8-97601-301-0 01 1 0002- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 04 1 9510-9611 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X12 FLANGE 		0-28080-812-0 04 1 9612-9705 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M8X12 FLANGE 		0-28080-812-0 04 1 9706-9802 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) M8X12 FLANGE 		0-28080-812-0 04 1 9803-0004 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0005-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ●
53 BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28050-812-0 04 1 1007- ●
53 BOLT; INL PIPE
DOUBLE CAB(FT**W*) M8X22 FLANGE 		0-28080-822-0 02 1 9510-0004 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9511-0512 ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 01 1 0011-0512 ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0601-0602 ●
53 BOLT; INL PIPE
M10X35 FLANGE 		0-28651-035-0 01 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
70 STUD; WATER PIPE
M10X30 L=45 		9-04411-030-0 02 1 9511-0602 ●
70 STUD; WATER PIPE
EXC. EURO2 SPECIFICATION<THN> M10X30 L=45 		9-04411-030-0 02 1 0603-0604 ●
70 STUD; WATER PIPE
M10X30 L=45 		0-44011-030-0 02 1 0605- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 9610-0510 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ● ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		0-44011-025-0 02 1 0605- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		0-44011-025-0 02 1 0605- ● ●
167 PLUG; INL MANIF 1-09604-078-0 06 1 9511- ●
167 PLUG; INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		9-09201-314-0 01 1 0011- ●
170 BOLT; BRKT
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> M8X16 FLANGE 		0-28080-816-0 02 1 9608-0004 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0010 ● ● ●
170 BOLT; BRKT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
STD CAB(FT**M*) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ● ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9610-0512 ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9610-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 9511-9609 ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		9-09164-808-0 03 1 9610-0605 ● ●
192 WASHER; PL,INL PIPE
ID=8.4 OD=26 		0-91614-808-0 03 1 0606- ● ●
200 BRACKET; AIR DUCT
(C) 		8-97601-726-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(D) 		8-97601-818-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9610-9812 ● ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9610-9802 ● ●
200 BRACKET; AIR DUCT
(B) 		8-97600-201-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9803- ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9511-9609 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9610-0512 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0602 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0603- ● ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 02 1 0603-0604 ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 02 1 0605- ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9511-9609 ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9610-0604 ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0605-0811 ● ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
232 BRACKET; INJ PIPE
(A) 		8-94395-027-0 01 1 9803-0108 ●
232 BRACKET; INJ PIPE
(B) 		8-94391-452-0 01 1 0109- ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9511-9609 ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9610-0910 ● ●
284 RUBBER; INL PIPE MTG
(C) 		8-98148-109-0 02 1 0911- ● ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (B) ID=19.5 		8-94202-456-3 01 1 0011- ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (A) OD=23 		8-97105-689-6 04 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
327 VALVE; SAFETY,TURBOCHARGER 8-94393-227-0 01 1 9511- ●
341 BOLT; BRKT,INL COVER
M10X20 FLANGE 		0-28181-020-0 01 1 9511-0512 ●
341 BOLT; BRKT,INL COVER
M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
341 BOLT; BRKT,INL COVER
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ●
341 BOLT; BRKT,INL COVER
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 9511-9609 ●
344 BRACKET; INL PIPE 8-94393-865-0 01 1 9610- ● ●
353 PIPE; AIR,BOOST
(C) 		8-97010-495-0 01 1 0603- ●
353 PIPE; AIR,BOOST
(A) 		8-94394-439-0 01 1 9511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 9610-0510 ●
353 PIPE; AIR,BOOST
EURO2 SPECIFICATION<THN> (B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
363 BOLT; EYE 1-09675-184-0 01 1 9511- ●
364 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 02 1 9511- ●
587 MOUNTING; INTAKE DUCT
(C) OD=32 		8-94395-766-0 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(B) OD=23 		8-97105-689-6 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9511-9609 ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9610- ● ●
587 MOUNTING; INTAKE DUCT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-966-0 02 1 0011- ●
çizim 152404
361 412 372 340 170 587 55 52 53 324 2 324 674 32 810 672 32 611 32 611 32 7 481 32 280 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-597-1 01 1 9510-9611 ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-597-1 01 1 9612-9705 ●
52 PIPE; INL
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94395-597-1 01 1 9706-9802 ●
52 PIPE; INL
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 9803-0004 ●
52 PIPE; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 0005- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) 		8-94395-703-0 01 1 9510-0004 ●
52 PIPE; INL
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (A) 		8-94391-607-4 01 1 0005- ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94392-212-8 01 1 0011-0510 ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-97610-331-0 01 1 0511- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) (B) 		8-97600-779-1 01 1 0005- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 04 1 9510-9611 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X12 FLANGE 		0-28080-812-0 04 1 9612-9705 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M8X12 FLANGE 		0-28080-812-0 04 1 9706-9802 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) M8X12 FLANGE 		0-28080-812-0 04 1 9803-0004 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0005-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ●
53 BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28050-812-0 04 1 1007- ●
53 BOLT; INL PIPE
DOUBLE CAB(FT**W*) M8X22 FLANGE 		0-28080-822-0 02 1 9510-0004 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9511-0512 ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 01 1 0011-0512 ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0601-0602 ●
53 BOLT; INL PIPE
M10X35 FLANGE 		0-28651-035-0 01 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
170 BOLT; BRKT
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> M8X16 FLANGE 		0-28080-816-0 02 1 9608-0004 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0010 ● ● ●
170 BOLT; BRKT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
STD CAB(FT**M*) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ● ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9610-0512 ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9610-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9510- ●
280 BOLT; INL COVER
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 14 1 0005-0010 ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 14 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
340 BRACKET; HARNESS INL MANIF
EURO2 SPECIFICATION<THN> 		8-97601-325-0 01 1 0005- ●
340 BRACKET; HARNESS INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		8-94392-277-0 01 1 0011- ●
361 BOLT; CLIP
EURO2 SPECIFICATION<THN> (A) M10X12 FLANGE 		0-28081-012-0 01 1 0005-0010 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28081-012-0 01 1 0011-0512 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28051-012-0 01 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28080-812-0 02 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
372 CLIP; HOSE
(E) ID=86 		9-09915-592-0 02 1 0603- ●
372 CLIP; HOSE
EURO2 SPECIFICATION<THN> (A) 		1-11369-115-0 01 1 0005-0010 ●
372 CLIP; HOSE
(A) 		1-11369-115-0 01 1 0011-1506 ●
372 CLIP; HOSE
(A) 		8-98303-447-0 01 1 1507- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 H=20 L=25 		1-09700-848-0 02 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (C) ID=10 & 10 		1-09709-277-1 01 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (D) ID=10 & 12 		8-94155-296-0 01 1 0011- ●
412 CLIP; HARNESS
EURO2 SPECIFICATION<THN> 		5-09700-342-0 01 1 0005-0010 ●
412 CLIP; HARNESS 5-09700-342-0 01 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9510-0004 ●
481 TUBE; DIST,INL COVER
EURO2 SPECIFICATION<THN> OD=22 		8-94395-684-0 14 1 0005-0010 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 14 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0005-0010 ●
481 TUBE; DIST,INL COVER
STD CAB(FT**M*) OD=22 		8-94395-684-0 12 1 0011-0112 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0201- ●
587 MOUNTING; INTAKE DUCT
(C) OD=32 		8-94395-766-0 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(B) OD=23 		8-97105-689-6 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9511-9609 ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9610- ● ●
587 MOUNTING; INTAKE DUCT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-966-0 02 1 0011- ●
611 CUP; SEALING,INT DUCT
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (C) OD=18 		5-11219-008-0 02 1 0504-0507 ●
611 CUP; SEALING,INT DUCT
STD CAB(FT**M*) (C) OD=18 		5-11219-008-0 01 1 0005-0503 ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (C) OD=18 		5-11219-008-0 01 1 0504-0507 ●
611 CUP; SEALING,INT DUCT
STD CAB(FT**M*) (C) OD=18 		5-11219-008-0 01 1 0508- ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (A) OD=38 		1-09600-003-0 02 1 0011- ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 01 1 0011- ●
672 FLANGE; INTAKE PIPE
DOUBLE CAB(FT**W*) 		8-94392-325-0 01 1 0005-0010 ●
672 FLANGE; INTAKE PIPE
EXC. EURO2 SPECIFICATION<THN> 		8-94392-325-0 01 1 0011- ●
672 FLANGE; INTAKE PIPE
DOUBLE CAB(FT**W*) 		8-94392-325-0 01 1 0011- ●
674 BOLT; FLANGE
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
674 BOLT; FLANGE
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
674 BOLT; FLANGE
DOUBLE CAB(FT**W*) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ●
674 BOLT; FLANGE
DOUBLE CAB(FT**W*) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
810 HELISERT
EURO2 SPECIFICATION<THN> 		9-09957-008-0 03 1 0005- ●
810 HELISERT
EXC. EURO2 SPECIFICATION<THN> 		9-09957-008-0 05 1 0011- ●
çizim 152427
412 361 341 340 55 59 52 55 53 247 170 59 55 52 674 672 324 2 810 32 32 32 7 32 481 280 55 372
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-597-1 01 1 9510-9611 ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-597-1 01 1 9612-9705 ●
52 PIPE; INL
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94395-597-1 01 1 9706-9802 ●
52 PIPE; INL
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 9803-0004 ●
52 PIPE; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 0005- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) 		8-94395-703-0 01 1 9510-0004 ●
52 PIPE; INL
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (A) 		8-94391-607-4 01 1 0005- ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94392-212-8 01 1 0011-0510 ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-97610-331-0 01 1 0511- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) (B) 		8-97600-779-1 01 1 0005- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 04 1 9510-9611 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X12 FLANGE 		0-28080-812-0 04 1 9612-9705 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M8X12 FLANGE 		0-28080-812-0 04 1 9706-9802 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) M8X12 FLANGE 		0-28080-812-0 04 1 9803-0004 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0005-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ●
53 BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28050-812-0 04 1 1007- ●
53 BOLT; INL PIPE
DOUBLE CAB(FT**W*) M8X22 FLANGE 		0-28080-822-0 02 1 9510-0004 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9511-0512 ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 01 1 0011-0512 ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0601-0602 ●
53 BOLT; INL PIPE
M10X35 FLANGE 		0-28651-035-0 01 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
59 BOLT; INL PIPE TO MANIF
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28080-830-0 02 1 0005-0512 ●
59 BOLT; INL PIPE TO MANIF
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28050-830-0 02 1 0601- ●
170 BOLT; BRKT
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> M8X16 FLANGE 		0-28080-816-0 02 1 9608-0004 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9610-0004 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0010 ● ● ●
170 BOLT; BRKT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ● ●
170 BOLT; BRKT
STD CAB(FT**M*) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0510 ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0511-0512 ● ● ●
170 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9511-9609 ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 01 1 9610-0512 ● ●
170 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0601- ● ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9610-0512 ●
170 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0601- ●
247 BRACKET; CLIP
EURO2 SPECIFICATION<THN> 		8-94392-277-0 01 1 0005- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9510- ●
280 BOLT; INL COVER
EURO2 SPECIFICATION<THN> M8X28 FLANGE 		0-28080-828-0 14 1 0005-0010 ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 14 1 0011- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
340 BRACKET; HARNESS INL MANIF
EURO2 SPECIFICATION<THN> 		8-97601-325-0 01 1 0005- ●
340 BRACKET; HARNESS INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		8-94392-277-0 01 1 0011- ●
341 BOLT; BRKT,INL COVER
M10X20 FLANGE 		0-28181-020-0 01 1 9511-0512 ●
341 BOLT; BRKT,INL COVER
M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
341 BOLT; BRKT,INL COVER
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ●
341 BOLT; BRKT,INL COVER
EURO2 SPECIFICATION<THN> M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
361 BOLT; CLIP
EURO2 SPECIFICATION<THN> (A) M10X12 FLANGE 		0-28081-012-0 01 1 0005-0010 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28081-012-0 01 1 0011-0512 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28051-012-0 01 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28080-812-0 02 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
372 CLIP; HOSE
(E) ID=86 		9-09915-592-0 02 1 0603- ●
372 CLIP; HOSE
EURO2 SPECIFICATION<THN> (A) 		1-11369-115-0 01 1 0005-0010 ●
372 CLIP; HOSE
(A) 		1-11369-115-0 01 1 0011-1506 ●
372 CLIP; HOSE
(A) 		8-98303-447-0 01 1 1507- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 H=20 L=25 		1-09700-848-0 02 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (C) ID=10 & 10 		1-09709-277-1 01 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (D) ID=10 & 12 		8-94155-296-0 01 1 0011- ●
412 CLIP; HARNESS
EURO2 SPECIFICATION<THN> 		5-09700-342-0 01 1 0005-0010 ●
412 CLIP; HARNESS 5-09700-342-0 01 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9510-0004 ●
481 TUBE; DIST,INL COVER
EURO2 SPECIFICATION<THN> OD=22 		8-94395-684-0 14 1 0005-0010 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 14 1 0011- ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0005-0010 ●
481 TUBE; DIST,INL COVER
STD CAB(FT**M*) OD=22 		8-94395-684-0 12 1 0011-0112 ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 0201- ●
672 FLANGE; INTAKE PIPE
DOUBLE CAB(FT**W*) 		8-94392-325-0 01 1 0005-0010 ●
672 FLANGE; INTAKE PIPE
EXC. EURO2 SPECIFICATION<THN> 		8-94392-325-0 01 1 0011- ●
672 FLANGE; INTAKE PIPE
DOUBLE CAB(FT**W*) 		8-94392-325-0 01 1 0011- ●
674 BOLT; FLANGE
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512 ●
674 BOLT; FLANGE
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
674 BOLT; FLANGE
DOUBLE CAB(FT**W*) M8X16 FLANGE 		0-28080-816-0 02 1 0005-0512 ●
674 BOLT; FLANGE
DOUBLE CAB(FT**W*) M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
810 HELISERT
EURO2 SPECIFICATION<THN> 		9-09957-008-0 03 1 0005- ●
810 HELISERT
EXC. EURO2 SPECIFICATION<THN> 		9-09957-008-0 05 1 0011- ●
çizim 152429
679 680 693 52 611 284 65 688 167 684 55 496 65 689 284 687 332 686 683 496 284 690 472 691 612 235 691 452 612 517 685 664
BalonParca AdiParca NoAdetTipApplied Date A B C D E
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-597-1 01 1 9510-9611 ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-597-1 01 1 9612-9705 ●
52 PIPE; INL
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94395-597-1 01 1 9706-9802 ●
52 PIPE; INL
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 9803-0004 ●
52 PIPE; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 0005- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) 		8-94395-703-0 01 1 9510-0004 ●
52 PIPE; INL
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (A) 		8-94391-607-4 01 1 0005- ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94392-212-8 01 1 0011-0510 ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-97610-331-0 01 1 0511- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) (B) 		8-97600-779-1 01 1 0005- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
65 BUSHING; SHAFT
EXC. EURO2 SPECIFICATION<THN> 		1-14319-097-0 02 1 0011- ●
167 PLUG; INL MANIF 1-09604-078-0 06 1 9511- ●
167 PLUG; INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		9-09201-314-0 01 1 0011- ●
235 JOINT; INL MANIF
EXC. EURO2 SPECIFICATION<THN> 		1-22199-137-0 01 1 0011- ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9511-9609 ●
284 RUBBER; INL PIPE MTG
(C) 		8-94394-268-1 02 1 9610-0910 ● ●
284 RUBBER; INL PIPE MTG
(C) 		8-98148-109-0 02 1 0911- ● ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (B) ID=19.5 		8-94202-456-3 01 1 0011- ●
284 RUBBER; INL PIPE MTG
EXC. EURO2 SPECIFICATION<THN> (A) OD=23 		8-97105-689-6 04 1 0011- ●
332 SPRING; RETURN
EXC. EURO2 SPECIFICATION<THN> 		1-09583-328-0 01 1 0011- ●
452 CYLINDER ASM; AIR
EURO2 SPECIFICATION<THN> 		1-14370-007-0 06 1 0511- ●
452 CYLINDER ASM; AIR
AUSTRALIA EQUIPMENT(RR3) 		1-14370-007-0 06 1 9510-0004 ●
452 CYLINDER ASM; AIR
EXC. EURO2 SPECIFICATION<THN> 		8-94390-985-1 01 1 0011- ●
472 NUT
EXC. EURO2 SPECIFICATION<THN> M8 		9-09110-408-0 01 1 0011-0512 ●
472 NUT
EXC. EURO2 SPECIFICATION<THN> M8 		0-91110-508-0 01 1 0601- ●
496 PIN; INL MANIF
(C) 		9-08160-512-0 01 1 0603- ●
496 PIN; INL MANIF
EXC. EURO2 SPECIFICATION<THN> (A) 		1-14319-112-0 01 1 0011- ●
496 PIN; INL MANIF
EXC. EURO2 SPECIFICATION<THN> (B) OD=8 L=20 		9-08160-820-0 01 1 0011- ●
517 CONNECTOR; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0011- ●
611 CUP; SEALING,INT DUCT
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (C) OD=18 		5-11219-008-0 02 1 0504-0507 ●
611 CUP; SEALING,INT DUCT
STD CAB(FT**M*) (C) OD=18 		5-11219-008-0 01 1 0005-0503 ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (C) OD=18 		5-11219-008-0 01 1 0504-0507 ●
611 CUP; SEALING,INT DUCT
STD CAB(FT**M*) (C) OD=18 		5-11219-008-0 01 1 0508- ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (A) OD=38 		1-09600-003-0 02 1 0011- ●
611 CUP; SEALING,INT DUCT
EXC. EURO2 SPECIFICATION<THN> (B) OD=25 		1-09600-016-0 01 1 0011- ●
612 BOLT; LINK
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28080-820-0 02 1 0011-0512 ●
612 BOLT; LINK
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28050-820-0 02 1 0601- ●
664 BOLT; AIR CYL
EXC. EURO2 SPECIFICATION<THN> M8X45 FLANGE 		0-28080-845-0 02 1 0011-0512 ●
664 BOLT; AIR CYL
EXC. EURO2 SPECIFICATION<THN> M8X45 FLANGE 		0-28050-845-0 02 1 0601- ●
679 RESONATOR
EXC. EURO2 SPECIFICATION<THN> 		8-94392-836-0 01 1 0011- ●
680 BOLT; RESONATOR
EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 02 1 0011-0512 ●
680 BOLT; RESONATOR
EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
683 PLATE; JOINT
EXC. EURO2 SPECIFICATION<THN> 		8-94390-732-0 01 1 0011- ●
684 BOLT; ADJ
EXC. EURO2 SPECIFICATION<THN> M8X30 		1-09000-112-1 01 1 0011- ●
685 BRACKET; HARNESS
EXC. EURO2 SPECIFICATION<THN> 		8-97600-231-0 01 1 0011- ●
686 COVER; SPR
EXC. EURO2 SPECIFICATION<THN> 		1-09337-028-0 01 1 0011- ●
687 LEVER
EXC. EURO2 SPECIFICATION<THN> 		8-94390-733-0 01 1 0011- ●
688 WASHER; THRUST
EXC. EURO2 SPECIFICATION<THN> ID=10.5 OD=18 		9-09160-510-0 01 1 0011-0605 ●
688 WASHER; THRUST
EXC. EURO2 SPECIFICATION<THN> ID=10.5 		0-91610-510-0 01 1 0606- ●
689 SEAL; OIL
EXC. EURO2 SPECIFICATION<THN> 		9-14319-166-0 01 1 0011- ●
690 NUT; LVR
EXC. EURO2 SPECIFICATION<THN> M10 		9-09110-510-0 01 1 0011-0512 ●
690 NUT; LVR
EXC. EURO2 SPECIFICATION<THN> M10 		0-91110-510-0 01 1 0601- ●
691 COLLAR; LINK
EXC. EURO2 SPECIFICATION<THN> 		1-22199-138-0 02 1 0011- ●
693 CLIP; RESONATOR
EXC. EURO2 SPECIFICATION<THN> ID=48 		9-09915-512-1 01 1 0011- ●
çizim 152472
692 365 379 372 692 379 354 354 361 372 692 361 372 2 581 401 379 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94395-597-1 01 1 9510-9611 ●
52 PIPE; INL
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94395-597-1 01 1 9612-9705 ●
52 PIPE; INL
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94395-597-1 01 1 9706-9802 ●
52 PIPE; INL
STD CAB(FT**M*) AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 9803-0004 ●
52 PIPE; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94395-597-1 01 1 0005- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) 		8-94395-703-0 01 1 9510-0004 ●
52 PIPE; INL
MIDDLE CHASSIS & STD CAB(FT**MF) EURO2 SPECIFICATION<THN> (A) 		8-94391-607-4 01 1 0005- ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-94392-212-8 01 1 0011-0510 ●
52 PIPE; INL
EXC. EURO2 SPECIFICATION<THN> (C) 		8-97610-331-0 01 1 0511- ●
52 PIPE; INL
DOUBLE CAB(FT**W*) (B) 		8-97600-779-1 01 1 0005- ●
354 CLIP; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 0011- ●
354 CLIP; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=7 L=28 		9-09524-655-0 01 1 0011-0606 ●
354 CLIP; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=7 L=28 		0-95234-655-0 01 1 0607- ●
361 BOLT; CLIP
EURO2 SPECIFICATION<THN> (A) M10X12 FLANGE 		0-28081-012-0 01 1 0005-0010 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28081-012-0 01 1 0011-0512 ●
361 BOLT; CLIP
(A) M10X12 FLANGE 		0-28051-012-0 01 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28080-812-0 02 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512 ●
361 BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) (C) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
365 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91150-108-0 01 1 0011-0602 ●
365 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
372 CLIP; HOSE
(E) ID=86 		9-09915-592-0 02 1 0603- ●
372 CLIP; HOSE
EURO2 SPECIFICATION<THN> (A) 		1-11369-115-0 01 1 0005-0010 ●
372 CLIP; HOSE
(A) 		1-11369-115-0 01 1 0011-1506 ●
372 CLIP; HOSE
(A) 		8-98303-447-0 01 1 1507- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 H=20 L=25 		1-09700-848-0 02 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (C) ID=10 & 10 		1-09709-277-1 01 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (D) ID=10 & 12 		8-94155-296-0 01 1 0011- ●
379 HOSE; FLEX
NEW ZEALAND EQUIPMENT(PK5) (A) L=300 		1-09363-611-0 01 1 0011- ●
379 HOSE; FLEX
NEW ZEALAND EQUIPMENT(PK5) (B) L=250 		1-09363-618-0 01 1 0011- ●
379 HOSE; FLEX
NEW ZEALAND EQUIPMENT(PK5) (C) L=960 		1-09363-679-0 01 1 0011- ●
401 CLIP; BAND
NEW ZEALAND EQUIPMENT(PK5) L=250 		5-09707-030-1 01 1 0011- ●
581 SLEEVE; RUBBER
NEW ZEALAND EQUIPMENT(PK5) ID=10 OD=14 L=30 		9-09956-682-0 01 1 0011- ●
692 PIPE; AIR,MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-49119-096-0 01 1 0011- ●
692 PIPE; AIR,MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49121-310-0 01 1 0011-0103 ●
692 PIPE; AIR,MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-49121-585-0 01 1 0104- ●
692 PIPE; AIR,MAG VLV
NEW ZEALAND EQUIPMENT(PK5) (C) 		1-49121-311-0 01 1 0011- ●
çizim 152495
50 55 372 333 372 324 50 2 32 32 55 496 353 32 75 32 75 32 228 228 7 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 COVER; INL
(G) 		8-94395-825-2 01 1 0603- ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (F) 		8-97602-255-0 01 1 0511- ●
2 COVER; INL
AUSTRALIA EQUIPMENT(RR3) (B) 		8-94395-532-2 01 1 9510-0004 ●
2 COVER; INL
EURO2 SPECIFICATION<THN> (E) 		8-94395-823-1 01 1 0005- ●
2 COVER; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 9803-0004 ●
2 COVER; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94395-960-0 01 1 0005- ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94395-960-0 01 1 9510-9611 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94395-960-0 01 1 9612-9612 ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94395-960-0 01 1 9701-9802 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1) (B) 		8-94395-899-0 01 1 9510-9611 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ) (B) 		8-94395-899-0 01 1 9612-9702 ●
2 COVER; INL
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) 		8-94395-899-0 01 1 9701-9802 ●
2 COVER; INL
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) 		8-94395-899-1 01 1 9803- ●
2 COVER; INL
(C) 		8-94394-301-5 01 1 9511- ●
2 COVER; INL
(C) 		8-94391-107-2 01 1 9610- ●
2 COVER; INL
EXC. EURO2 SPECIFICATION<THN> (D) 		8-94392-317-2 01 1 0011- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-775-0 01 1 0603- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9510-9609 ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9610- ● ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94395-841-0 01 1 0005- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-319-0 01 1 0011- ●
32 STUD; INL PIPE
(C) M8X25 L=37 		9-04110-825-0 05 1 0603-0604 ●
32 STUD; INL PIPE
(C) M8X25 L=37 		0-41010-825-0 05 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9510-9510 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9511-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9612-9702 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9703-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 04 1 0005-0210 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		9-04110-625-0 04 1 0211-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (A) M6X25 L=34 		0-41010-625-0 04 1 0605- ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9510-9611 ●
32 STUD; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8X20 L=32 		9-04110-820-0 05 1 9612-9705 ●
32 STUD; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (B) M8X20 L=32 		9-04110-820-0 05 1 9706-9802 ●
32 STUD; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 9803-0004 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		9-04110-820-0 05 1 0005-0604 ●
32 STUD; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M8X20 L=32 		0-41010-820-0 05 1 0605- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9511-9609 ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 9610-0811 ● ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(C) M10X20 L=35 		9-04411-020-0 04 1 0812- ●
32 STUD; INL PIPE
(A) M6X25 L=34 		9-04110-625-0 03 1 9610-9705 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 9706-0510 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
(A) M6X30 L=38 		9-04110-630-0 03 1 0511-0604 ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
(A) M6X30 L=38 		0-41010-630-0 03 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (B) M6X30 L=38 		9-04110-630-0 04 1 0005-0010 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		9-04110-630-0 04 1 0011-0604 ●
32 STUD; INL PIPE
(B) M6X30 L=38 		0-41010-630-0 04 1 0605- ●
32 STUD; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8X30 L=41 		9-04110-830-0 03 1 0005-0010 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		9-04110-830-0 03 1 0011-0604 ●
32 STUD; INL PIPE
(A) M8X30 L=41 		0-41010-830-0 03 1 0605- ●
50 PIPE; INL
(C) 		8-94390-319-2 01 1 0603- ●
50 PIPE; INL
(B) 		8-94392-850-2 01 1 0603- ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (A) 		8-94397-063-2 01 1 9510-9611 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (A) 		8-94397-063-2 01 1 9612-9612 ●
50 PIPE; INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SING APORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9701-9705 ●
50 PIPE; INL
EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (A) 		8-94397-063-2 01 1 9706-9802 ●
50 PIPE; INL
EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 9803-0004 ●
50 PIPE; INL
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		8-94397-063-2 01 1 0005- ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9511-9609 ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9610-9612 ● ●
50 PIPE; INL
(A) 		8-94394-400-1 01 1 9701- ●
50 PIPE; INL
(A) 		8-94391-478-1 01 1 9701-0001 ●
50 PIPE; INL
(A) 		8-97601-301-0 01 1 0002- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91150-108-0 05 1 0603-0603 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
(C) M8 FLANGE 		0-91180-108-0 05 1 0603- ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 0005-0602 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91150-208-0 01 1 0603-0603 ●
55 NUT; INL PIPE
(D) M8 FLANGE 		0-91180-208-0 01 1 0603- ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9510-9611 ●
55 NUT; INL PIPE
THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) (C) M8 FLANGE 		0-91150-108-0 05 1 9612-9705 ●
55 NUT; INL PIPE
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) (C) M8 FLANGE 		0-91150-108-0 05 1 9706-9802 ●
55 NUT; INL PIPE
AUSTRALIA EQUIPMENT(RR3) (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M8 FLANGE 		0-91150-108-0 05 1 9803-0004 ●
55 NUT; INL PIPE
EURO2 SPECIFICATION<THN> (A) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		9-09111-508-0 01 1 0011-0512 ●
55 NUT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> (B) M8 		0-91111-508-0 01 1 0601- ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9511-9609 ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9610-9802 ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9511-9609 ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9610-9802 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91150-110-0 04 1 9803-0602 ● ●
55 NUT; INL PIPE
(A) M10 FLANGE 		0-91180-110-0 04 1 0603- ● ●
55 NUT; INL PIPE
(B) M8 		9-09110-408-0 03 1 9803-0512 ● ●
55 NUT; INL PIPE
(B) M8 		0-91110-508-0 03 1 0601- ● ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91150-108-0 03 1 0011-0602 ●
55 NUT; INL PIPE
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 9610-0510 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0511-0602 ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		9-04411-025-0 02 1 0603-0604 ● ●
75 STUD; BRKT,AIR PIPE
EURO2 SPECIFICATION<THN> M10X25 L=40 		0-44011-025-0 02 1 0605- ●
75 STUD; BRKT,AIR PIPE
M10X25 L=40 		0-44011-025-0 02 1 0605- ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 02 1 0603-0604 ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 02 1 0605- ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9511-9609 ●
228 STUD; INL COVER
(A) M8X16 L=28 		9-04110-816-0 06 1 9610-0604 ● ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0605-0811 ● ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(A) M8X16 L=28 		0-41010-816-0 06 1 0812- ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
(B) M8X25 L=37 		9-04110-825-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(B) M8X25 L=37 		0-41010-825-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 9610-0510 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
(C) M8X40 L=52 		9-04110-840-0 01 1 0511-0604 ●
228 STUD; INL COVER
EURO2 SPECIFICATION<THN> (C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
228 STUD; INL COVER
(C) M8X40 L=52 		0-41010-840-0 01 1 0605- ●
323 BOLT; DUCT
M8X25 FLANGE 		0-28650-825-0 14 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AUSTRALIA EQUIPMENT(RR3),EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94399-417-0 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94399-417-0 01 1 9608-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94399-417-0 01 1 9612-9612 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94399-417-0 01 1 9701-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9510-9611 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) 		8-94394-141-0 01 1 9612-9705 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) 		8-94394-141-0 01 1 9706-9802 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AUSTRALIA EQUIPMENT(RR3) 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 9803-0004 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		8-94394-141-0 01 1 0005-0602 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EMISSION SYSTEM ECE REQUIREMENTS<SFV> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94394-141-0 01 1 0603- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9511-9609 ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6 		1-09623-505-0 02 1 9610- ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> 		8-94392-243-2 01 1 0005- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN> 		8-94392-573-0 02 1 0011- ●
333 HOSE; RUBBER,INL PIPE 1-09360-600-0 01 1 0603- ●
353 PIPE; AIR,BOOST
(C) 		8-97010-495-0 01 1 0603- ●
353 PIPE; AIR,BOOST
(A) 		8-94394-439-0 01 1 9511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 9610-0510 ●
353 PIPE; AIR,BOOST
EURO2 SPECIFICATION<THN> (B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
353 PIPE; AIR,BOOST
(B) PT1/4 ELBOW 		8-94221-562-0 01 1 0511- ●
372 CLIP; HOSE
(E) ID=86 		9-09915-592-0 02 1 0603- ●
372 CLIP; HOSE
EURO2 SPECIFICATION<THN> (A) 		1-11369-115-0 01 1 0005-0010 ●
372 CLIP; HOSE
(A) 		1-11369-115-0 01 1 0011-1506 ●
372 CLIP; HOSE
(A) 		8-98303-447-0 01 1 1507- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (B) ID=11 H=20 L=25 		1-09700-848-0 02 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (C) ID=10 & 10 		1-09709-277-1 01 1 0011- ●
372 CLIP; HOSE
NEW ZEALAND EQUIPMENT(PK5) (D) ID=10 & 12 		8-94155-296-0 01 1 0011- ●
496 PIN; INL MANIF
(C) 		9-08160-512-0 01 1 0603- ●
496 PIN; INL MANIF
EXC. EURO2 SPECIFICATION<THN> (A) 		1-14319-112-0 01 1 0011- ●
496 PIN; INL MANIF
EXC. EURO2 SPECIFICATION<THN> (B) OD=8 L=20 		9-08160-820-0 01 1 0011- ●
çizim 152501
201 200 200 53 201 587 587 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
M8X35 FLANGE 		0-28650-835-0 01 1 0603- ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) M8X12 FLANGE 		0-28080-812-0 04 1 9510-9611 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ) M8X12 FLANGE 		0-28080-812-0 04 1 9612-9705 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(SEQ),SINGAPORE EQUIPMENT(WQ3) M8X12 FLANGE 		0-28080-812-0 04 1 9706-9802 ●
53 BOLT; INL PIPE
STD CAB(FT**M*) M8X12 FLANGE 		0-28080-812-0 04 1 9803-0004 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28080-812-0 04 1 0005-0512 ●
53 BOLT; INL PIPE
M8X12 FLANGE 		0-28050-812-0 04 1 0601-1006 ●
53 BOLT; INL PIPE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> M8X12 FLANGE 		0-28050-812-0 04 1 1007- ●
53 BOLT; INL PIPE
DOUBLE CAB(FT**W*) M8X22 FLANGE 		0-28080-822-0 02 1 9510-0004 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28680-830-0 01 1 0005-0512 ●
53 BOLT; INL PIPE
EURO2 SPECIFICATION<THN> M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9511-0512 ●
53 BOLT; INL PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28680-835-0 01 1 0011-0512 ●
53 BOLT; INL PIPE
EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE 		0-28650-835-0 01 1 0601-0602 ●
53 BOLT; INL PIPE
M10X35 FLANGE 		0-28651-035-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(C) 		8-97601-726-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(D) 		8-97601-818-0 01 1 0603- ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9610-9812 ● ●
200 BRACKET; AIR DUCT
(B) 		8-94390-088-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9511-9609 ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9610-9802 ● ●
200 BRACKET; AIR DUCT
(B) 		8-97600-201-0 01 1 9901- ●
200 BRACKET; AIR DUCT
(A) 		8-94394-312-1 01 1 9803- ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9511-9609 ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28080-816-0 05 1 9610-0512 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0601-0602 ● ●
201 BOLT; BRKT,AIR DUCT
M8X16 FLANGE 		0-28050-816-0 05 1 0603- ● ● ●
587 MOUNTING; INTAKE DUCT
(C) OD=32 		8-94395-766-0 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(B) OD=23 		8-97105-689-6 01 1 0603- ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9511-9609 ●
587 MOUNTING; INTAKE DUCT
(A) 		8-94395-966-0 13 1 9610- ● ●
587 MOUNTING; INTAKE DUCT
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94395-966-0 02 1 0011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
