0-22 — ENGINE MOUNTING (#38787) — 132 parça

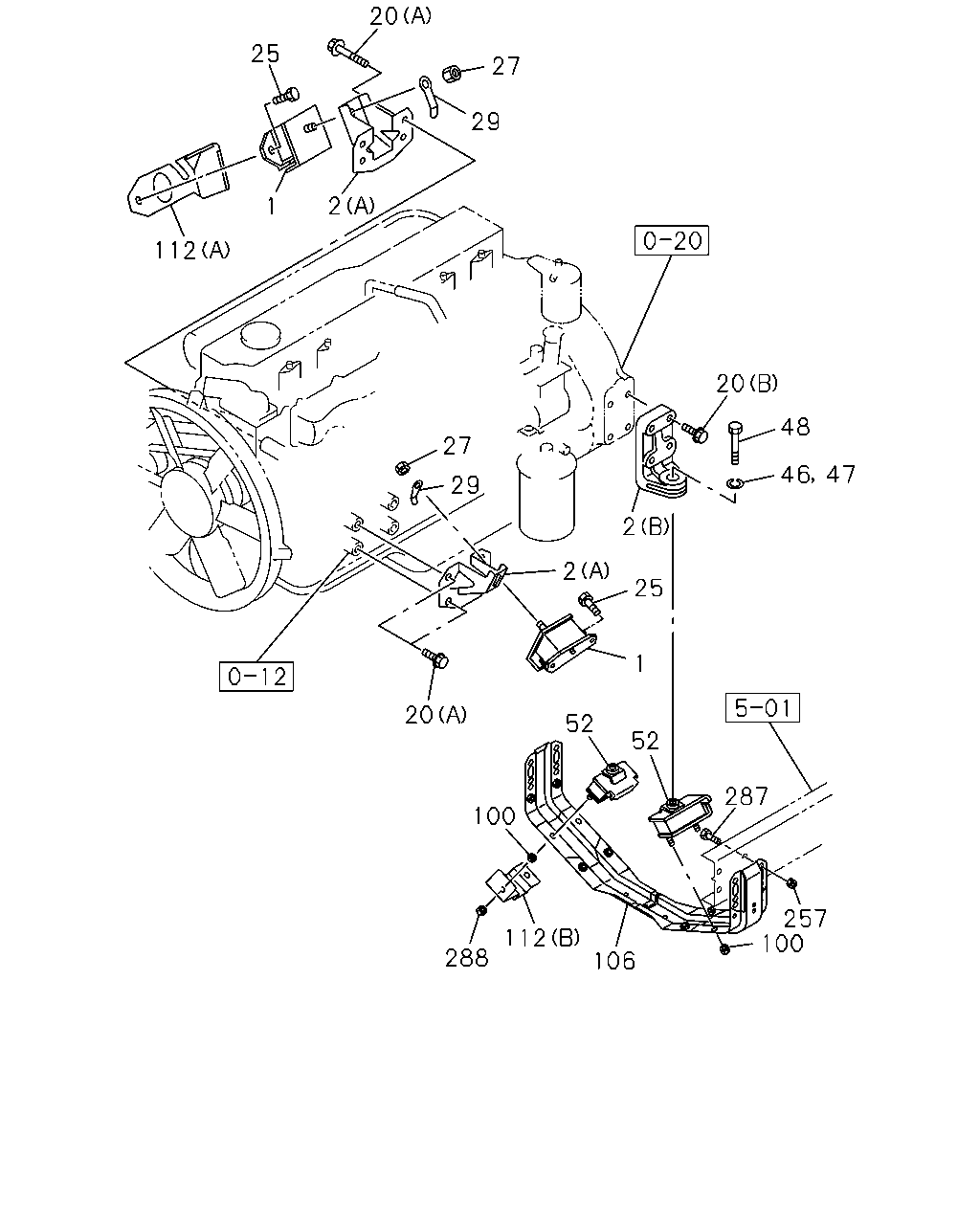

çizim 152278
20 25 27 29 2 1 112 20 48 27 46 47 29 2 2 25 1 20 52 52 287 100 257 100 112 288 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 9510-0004 ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0005-0601 ● ● ● ●
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 0602- ● ● ● ● ●
2 FOOT; ENG
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (B) 		8-94394-111-1 01 1 9608-0004 ●
2 FOOT; ENG
A/T<X9D> EXC. FLYWHEEL HOUSING FC<E1R> (B) 		8-94394-110-2 01 1 9608-0004 ●
2 FOOT; ENG
ISUZU M/T<X9A> (B) 		8-94394-543-1 01 1 9608-9911 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9608-9911 ● ●
2 FOOT; ENG
14" CLUTCH(WF6) (B) 		8-94394-543-1 01 1 9912-0004 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9912-0004 ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0005-0010 ● ● ● ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-543-1 01 1 0011-0107 ● ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 		8-94394-543-1 01 1 0011-0107 ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0011-0107 ● ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-543-1 01 1 0108-0108 ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0108-0108 ● ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 		8-94394-543-1 01 1 0108-0108 ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-543-1 01 1 0109-0510 ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0109-0510 ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0511-0602 ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0603-0803 ● ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 0804- ● ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-543-1 01 1 9510-9607 ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9510-9607 ● ●
2 FOOT; ENG
ISUZU M/T<X9A> (B) 		8-94394-544-2 01 1 9608-9911 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9608-9911 ● ●
2 FOOT; ENG
14" CLUTCH(WF6) (B) 		8-94394-544-2 01 1 9912-0004 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 9912-0004 ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0005-0010 ● ● ● ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-544-2 01 1 0011-0107 ● ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 		8-94394-544-2 01 1 0011-0107 ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0011-0107 ● ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-544-2 01 1 0108-0108 ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0108-0108 ● ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B) 		8-94394-544-2 01 1 0108-0108 ●
2 FOOT; ENG
STD CAB(FT**M*) (B) 		8-94394-544-2 01 1 0109-0510 ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0109-0510 ● ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0511-0602 ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0603-0803 ● ● ● ● ●
2 FOOT; ENG
(B) 		8-94394-544-2 01 1 0804- ● ● ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9510-0004 ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0005-0010 ● ● ● ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		8-94393-491-0 02 1 0011-0101 ● ●
2 FOOT; ENG
STD CAB(FT**M*) (A) 		8-94393-491-0 02 1 0011-0101 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0011-0101 ● ●
2 FOOT; ENG
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) 		8-94393-491-0 02 1 0011-0101 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0102-0107 ● ● ●
2 FOOT; ENG
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) 		8-94393-491-0 02 1 0102-0107 ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) (A) 		8-94393-491-0 02 1 0102-0107 ●
2 FOOT; ENG
STD CAB(FT**M*) (A) 		8-94393-491-0 02 1 0108-0108 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0108-0108 ● ●
2 FOOT; ENG
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) 		8-94393-491-0 02 1 0108-0108 ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		8-94393-491-0 02 1 0108-0108 ●
2 FOOT; ENG
STD CAB(FT**M*) (A) 		8-94393-491-0 02 1 0109-0207 ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 0109-0207 ● ●
2 FOOT; ENG
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) 		8-94393-491-0 02 1 0109-0207 ●
2 FOOT; ENG
DOUBLE CAB(FT**W*) (A) 		8-94393-491-0 02 1 0109-0207 ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0208-0602 ● ● ● ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0603- ● ● ● ● ●
2 FOOT; ENG
EXC. EURO2 SPECIFICATION<THN> (A) 		8-94392-141-1 02 1 0011-0207 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9510-0004 ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0005-0010 ● ● ● ●
20 BOLT; ENG FOOT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0011-0101 ● ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0011-0101 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0011-0101 ● ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) M10X20 FLANGE 		8-94395-721-0 08 1 0011-0101 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0102-0107 ● ● ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) M10X20 FLANGE 		8-94395-721-0 08 1 0102-0107 ●
20 BOLT; ENG FOOT
DOUBLE CAB(FT**W*) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0102-0107 ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0108-0108 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0108-0108 ● ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) M10X20 FLANGE 		8-94395-721-0 08 1 0108-0108 ●
20 BOLT; ENG FOOT
DOUBLE CAB(FT**W*) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0108-0108 ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0109-0207 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0109-0207 ● ●
20 BOLT; ENG FOOT
STD CAB(FT**M*) EURO2 SPECIFICATION<THN> (A) M10X20 FLANGE 		8-94395-721-0 08 1 0109-0207 ●
20 BOLT; ENG FOOT
DOUBLE CAB(FT**W*) (A) M10X20 FLANGE 		8-94395-721-0 08 1 0109-0207 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0208-0602 ● ● ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0603- ● ● ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9510-0004 ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0005-0602 ● ● ● ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0603- ● ● ● ● ●
20 BOLT; ENG FOOT
EXC. EURO2 SPECIFICATION<THN> (A) M10X30 		8-97011-732-0 08 1 0011-0207 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X30 FLANGE 		0-28081-230-0 04 1 9510-9606 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9607-0004 ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0512 ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601-0601 ● ● ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0602- ● ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9510-9606 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9607-0004 ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9510-0004 ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005-0601 ● ● ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0602- ● ● ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010-0601 ● ● ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0602- ● ● ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9510-0004 ● ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0005-0009 ● ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9510-0004 ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0512 ● ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601-0601 ● ● ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0602- ● ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 9510-0004 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0005-0601 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-314-1 01 1 0602- ● ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 9510-0004 ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0005-0601 ● ● ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-313-1 01 1 0602- ● ● ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9510-0004 ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ● ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ● ● ● ●
106 MEMBER; MTG,RR 1-53221-192-0 01 1 9510-0004 ● ● ●
106 MEMBER; MTG,RR 1-53221-192-0 01 1 0005-0601 ● ● ● ●
106 MEMBER; MTG,RR 1-53221-192-0 01 1 0602- ● ● ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9510-0004 ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005-0601 ● ● ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0602- ● ● ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9510-0004 ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005-0601 ● ● ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0602- ● ● ● ● ●
257 NUT; MEMBER
M12 		9-99110-512-0 08 1 9510-9606 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 9607-0004 ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ● ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ● ● ●
287 BOLT; MEMBER
M12X35 FLANGE 		0-28081-235-0 08 1 9510-9606 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 9607-0004 ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0512 ● ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601-0601 ● ● ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0602- ● ● ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 9510-0004 ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ● ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ● ● ● ●
