Isuzu WW
▶
TRUCKS
▶
FTR
▶
10702 - FTR(RHD)EXC. EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶
0-10 — CYLINDER HEAD COVER
(#38780) — 119 parça
Tümü
A - 6HK1 TCC ENG
B - 6HE1 TC ENG
C - 6HH1 STD ENG
D - 6HE1 TCC ENG
E - 6HH1 STD 4VALVE ENG
◀

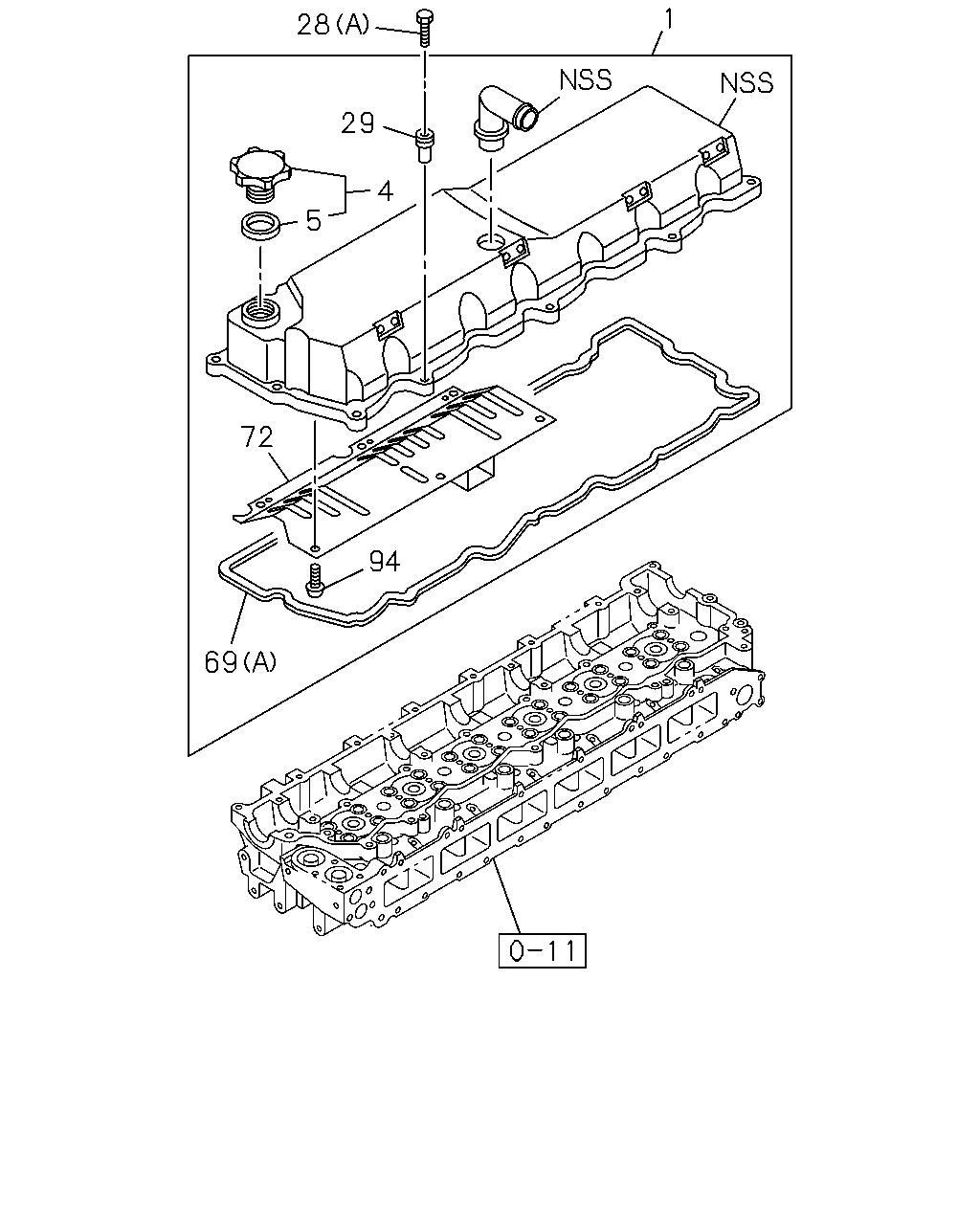

[010A] 6HH1 STD 4VALVE (36 parça)

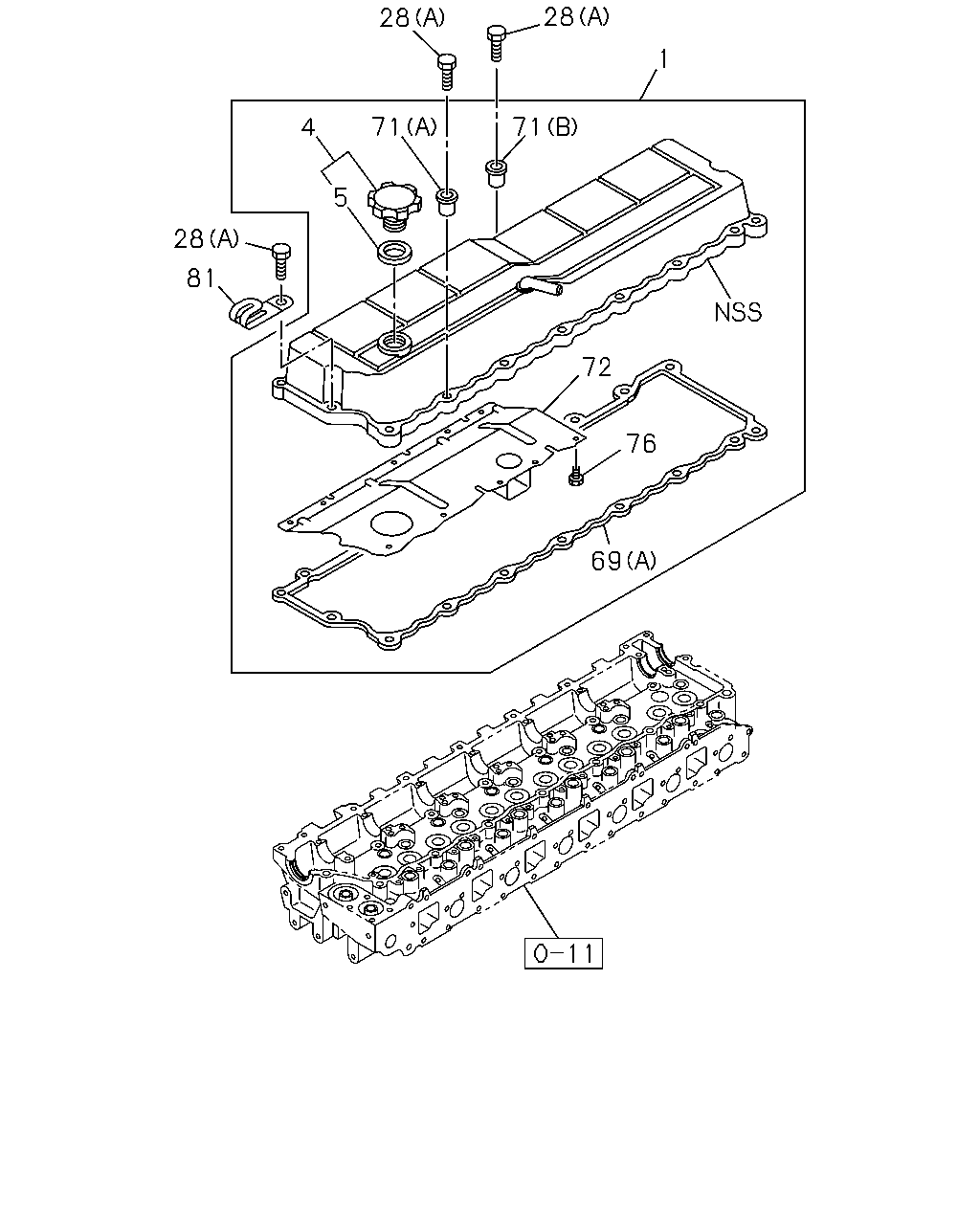

[010A] 6HH1 STD,6HE1 (37 parça)

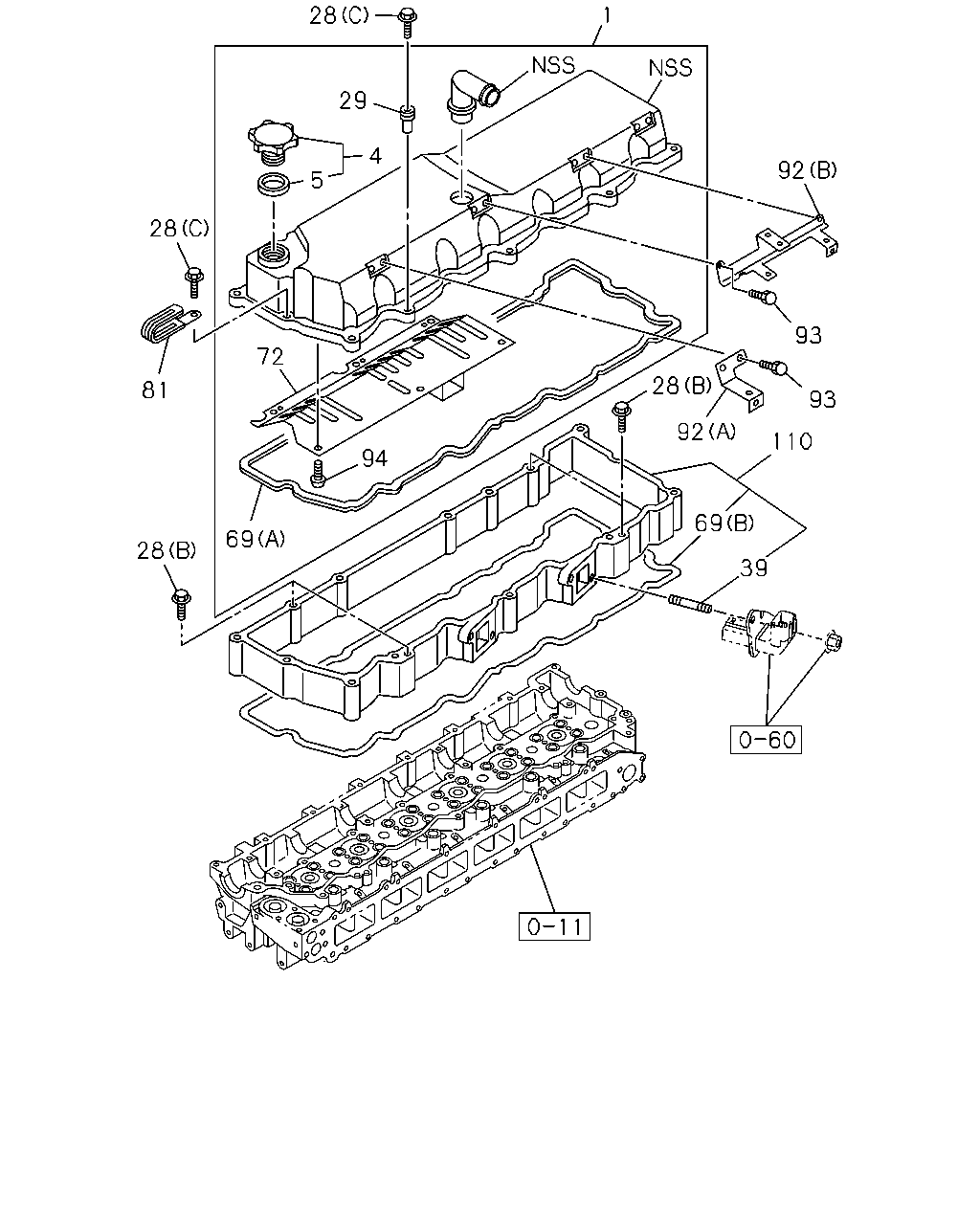

[010A] 6HK1 (46 parça)
▶
1
28
29
4
5
72
94
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
COVER; CYL HD
8-94392-657-5
01
1
0603-1112
●
1
COVER; CYL HD
8-98208-876-0
01
1
1201-
●
1
COVER; CYL HD
8-94394-862-2
01
1
9510-
●
●
●
1
COVER; CYL HD
EURO2 SPECIFICATION<THN>
8-94392-656-1
01
1
0005-0010
●
1
COVER; CYL HD
8-94392-656-4
01
1
0011-1112
●
1
COVER; CYL HD
8-98208-875-0
01
1
1201-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9510-0004
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0005-0602
●
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0603-
●
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9510-0004
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0005-0602
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0603-
●
●
●
●
●
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
0603-
●
28
BOLT; HD COVER
(C) M8X70 FLANGE
0-28050-870-0
11
1
0603-
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28280-835-0
19
1
9510-9812
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
19
1
9901-0512
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
19
1
0601-
●
●
●
28
BOLT; HD COVER
EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE
0-28680-835-0
11
1
0005-0010
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
11
1
0011-0512
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
11
1
0601-
●
29
RUBBER; MTG,HD COVER
EURO2 SPECIFICATION<THN>
8-94392-097-0
11
1
0005-0010
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0011-0602
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0603-
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
0603-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94396-383-0
01
1
9510-
●
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A)
8-94391-379-0
01
1
0005-0010
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0011-0602
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0603-
●
●
72
PLATE; INNER HD COVER
8-94393-609-1
01
1
9510-
●
●
●
72
PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN>
8-94392-655-0
01
1
0005-0010
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0011-0602
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0603-
●
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
EURO2 SPECIFICATION<THN> M4X8
9-03800-408-0
06
1
0005-0010
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
9-03800-408-0
06
1
0011-0602
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
9-03800-408-0
06
1
0603-0604
●
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
0605-
●
●
28
28
1
71
71
4
5
28
81
72
76
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
COVER; CYL HD
8-94392-657-5
01
1
0603-1112
●
1
COVER; CYL HD
8-98208-876-0
01
1
1201-
●
1
COVER; CYL HD
8-94394-862-2
01
1
9510-
●
●
●
1
COVER; CYL HD
EURO2 SPECIFICATION<THN>
8-94392-656-1
01
1
0005-0010
●
1
COVER; CYL HD
8-94392-656-4
01
1
0011-1112
●
1
COVER; CYL HD
8-98208-875-0
01
1
1201-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9510-0004
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0005-0602
●
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0603-
●
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9510-0004
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0005-0602
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0603-
●
●
●
●
●
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
0603-
●
28
BOLT; HD COVER
(C) M8X70 FLANGE
0-28050-870-0
11
1
0603-
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28280-835-0
19
1
9510-9812
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
19
1
9901-0512
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
19
1
0601-
●
●
●
28
BOLT; HD COVER
EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE
0-28680-835-0
11
1
0005-0010
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
11
1
0011-0512
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
11
1
0601-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
0603-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94396-383-0
01
1
9510-
●
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A)
8-94391-379-0
01
1
0005-0010
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0011-0602
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0603-
●
●
71
COLLAR; HD COVER
(A) OD=12.3
8-94396-971-1
18
1
9510-
●
●
●
71
COLLAR; HD COVER
(B) OD=11
8-94396-972-1
01
1
9510-
●
●
●
72
PLATE; INNER HD COVER
8-94393-609-1
01
1
9510-
●
●
●
72
PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN>
8-94392-655-0
01
1
0005-0010
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0011-0602
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0603-
●
●
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71180-412-0
07
1
9510-0603
●
●
●
76
SCREW; INNER PLATE
M4X12 TAPPING
0-71240-412-0
07
1
0604-
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
9510-0009
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
0010-0602
●
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
0603-0801
●
●
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
●
●
●
●
●
28
1
29
4
92
5
28
93
72
28
81
93
92
110
94
69
69
28
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
COVER; CYL HD
8-94392-657-5
01
1
0603-1112
●
1
COVER; CYL HD
8-98208-876-0
01
1
1201-
●
1
COVER; CYL HD
8-94394-862-2
01
1
9510-
●
●
●
1
COVER; CYL HD
EURO2 SPECIFICATION<THN>
8-94392-656-1
01
1
0005-0010
●
1
COVER; CYL HD
8-94392-656-4
01
1
0011-1112
●
1
COVER; CYL HD
8-98208-875-0
01
1
1201-
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
9510-0004
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0005-0602
●
●
●
●
4
CAP; OIL FILLER
8-94399-723-0
01
1
0603-
●
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
9510-0004
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0005-0602
●
●
●
●
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
0603-
●
●
●
●
●
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
0603-
●
28
BOLT; HD COVER
(C) M8X70 FLANGE
0-28050-870-0
11
1
0603-
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28280-835-0
19
1
9510-9812
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
19
1
9901-0512
●
●
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
19
1
0601-
●
●
●
28
BOLT; HD COVER
EURO2 SPECIFICATION<THN> (A) M8X35 FLANGE
0-28680-835-0
11
1
0005-0010
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28680-835-0
11
1
0011-0512
●
28
BOLT; HD COVER
(A) M8X35 FLANGE
0-28650-835-0
11
1
0601-
●
29
RUBBER; MTG,HD COVER
EURO2 SPECIFICATION<THN>
8-94392-097-0
11
1
0005-0010
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0011-0602
●
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
0603-
●
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
04
1
0603-1011
●
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1012-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
0603-
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94396-383-0
01
1
9510-
●
●
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A)
8-94391-379-0
01
1
0005-0010
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0011-0602
●
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
0603-
●
●
72
PLATE; INNER HD COVER
8-94393-609-1
01
1
9510-
●
●
●
72
PLATE; INNER HD COVER
EURO2 SPECIFICATION<THN>
8-94392-655-0
01
1
0005-0010
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0011-0602
●
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
0603-
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
9510-0009
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
0010-0602
●
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-94225-185-0
01
1
0603-0801
●
●
●
●
●
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
01
1
0802-
●
●
●
●
●
92
BRACKET; CLIP
(A)
8-94391-313-0
01
1
0603-
●
92
BRACKET; CLIP
(B)
8-94392-143-3
01
1
0603-
●
93
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
04
1
0603-
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
EURO2 SPECIFICATION<THN> M4X8
9-03800-408-0
06
1
0005-0010
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
9-03800-408-0
06
1
0011-0602
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
9-03800-408-0
06
1
0603-0604
●
●
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
0605-
●
●
110
COVER; CYL HEAD LWR
8-94390-862-3
01
1
0603-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
