Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#3878) — 310 parça

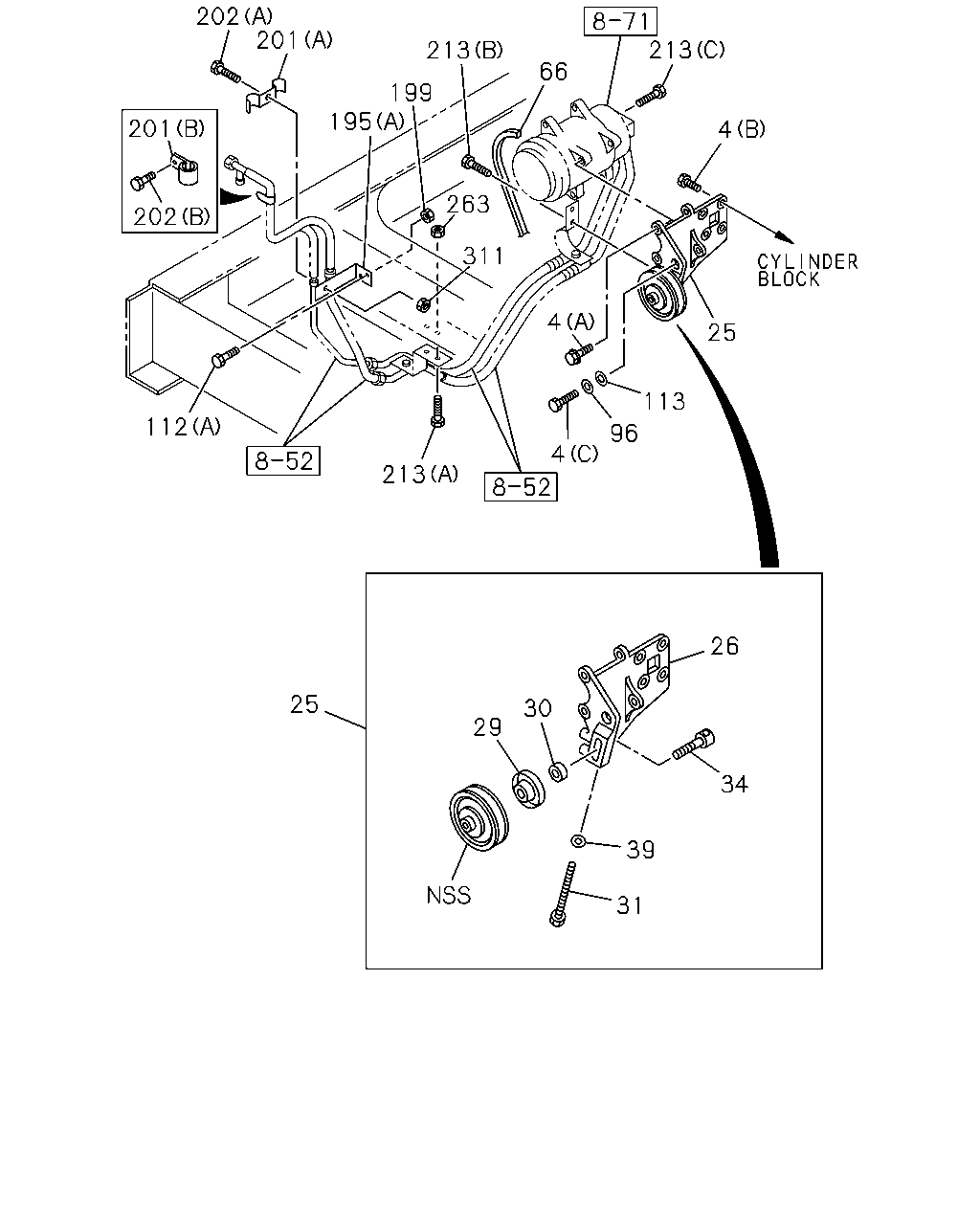

202 201 213 199 195 66 213 4 4 311 263 112 213 4 96 113 25 29 30 26 34 39 31 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	9601-9803	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	9804-0004		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0005-0210		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28181-040-0	04	1	0211-0512	●	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X40 FLANGE	0-28151-040-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	9601-9803	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	9804-0004		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0005-0210		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50041-040-0	04	1	0211-0512	●	●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X40 W/LK WASHER	0-50541-040-0	04	1	0601-	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	9601-9803	●	●
4	BOLT; A/C CMPR BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	9804-0004		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0005-0210		●
4	BOLT; A/C CMPR BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X135	1-09020-090-0	01	1	0211-	●	●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0407-0703	●	●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0704-	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-94399-957-0	01	1	0704-	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9601-9803	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9804-0004		●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210		●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-	●	●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9601-9803		●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9804-0004		●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0005-0006		●
26	BRACKET; IDLE PULLEY,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	9601-9803	●	●
26	BRACKET; IDLE PULLEY,A/C 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	9804-0004		●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0005-0210		●
26	BRACKET; IDLE PULLEY,A/C 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-708-0	01	1	0211-	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9601-9803		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9804-9908		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9909-0004	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0006		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0007-0210		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0406	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0407-0703	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0704-	●	●
29	COVER; DUST,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	9-13369-603-0	01	1	0704-	●	●
30	COLLAR; IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9601-9803		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9804-9908		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9909-0004	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0006		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0007-0210		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0406	●	●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0407-0703	●	●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0704-	●	●
30	COLLAR; IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-144-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0407-0703	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-143-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9601-9803	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9804-0004		●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210		●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9601-9803		●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9804-0004		●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0005-0006		●
34	SHAFT; IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9601-9803		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9804-9908		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9909-0004	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0006		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0007-0210		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0406	●	●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0407-0703	●	●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0704-	●	●
34	SHAFT; IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-236-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0407-0703	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ID=8.2	9-09150-608-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9601-9803	●	●
39	WASHER; LK,ADJ BOLT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9804-0004		●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210		●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9601-9803		●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9804-0004		●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0005-0006		●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=1110	8-94395-172-0	01	1	0704-	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0407-1402	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077	8-98253-452-0	01	1	1403-	●	●
66	BELT; A/C CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9601-9803	●	●
66	BELT; A/C CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9804-0004		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-	●	●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	9804-0004		●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	9601-0006		●
96	WASHER; LK 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	9601-9803	●	●
96	WASHER; LK 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	9804-0004		●
96	WASHER; LK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0005-0210		●
96	WASHER; LK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	9-09150-510-0	01	1	0211-0603	●	●
96	WASHER; LK 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2	0-91510-510-0	01	1	0604-	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0607	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0608-0703	●	●
112	BOLT; STAY 6HK1 TCC ENG(81L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0608-0703		●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-	●	●
112	BOLT; STAY 6HK1 TCC ENG(81L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-		●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9709		●
112	BOLT; STAY 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9803	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9803		●
112	BOLT; STAY 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9901	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9901		●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9902-0004		●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0005-0006		●
113	WASHER; PL,BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	9601-9803	●	●
113	WASHER; PL,BRKT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	9804-0004		●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0005-0210		●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=18	9-09160-510-0	01	1	0211-0605	●	●
113	WASHER; PL,BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5	0-91610-510-0	01	1	0606-	●	●
195	STAY; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-47475-427-1	01	1	0710-		●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-896-0	01	1	9601-1004	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98151-192-0	01	1	1005-	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9601-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9709-0606	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0512	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0709	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	9709-0512	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9806-9806	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9807-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0005-0403	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28681-035-0	01	1	0404-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-0607	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0608-	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0608-		●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9601-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28051-045-0	01	1	0601-	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9703-0602	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-0608	●	●
263	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0609-	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-0602	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

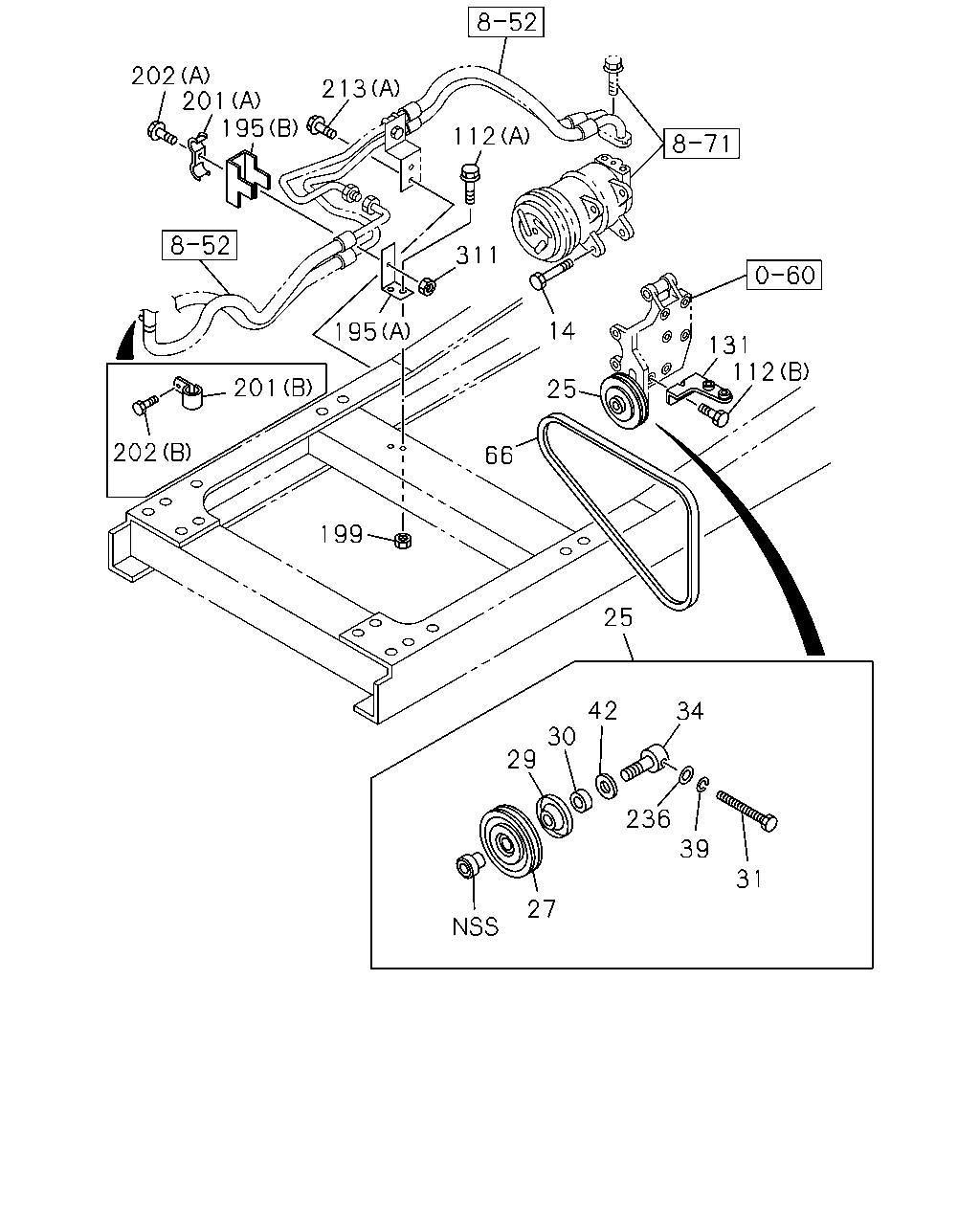

202 201 195 213 112 311 195 201 202 199 66 25 14 131 112 25 42 34 30 29 236 39 31 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	02	1	0407-0512	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28051-045-0	02	1	0601-0703	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28051-045-0	02	1	0704-	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> M10X45 FLANGE	0-28051-045-0	02	1	0704-	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	02	1	0407-0512	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28651-035-0	02	1	0601-0703	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28651-035-0	02	1	0704-	●	●
14	BOLT; CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> M10X35 FLANGE	0-28651-035-0	02	1	0704-	●	●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	02	1	9601-9803		●
14	BOLT; CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	02	1	9804-0004		●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X45 FLANGE	0-28081-045-0	02	1	0005-0006		●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	02	1	9601-9803		●
14	BOLT; CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	02	1	9804-0004		●
14	BOLT; CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) M10X35 FLANGE	0-28681-035-0	02	1	0005-0006		●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0407-0703	●	●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0704-	●	●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-94399-957-0	01	1	0704-	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9601-9803	●	●
25	PULLEY ASM; IDLER,CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	9804-0004		●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0005-0210		●
25	PULLEY ASM; IDLER,CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83570-021-0	01	1	0211-	●	●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9601-9803		●
25	PULLEY ASM; IDLER,CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	9804-0004		●
25	PULLEY ASM; IDLER,CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94399-957-0	01	1	0005-0006		●
27	PULLEY; IDLE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	0407-0703	●	●
27	PULLEY; IDLE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	0704-	●	●
27	PULLEY; IDLE,A/C 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-116-0	01	1	0704-	●	●
27	PULLEY; IDLE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	9601-9803		●
27	PULLEY; IDLE,A/C 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	9804-0004		●
27	PULLEY; IDLE,A/C 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-116-0	01	1	0005-0006		●
29	COVER; DUST,IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9601-9803		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9804-9908		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	9909-0004	●	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0005-0006		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0007-0210		●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0211-0406	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0407-0703	●	●
29	COVER; DUST,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	9-13369-603-0	01	1	0704-	●	●
29	COVER; DUST,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	9-13369-603-0	01	1	0704-	●	●
30	COLLAR; IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9601-9803		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9804-9908		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	9909-0004	●	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0005-0006		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0007-0210		●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0211-0406	●	●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0407-0703	●	●
30	COLLAR; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-144-0	01	1	0704-	●	●
30	COLLAR; IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-144-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0407-0703	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-143-0	01	1	0704-	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9601-9803	●	●
31	BOLT; ADJ,IDLE PULLEY 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	9804-0004		●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0005-0210		●
31	BOLT; ADJ,IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94238-324-0	01	1	0211-	●	●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9601-9803		●
31	BOLT; ADJ,IDLE PULLEY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	9804-0004		●
31	BOLT; ADJ,IDLE PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-143-0	01	1	0005-0006		●
34	SHAFT; IDLE PULLEY 6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9601-9803		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9804-9908		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	9909-0004	●	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0005-0006		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0007-0210		●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0211-0406	●	●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0407-0703	●	●
34	SHAFT; IDLE PULLEY 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-236-0	01	1	0704-	●	●
34	SHAFT; IDLE PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83579-236-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0407-0703	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> ID=8.2	9-09150-608-0	01	1	0704-	●	●
39	WASHER; LK,ADJ BOLT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9601-9803	●	●
39	WASHER; LK,ADJ BOLT 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	9804-0004		●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0005-0210		●
39	WASHER; LK,ADJ BOLT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-492-0	01	1	0211-	●	●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9601-9803		●
39	WASHER; LK,ADJ BOLT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	9804-0004		●
39	WASHER; LK,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	9-09150-608-0	01	1	0005-0006		●
42	WASHER; PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	0407-0703	●	●
42	WASHER; PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	0704-	●	●
42	WASHER; PULLEY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-97014-636-0	01	1	0704-	●	●
42	WASHER; PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	9601-9803		●
42	WASHER; PULLEY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	9804-0004		●
42	WASHER; PULLEY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-97014-636-0	01	1	0005-0006		●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=1110	8-94395-172-0	01	1	0704-	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	0407-1402	●	●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1077	8-98253-452-0	01	1	1403-	●	●
66	BELT; A/C CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9601-9803	●	●
66	BELT; A/C CMPR 6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	9804-0004		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-405-0	01	1	0005-0107		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0108-0210		●
66	BELT; A/C CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) L=1196	1-13671-464-1	01	1	0211-	●	●
66	BELT; A/C CMPR 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) L=1110	8-94395-172-0	01	1	9804-0004		●
66	BELT; A/C CMPR 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) L=1082	1-13671-256-0	01	1	9601-0006		●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-0607	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0608-0703	●	●
112	BOLT; STAY 6HK1 TCC ENG(81L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0608-0703		●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-	●	●
112	BOLT; STAY 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-	●	●
112	BOLT; STAY 6HK1 TCC ENG(81L) (B) M8X16 FLANGE	0-28050-816-0	02	1	0704-		●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
112	BOLT; STAY AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-9709		●
112	BOLT; STAY 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9803	●	●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9710-9803		●
112	BOLT; STAY 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9901	●	●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE	0-28080-816-0	02	1	9804-9901		●
112	BOLT; STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9902-0004		●
112	BOLT; STAY 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	0005-0006		●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0407-0607	●	●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0608-0703	●	●
131	STAY; CMPR BRKT 6HK1 TCC ENG(81L)	8-94393-451-0	01	1	0608-0703		●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0704-	●	●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	0704-	●	●
131	STAY; CMPR BRKT 6HK1 TCC ENG(81L)	8-94393-451-0	01	1	0704-		●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	9601-9709		●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	9710-9803	●	●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	9710-9803		●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	9804-9901	●	●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	8-94393-451-0	01	1	9804-9901		●
131	STAY; CMPR BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	9902-0004		●
131	STAY; CMPR BRKT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	8-94393-451-0	01	1	0005-0006		●
195	STAY; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-47475-427-1	01	1	0710-		●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83571-896-0	01	1	9601-1004	●	●
195	STAY; CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98151-192-0	01	1	1005-	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9806-0602	●	●
199	NUT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 & 16.2	1-83574-190-0	01	1	9601-	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	9-09525-836-0	01	1	9709-0606	●	●
201	CLIP; HOSE,CMPR TO EVAP AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-0512	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0709	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X40 FLANGE	0-28650-840-0	01	1	0710-	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28680-825-0	01	1	9709-0512	●	●
202	BOLT; CLIP,FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
213	BOLT; FLEX HOSE TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0608	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT STABILIZER SHAFT<F59> (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0609-	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9806-9806	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	9807-0004	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) (A) M10X35 FLANGE	0-28681-035-0	01	1	0005-0403	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28681-035-0	01	1	0404-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0601-0607	●	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0608-	●
213	BOLT; FLEX HOSE TO CMPR 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) AIR CONDITIONER MANUAL CONTROL(C60) CAB COOLER COMPRESSOR HEAVY DUTY<E2Q> (A) M10X35 FLANGE	0-28651-035-0	01	1	0608-		●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28080-816-0	02	1	9601-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28081-045-0	01	1	9601-0512	●	●
213	BOLT; FLEX HOSE TO CMPR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR CONDITIONER MANUAL CONTROL(C60) (C) M10X45 FLANGE	0-28051-045-0	01	1	0601-	●	●
236	WASHER; PL,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	0407-0703	●	●
236	WASHER; PL,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	0704-	●	●
236	WASHER; PL,ADJ BOLT 6HE1 TC ENG(57L) AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-09503-216-0	01	1	0704-	●	●
236	WASHER; PL,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	9601-9803		●
236	WASHER; PL,ADJ BOLT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	9804-0004		●
236	WASHER; PL,ADJ BOLT 6HH1 STD ENG(65L) AIR CONDITIONER MANUAL CONTROL(C60)	1-09503-216-0	01	1	0005-0006		●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-0602	●	●
311	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
