Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#38775) — 395 parça

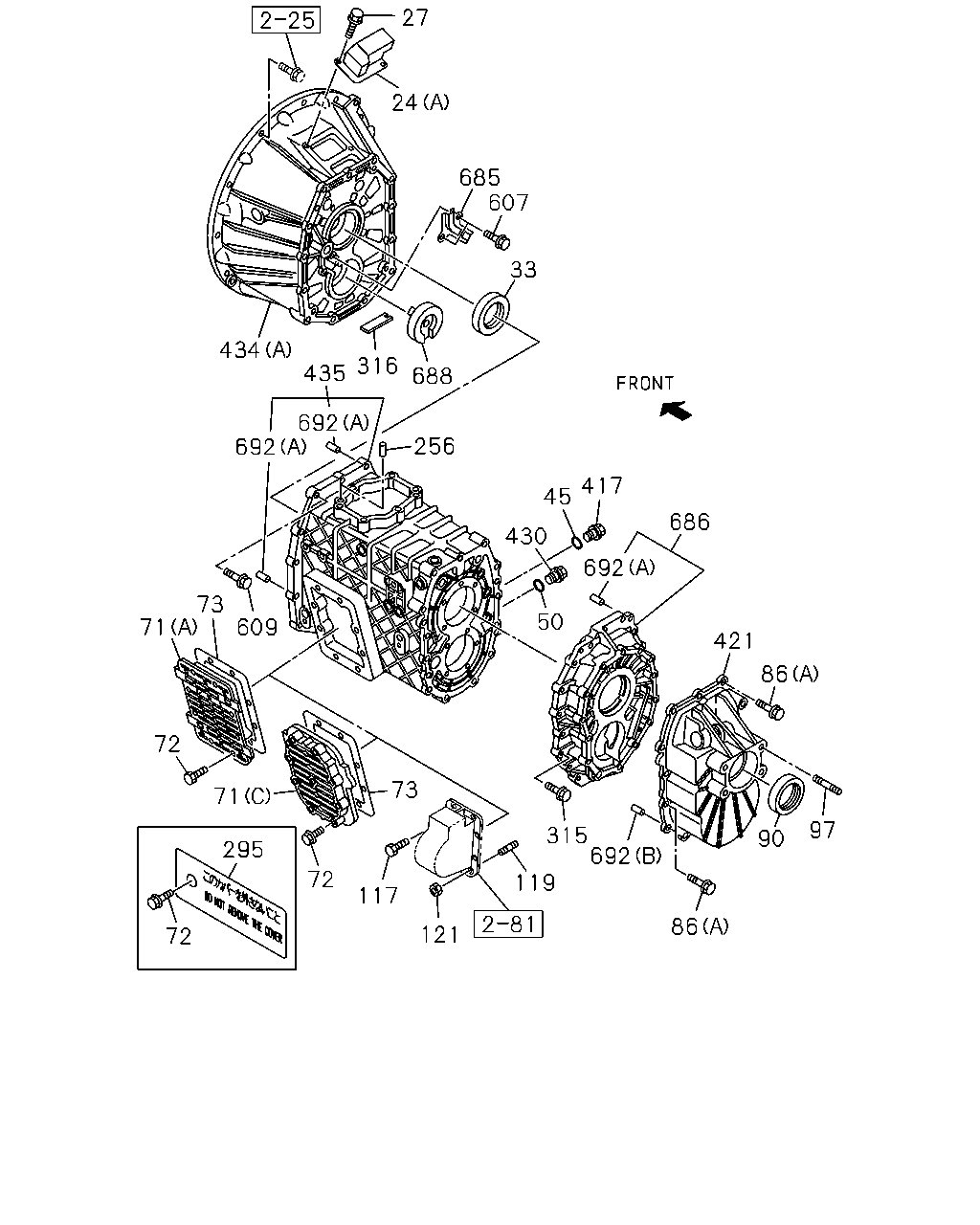

27 24 685 607 33 316 688 435 434 692 256 692 73 609 71 72 71 73 72 295 72 117 121 119 315 692 86 90 97 86 421 50 692 686 417 45 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) (B)	8-98283-062-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0809-0906	●		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-			●
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) (A)	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-	●		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-	●		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0809-0906	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0809-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0809-0906	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0809-0906	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-			●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	1012-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0906	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-1011	●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1012-	●
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1012-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-			●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (C)	8-98004-507-2	01	1	1012-		●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0809-0906	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0907-1011	●	●
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1012-	●	●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	0809-			●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97388-872-4	01	1	0809-	●
435	CASE; TRANS	1-33111-355-0	01	1	0809-			●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0809-0906	●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0809-0906	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0809-0906	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0809-0906	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0809-0906	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0809-0906	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0809-0906	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●	●

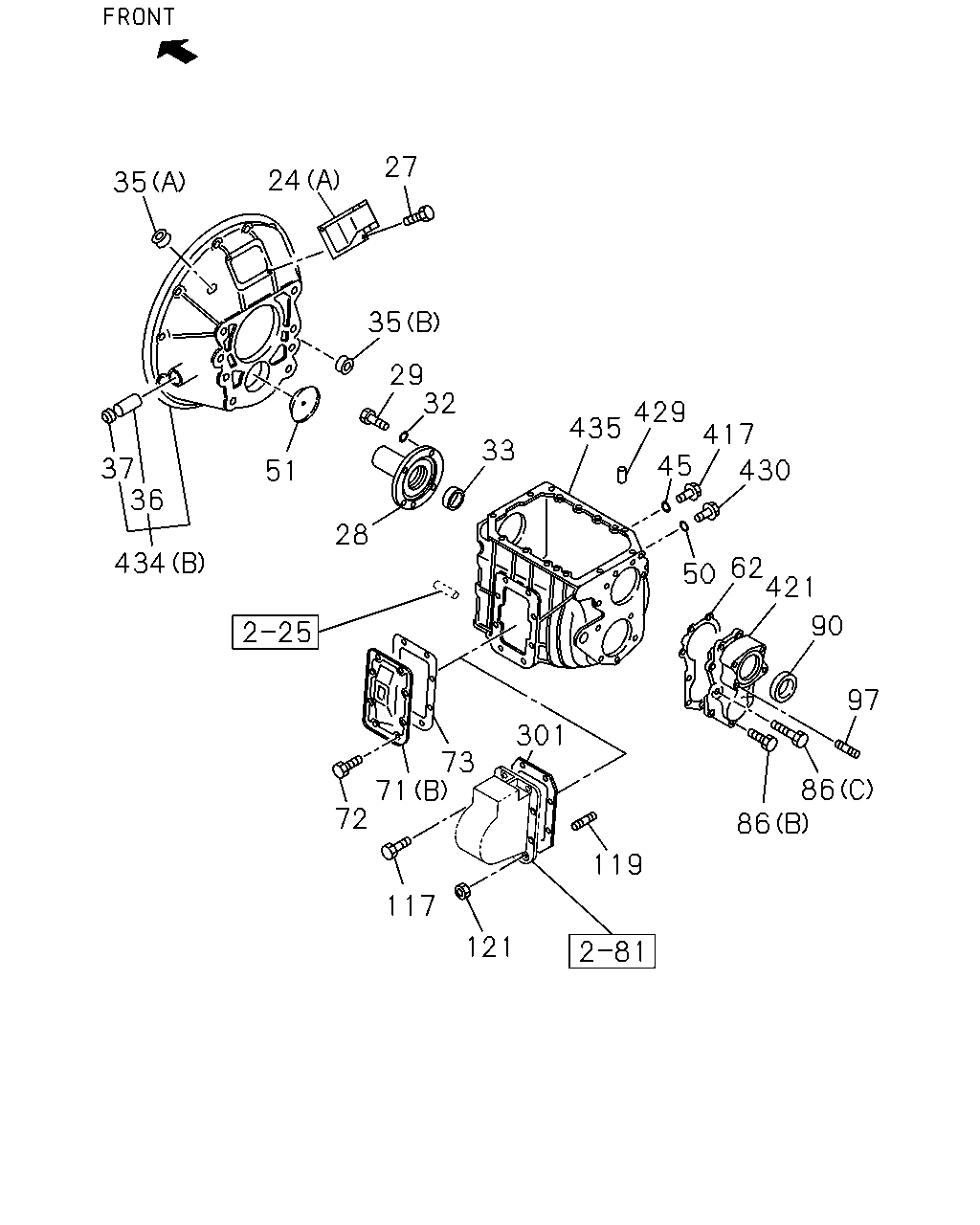

86 86 97 90 421 62 50 430 417 45 429 435 33 32 29 35 27 24 35 37 51 28 36 434 301 73 71 72 119 121 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) (B)	8-98283-062-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0809-0906	●		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-			●
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) (A)	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0809-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0809-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0809-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-			●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0809-			●
35	GROMMET; CLU HSG (A) OD=31	9-09575-796-0	01	1	0809-			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0809-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0809-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0809-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0809-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-	●		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-	●		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0809-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-			●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	1012-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0906	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-1011	●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1012-	●
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1012-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-			●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0809-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-			●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (C)	8-98004-507-2	01	1	1012-		●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0809-0906	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0907-1011	●	●
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1012-	●	●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	0809-			●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97388-872-4	01	1	0809-	●
435	CASE; TRANS	1-33111-355-0	01	1	0809-			●

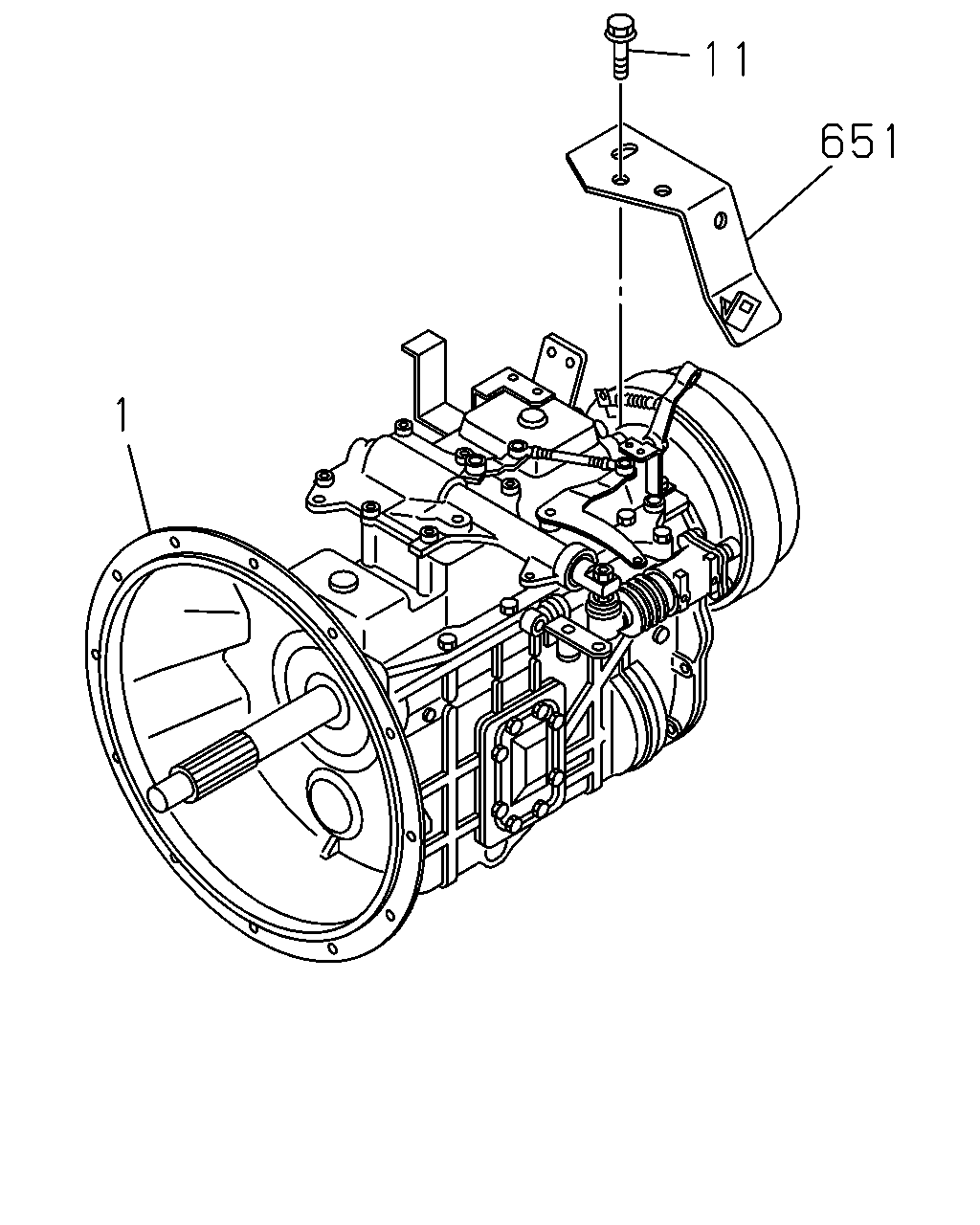

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

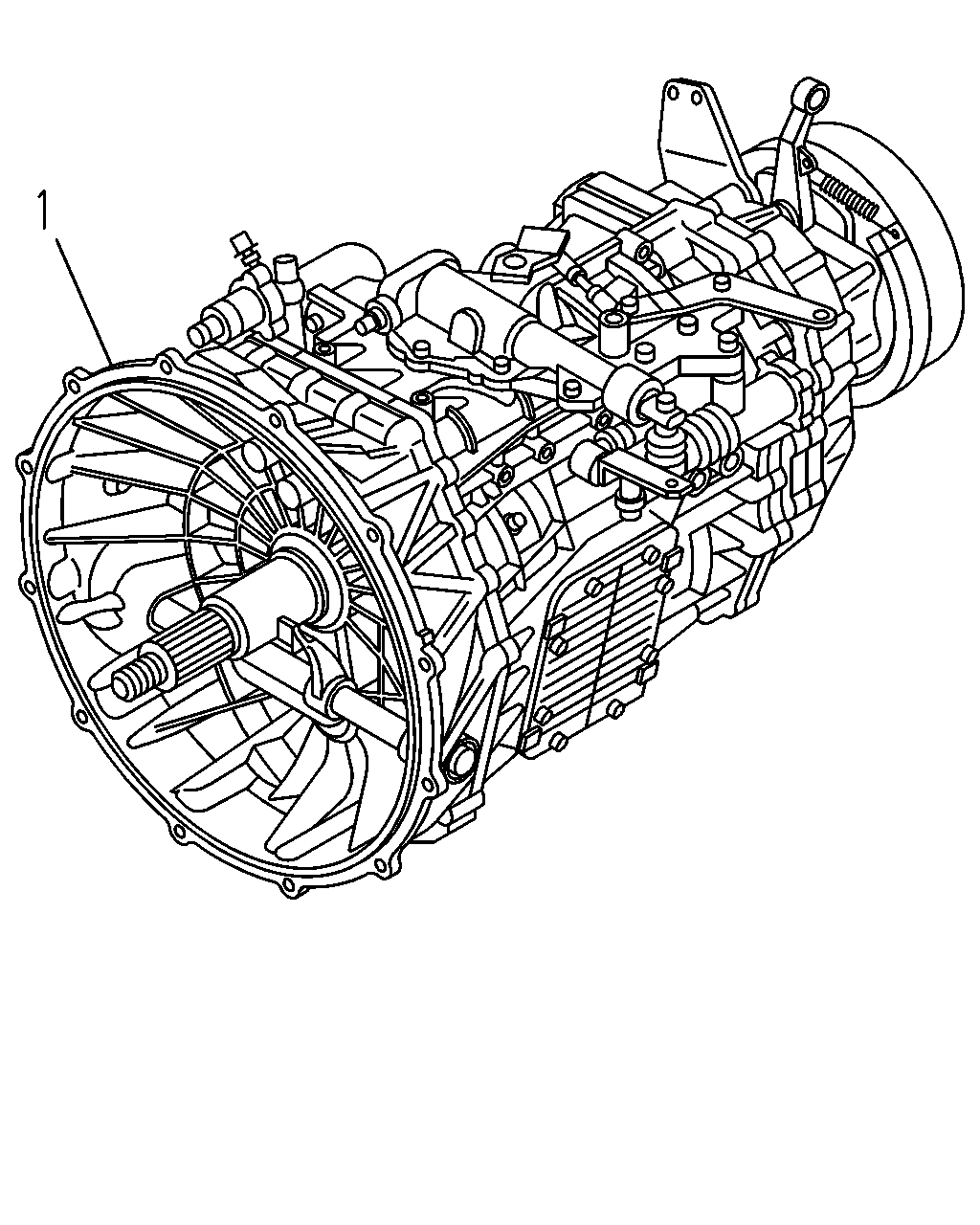

1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98041-830-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-578-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-594-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98134-586-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-510-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-510-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-528-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-530-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-545-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-534-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-544-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-776-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-504-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-306-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-306-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-307-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-302-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-303-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-302-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-303-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-298-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0809-			●
11	BOLT; BRKT 4HK1-TCS ENG(RJS) M12X25 FLANGE	0-28151-225-0	01	1	1309-		●
11	BOLT; BRKT 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	0809-			●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1012-		●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T)	8-98120-315-0	01	1	0809-			●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T)	8-97627-300-0	01	1	0809-			●

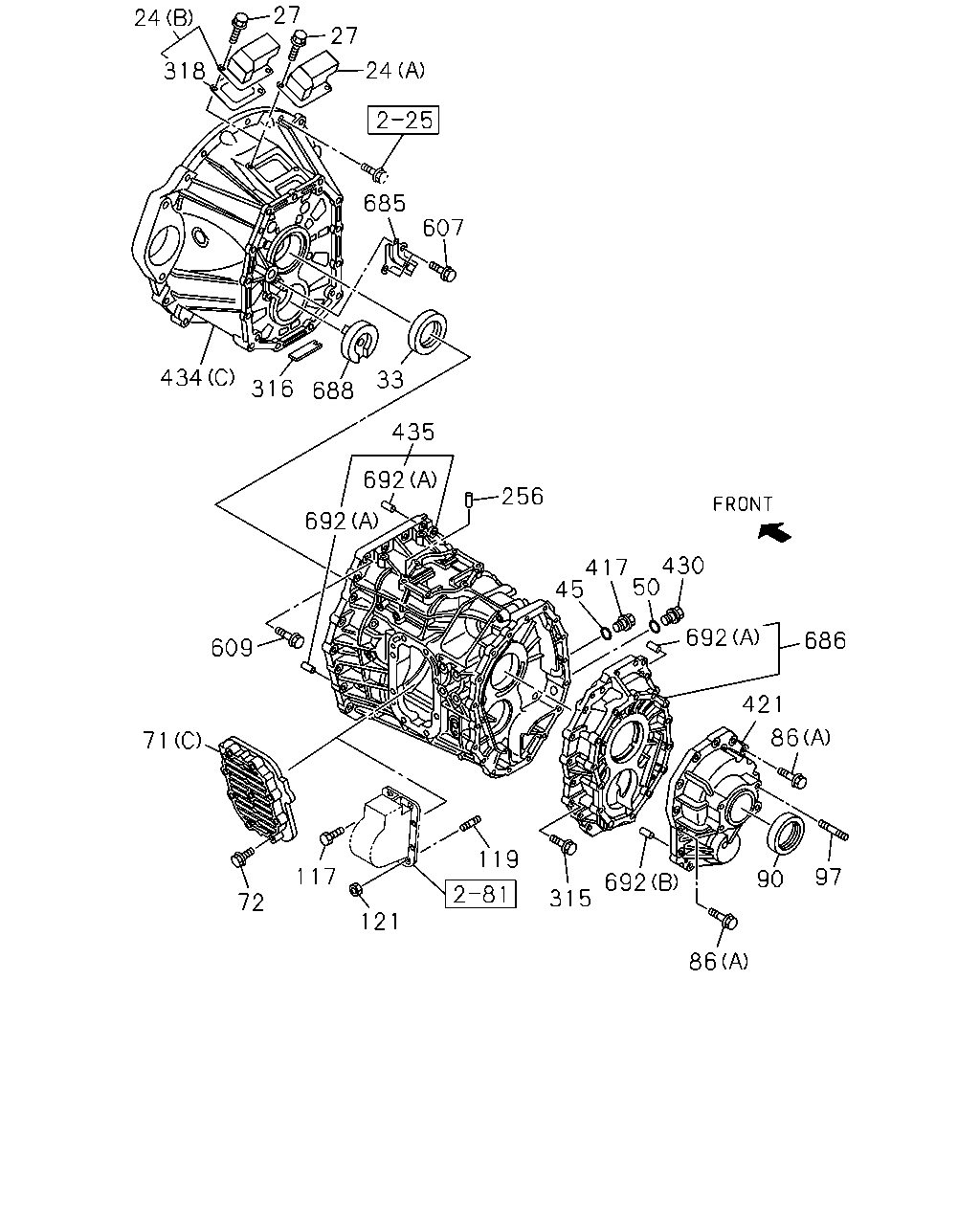

24 27 24 27 318 685 434 316 688 33 607 435 692 692 256 609 71 72 117 121 119 315 692 90 97 86 45 417 430 50 692 686 421 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (B)	8-98283-062-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST 6HK1-TCN ENG(82L) (B)	8-98283-062-0	01	1	1411-		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0809-0906	●		●
24	COVER; CHECK HOLE,DUST (A)	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-			●
24	COVER; CHECK HOLE,DUST 4HK1-TCS ENG(RJS) (A)	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-	●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-			●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-	●		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0809-0906	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-	●	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0809-0906	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0809-0906	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-	●	●
318	GASKET; COVER	1-31139-023-0	01	1	1411-	●
318	GASKET; COVER 6HK1-TCN ENG(82L)	1-31139-023-0	01	1	1411-		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-			●
421	COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-98051-477-0	01	1	1012-		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0906	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-1011	●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	1012-	●
421	COVER; RR,TRANS 6HK1-TCN ENG(82L)	8-98004-790-1	01	1	1012-		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-			●
434	HOUSING; CLU 4HK1-TCS ENG(RJS) (C)	8-98004-507-2	01	1	1012-		●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0809-0906	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0907-1011	●	●
434	HOUSING; CLU 6HK1-TCN ENG(82L) (A)	8-98004-506-2	01	1	1012-	●	●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	0809-			●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
435	CASE; TRANS	8-97388-872-4	01	1	0809-	●
435	CASE; TRANS	1-33111-355-0	01	1	0809-			●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0809-0906	●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-	●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0809-0906	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0809-0906	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0809-0906	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0809-0906	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0809-0906	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0809-0906	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98041-830-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	1012-	●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-578-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-594-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-578-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-594-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98134-586-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1012-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-510-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-528-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-510-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-528-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98134-530-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PARKING BRAKE DRUM 8.5"(B1S),PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-		●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-545-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-534-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFTCONTROL<WX8>	8-98115-544-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98041-776-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98065-504-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-306-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-306-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-307-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-302-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-303-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-302-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) PARKING BRAKE DRUM 8.5"(B1S) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-303-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-298-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-298-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0809-			●
1	TRANSMISSION ASM; MANUAL 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0809-			●

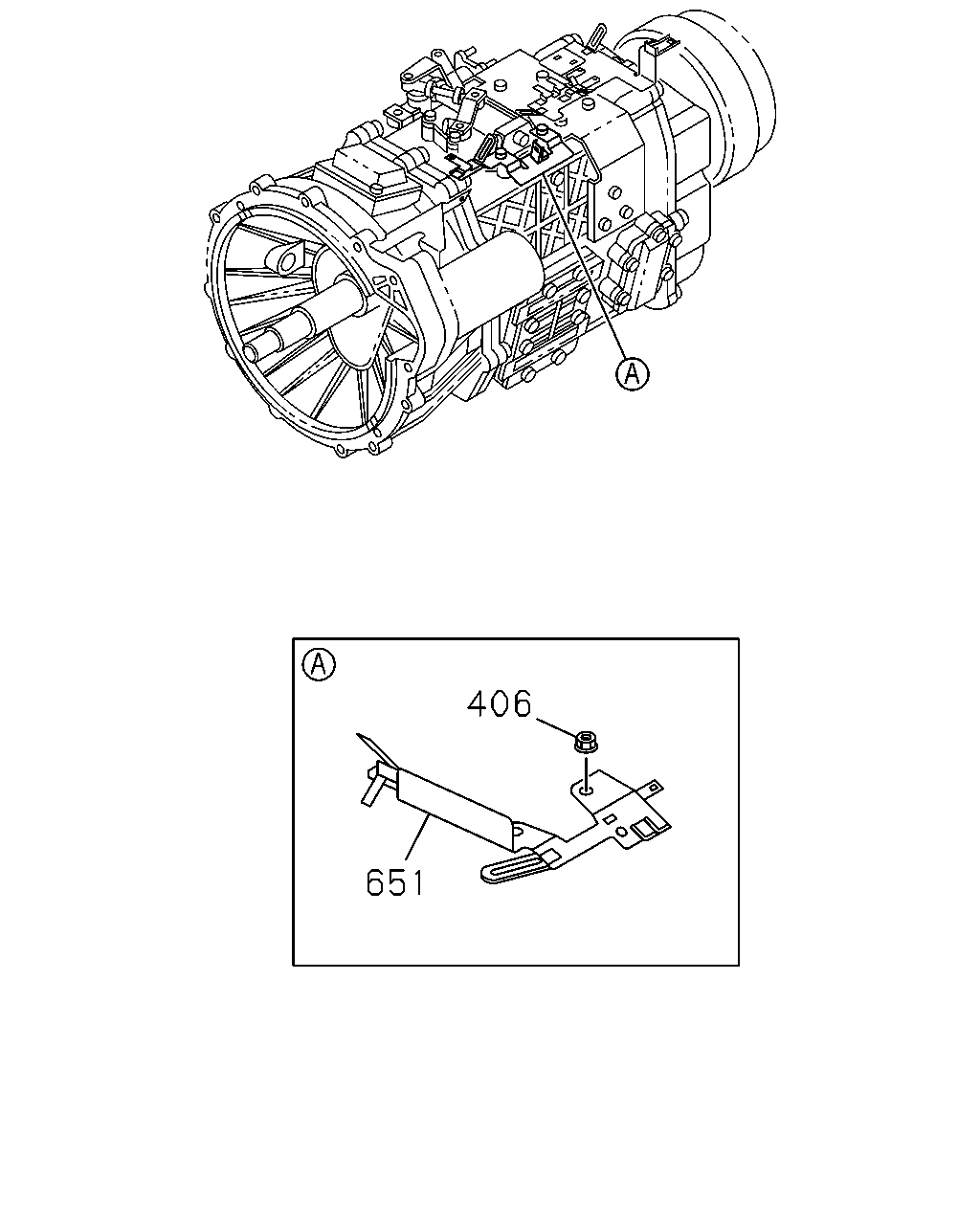

406 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
406	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	02	1	1012-	●
651	BRACKET; T/M HARNESS 4HK1-TCS ENG(RJS)	8-97609-800-3	01	1	1012-	●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T)	8-98120-315-0	01	1	0809-		●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T)	8-97627-300-0	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
