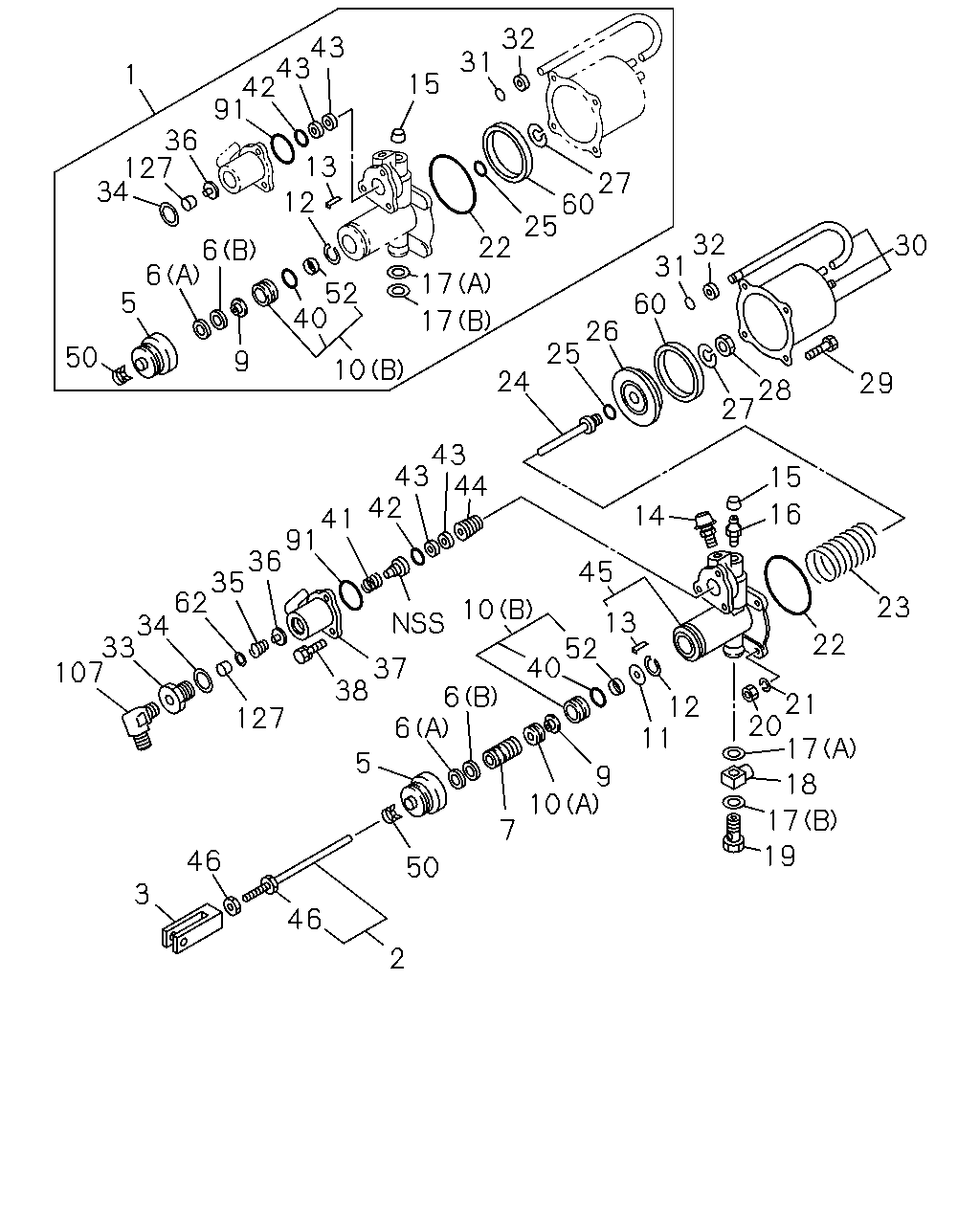

2-07 — CLUTCH BOOSTER; MINIPACK (#38772) — 166 parça

32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 32 31 30 22 6 6 5 17 52 40 60 17 26 25 50 9 10 24 29 28 27 43 43 44 42 15 16 14 41 91 36 35 62 34 33 107 45 23 10 13 52 40 22 37 38 6 21 20 17 12 11 127 6 5 9 18 10 17 7 19 46 50 3 46 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	REPAIR KIT; CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-602-0	01	1	1012-	●
1	REPAIR KIT; CLU BOOSTER	1-31829-603-0	01	1	0809-0906		●
1	REPAIR KIT; CLU BOOSTER	1-31829-603-0	01	1	0907-1011	●	●
1	REPAIR KIT; CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-603-0	01	1	1012-	●	●
1	REPAIR KIT; CLU BOOSTER	1-31829-611-0	01	1	0809-1412			●
1	REPAIR KIT; CLU BOOSTER	1-31829-606-0	01	1	1501-			●
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	0809-0906		●
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	0907-1412	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-240-0	01	1	1501-	●	●	●
2	ROD; PUSH,CLU BOOSTER	1-31824-248-0	01	1	0809-1412			●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-0	01	1	0809-0906		●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-1	01	1	0907-	●	●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0809-0906		●	●
5	GUARD; PISTON,CLU BOOSTER	1-31829-503-0	01	1	0907-	●	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-498-0	01	1	0809-0906		●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-498-0	01	1	0907-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-499-0	01	1	0809-0906		●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-499-0	01	1	0907-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-032-0	01	1	0809-			●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-033-0	01	1	0809-			●
7	PISTON; CLU BOOSTER	1-31821-047-0	01	1	0809-0906		●
7	PISTON; CLU BOOSTER	1-31821-047-0	01	1	0907-	●	●
7	PISTON; CLU BOOSTER	1-31821-064-0	01	1	0809-			●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0809-0906		●	●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	0907-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0809-0906		●	●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-107-0	01	1	0907-	●	●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0809-0906		●	●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-108-0	01	1	0907-	●	●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0809-0906		●	●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	0907-	●	●	●
12	RING; RET,CLU BOOSTER 4HK1-TCS ENG(RJS)	9-83315-315-0	01	1	1012-	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0809-0906		●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	0907-1011	●	●	●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	1012-			●
12	RING; RET,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-142-0	01	1	1012-	●	●
13	PIN; SPR	1-31829-109-0	01	1	0809-0906		●	●
13	PIN; SPR	1-31829-109-0	01	1	0907-	●	●	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0809-0906		●	●
14	COVER; EXH,CLU BOOSTER	1-31829-564-0	01	1	0907-	●	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0809-0906		●	●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	0907-	●	●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0809-0906		●	●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	0907-	●	●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0809-0906		●	●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	0907-	●	●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0809-0906		●	●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	0907-	●	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0809-0906		●	●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	0907-	●	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0809-0906		●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	0907-	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	9-83315-085-0	04	1	1012-	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0809-0906		●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	0907-1011	●	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER M10	9-09111-410-0	04	1	1012-			●
20	NUT; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L) M10	9-09111-410-0	04	1	1012-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS) ID=8.2	9-09150-508-0	04	1	1012-	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0809-0906		●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	0907-1011	●	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=10.2	9-09150-510-0	04	1	1012-			●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L) ID=10.2	9-09150-510-0	04	1	1012-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-09623-327-0	01	1	1012-	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	0809-0906		●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	0907-1011	●	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-322-0	01	1	1012-			●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-09623-322-0	01	1	1012-	●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0809-0906		●	●
23	SPRING; SHELL,CLU BOOSTER	1-31829-358-0	01	1	0907-	●	●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0809-0906		●	●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	0907-	●	●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0809-0906		●	●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	0907-	●	●	●
26	PISTON; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31821-083-0	01	1	1012-	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-084-0	01	1	0809-0906		●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-084-0	01	1	0907-1011	●	●	●
26	PISTON; SHELL,CLU BOOSTER	1-31821-084-0	01	1	1012-			●
26	PISTON; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31821-084-0	01	1	1012-	●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0809-0906		●	●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	0907-	●	●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0809-0906		●	●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	0907-	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-015-0	04	1	1012-	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0809-0906		●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	0907-1011	●	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	9-83315-099-0	04	1	1012-			●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	9-83315-099-0	04	1	1012-	●	●
30	SHELL; CYL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31811-123-0	01	1	1012-	●
30	SHELL; CYL,CLU BOOSTER	1-31811-124-0	01	1	0809-0906		●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-124-0	01	1	0907-1011	●	●	●
30	SHELL; CYL,CLU BOOSTER	1-31811-124-0	01	1	1012-			●
30	SHELL; CYL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-124-0	01	1	1012-	●	●
31	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-113-0	01	1	1012-	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0809-0906		●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	0907-1011	●	●	●
31	GASKET; SHELL,CLU BOOSTER	1-31829-279-0	01	1	1012-			●
31	GASKET; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-279-0	01	1	1012-	●	●
32	BUSHING; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-114-0	01	1	1012-	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0809-0906		●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	0907-1011	●	●	●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-280-0	01	1	1012-			●
32	BUSHING; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-280-0	01	1	1012-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-212-0	01	1	1012-	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0809-0906		●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	0907-1011	●	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	1012-			●
33	CONNECTOR; UPR,VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-214-0	01	1	1012-	●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0809-0906		●	●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	0907-	●	●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0809-0906		●	●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-537-0	01	1	0907-	●	●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0809-0906		●	●
36	VALVE; POPPET,CLU BOOSTER	1-31829-536-0	01	1	0907-	●	●	●
37	BODY; UPR,VLV,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31811-146-0	01	1	1012-	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-147-0	01	1	0809-0906		●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-147-0	01	1	0907-1011	●	●
37	BODY; UPR,VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-147-0	01	1	1012-	●	●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-085-0	01	1	0809-			●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0809-0906		●	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	0907-	●	●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0809-0906		●	●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	0907-1412	●	●	●
40	GASKET; PISTON,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-037-0	01	1	1501-	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0809-0906		●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-420-0	01	1	0907-1011	●	●
41	SPRING; DIAPH,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-420-0	01	1	1012-	●	●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-545-0	01	1	0809-1011			●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-545-0	01	1	1012-			●
41	SPRING; DIAPH,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-545-0	01	1	1012-	●	●
42	GASKET; FITTING,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-507-0	01	1	1012-	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0809-0906		●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	0907-1011	●	●	●
42	GASKET; FITTING,CLU BOOSTER	1-31829-143-0	01	1	1012-			●
42	GASKET; FITTING,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-143-0	01	1	1012-	●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0809-0906		●	●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	0907-	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31821-051-0	01	1	1012-	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0809-0906		●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	0907-1011	●	●	●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-087-0	01	1	1012-			●
44	PISTON; UPR VLV,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31821-087-0	01	1	1012-	●	●
45	PLATE; END,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31811-142-0	01	1	1012-	●
45	PLATE; END,CLU BOOSTER	1-31811-143-0	01	1	0809-0906		●
45	PLATE; END,CLU BOOSTER	1-31811-143-0	01	1	0907-1011	●	●
45	PLATE; END,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31811-143-0	01	1	1012-	●	●
45	PLATE; END,CLU BOOSTER	1-31811-150-0	01	1	0809-1412			●
45	PLATE; END,CLU BOOSTER	1-31811-149-0	01	1	1501-			●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0809-0906		●	●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	02	1	0907-	●	●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0809-0906		●	●
50	CLAMP; PISTON GUARD,CLU BOOSTER	1-31829-504-0	01	1	0907-	●	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	0809-0906		●
52	SEAL; OIL,END PLATE,CLU BOOSTER	9-83315-118-0	01	1	0907-1412	●	●
52	SEAL; OIL,END PLATE,CLU BOOSTER 4HK1-TCS ENG(RJS)	9-83315-118-0	01	1	1501-	●
60	GASKET; SHELL,CLU BOOSTER 4HK1-TCS ENG(RJS)	1-31829-535-0	01	1	1012-	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-544-0	01	1	0809-0906		●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-544-0	01	1	0907-1011	●	●	●
60	GASKET; SHELL,CLU BOOSTER	1-31829-544-0	01	1	1012-			●
60	GASKET; SHELL,CLU BOOSTER 6HK1-TCN ENG(82L)	1-31829-544-0	01	1	1012-	●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0809-0906		●	●
62	RETAINER; POPPET	1-31829-489-0	01	1	0907-	●	●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0809-0906		●	●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	0907-	●	●	●
107	CONNECTOR; ELBOW 4HK1-TCS ENG(RJS)	1-09650-358-1	01	1	1012-	●
127	FILTER; POPPET	1-31829-495-0	01	1	0809-0906		●	●
127	FILTER; POPPET	1-31829-495-0	01	1	0907-	●	●	●
