2-05 — CLUTCH PIPING (#38771) — 136 parça

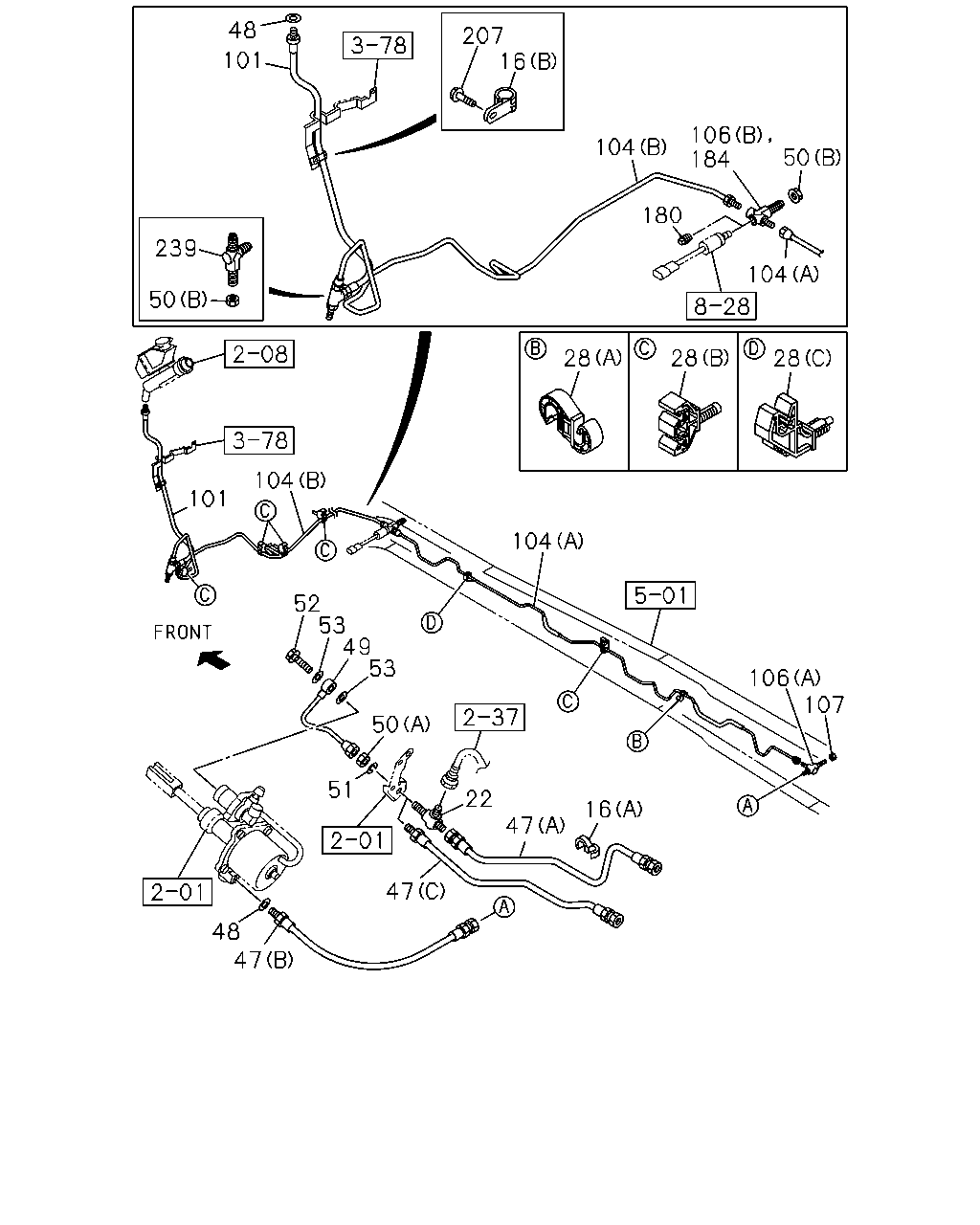

48 207 16 101 106 184 104 50 180 239 104 50 28 28 28 104 101 104 52 53 49 53 106 107 50 51 22 16 47 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-0901
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-0901
16	CLIP; FLEX HOSE MZX6P M/T(RSW) (A) ID=10 & 12	1-09709-278-1	01	1	0902-0906
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12	1-09709-278-1	01	1	0907-
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=10 & 10	1-09709-277-1	01	1	0809-0901
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=10 & 12	1-09709-278-1	02	1	0902-
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0809-
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0809-0910
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0911-
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0911-
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0809-
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	01	1	0809-
28	CLIP; OIL PIPE (B)	8-98012-254-1	04	1	0809-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (D) L=480	8-98072-349-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (E) L=660	1-09363-971-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (F) L=740	1-09363-674-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	0809-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=540	1-09363-612-1	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=560	1-09363-914-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (A) L=560	1-09363-914-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=560	1-09363-914-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C) L=660	1-09363-719-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (C) L=660	1-09363-719-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C) L=660	1-09363-719-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 4HK1-TCS ENG(RJS) L=204	1-49117-400-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	0809-1011
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG(82L) L=239	1-49117-401-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0809-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0809-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0809-1011
52	BOLT; EYE,AIR PIPE 6HK1-TCN ENG(82L) M14X27 FLANGE	1-09675-086-0	01	1	1012-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0809-1011
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312
53	GASKET; JOINT BOLT 6HK1-TCN ENG(82L) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) L=510	8-98059-811-0	01	1	1012-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=570	8-98116-741-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (B) L=1648 SERVICED BY L=1700	1-47428-737-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2695	8-98078-148-2	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669	8-98119-697-1	01	1	0809-
106	UNION; OIL PIPE (A) M12 2WAY	1-09654-059-2	01	1	0809-
106	UNION; OIL PIPE (B) M12 3WAY	8-98051-113-0	01	1	0809-0910
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	0911-
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0809-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0809-0910
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	0911-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
239	UNION; CLU HOSE M12 2WAY	1-09654-059-2	01	1	0809-

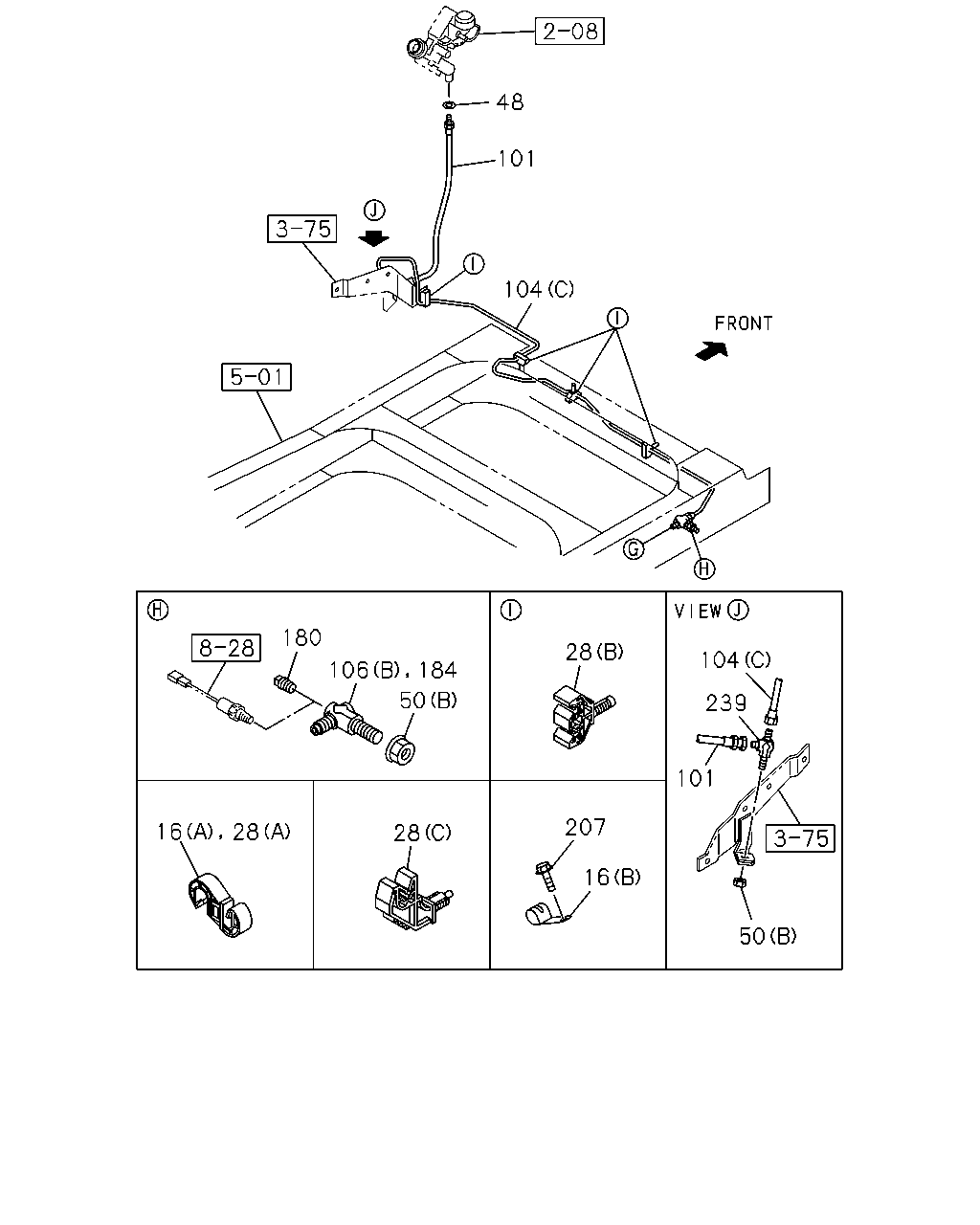

48 101 104 180 28 104 106 184 50 239 101 207 16 28 28 16 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE (B) ID=18 L=28	1-09701-067-0	01	1	0809-
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-0901
16	CLIP; FLEX HOSE (A) ID=10 & 12	1-09709-278-1	01	1	0809-0901
16	CLIP; FLEX HOSE MZX6P M/T(RSW) (A) ID=10 & 12	1-09709-278-1	01	1	0902-0906
16	CLIP; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12	1-09709-278-1	01	1	0907-
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=10 & 10	1-09709-277-1	01	1	0809-0901
16	CLIP; FLEX HOSE MLD6W M/T(Y2C) (A) ID=10 & 12	1-09709-278-1	02	1	0902-
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0809-0910
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0911-
28	CLIP; OIL PIPE (C) ID=6.35	1-09701-247-1	01	1	0911-
28	CLIP; OIL PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	0809-
28	CLIP; OIL PIPE 6HK1-TCN ENG(82L) (B)	8-98012-254-1	01	1	0809-
28	CLIP; OIL PIPE (B)	8-98012-254-1	04	1	0809-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0809-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 4HK1-TCS ENG(RJS) L=510	8-98059-811-0	01	1	1012-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE 6HK1-TCN ENG(82L) L=570	8-98116-741-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (B) L=1648 SERVICED BY L=1700	1-47428-737-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2695	8-98078-148-2	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669	8-98119-697-1	01	1	0809-
106	UNION; OIL PIPE (A) M12 2WAY	1-09654-059-2	01	1	0809-
106	UNION; OIL PIPE (B) M12 3WAY	8-98051-113-0	01	1	0809-0910
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	0911-
180	PLUG; PIPE EXC. H.S.A SYSTEM<6EP>	9-09204-510-0	01	1	0809-0910
184	UNION; FLEX HOSE EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	0911-
207	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-
239	UNION; CLU HOSE M12 2WAY	1-09654-059-2	01	1	0809-

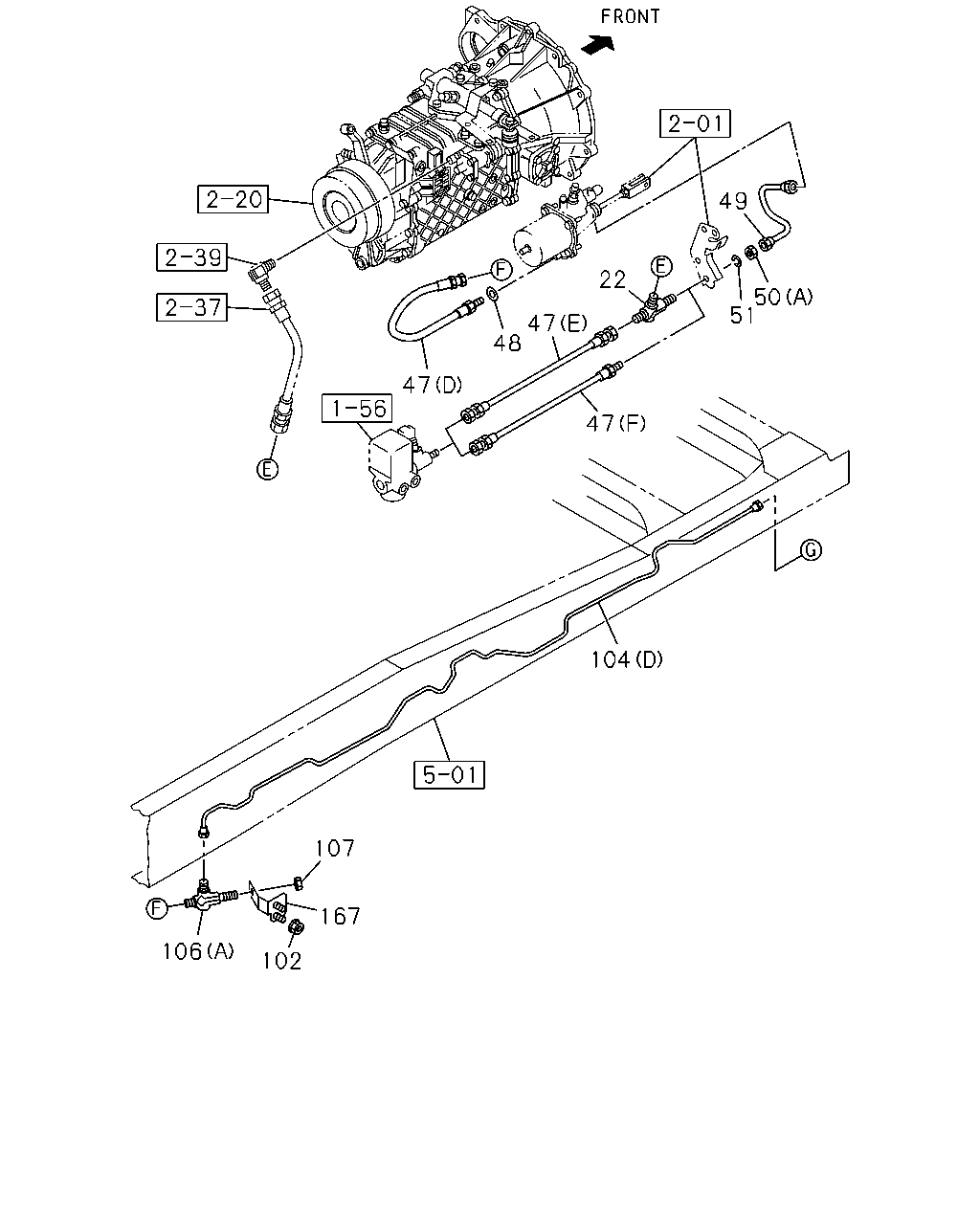

49 22 50 51 47 48 47 47 104 107 167 106 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0809-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) (D) L=480	8-98072-349-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) ASSISTOR SHIFT CONTROL<WX8> (E) L=660	1-09363-971-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 4HK1-TCS ENG(RJS) EXC. ASSISTOR SHIFT CONTROL<WX8> (F) L=740	1-09363-674-0	01	1	1012-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) (B) L=470	8-98072-353-0	01	1	0809-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=540	1-09363-612-1	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) (A) L=540	1-09363-612-1	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=560	1-09363-914-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) ASSISTOR SHIFT CONTROL<WX8> HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6> (A) L=560	1-09363-914-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=560	1-09363-914-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C) L=660	1-09363-719-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,ASSISTOR SHIFT CONTROL<WX8> (C) L=660	1-09363-719-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) EXC. ASSISTOR SHIFT CONTROL<WX8>,HEAVY DUTY PACKAGETRUCK VAR3<Y48> (C) L=660	1-09363-719-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	0809-1509
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) BRAKE REGULATION ECE(TDV) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
47	HOSE; FLEX,CLU CONT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV),ASSISTOR SHIFT CONTROL<WX8> (C) L=640	1-09363-974-0	01	1	1510-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	02	1	0809-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 4HK1-TCS ENG(RJS) L=204	1-49117-400-0	01	1	1012-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=239	1-49117-401-0	01	1	0809-1011
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 6HK1-TCN ENG(82L) L=239	1-49117-401-0	01	1	1012-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	0809-
50	NUT; UNION (A) M12	9-09840-280-0	01	1	0809-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0809-
102	NUT; FLEX HOSE,CLU CONT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2560 SERVICED BY L=2650	1-47428-743-0	01	1	1012-1012
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (D) L=2558 SERVICED BY L=2650	1-47428-743-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 4HK1-TCS ENG(RJS) (C) L=1684 SERVICED BY L=1700	1-47428-737-0	01	1	1012-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) (B) L=1648 SERVICED BY L=1700	1-47428-737-0	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2695	8-98078-148-2	01	1	0809-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=2669	8-98119-697-1	01	1	0809-
106	UNION; OIL PIPE (A) M12 2WAY	1-09654-059-2	01	1	0809-
106	UNION; OIL PIPE (B) M12 3WAY	8-98051-113-0	01	1	0809-0910
106	UNION; OIL PIPE H.S.A SYSTEM<6EP> (B) M12 3WAY	8-98051-113-0	01	1	0911-
107	NUT; UNION,OIL PIPE M12	0-91111-512-0	01	1	0809-
167	BRACKET; UNION 4HK1-TCS ENG(RJS)	8-98078-090-1	01	1	1012-
