Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#3877) — 323 parça

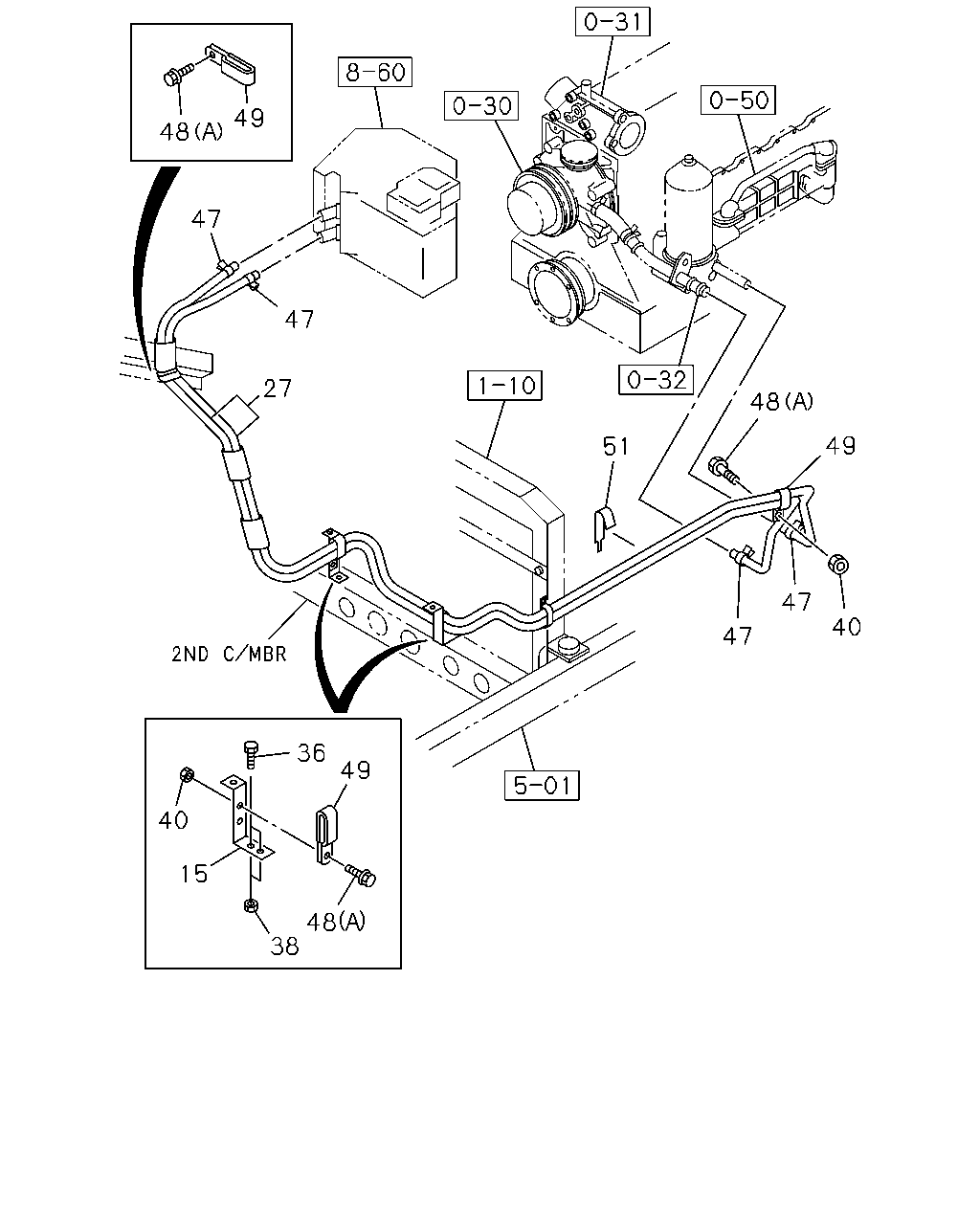

49 48 47 47 27 48 49 51 47 40 47 36 49 40 15 48 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	02	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-716-2	01	1	0608-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN>	1-83565-674-1	01	1	9710-9803	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83565-674-2	01	1	9804-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-0	01	1	9601-9709	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-1	01	1	9710-9806	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	9807-0004	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0005-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-612-1	01	1	9601-9611	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-655-2	01	1	9612-	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9608-9801	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9802-0512	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9608-0602	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9903	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9608-9903	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	01	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	9601-0611	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9608-9801	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9601-9806	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9807-0004	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0607	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9902-9903	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	01	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-		●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	04	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	9904-0607	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	0608-	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	0608-		●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9601-9702	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705		●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205		●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-		●

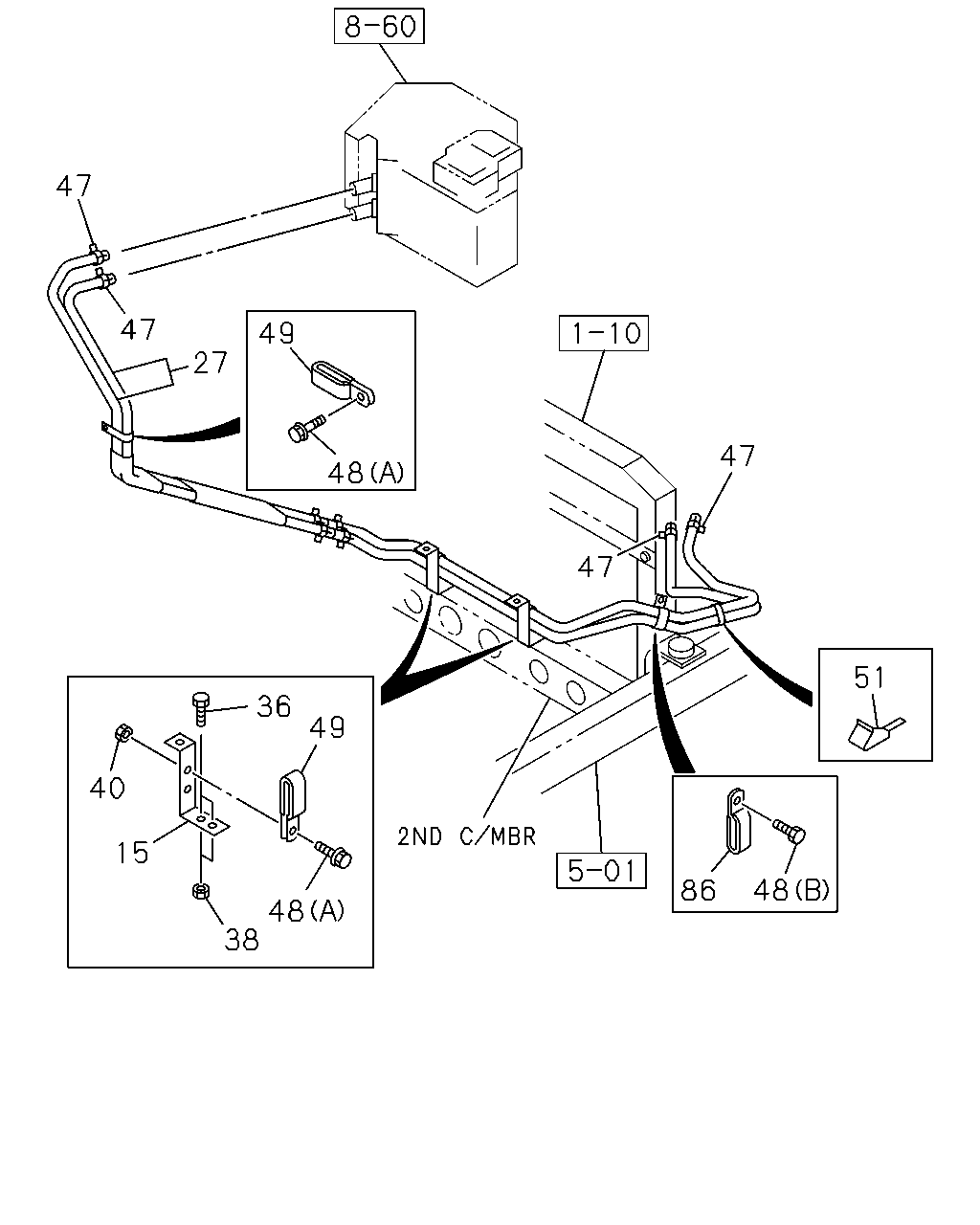

47 47 27 47 51 49 48 36 49 40 15 48 86 48 38 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	02	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-716-2	01	1	0608-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN>	1-83565-674-1	01	1	9710-9803	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83565-674-2	01	1	9804-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-0	01	1	9601-9709	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-1	01	1	9710-9806	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	9807-0004	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0005-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-612-1	01	1	9601-9611	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-655-2	01	1	9612-	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9608-9801	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9802-0512	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9608-0602	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9903	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9608-9903	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	01	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	9601-0611	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9608-9801	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9601-9806	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9807-0004	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0607	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9902-9903	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	01	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-		●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	04	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	9904-0607	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	0608-	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	0608-		●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9601-9702	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705		●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205		●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-		●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	9601-9806	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	9807-0004	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0005-0607	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0608-	●	●

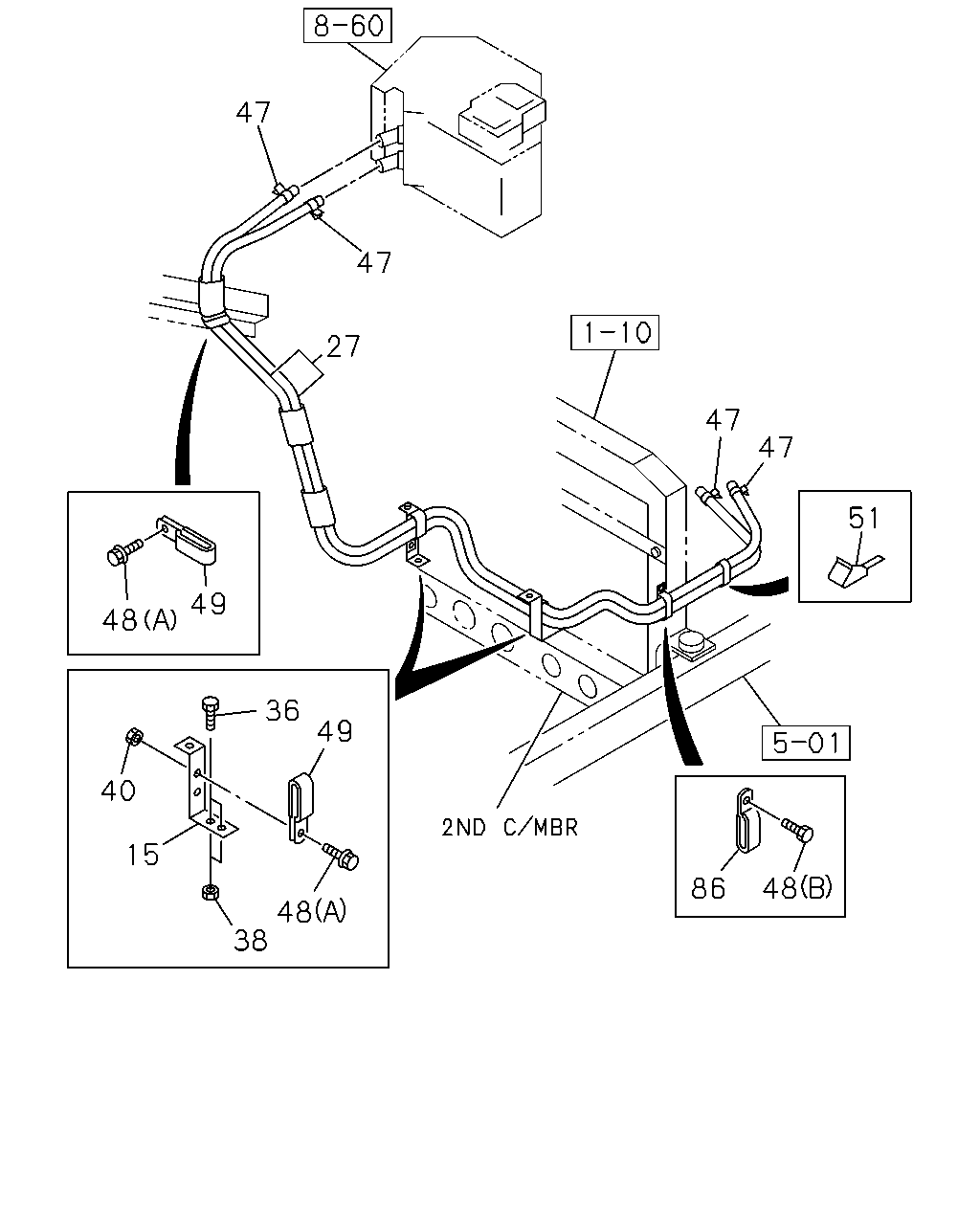

47 47 49 27 47 48 47 51 36 49 40 15 48 86 48 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	9601-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	02	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-716-2	01	1	0608-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41) EURO2 SPECIFICATION<THN>	1-83565-674-1	01	1	9710-9803	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83565-674-2	01	1	9804-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-0	01	1	9601-9709	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-1	01	1	9710-9806	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	9807-0004	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0005-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-612-1	01	1	9601-9611	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-655-2	01	1	9612-	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9608-9801	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9802-0512	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
36	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9608-0602	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
38	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9903	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	02	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9601-9606	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9608-9903	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91150-108-0	01	1	9904-0602	●	●
40	NUT; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	9601-0611	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9608-9801	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9903	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	02	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9601-9806	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9807-0004	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0005-0607	●	●
48	BOLT; CLIP FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9902-9903	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28680-820-0	01	1	9904-0512	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0607	●	●
48	BOLT; CLIP FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-	●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-		●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	04	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9904-	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9601-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9608-9901	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9902-9903	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	9904-0607	●	●
49	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. OIL FILTER SETTING DOWNWARD<E7V> ID=24X2 L=25	1-09700-710-0	01	1	0608-	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	0608-		●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9601-9702	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9703-9705		●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9706-9806	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	9807-0004	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0005-0602	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0603-0607	●	●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0608-1205		●
51	CLIP; WATER HOSE,HTR 6SD1 TCN ENG(31L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-		●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	9601-9806	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	9807-0004	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0005-0607	●	●
86	CLIP; HTR HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	0608-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
