Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#38769) — 268 parça

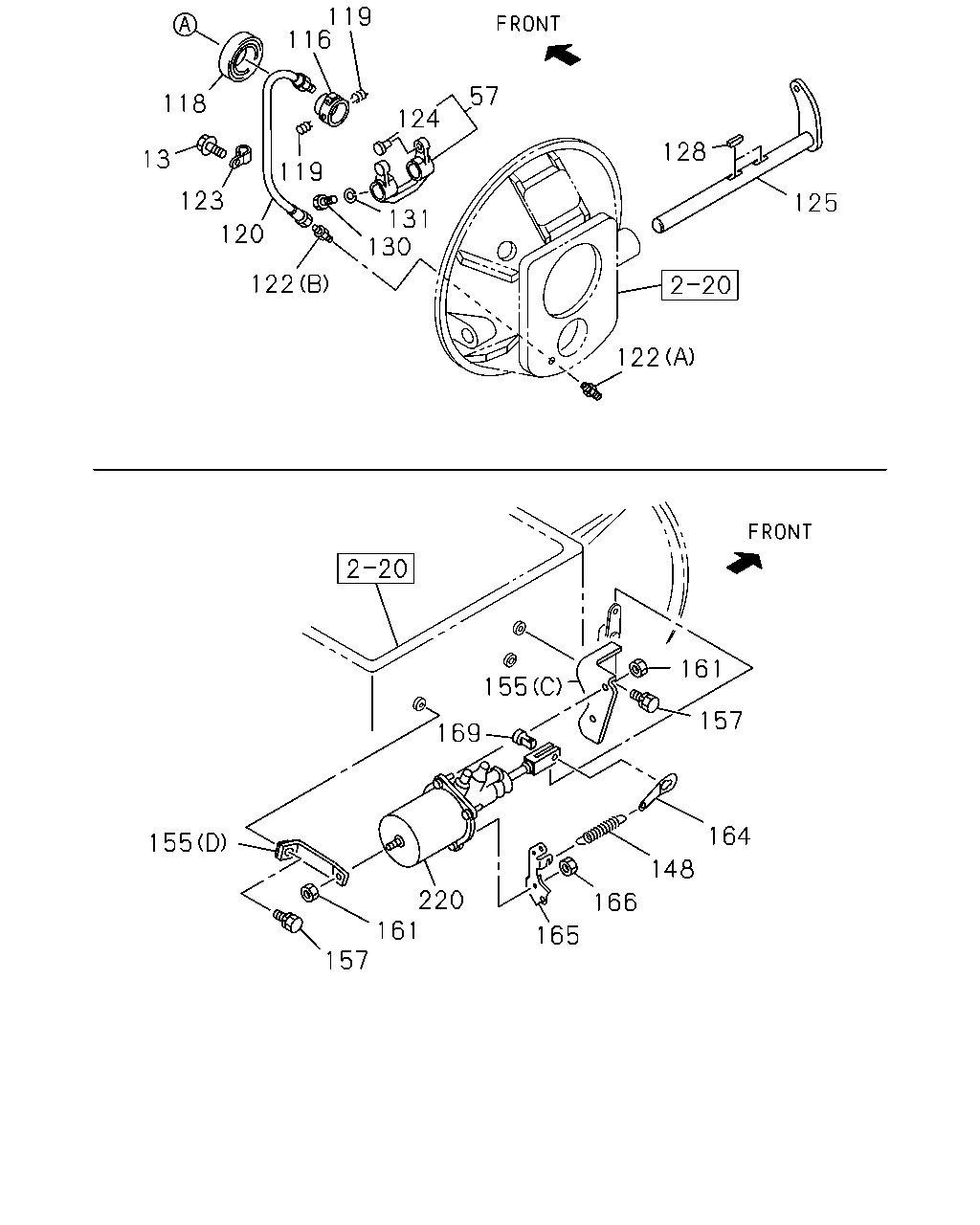

119 116 57 118 124 128 13 119 131 130 123 125 120 122 122 155 161 157 169 164 155 148 220 161 157 166 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0809-	●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0809-0906		●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-		●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0809-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	0809-1204	●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306	●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0809-0906		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0809-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-	●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	0809-	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	0809-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0809-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0809-	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0809-	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0809-	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0809-	●
125	SHAFT; CLU	1-31342-335-0	01	1	0809-0906		●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-		●	●
125	SHAFT; CLU	1-31342-343-0	01	1	0809-	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0809-0906	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0809-0906	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0809-0906	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0809-0906	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-	●	●	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) (A)	1-31429-474-1	01	1	1012-			●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) (B)	1-31429-477-0	01	1	1012-			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0809-0906		●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-1011		●	●
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (A)	1-31429-475-1	01	1	1012-		●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0809-0906		●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-1011		●	●
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (B)	1-31429-478-0	01	1	1012-		●	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0809-	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0809-	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●
161	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-208-0	05	1	1012-		●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0809-0906		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-1011		●	●
161	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	05	1	1012-		●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0809-	●
164	EYE; SPRING	1-31426-041-0	01	1	0809-0906	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0809-0906	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●
166	NUT; SPRING EYE M10 FLANGE	0-91180-210-0	02	1	0809-	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	0809-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-1011	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-87610-089-0	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-089-0	01	1	1012-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS)	1-31800-510-2	01	1	1012-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0809-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0907-1011		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L)	1-31800-511-2	01	1	1012-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	0809-	●

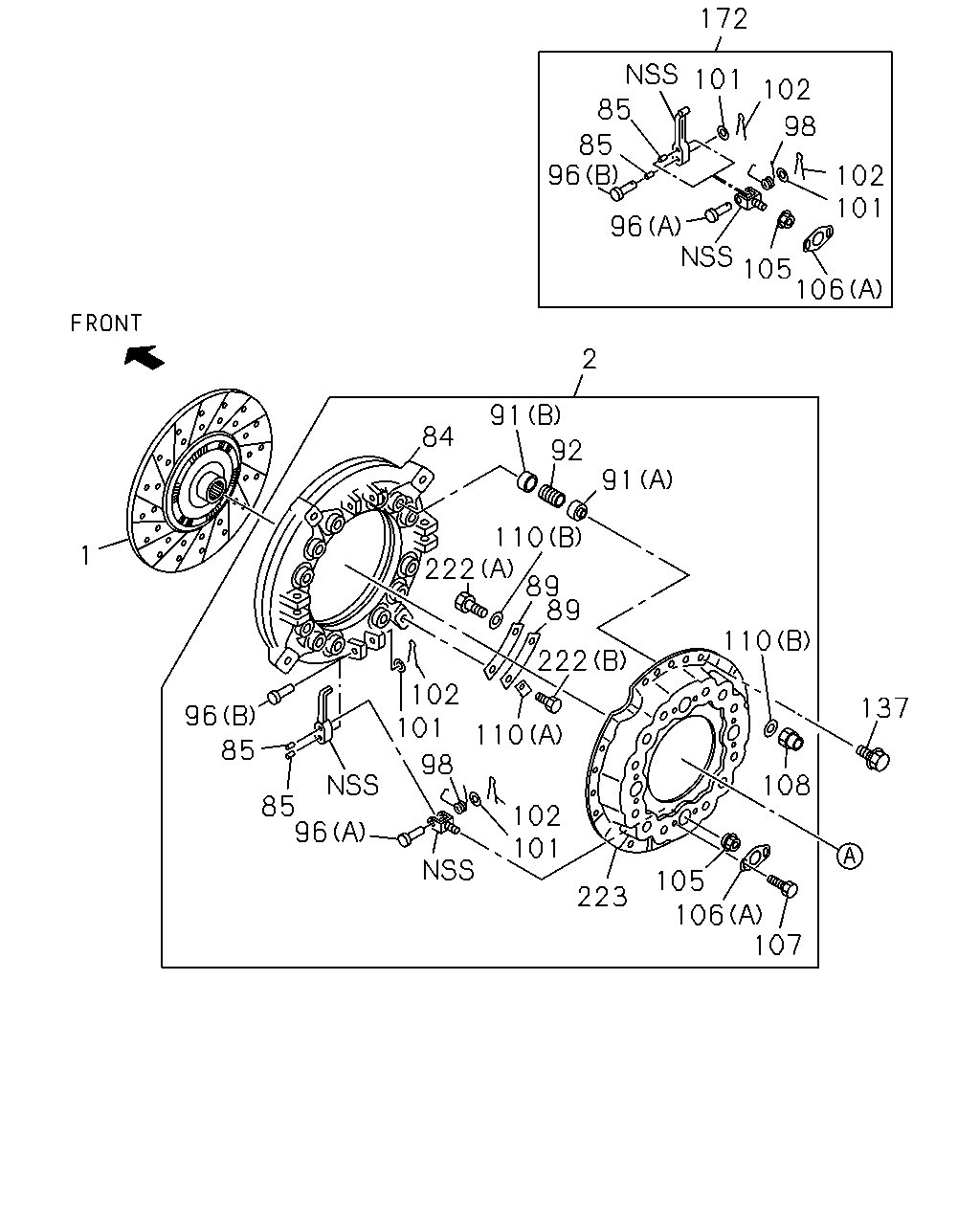

172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 223 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1012-1401			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-			●
1	DISC; CLUTCH 15"	1-31240-851-1	01	1	0809-0906	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	0907-1011	●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1012-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	1012-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0809-0906	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1010-1011	●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1012-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	1012-			●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1012-			●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0809-0906	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-1011	●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1012-	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0809-0906	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-	●	●	●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1012-			●
89	PLATE; STRAP	1-31229-050-0	16	1	0809-0906	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0907-1011	●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1012-	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1012-			●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1012-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0809-0906	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-1011	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1012-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0809-0906	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-1011	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1012-	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	1012-			●
92	SPRING; CLU	1-31214-066-0	12	1	0809-0906	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0907-1009	●	●	●
92	SPRING; CLU	1-31214-086-0	12	1	1010-1011	●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1012-	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0809-0906	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0809-0906	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0809-0906	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0809-0906	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1012-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0809-0906	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-1011	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1012-	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0809-0906	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1012-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0809-0906	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0907-	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0809-0906	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-	●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0809-0906	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0907-1011	●	●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1012-	●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0809-0906	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0907-1011	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1012-	●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0809-0906	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0907-1011	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1012-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0809-1011	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1012-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0809-0906	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	1012-			●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0809-0906	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-1011	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1012-	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0809-0906	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-1011	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1012-	●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0809-0906	●	●
223	COVER; CLU	1-31211-019-1	01	1	0907-1011	●	●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1012-	●	●	●

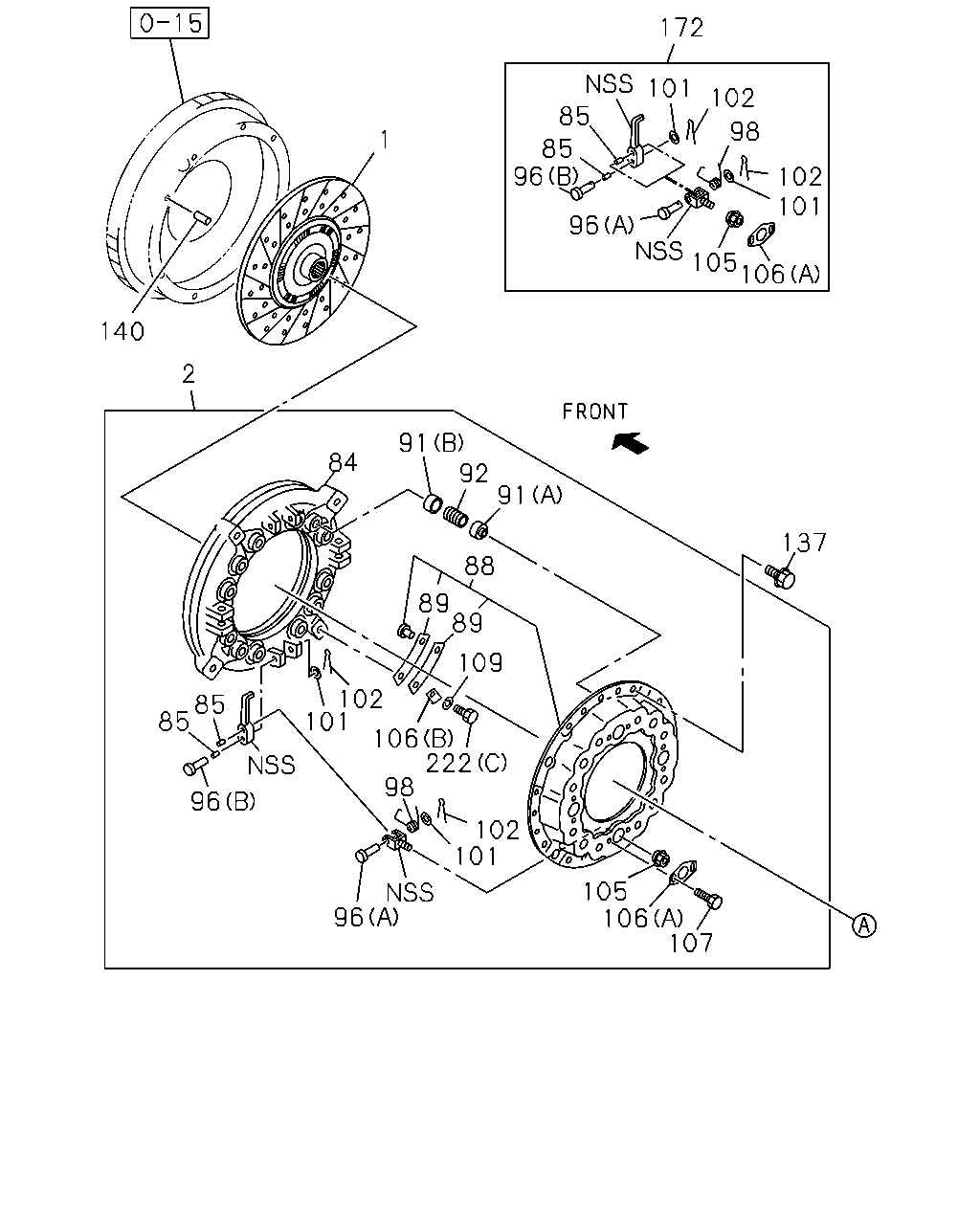

172 101 102 85 98 1 85 96 102 101 96 105 106 140 2 91 92 91 84 137 88 89 89 109 102 101 85 85 106 222 98 96 102 101 96 105 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●	●	●
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1411-			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31240-971-1	01	1	1012-1401			●
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1402-			●
1	DISC; CLUTCH 15"	1-31240-851-1	01	1	0809-0906	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	0907-1011	●	●	●
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1012-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-411-0	01	1	1012-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0809-0906	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1010-1011	●	●	●
2	PLATE ASM; PRESSURE,CLU 15" CLUTCH(RE9)	1-31220-374-2	01	1	1012-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	0907-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-147-0	01	1	1012-			●
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1012-			●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0809-0906	●	●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0907-1011	●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1012-	●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0809-0906	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0907-	●	●	●
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1012-			●
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1012-			●
89	PLATE; STRAP	1-31229-050-0	16	1	0809-0906	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0907-1011	●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1012-	●	●	●
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	08	1	1012-			●
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	08	1	1012-			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0809-0906	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0907-1011	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1012-	●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0809-0906	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0907-1011	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1012-	●	●	●
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-095-0	08	1	1012-			●
92	SPRING; CLU	1-31214-066-0	12	1	0809-0906	●	●
92	SPRING; CLU	1-31214-066-0	12	1	0907-1009	●	●	●
92	SPRING; CLU	1-31214-086-0	12	1	1010-1011	●	●	●
92	SPRING; CLU 15" CLUTCH(RE9)	1-31214-086-0	12	1	1012-	●	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0809-0906	●	●
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	0907-	●	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0809-0906	●	●
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	0907-	●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0809-0906	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0907-	●	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0809-0906	●	●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0907-	●	●	●
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1012-			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0809-0906	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0907-1011	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1012-	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0809-0906	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0907-	●	●	●
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1012-			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0809-0906	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0907-	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0809-0906	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0907-	●	●	●
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1012-			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0809-1011	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1012-	●	●	●
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1012-			●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0809-0906	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0907-	●	●	●
222	BOLT; STRAP 14" CLUTCH(WF6) (C)	1-31239-059-0	04	1	1012-			●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0809-0906	●	●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0907-1011	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1012-	●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0809-0906	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0907-1011	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1012-	●	●	●

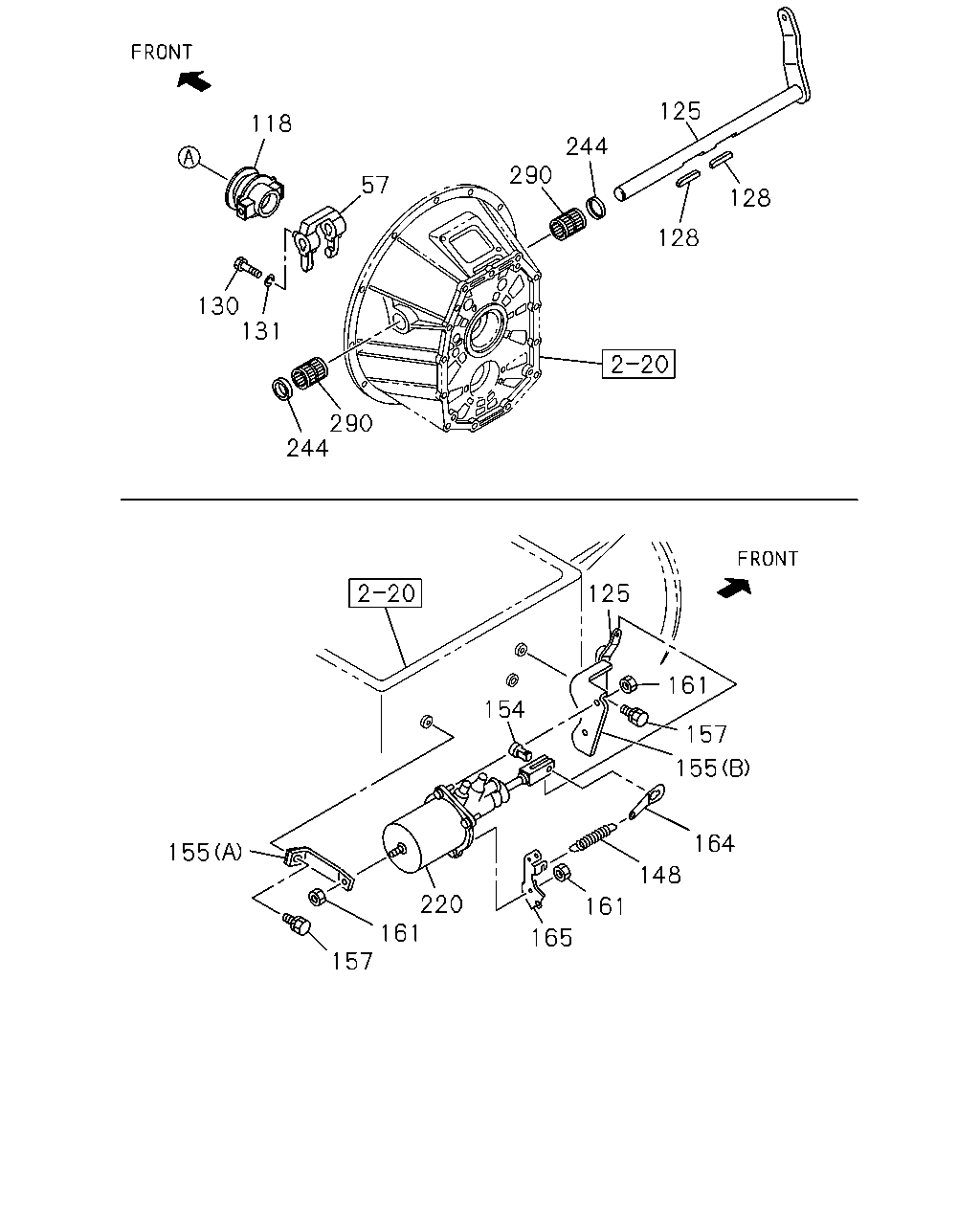

125 118 244 290 57 128 128 130 131 290 244 125 161 154 157 155 164 155 148 220 161 157 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0809-0906		●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	0907-		●	●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	0809-1306	●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-	●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0809-0906		●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0809-	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	0907-		●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0907-	●
125	SHAFT; CLU	1-31342-335-0	01	1	0809-0906		●
125	SHAFT; CLU	1-31342-335-0	01	1	0907-		●	●
125	SHAFT; CLU	1-31342-343-0	01	1	0809-	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0809-0906	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0907-	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0809-0906	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0907-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0809-0906	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0907-	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0809-0906	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0907-	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0809-0906		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0907-		●	●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) (A)	1-31429-474-1	01	1	1012-			●
155	BRACKET; MINIPACK 4HK1-TCS ENG(RJS) (B)	1-31429-477-0	01	1	1012-			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0809-0906		●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	0907-1011		●	●
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (A)	1-31429-475-1	01	1	1012-		●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0809-0906		●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	0907-1011		●	●
155	BRACKET; MINIPACK 6HK1-TCN ENG(82L) (B)	1-31429-478-0	01	1	1012-		●	●
155	BRACKET; MINIPACK (C)	1-31429-507-0	01	1	0809-	●
155	BRACKET; MINIPACK (D)	1-31429-508-0	01	1	0809-	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0809-0906	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0907-	●	●	●
161	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-208-0	05	1	1012-		●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0809-0906		●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	0907-1011		●	●
161	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	05	1	1012-		●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0809-	●
164	EYE; SPRING	1-31426-041-0	01	1	0809-0906	●	●
164	EYE; SPRING	1-31426-041-0	01	1	0907-	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0809-0906	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	0907-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	0907-1011	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-87610-089-0	01	1	1012-	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-089-0	01	1	1012-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCS ENG(RJS)	1-31800-510-2	01	1	1012-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0809-0906		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-1	01	1	0907-1011		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1-TCN ENG(82L)	1-31800-511-2	01	1	1012-		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	0809-	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0809-0906		●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0907-		●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0809-0906		●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	0907-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
