◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#38768) — 64 parça

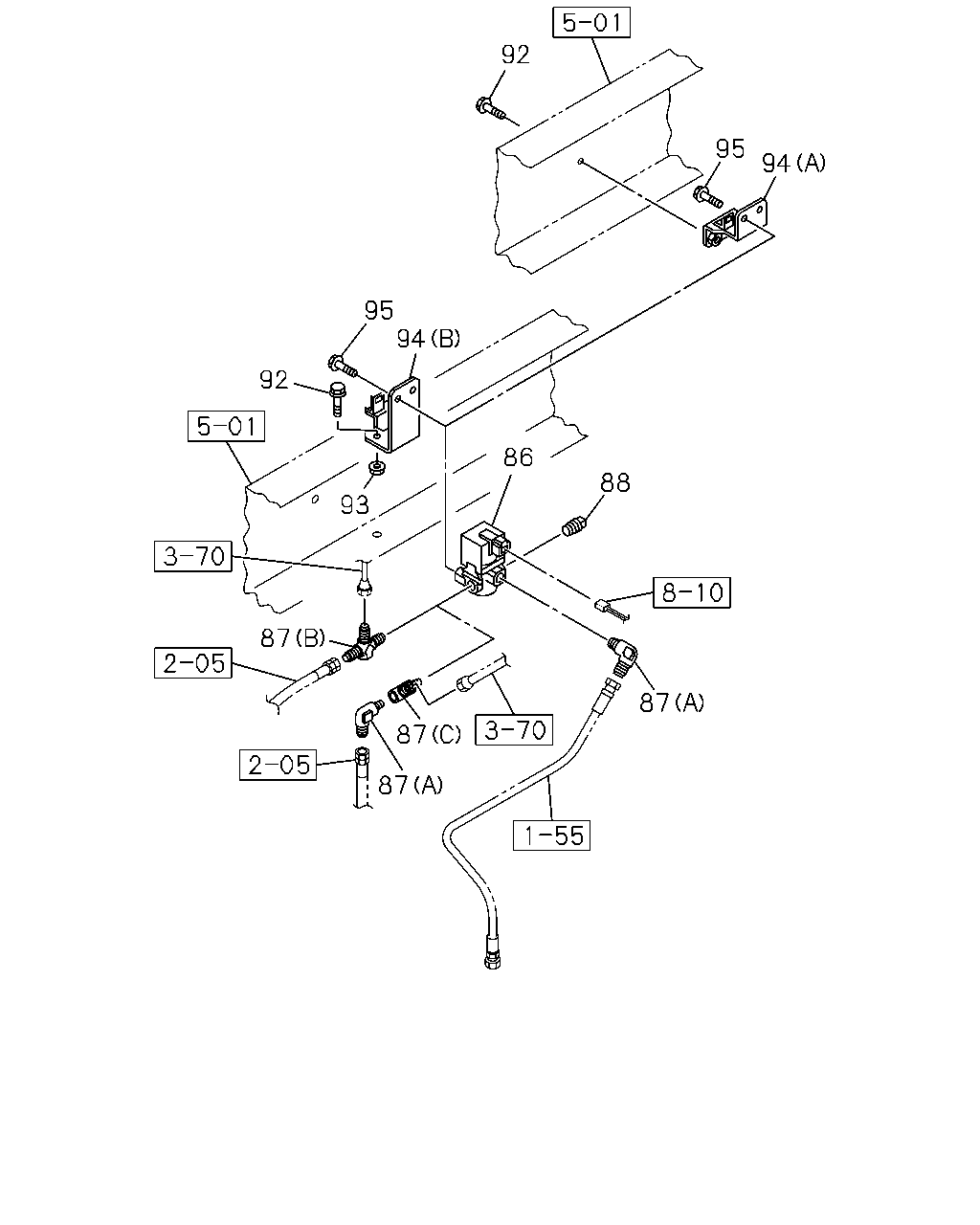

çizim 181263
92 95 94 95 94 92 86 88 93 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0809-0906 ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0907-1011 ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 1012-1509 ● ●
86 VALVE; MAG,EXH BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) 		1-82563-871-2 01 1 1510- ● ●
86 VALVE; MAG,EXH BRK
BRAKE REGULATION ECE(TDV) 		1-82563-871-2 01 1 1510- ● ●
86 VALVE; MAG,EXH BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-82563-871-2 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 1510- ● ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW 		8-98299-777-0 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6> M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1510- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1012-1509 ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1510- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1510- ●
87 CONNECTOR
BRAKE REGULATION ECE(TDV) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1510- ●
87 CONNECTOR
(C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1012-1509 ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1510- ●
87 CONNECTOR
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1510- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1510- ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809-0906 ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907-1509 ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1510- ●
87 CONNECTOR
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1510- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 1510- ●
87 CONNECTOR
(B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0906 ●
87 CONNECTOR
(B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0907-1509 ●
87 CONNECTOR
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1510- ●
87 CONNECTOR
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1510- ●
87 CONNECTOR
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE REGULATION ECE(TDV) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1510- ●
87 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1510- ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0809-0906 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0907-1011 ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 1012-1509 ● ●
88 PLUG
BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 		9-99204-513-0 01 1 1510- ● ●
88 PLUG
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) PT1/4 		9-99204-513-0 01 1 1510- ● ●
88 PLUG
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> PT1/4 		9-99204-513-0 01 1 1510- ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 01 1 0809-0906 ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 01 1 0907-1008 ●
92 BOLT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 01 1 1009- ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 0809-0906 ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X25 FLANGE 		0-28651-025-0 02 1 0907-1008 ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1009-1011 ●
92 BOLT; MAG VLV
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
92 BOLT; MAG VLV
M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
93 NUT; MAG VLV
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10 FLANGE 		0-91180-210-0 01 1 0809-0901 ●
94 BRACKET; MAG VLV,EXH BRAKE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98123-165-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-98123-165-0 01 1 0907-1509 ●
94 BRACKET; MAG VLV,EXH BRAKE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) 		8-98123-165-0 01 1 1510- ●
94 BRACKET; MAG VLV,EXH BRAKE
BRAKE REGULATION ECE(TDV) 		8-98123-165-0 01 1 1510- ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-098-0 01 1 0809-0906 ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-098-0 01 1 0907-1011 ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-098-0 01 1 1012-1509 ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98078-098-0 01 1 1012-1509 ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-98078-098-0 01 1 1510- ●
94 BRACKET; MAG VLV,EXH BRAKE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) 		8-98078-098-0 01 1 1510- ●
94 BRACKET; MAG VLV,EXH BRAKE
BRAKE REGULATION ECE(TDV) 		8-98078-098-0 01 1 1510- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0809-0906 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0907-1011 ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1012-1509 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. BRAKE REGULATION ECE(TDV) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
BRAKE REGULATION ECE(TDV) M8X20 FLANGE 		0-28650-820-0 02 1 1510- ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X20 FLANGE 		0-28650-820-0 02 1 1510- ●
