1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#38767) — 50 parça

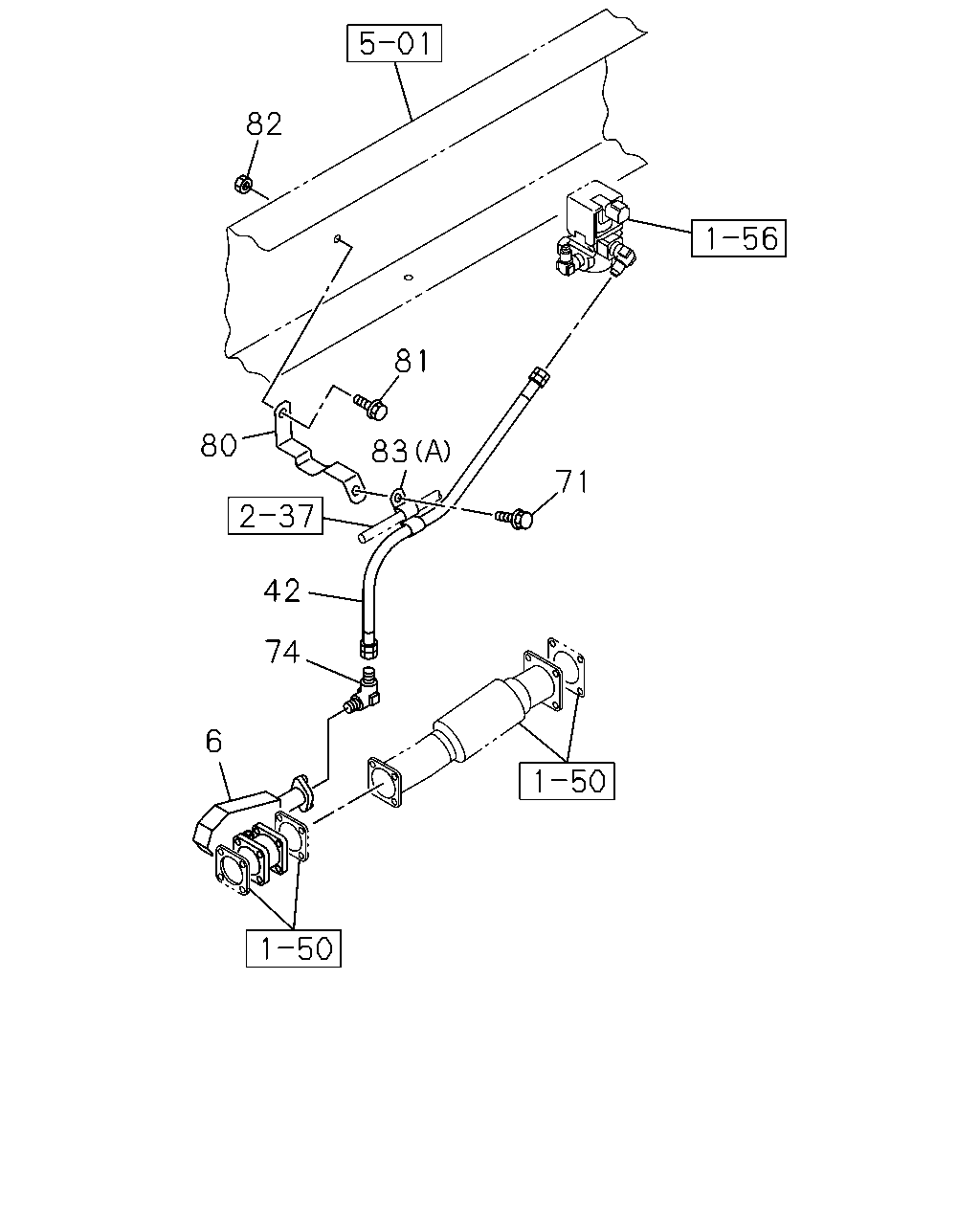

çizim 181261
82 81 80 83 71 42 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98054-172-6 01 1 1102- ●
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 0809-1302 ●
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303- ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 1012- ●
42 HOSE; FLEX,EXH BRK
MLD6W M/T(Y2C) L=660 		1-09363-971-0 01 1 1012- ●
42 HOSE; FLEX,EXH BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520 		1-09363-957-0 01 1 0809-0906 ●
42 HOSE; FLEX,EXH BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520 		1-09363-957-0 01 1 0907- ●
42 HOSE; FLEX,EXH BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=540 		1-09363-612-1 01 1 0809- ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011 ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ● ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0809-0906 ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0907-1011 ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 1012- ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 1012- ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0809-1011 ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 1012- ● ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1011 ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
83 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 1012- ●
83 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=11 L=50 		0-95235-085-0 01 1 1012- ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 0809-0906 ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 0907-1011 ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●

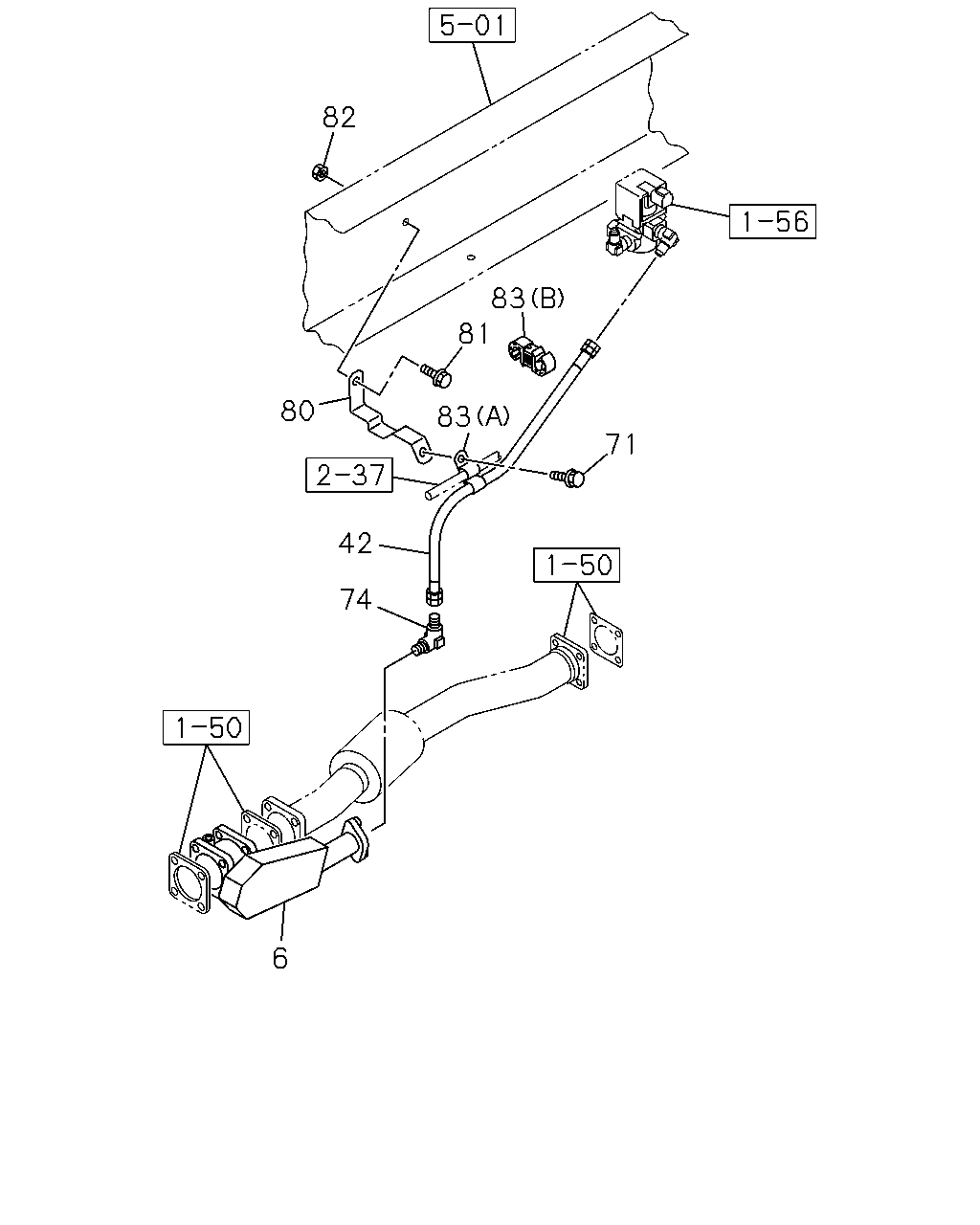

çizim 181466
82 83 81 80 83 71 42 74 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE 8-98054-172-6 01 1 1102- ●
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 0809-1302 ●
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303- ●
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=600 		1-09363-639-0 01 1 1012- ●
42 HOSE; FLEX,EXH BRK
MLD6W M/T(Y2C) L=660 		1-09363-971-0 01 1 1012- ●
42 HOSE; FLEX,EXH BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520 		1-09363-957-0 01 1 0809-0906 ●
42 HOSE; FLEX,EXH BRK
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=520 		1-09363-957-0 01 1 0907- ●
42 HOSE; FLEX,EXH BRK
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=540 		1-09363-612-1 01 1 0809- ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-1011 ●
71 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0809- ● ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0809-0906 ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 0907-1011 ●
80 BRACKET; FLEX HOSE 8-98078-153-0 01 1 1012- ●
80 BRACKET; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98078-153-0 01 1 1012- ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 0809-1011 ●
81 BOLT; HOSE BRKT
M10X25 FLANGE 		0-28051-025-0 01 1 1012- ● ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-1011 ●
82 NUT; HOSE BRKT
M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
83 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 1012- ●
83 CLIP; FLEX HOSE
MLD6W M/T(Y2C) (A) ID=11 L=50 		0-95235-085-0 01 1 1012- ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 0809-0906 ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 0907-1011 ●
83 CLIP; FLEX HOSE
(A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●
83 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=11X2 L=16 		1-09700-820-0 01 1 1012- ●
