◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#38766) — 262 parça

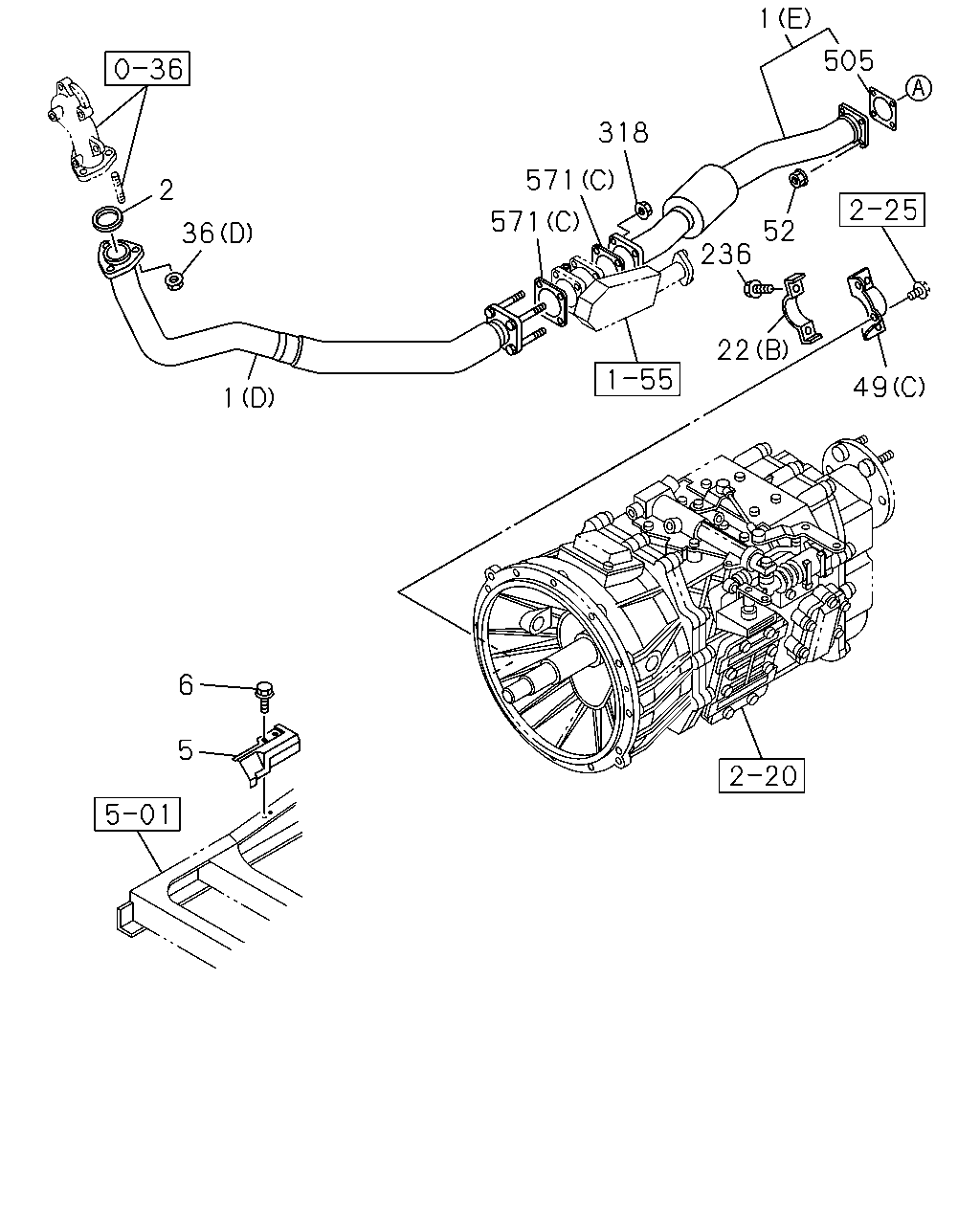

çizim 181258
1 505 318 571 2 571 52 36 236 22 49 1 6 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98082-498-0 01 1 1012-
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98096-347-0 01 1 1012-
1 PIPE; EXH
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1012-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1012-
1 PIPE; EXH
(B) 		8-98073-007-0 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) (B) 		8-98073-007-0 01 1 1012-1309
1 PIPE; EXH
(B) 		8-98245-501-0 01 1 1310-
1 PIPE; EXH
(C) 		8-98097-032-0 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) (C) 		8-98097-032-0 01 1 1012-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 1012-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0809-1011
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81 		8-98043-481-0 01 1 1012-
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) 		8-98089-287-1 01 1 1012-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-124-0 01 1 0809-1011
5 PROTECTOR; HEAT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-124-0 01 1 1012-
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
6 BOLT; HEAT PROTECTOR
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 1012-1309
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 FLANGE 		8-97096-192-1 03 1 1012-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0811-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 1012-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 1012-
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (C) 		8-98042-786-0 01 1 1012-1301
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (C) 		8-98234-530-0 01 1 1302-
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98085-317-2 01 1 0809-0811
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98122-671-0 01 1 0812-0906
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 0907-1011
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 1012-
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0809-1011
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 1012-
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 1012-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-1011
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1012-
236 BOLT; PIPE CLAMP TO BRKT
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28051-030-0 02 1 1012-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0809-1011
236 BOLT; PIPE CLAMP TO BRKT
6HK1-TCN ENG(82L) M10X35 FLANGE 		0-28051-035-0 02 1 1012-1304
318 NUT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) M8 W/LK WASHER 		8-97581-234-0 04 1 1012-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0809-1011
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 1012-
505 GASKET; CONV TO EXH PIPE
4HK1-TCS ENG(RJS) 		8-98096-305-0 01 1 1012-
571 GASKET
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 1012-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0809-1011
571 GASKET
6HK1-TCN ENG(82L) (A) ID=85.8 		1-22116-043-0 02 1 1012-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0809-1011
571 GASKET
6HK1-TCN ENG(82L) (B) ID=81 		8-98043-481-0 01 1 1012-

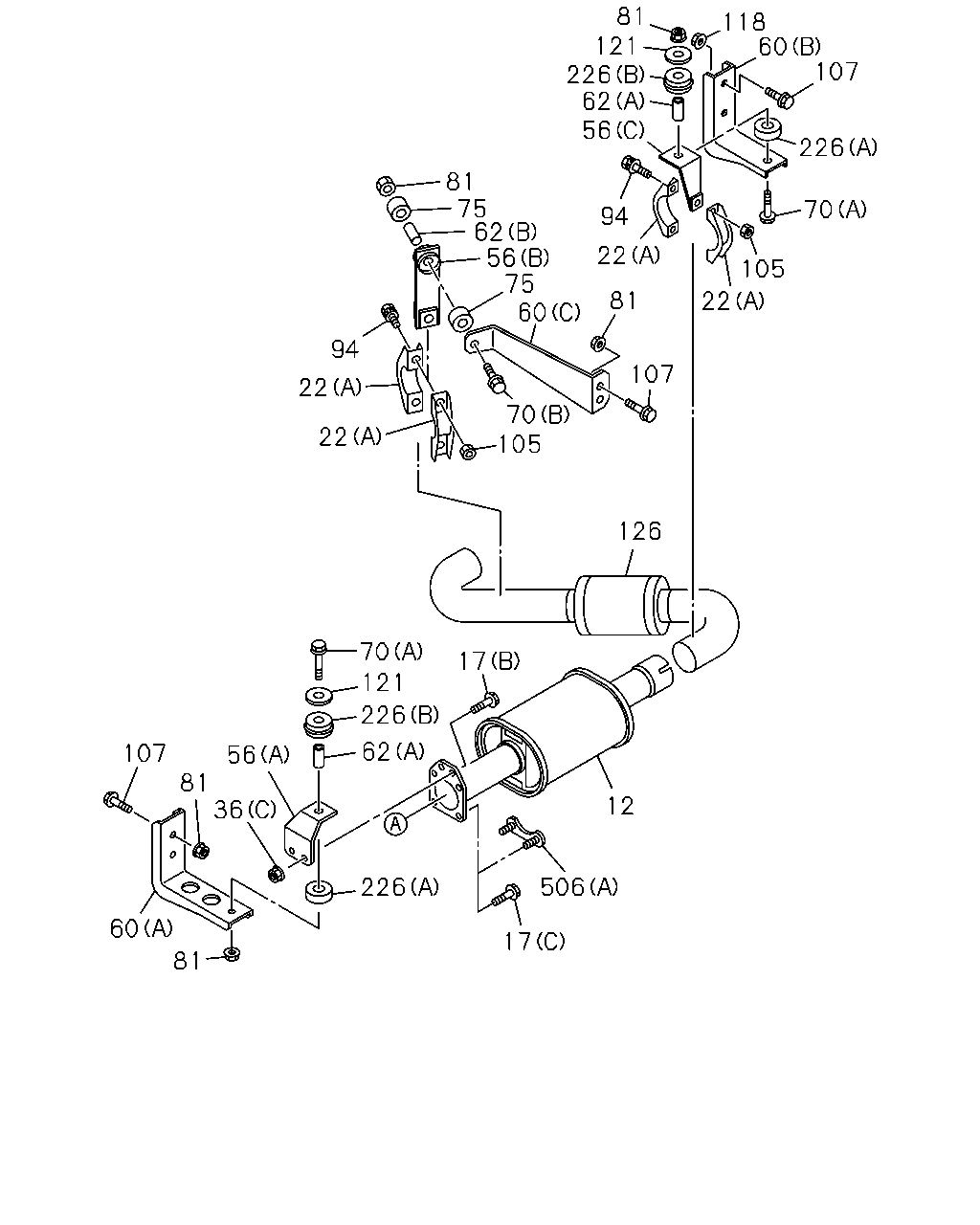

çizim 181259
81 121 226 62 56 94 22 118 22 105 70 226 107 60 81 75 62 56 75 60 81 107 70 105 22 22 94 126 70 121 226 62 17 12 506 17 226 56 36 81 107 60 81
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
4HK1-TCS ENG(RJS) 		8-98090-389-2 01 1 1012-
12 SILENCER ASM; EXH 8-98101-274-1 01 1 0809-1011
12 SILENCER ASM; EXH
6HK1-TCN ENG(82L) 		8-98101-274-1 01 1 1012-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-1011
17 BOLT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12X35 FLANGE 		0-28051-235-0 03 1 1012-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0809-0810
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0811-
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 1012-1309
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 FLANGE 		8-97096-192-1 03 1 1012-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0811-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 1012-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 1012-
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (A) 		8-98074-824-1 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
4HK1-TCS ENG(RJS) (C) 		8-98086-352-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22131-584-0 01 1 0809-1309
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-522-0 01 1 1310-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98073-291-0 01 1 0809-1011
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) (C) 		8-98073-291-0 01 1 1012-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98074-829-1 01 1 0809-1011
56 BRACKET; CLAMP,EXH PIPE
6HK1-TCN ENG(82L) (A) 		8-98074-829-1 01 1 1012-
60 BRACKET; FRAME TO BRKT
4HK1-TCS ENG(RJS) (C) 		8-98090-167-0 01 1 1012-
60 BRACKET; FRAME TO BRKT
(A) 		1-22152-274-1 01 1 0809-
60 BRACKET; FRAME TO BRKT
(B) 		8-98059-753-1 01 1 0809-1309
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-530-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-640-0 01 1 0809-1011
60 BRACKET; FRAME TO BRKT
6HK1-TCN ENG(82L) (C) 		8-98070-640-0 01 1 1012-1309
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-521-0 01 1 1310-
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
4HK1-TCS ENG(RJS) (A) L=39 		8-98060-852-0 01 1 1012-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 01 1 0809-0906
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 0907-
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 0809-1011
62 TUBE; DIST,BRKT
6HK1-TCN ENG(82L) (A) L=39 		8-98060-852-0 02 1 1012-
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
4HK1-TCS ENG(RJS) (A) M10X70 FLANGE 		0-28051-070-0 01 1 1012-
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0809-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 0809-1011
70 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 0809-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 04 1 1305-1305
81 NUT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-110-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0809-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0809-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0809-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) ID=11 OD=54 		1-09503-154-2 01 1 1012-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 0809-1011
121 WASHER; PL,BRKT
6HK1-TCN ENG(82L) ID=11 OD=54 		1-09503-154-2 02 1 1012-
126 PIPE; EXH,RR 8-98073-427-0 01 1 0809-
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (A) 		8-94457-277-1 01 1 1012-
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
4HK1-TCS ENG(RJS) (B) 		8-94457-278-1 01 1 1012-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 0809-1011
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (A) 		8-94457-277-1 02 1 1012-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 0809-1011
226 RUBBER; CUSHION
6HK1-TCN ENG(82L) (B) 		8-94457-278-1 02 1 1012-
506 BRACKET; STUD
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0809-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204-

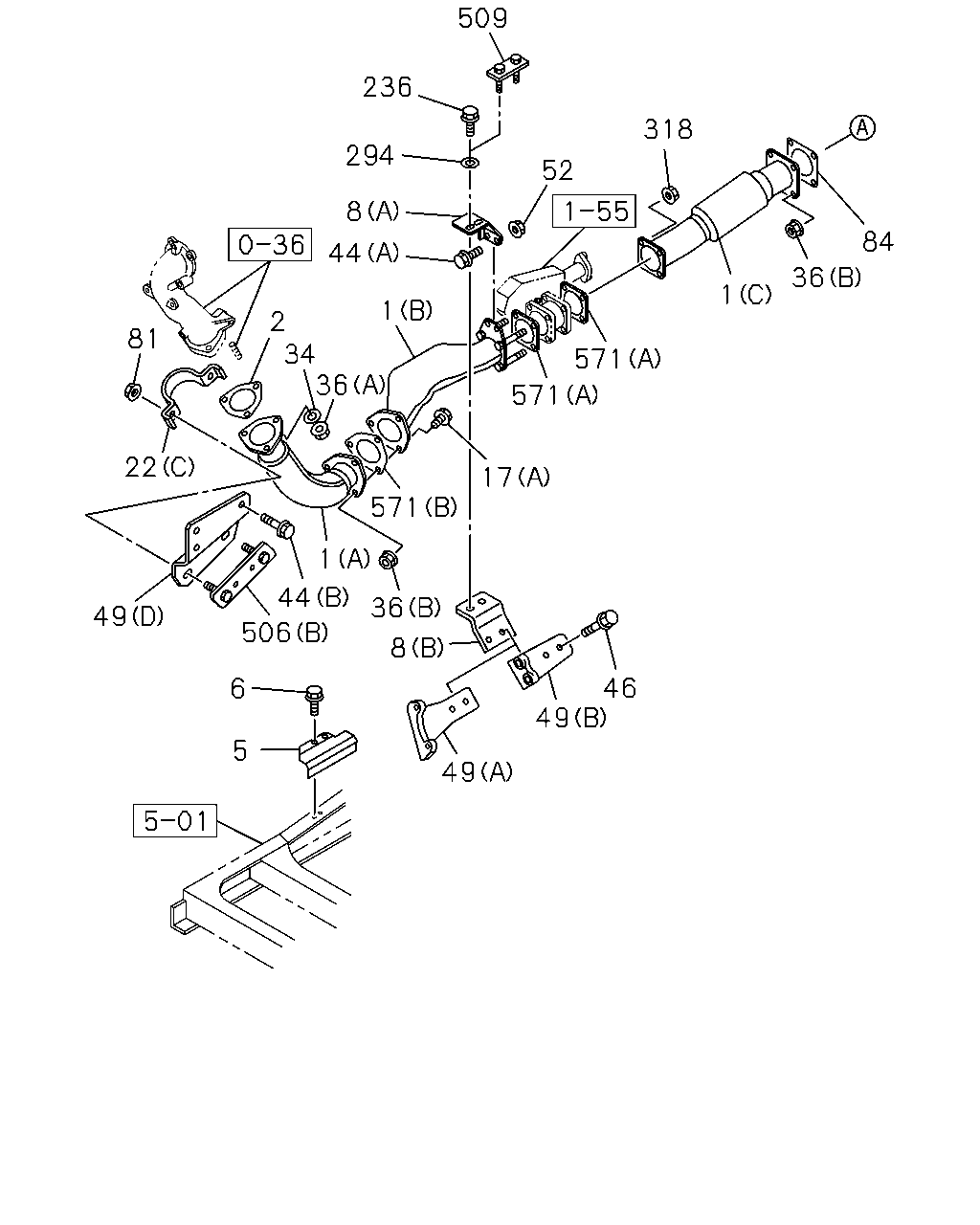

çizim 181260
49 49 8 46 5 6 36 17 571 571 1 36 84 318 52 571 509 236 294 8 44 1 2 36 34 1 22 81 44 506 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
4HK1-TCS ENG(RJS) (D) 		8-98082-498-0 01 1 1012-
1 PIPE; EXH
4HK1-TCS ENG(RJS) (E) 		8-98096-347-0 01 1 1012-
1 PIPE; EXH
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1012-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1012-
1 PIPE; EXH
(B) 		8-98073-007-0 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) (B) 		8-98073-007-0 01 1 1012-1309
1 PIPE; EXH
(B) 		8-98245-501-0 01 1 1310-
1 PIPE; EXH
(C) 		8-98097-032-0 01 1 0809-1011
1 PIPE; EXH
6HK1-TCN ENG(82L) (C) 		8-98097-032-0 01 1 1012-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) 		8-97381-455-0 01 1 1012-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 0809-1011
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) ID=81 		8-98043-481-0 01 1 1012-
5 PROTECTOR; HEAT
4HK1-TCS ENG(RJS) 		8-98089-287-1 01 1 1012-
5 PROTECTOR; HEAT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-124-0 01 1 0809-1011
5 PROTECTOR; HEAT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-124-0 01 1 1012-
6 BOLT; HEAT PROTECTOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0809-1011
6 BOLT; HEAT PROTECTOR
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
6 BOLT; HEAT PROTECTOR
4HK1-TCS ENG(RJS) M8X25 FLANGE 		0-28650-825-0 02 1 1012-
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (B) 		8-98089-802-0 01 1 0809-0811
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (B) 		8-98122-677-0 01 1 0812-0906
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 0907-1011
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98122-677-0 01 1 1012-1304
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98233-626-0 01 1 1305-1310
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98259-870-0 01 1 1311-
8 BRACKET; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98122-679-0 01 1 0812-0906
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 0907-1011
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-679-1 01 1 1012-1304
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98233-627-0 01 1 1305-1404
8 BRACKET; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98275-817-0 01 1 1405-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 0809-1011
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) 		8-98113-013-0 01 1 1012-1304
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98233-345-0 01 1 1305-1310
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98259-873-0 01 1 1311-
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 0809-1011
8 BRACKET; EXH PIPE
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) 		8-98114-390-0 01 1 1012-1304
8 BRACKET; EXH PIPE
MLD6W M/T(Y2C) (A) 		8-98233-348-0 01 1 1305-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> (C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0809-1011
17 BOLT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12X35 FLANGE 		0-28051-235-0 03 1 1012-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0809-0810
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0811-
22 CLAMP; EXH PIPE
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (C) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		1-22133-295-0 01 1 1012-1309
22 CLAMP; EXH PIPE
4HK1-TCS ENG(RJS) (B) 		8-97646-674-0 01 1 1310-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
22 CLAMP; EXH PIPE
(A) ID=80-84 		1-22133-233-0 02 1 0809-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0809-1011
34 WASHER; EXH PIPE
6HK1-TCN ENG(82L) ID=13 OD=24 DISH 		1-09500-030-0 03 1 1012-
36 NUT; EXH PIPE
4HK1-TCS ENG(RJS) (D) M10 FLANGE 		8-97096-192-1 03 1 1012-
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 04 1 0809-0810
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0811-
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (B) M12 FLANGE 		0-91180-212-0 07 1 1012-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0809-1011
36 NUT; EXH PIPE
6HK1-TCN ENG(82L) (A) M12 		1-09400-010-0 03 1 1012-
44 BOLT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) M10X20 FLANGE 		0-28751-020-0 03 1 1305-
44 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0809-0907
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0908-1011
44 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X35 FLANGE 		0-28651-035-0 02 1 1012-
46 BOLT; BRKT,EXH PIPE
MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0809-0811
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6W M/T(Y2C) M10X30 FLANGE 		0-28051-030-0 02 1 0812-0906
46 BOLT; BRKT,EXH PIPE
6HK1-TCN ENG(82L) M10X30 FLANGE 		0-28051-030-0 02 1 0907-
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (D) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (C) 		8-98042-786-0 01 1 1012-1301
49 BRACKET; EXH PIPE TO TRANS
4HK1-TCS ENG(RJS) (C) 		8-98234-530-0 01 1 1302-
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98085-317-2 01 1 0809-0811
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) (A) 		8-98122-671-0 01 1 0812-0906
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 0907-1011
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98122-671-0 01 1 1012-
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 0809-1011
49 BRACKET; EXH PIPE TO TRANS
6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) 		8-98113-008-0 01 1 1012-
52 NUT; BRKT
4HK1-TCS ENG(RJS) M12 FLANGE 		0-91180-212-0 04 1 1012-
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-1011
52 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1012-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
6HK1-TCN ENG(82L) EXC. TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1305-1305
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1008-1304
81 NUT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 04 1 1305-1305
81 NUT; BRKT
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-110-0 02 1 1306-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-0910
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0911-1007
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1008-
84 GASKET; EXH PIPE
6HK1-TCN ENG(82L) 		8-98096-305-0 01 1 0809-0906
84 GASKET; EXH PIPE
6HK1-TCN ENG(82L) 		8-98096-305-0 01 1 0907-
236 BOLT; PIPE CLAMP TO BRKT
4HK1-TCS ENG(RJS) M10X30 FLANGE 		0-28051-030-0 02 1 1012-
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28051-035-0 02 1 0809-1011
236 BOLT; PIPE CLAMP TO BRKT
6HK1-TCN ENG(82L) M10X35 FLANGE 		0-28051-035-0 02 1 1012-1304
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 0809-1011
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
6HK1-TCN ENG(82L) ID=10.5 		8-98073-091-0 02 1 1012-
318 NUT; EXH PIPE,FRT
4HK1-TCS ENG(RJS) M8 W/LK WASHER 		8-97581-234-0 04 1 1012-
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0809-1011
318 NUT; EXH PIPE,FRT
6HK1-TCN ENG(82L) M10 FLANGE 		0-91180-210-0 04 1 1012-
506 BRACKET; STUD
6HK1-TCN ENG(82L) TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-333-1 01 1 1305-
506 BRACKET; STUD
(A) M12X35 		1-22131-963-0 02 1 0809-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> (A) M12X35 		1-22131-963-0 02 1 1204-
509 STUD; BRKT 8-98233-625-0 01 1 1305-1311
509 STUD; BRKT 8-98259-983-0 01 1 1312-
571 GASKET
4HK1-TCS ENG(RJS) (C) ID=64 		8-97373-108-0 02 1 1012-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 0809-1011
571 GASKET
6HK1-TCN ENG(82L) (A) ID=85.8 		1-22116-043-0 02 1 1012-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 0809-1011
571 GASKET
6HK1-TCN ENG(82L) (B) ID=81 		8-98043-481-0 01 1 1012-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
