Sayfa 1-41 - Isuzu EPC

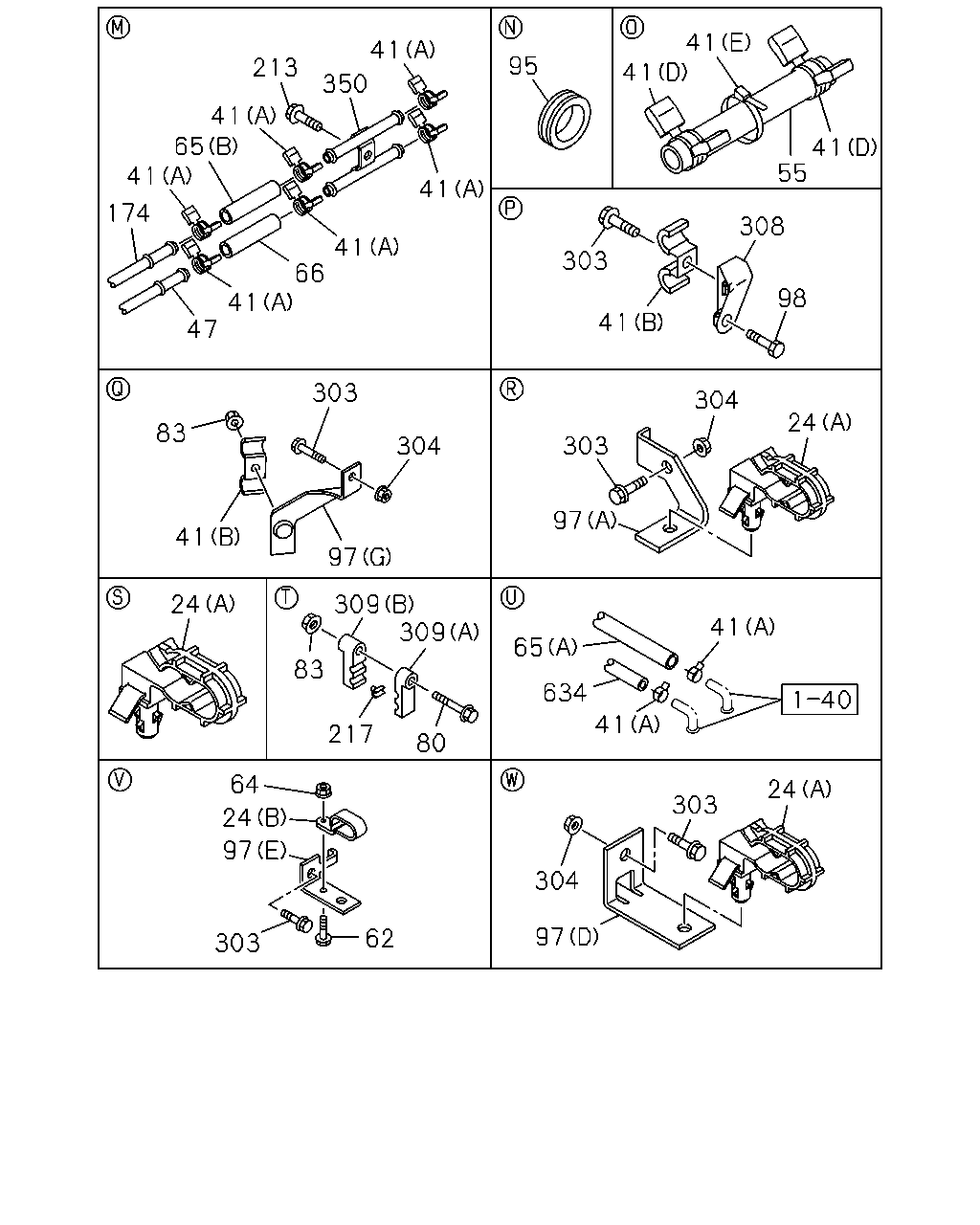

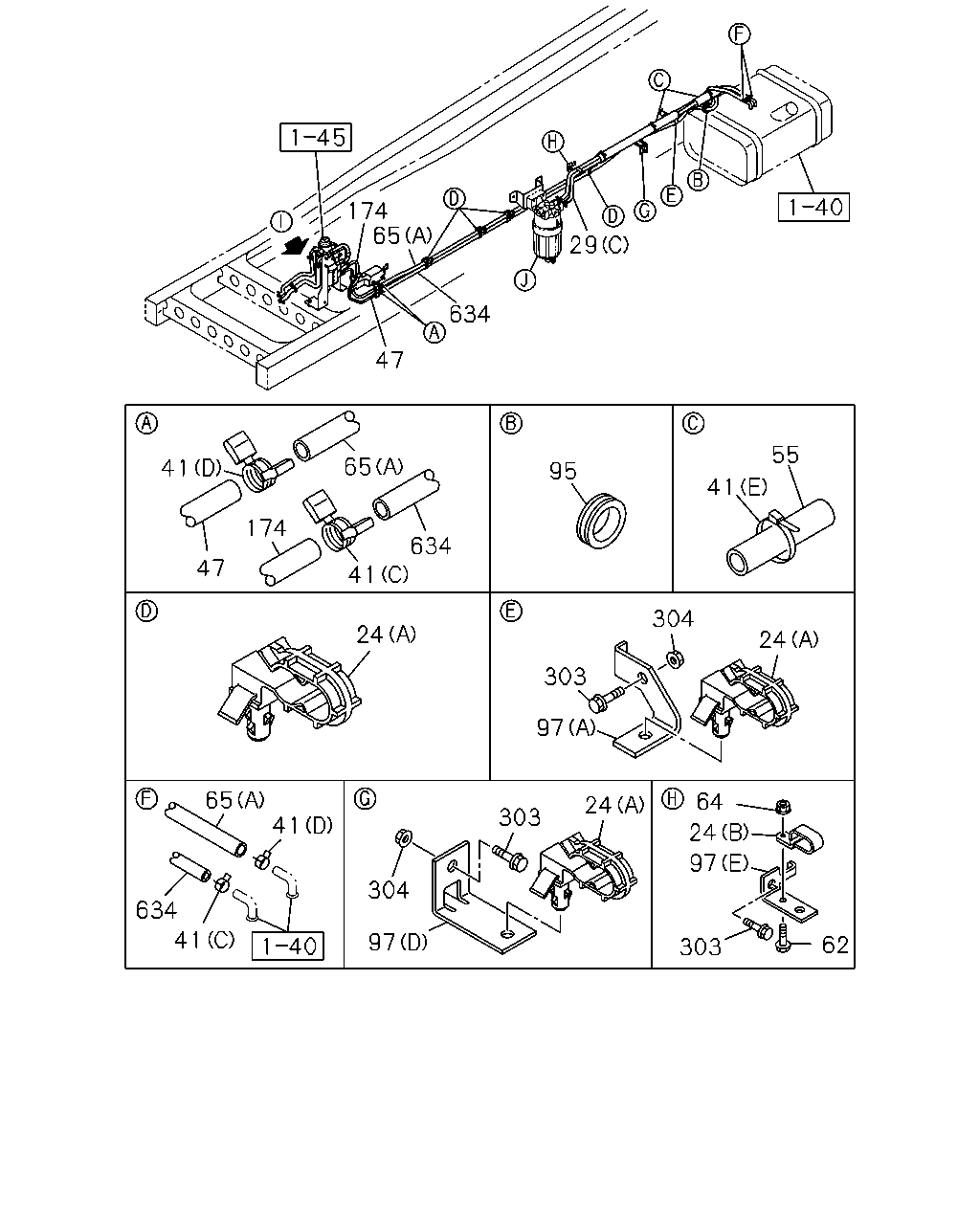

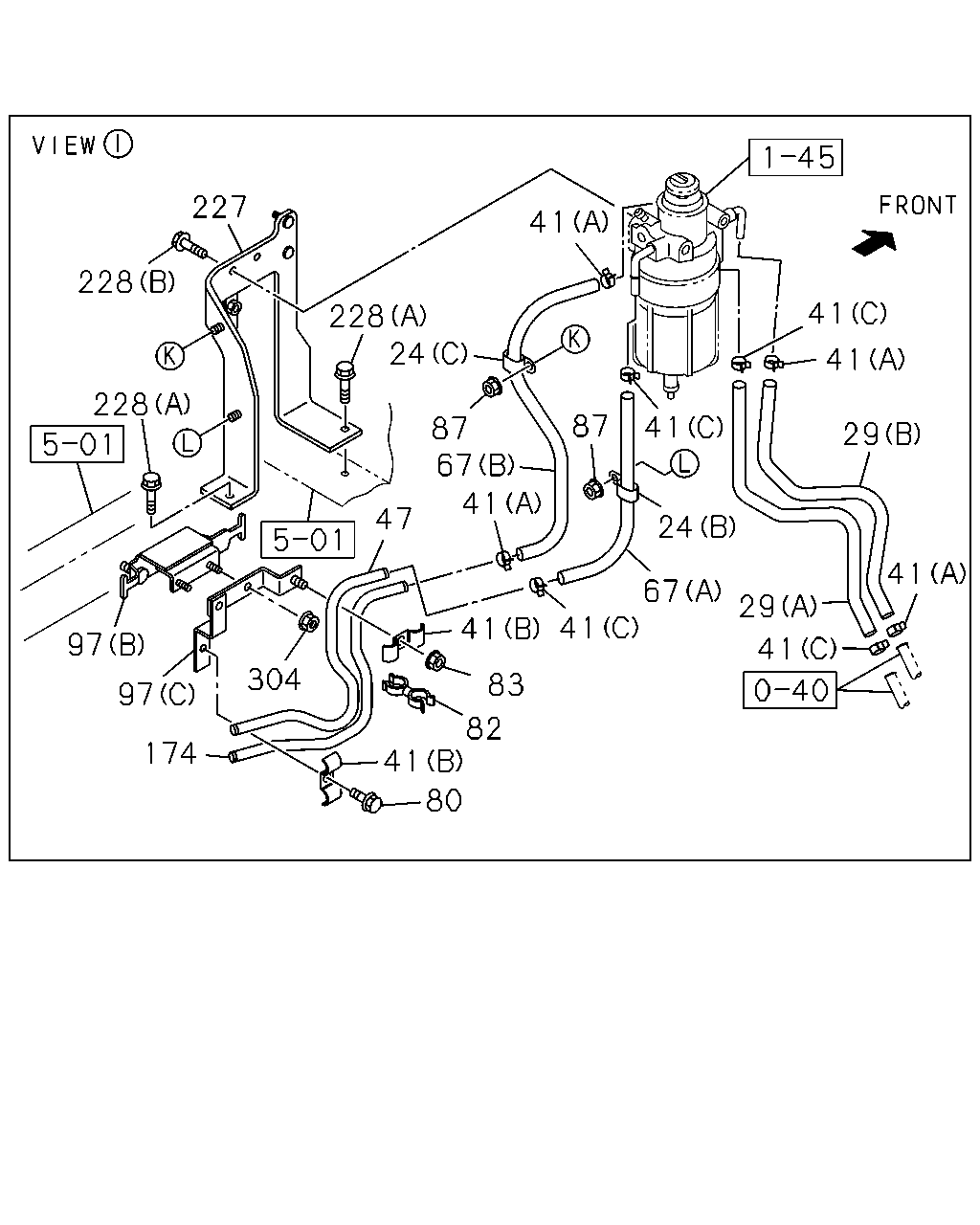

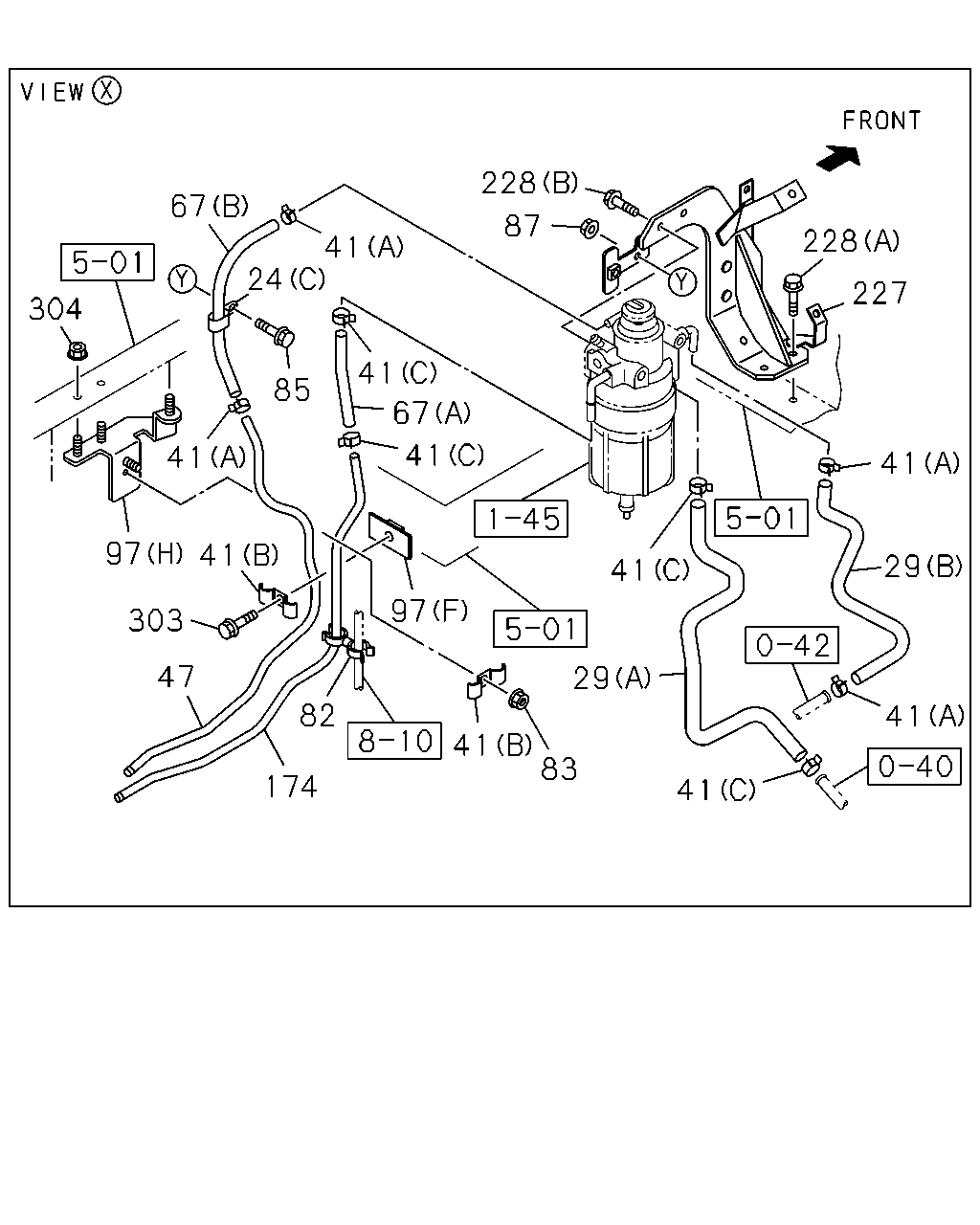

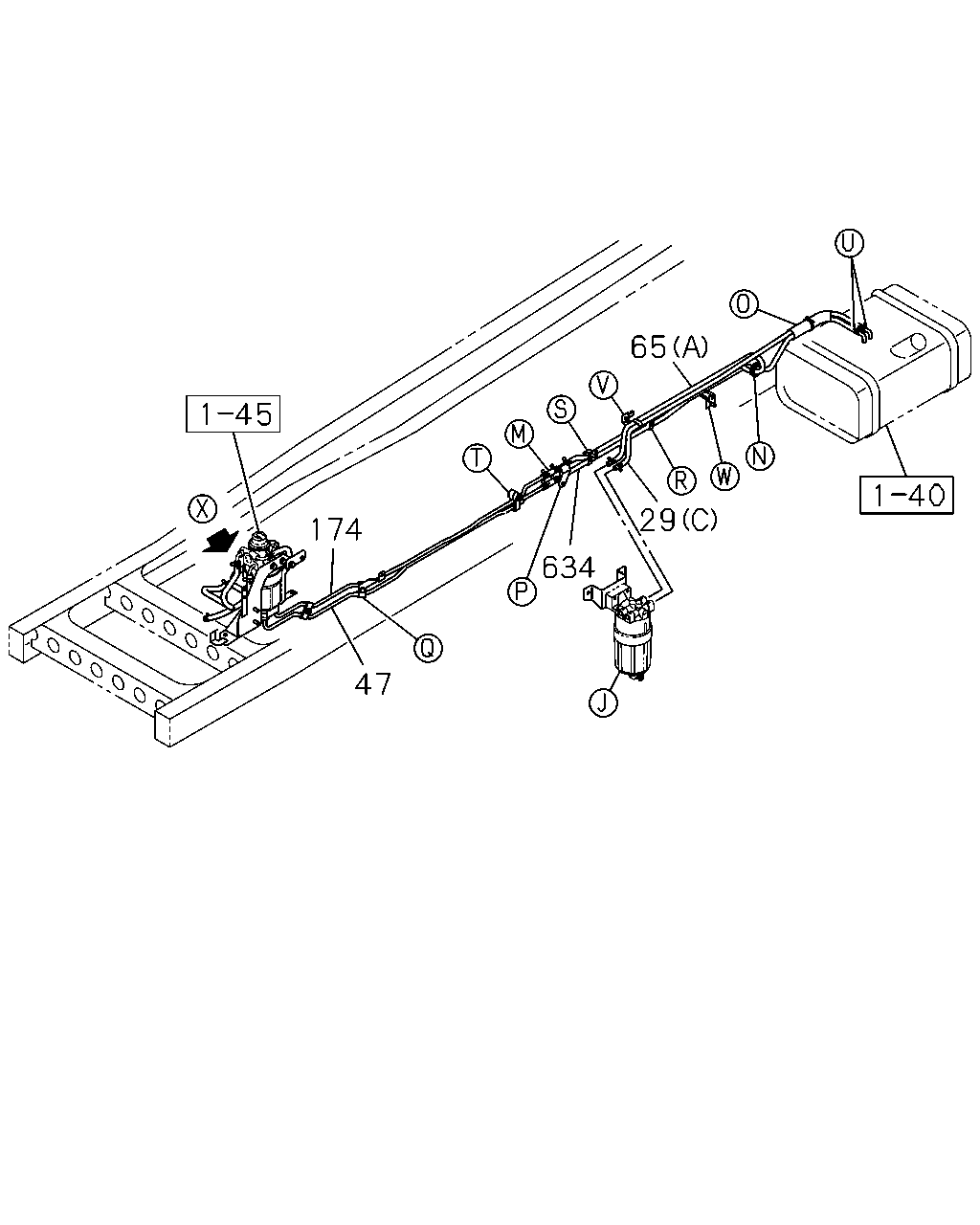

1-41 — FUEL PIPING; CHASSIS (#38764) — 567 parça

29 65 634 47 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98078-194-3	01	1	1012-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98078-195-1	01	1	1012-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0809-1011
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0907-
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0809-1011
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0907-

174 29 65 634 47 41 47 174 65 634 41 24 65 41 634 41 97 304 303 303 62 97 24 64 24 97 303 304 24 41 55 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98078-194-3	01	1	1012-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98078-195-1	01	1	1012-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0809-1011
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0809-0901
55	COVER; PIPE,FUEL TANK ID=27 L=500	8-98119-327-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1004-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8X20 FLANGE	0-28650-820-0	01	1	0809-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0907-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	0809-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0809-1011
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-1005
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	0809-1005
97	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1006-1011
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0809-1011
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	0809-1005
303	BOLT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1012-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1012-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0809-0906
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-1005
304	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1006-1011
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0907-

227 228 228 97 97 174 304 41 82 80 83 41 47 228 24 87 67 41 41 67 24 87 41 41 41 41 29 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98078-194-3	01	1	1012-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98078-195-1	01	1	1012-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0809-1011
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0809-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0809-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0809-1011
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0809-1005
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1006-1011
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	0809-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0809-1011
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-1005
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	0809-1005
97	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1006-1011
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0809-1011
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0809-1011
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0809-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0809-0906
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-1005
304	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1006-1011
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1012-

65 29 41 39 279 228 41 39 418 304 304 303 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98078-194-3	01	1	1012-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98078-195-1	01	1	1012-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-
39	PIPE; FUEL	8-97358-699-0	02	1	0809-0903
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0907-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0809-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	0809-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	0809-1005
303	BOLT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1012-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1012-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0809-0906
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-1005
304	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1006-1011
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1012-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	0809-
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	0809-

228 227 41 29 41 41 41 87 228 29 83 82 174 41 97 41 67 41 85 24 41 67 304 41 97 41 303 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (A)	8-98078-194-3	01	1	1012-
29	HOSE; FUEL 4HK1-TCS ENG(RJS) (B)	8-98078-195-1	01	1	1012-
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (A)	8-98078-196-2	01	1	1012-
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0809-1011
29	HOSE; FUEL 6HK1-TCN ENG(82L) (B)	8-98078-197-1	01	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0809-1011
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-
67	HOSE; FUEL,DELIVERY (A) L=280 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
67	HOSE; FUEL,DELIVERY (B) L=440 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
67	HOSE; FUEL,DELIVERY 4HK1-TCS ENG(RJS) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0809-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0809-1011
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-
85	BOLT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-
87	NUT; CLIP,FUEL HOSE 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0809-1005
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	1006-1011
87	NUT; CLIP,FUEL HOSE 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	0809-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0809-1011
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-1005
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	0809-1005
97	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1006-1011
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0809-1011
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-
227	BRACKET; FUEL SEDIMENTER 4HK1-TCS ENG(RJS)	8-98130-667-0	01	1	1012-
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0809-1011
227	BRACKET; FUEL SEDIMENTER 6HK1-TCN ENG(82L)	8-98044-366-3	01	1	1012-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0809-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	0809-1005
303	BOLT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1012-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1012-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0809-0906
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-1005
304	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1006-1011
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1012-

41 41 41 95 213 350 41 65 41 41 55 41 174 308 41 66 303 98 41 47 41 303 304 24 83 303 304 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	1012-
24	CLIP; FUEL HOSE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1012-
24	CLIP; FUEL HOSE (C) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) (A) ID=14.5 & 14.5	1-09701-246-1	03	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	05	1	0907-
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0809-0906
24	CLIP; FUEL HOSE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) ID=14.5 & 14.5	1-09701-246-1	08	1	0907-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (A) ID=13	8-94238-571-0	08	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	06	1	0809-0910
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	0911-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=140	5-09707-031-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 4HK1-TCS ENG(RJS) (C) ID=14	1-09704-102-0	06	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-0906
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0907-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (C) ID=14	1-09704-102-0	04	1	1012-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	06	1	0809-1011
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCN ENG(82L) (A) ID=13	8-94238-571-0	06	1	1012-
47	PIPE; FUEL,RETURN 4HK1-TCS ENG(RJS) L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	1012-
47	PIPE; FUEL,RETURN L=413	8-98078-210-0	01	1	0809-1011
47	PIPE; FUEL,RETURN 6HK1-TCN ENG(82L) L=413	8-98078-210-0	01	1	1012-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0809-0901
55	COVER; PIPE,FUEL TANK ID=27 L=500	8-98119-327-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1004-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8X20 FLANGE	0-28650-820-0	01	1	0809-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	1012-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0907-
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0809-0906
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	0907-
66	HOSE; FUEL,RETURN PIPE 4HK1-TCS ENG(RJS) L=60 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
80	BOLT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8X50 FLANGE	0-28050-850-0	01	1	1012-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0809-
83	NUT; CLIP,FUEL TANK 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	04	1	1012-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0809-1011
83	NUT; CLIP,FUEL TANK 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	01	1	1012-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1007-1011
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (D)	8-98109-768-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (F) L=50	1-47475-299-2	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (G)	8-98078-201-0	01	1	1012-
97	BRACKET; CLIP 4HK1-TCS ENG(RJS) (H)	8-98083-537-0	01	1	1012-
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (B)	8-98077-895-1	01	1	0809-
97	BRACKET; CLIP (C)	8-98077-896-0	01	1	0809-1011
97	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-98077-896-0	01	1	1012-
97	BRACKET; CLIP (D)	8-98109-768-0	01	1	0809-1005
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) (E)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	0809-1005
97	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1006-1011
97	BRACKET; CLIP WHEEL BASE 4800MM(48W) (A)	8-98083-349-0	01	1	1012-
98	BOLT; BRKT,FUEL PIPE 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28651-030-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT 4HK1-TCS ENG(RJS) L=1322	8-98100-140-0	01	1	1012-
174	PIPE; FUEL,FEED,FRT	8-98078-209-0	01	1	0809-1011
174	PIPE; FUEL,FEED,FRT 6HK1-TCN ENG(82L)	8-98078-209-0	01	1	1012-
213	BOLT; FUEL PIPE FIX 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1012-
217	COLLAR; FUEL PIPE FIX 4HK1-TCS ENG(RJS) ID=8	1-47459-011-0	01	1	1012-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	0809-1005
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1006-1006
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1007-1011
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	01	1	1012-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	0809-1005
303	BOLT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1006-1011
303	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	01	1	1012-
303	BOLT; BRKT WHEEL BASE 4800MM(48W) M8X30 FLANGE	0-28650-830-0	01	1	1012-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0809-0906
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0907-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	0809-1005
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1006-1006
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1007-1011
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1012-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-1009
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1010-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	0809-1005
304	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1006-1011
304	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1012-
304	NUT; BRKT WHEEL BASE 4800MM(48W) M8 FLANGE	0-91180-108-0	01	1	1012-
308	BRACKET; FUEL PIPE 4HK1-TCS ENG(RJS)	8-98117-691-0	01	1	1012-
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (A) ID=10 & 10	1-09709-241-0	01	1	1012-
309	CLIP; PIPE 4HK1-TCS ENG(RJS) (B) ID=10 & 10	1-09709-243-0	01	1	1012-
350	PIPE; FUEL,DEL & RET 4HK1-TCS ENG(RJS)	8-98084-131-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	1012-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0907-
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0906
634	HOSE; RUBBER RETURN 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) L=2850 SERVICED BY L=3000	0-01558-300-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
