Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#38761) — 236 parça

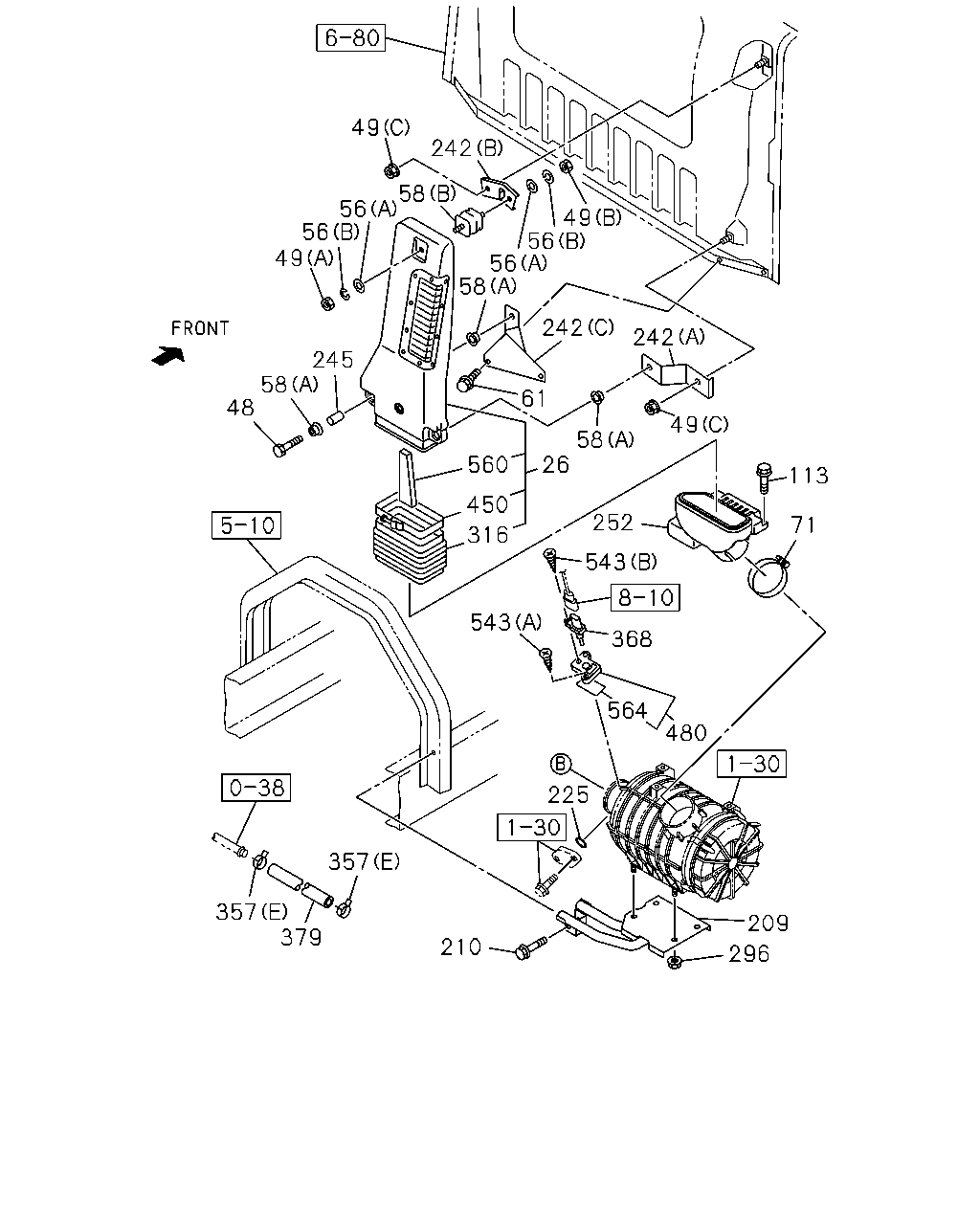

49 242 58 56 56 49 49 56 56 58 242 245 61 58 242 49 48 58 26 560 450 252 316 71 543 368 543 564 225 424 159 480 357 379 357 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0809-1011	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1012-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0809-1011	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1012-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0809-1011	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1012-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0809-1011	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1012-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0809-1011	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0809-1011	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0809-0810	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-1011	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1012-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0809-1011	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1012-	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0809-0812	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-1011	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1012-	●	●
159	BOLT; AIR PIPE M6X16 FLANGE	0-28050-616-0	02	1	0809-	●
209	BRACKET; ACL	8-98099-677-0	01	1	0809-1011	●
209	BRACKET; ACL	8-98099-677-0	01	1	1012-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	03	1	0809-1011	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	03	1	1012-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0809-1101	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1102-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0809-1011	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1012-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1012-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1012-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0809-1011	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1012-	●	●
252	DUCT; AIR INT VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-		●
252	DUCT; AIR INT	8-98095-779-0	01	1	1012-1012		●
252	DUCT; AIR INT EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-		●
252	DUCT; AIR INT	8-98019-843-0	01	1	0809-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0809-1011	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1011	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	1102-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1012-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (D) ID=75-95	8-98133-357-0	01	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (D) ID=77-99	1-09707-141-0	01	1	1012-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0809-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0809-	●
368	SENSOR; TEMP	8-98065-377-0	01	1	0809-0906	●
368	SENSOR; TEMP	8-98065-377-0	01	1	0907-1011	●
368	SENSOR; TEMP	8-98065-377-0	01	1	1012-	●	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1102-		●
379	HOSE; RUBBER	8-98063-172-0	01	1	0809-	●
424	PIPE; AIR,INL	8-98081-834-0	01	1	0809-	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0809-1011	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1012-	●	●
480	ADAPTER	8-98086-417-0	01	1	0809-0906	●
480	ADAPTER	8-98086-417-0	01	1	0907-1011	●
480	ADAPTER	8-98086-417-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-0906	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0907-1011	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-0906	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0907-1011	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-1101	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0907-	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0809-0906	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	0809-0906	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	0907-1011	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	1012-	●	●

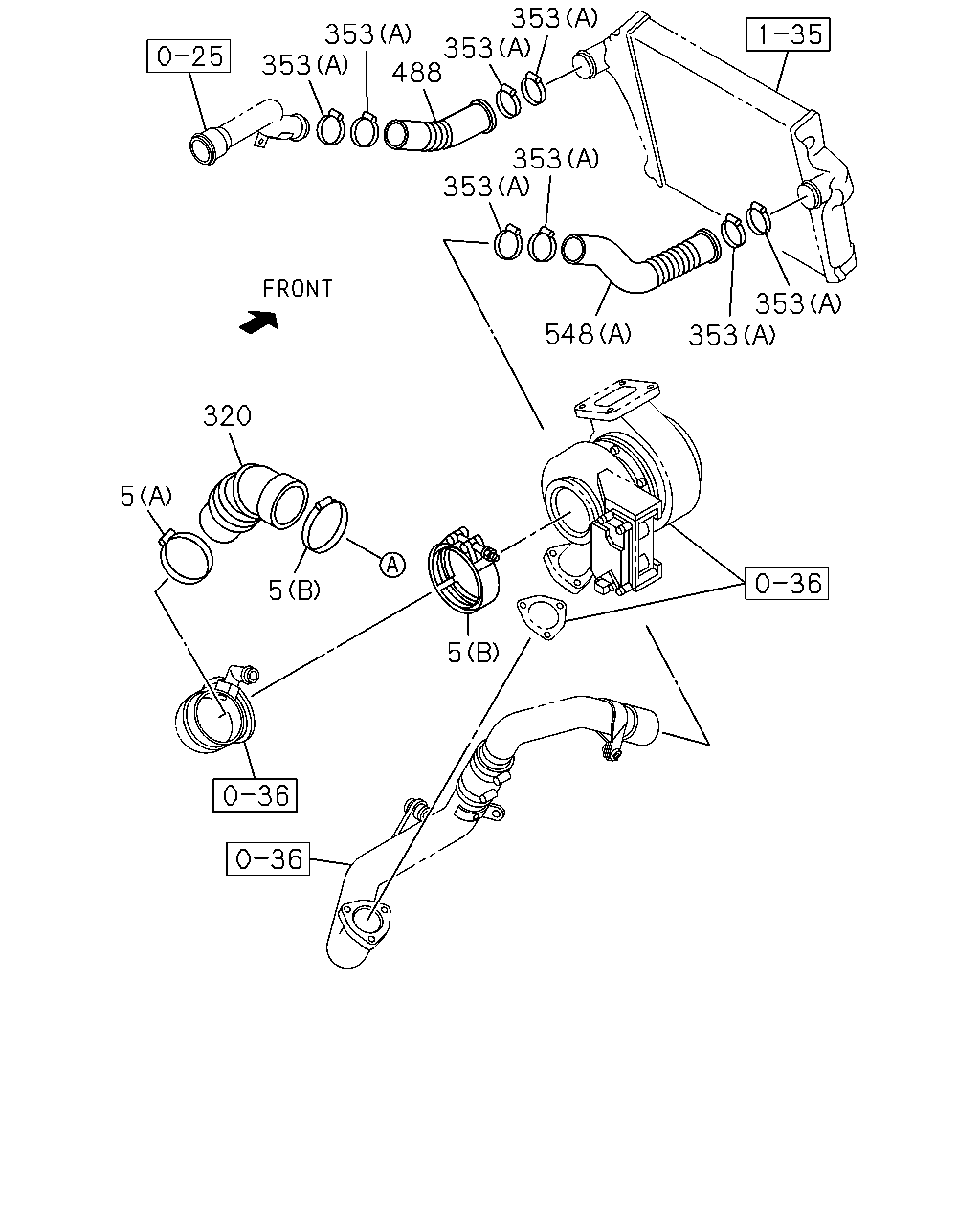

353 353 488 353 353 353 353 353 353 548 320 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=65-85	8-98133-350-0	01	1	1012-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=68-85	8-98096-592-0	01	1	1012-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0809-0811	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0809-0812	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-	●	●
320	HOSE; CONN,ACL	8-98078-983-1	01	1	1012-		●
320	HOSE; CONN,ACL	8-98072-934-0	01	1	0809-	●
353	CLIP; RUBBER HOSE (B) ID=60-65	8-98096-418-0	02	1	1012-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1012-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1012-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	08	1	1002-	●
353	CLIP; RUBBER HOSE (A) ID=58-76	1-09707-203-0	08	1	0809-0811	●
353	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	08	1	0812-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	08	1	1002-	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1012-		●
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	0809-	●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98061-809-1	01	1	1012-1101		●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98181-971-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1012-1101		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98017-223-2	01	1	0809-1101	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-973-1	01	1	1102-	●

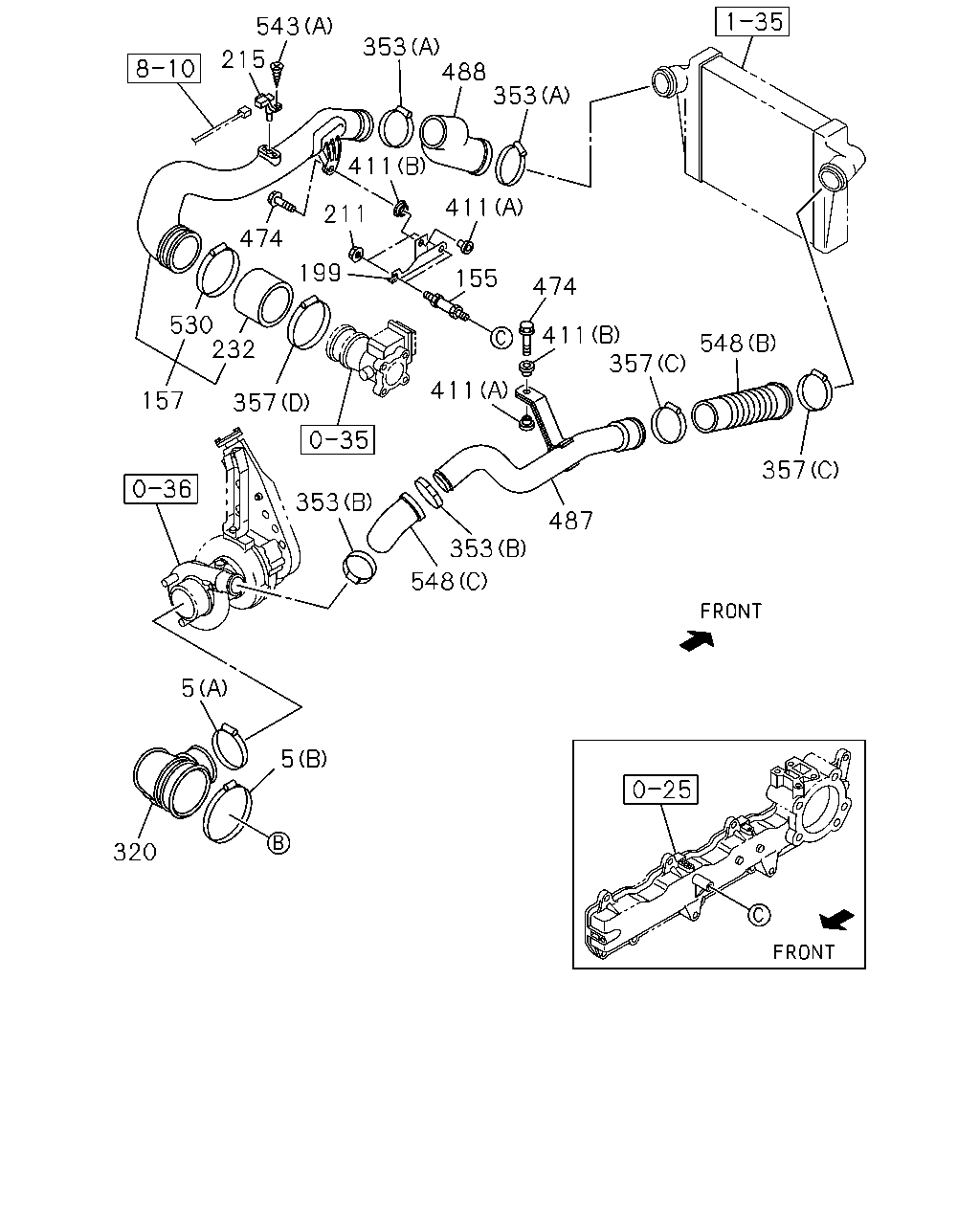

543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 353 487 353 548 5 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=65-85	8-98133-350-0	01	1	1012-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=68-85	8-98096-592-0	01	1	1012-		●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116	1-09707-138-0	01	1	1002-	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142	1-09707-139-0	01	1	1002-	●	●
5	CLIP; AIR DUCT (A) ID=87-113	1-09707-199-0	01	1	0809-0811	●
5	CLIP; AIR DUCT (A) ID=90-110	8-98133-365-0	01	1	0812-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-	●
5	CLIP; AIR DUCT (B) ID=104-139	1-09707-200-0	01	1	0809-0812	●
5	CLIP; AIR DUCT (B) ID=110-130	8-98133-359-0	01	1	0901-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=110-130	8-98133-359-0	01	1	1002-	●	●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	1012-		●
157	PIPE; AIR	8-98010-719-3	01	1	1012-		●
199	BRACKET; PIPE	8-97385-293-1	01	1	1012-		●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-		●
215	SENSOR; MAP	8-98009-418-0	01	1	1102-		●
232	HOSE; CONN	8-98067-929-0	01	1	1012-		●
320	HOSE; CONN,ACL	8-98078-983-1	01	1	1012-		●
320	HOSE; CONN,ACL	8-98072-934-0	01	1	0809-	●
353	CLIP; RUBBER HOSE (B) ID=60-65	8-98096-418-0	02	1	1012-		●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1012-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1012-		●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	08	1	1002-	●
353	CLIP; RUBBER HOSE (A) ID=58-76	1-09707-203-0	08	1	0809-0811	●
353	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	08	1	0812-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	08	1	1002-	●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	1102-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1012-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (D) ID=75-95	8-98133-357-0	01	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (D) ID=77-99	1-09707-141-0	01	1	1012-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0809-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0809-	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1012-		●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1012-		●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1012-		●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1012-		●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1012-		●
488	HOSE; RUBBER,PIPE	8-98017-224-1	01	1	0809-	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1012-		●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-0906	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0907-1011	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-0906	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0907-1011	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-1101	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98061-809-1	01	1	1012-1101		●
548	HOSE; RUBBER,TURBO TO INL PIPE (C)	8-98181-971-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1012-1101		●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98181-972-1	01	1	1102-		●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98017-223-2	01	1	0809-1101	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98181-973-1	01	1	1102-	●

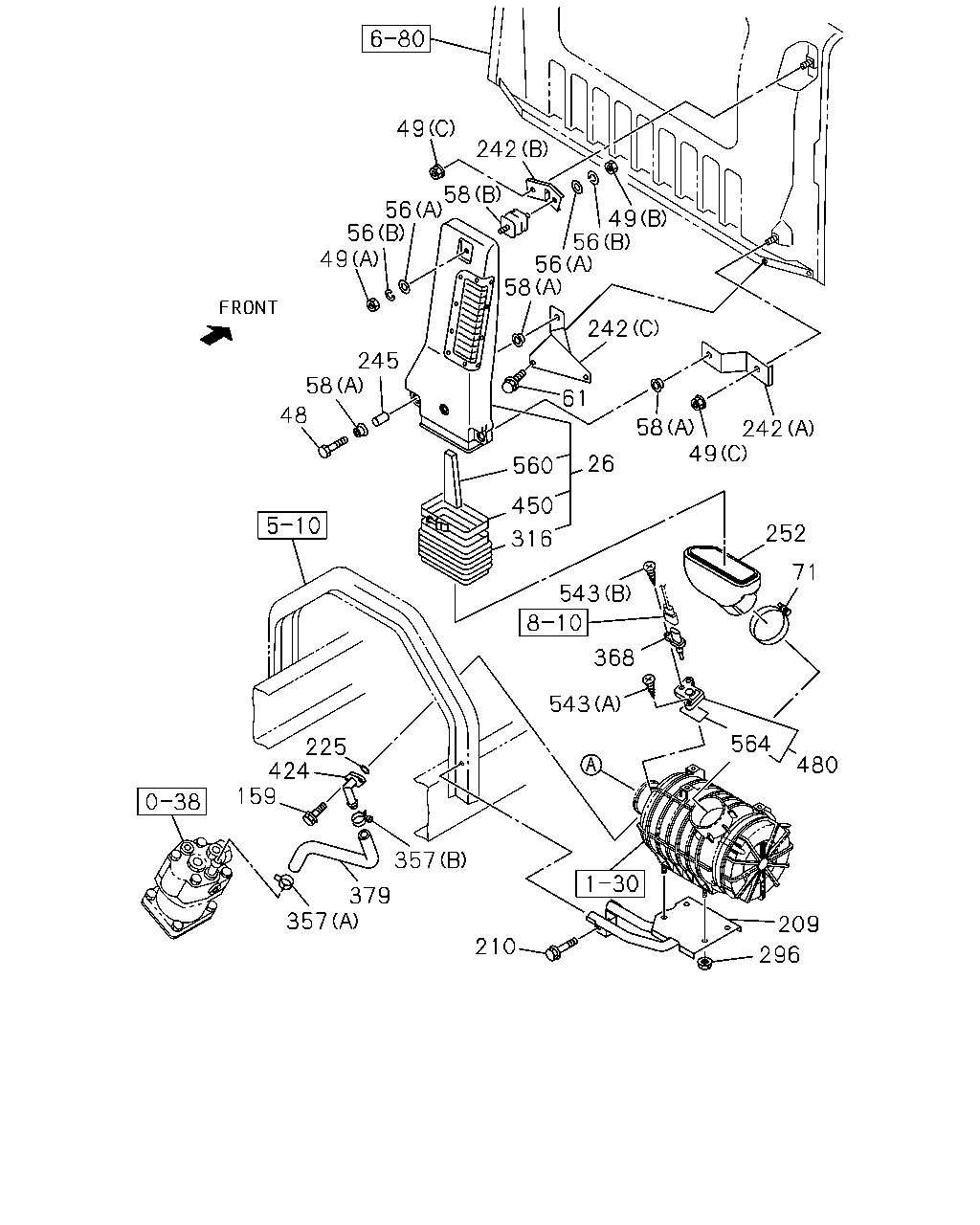

49 242 58 56 56 49 49 56 56 58 242 242 245 61 58 48 49 58 26 560 113 450 252 71 316 543 543 368 564 480 225 357 357 379 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0809-1011	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1012-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0809-1011	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1012-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0809-1011	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1012-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0809-1011	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1012-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0809-1011	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0809-1011	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0809-0810	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-1011	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1012-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0809-1011	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1012-	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0809-0812	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-1011	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1012-	●	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-1012		●
113	BOLT; RESONATOR EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-		●
209	BRACKET; ACL	8-98099-677-0	01	1	0809-1011	●
209	BRACKET; ACL	8-98099-677-0	01	1	1012-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	03	1	0809-1011	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	03	1	1012-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0809-1101	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1102-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0809-1011	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1012-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1012-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1012-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0809-1011	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1012-	●	●
252	DUCT; AIR INT VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-		●
252	DUCT; AIR INT	8-98095-779-0	01	1	1012-1012		●
252	DUCT; AIR INT EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-		●
252	DUCT; AIR INT	8-98019-843-0	01	1	0809-	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0809-1011	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1011	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (E) ID=24	8-98025-921-0	02	1	1102-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1012-		●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (D) ID=75-95	8-98133-357-0	01	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1012-		●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (D) ID=77-99	1-09707-141-0	01	1	1012-		●
357	CLIP; RUBBER HOSE (A) ID=26	1-09707-091-0	01	1	0809-	●
357	CLIP; RUBBER HOSE (B) ID=29.5	8-97354-979-0	01	1	0809-	●
368	SENSOR; TEMP	8-98065-377-0	01	1	0809-0906	●
368	SENSOR; TEMP	8-98065-377-0	01	1	0907-1011	●
368	SENSOR; TEMP	8-98065-377-0	01	1	1012-	●	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1102-		●
379	HOSE; RUBBER	8-98063-172-0	01	1	0809-	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0809-1011	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1012-	●	●
480	ADAPTER	8-98086-417-0	01	1	0809-0906	●
480	ADAPTER	8-98086-417-0	01	1	0907-1011	●
480	ADAPTER	8-98086-417-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-0906	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0907-1011	●
543	SCREW; SENSOR (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-0906	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0907-1011	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-1101	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-	●	●
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1102-		●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0907-	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0809-0906	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	0809-0906	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	0907-1011	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
