◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#38760) — 24 parça

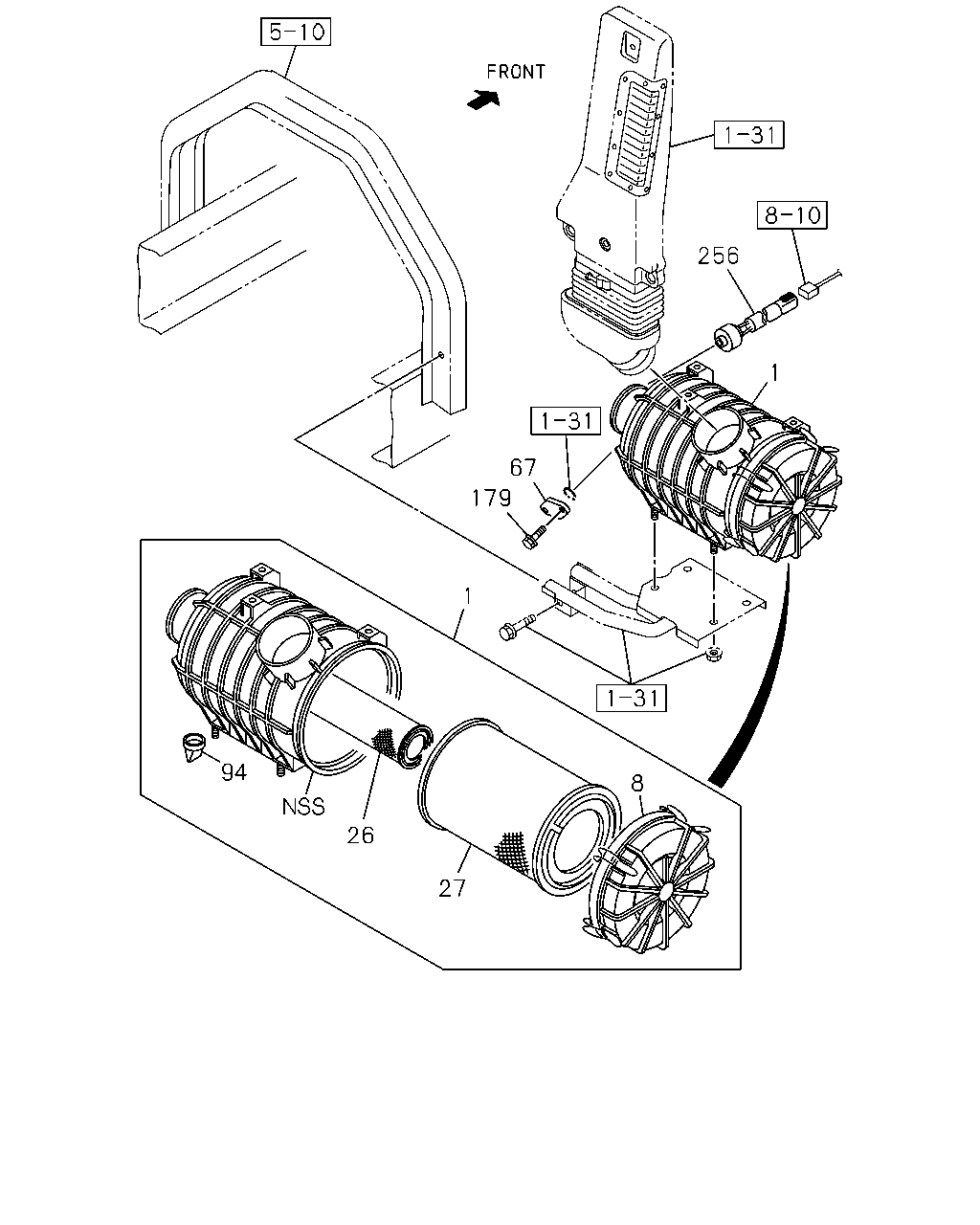

çizim 181251
256 1 67 179 1 94 26 27 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0809-0906 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0907-1011 ●
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1012- ● ●
8 COVER ASM; ACL 8-98066-740-0 01 1 0809-0906 ●
8 COVER ASM; ACL 8-98066-740-0 01 1 0907-1011 ●
8 COVER ASM; ACL 8-98066-740-0 01 1 1012- ● ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0809-0906 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0907-1011 ●
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1012- ● ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 0907-1011 ●
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-1 01 1 1012- ● ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0809-0906 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0907-1011 ●
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1012- ● ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 0907-1011 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-1 01 1 1012- ● ●
67 COVER; ACL 8-98081-729-0 01 1 1102-1208 ●
67 COVER; ACL 8-98217-788-0 01 1 1209- ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 0809-1011 ●
94 VALVE; VACUATOR 1-14219-279-0 01 1 1012- ● ●
179 BOLT; COVER,ACL
M6X16 FLANGE 		0-28050-616-0 02 1 1102- ●
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0809-1002 ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1003-1011 ●
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
