Isuzu WW
▶
TRUCKS
▶
FSR
▶
11123 - FSR(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#38759) — 67 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

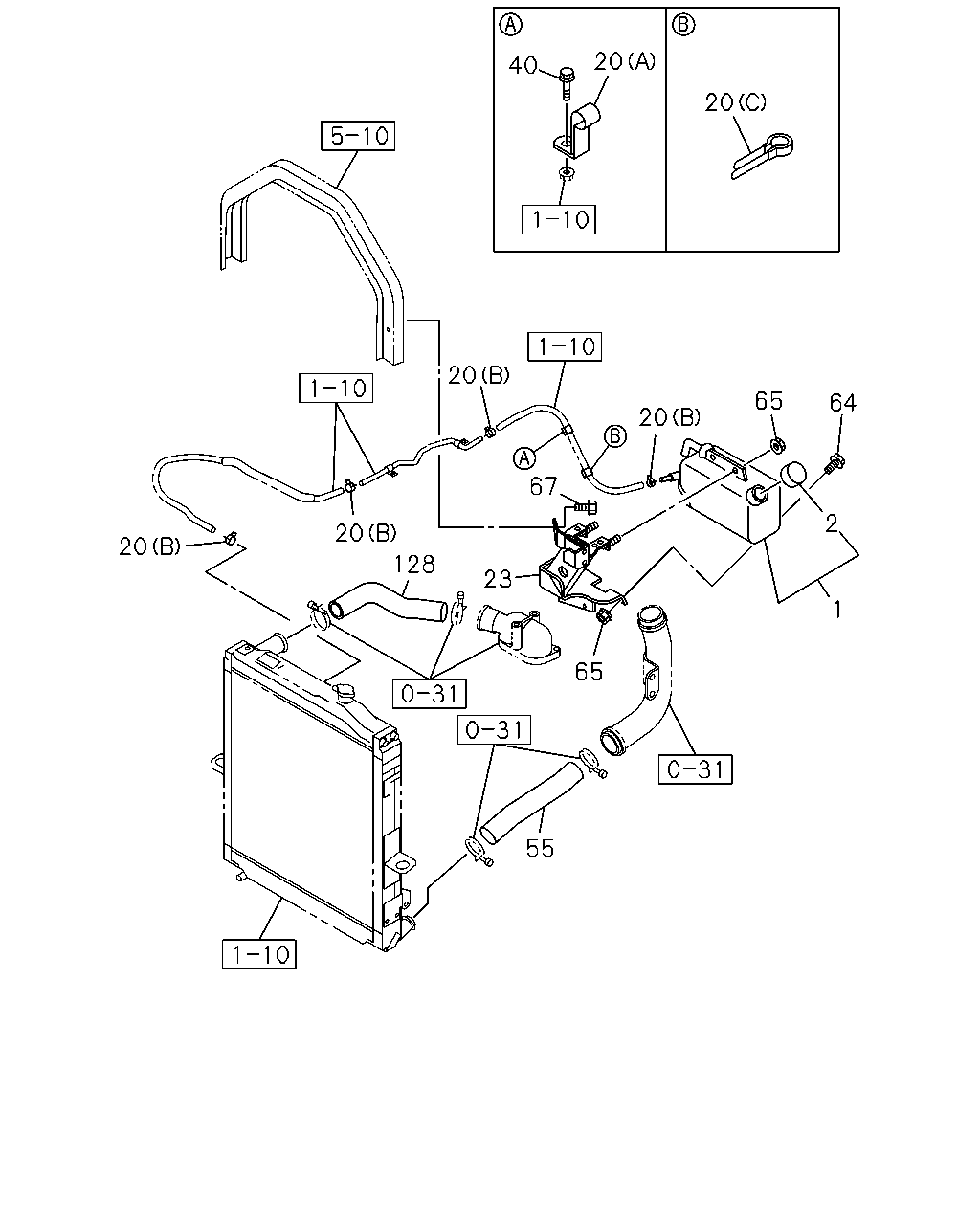

[111A] 6HK1 (31 parça)

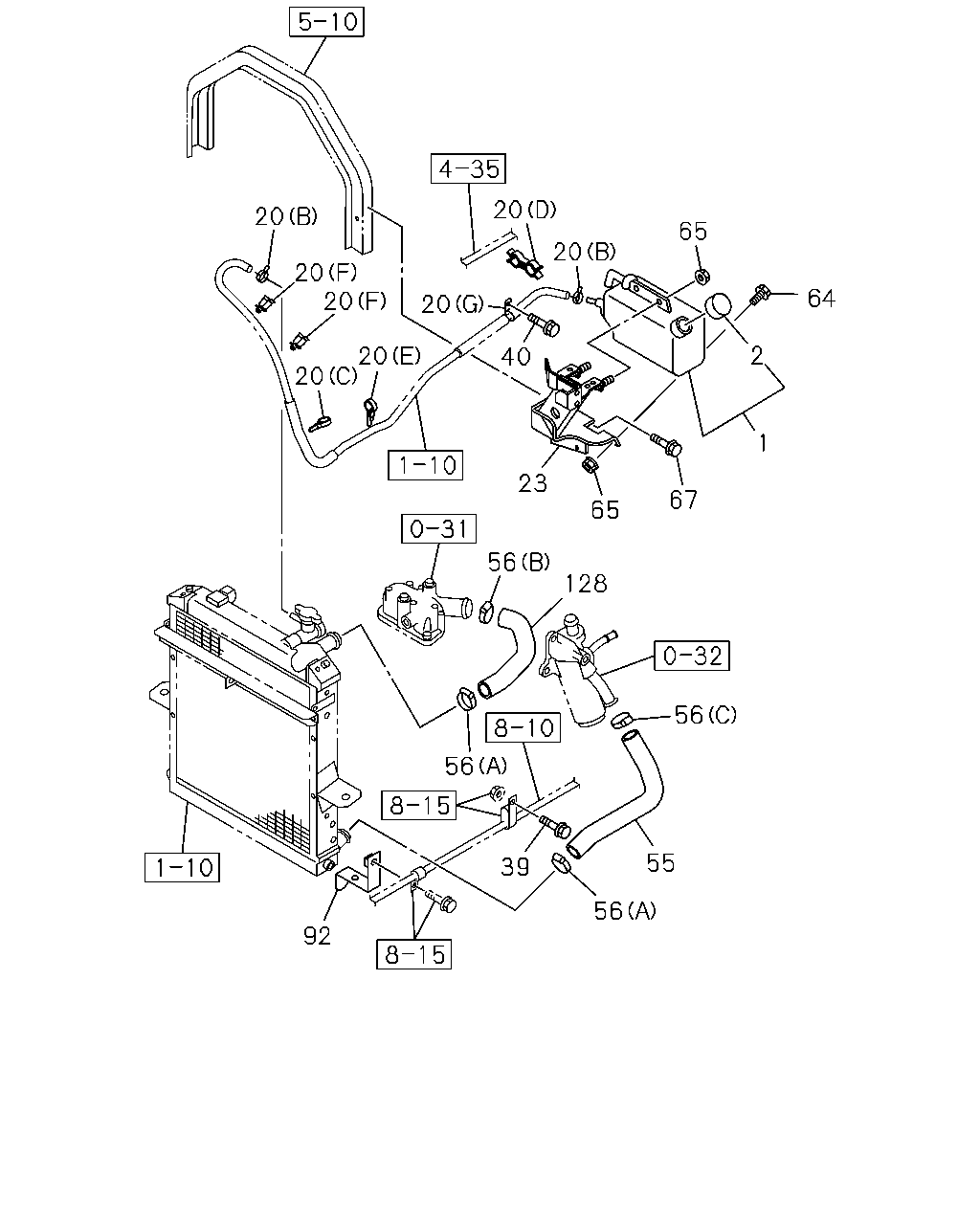

[111A] 4HK1 (36 parça)
▶
20
40
20
20
65
64
20
67
2
20
20
128
23
1
65
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98010-309-2
01
1
0809-1009
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-1011
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1012-
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0809-1009
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-1011
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1012-
●
●
20
CLIP; HOSE,RAD
(G) ID=13 L=20
0-95235-235-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(G) ID=13 L=20
0-95235-235-0
02
1
1012-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5
8-94314-293-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1012-
●
20
CLIP; HOSE,RAD
(F) ID=12
8-98029-256-0
03
1
1012-
●
20
CLIP; HOSE,RAD
(E) ID=14 L=44
9-09917-427-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0809-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0809-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0809-1011
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1012-
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1012-
●
23
BRACKET; RESERVE TANK
8-98013-534-4
01
1
0809-1011
●
23
BRACKET; RESERVE TANK
8-98013-534-4
01
1
1012-
●
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1012-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0809-
●
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
1012-
●
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
0809-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0809-1011
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1012-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
0809-1011
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
1012-
●
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0809-1011
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1012-
●
●
128
HOSE; WATER,RAD INL
8-98010-572-1
01
1
1012-
●
128
HOSE; WATER,RAD INL
8-98010-576-2
01
1
0809-
●
20
20
65
20
20
20
64
20
40
2
20
20
1
23
67
65
56
128
56
56
55
39
56
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98010-309-2
01
1
0809-1009
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1010-1011
●
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1012-
●
●
2
CAP; SURGE TANK
8-97217-796-0
01
1
0809-1009
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1010-1011
●
2
CAP; SURGE TANK
8-98178-074-0
01
1
1012-
●
●
20
CLIP; HOSE,RAD
(G) ID=13 L=20
0-95235-235-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(G) ID=13 L=20
0-95235-235-0
02
1
1012-
●
20
CLIP; HOSE,RAD
(D) ID=11.5 & 14.5
8-94314-293-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1012-
●
20
CLIP; HOSE,RAD
(F) ID=12
8-98029-256-0
03
1
1012-
●
20
CLIP; HOSE,RAD
(E) ID=14 L=44
9-09917-427-0
01
1
1012-
●
20
CLIP; HOSE,RAD
(A) ID=13 H=40 L=25
1-09700-620-0
01
1
0809-
●
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
04
1
0809-
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
0809-1011
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1012-
●
●
20
CLIP; HOSE,RAD
(C) ID=20 L=50
9-09917-430-0
01
1
1012-
●
23
BRACKET; RESERVE TANK
8-98013-534-4
01
1
0809-1011
●
23
BRACKET; RESERVE TANK
8-98013-534-4
01
1
1012-
●
●
39
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
1102-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1012-
●
40
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0809-
●
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
1012-
●
55
HOSE; WATER,RAD OUTLET
8-98010-577-1
01
1
0809-
●
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1012-
●
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1012-
●
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1012-
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0809-1011
●
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1012-
●
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
0809-1011
●
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
1012-
●
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
0809-1011
●
67
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
03
1
1012-
●
●
92
BRACKET; CLIP,RUBBER HOSE
8-98055-051-0
01
1
1102-
●
128
HOSE; WATER,RAD INL
8-98010-572-1
01
1
1012-
●
128
HOSE; WATER,RAD INL
8-98010-576-2
01
1
0809-
●
