◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#38758) — 203 parça

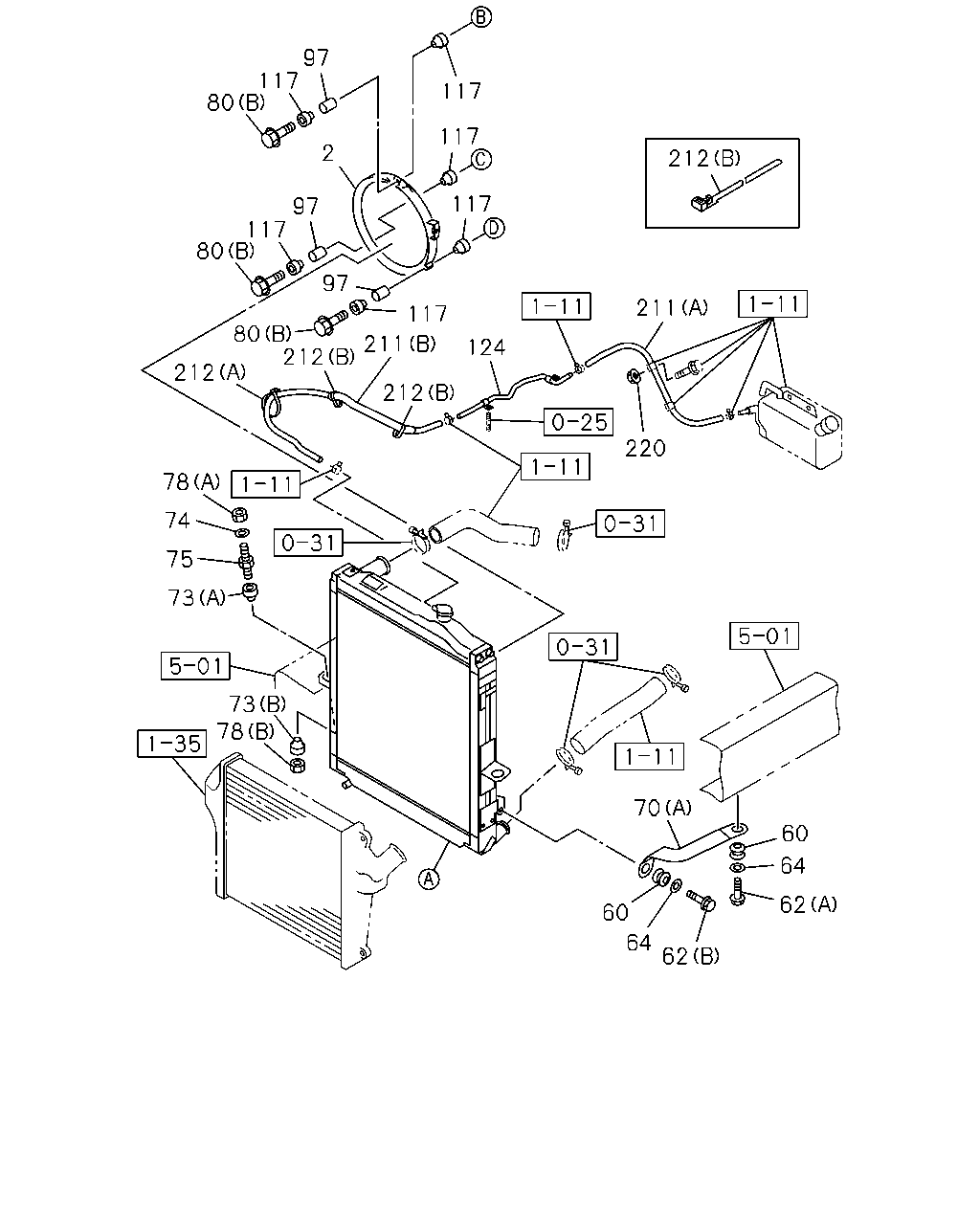

çizim 181244
97 117 80 117 117 2 212 117 97 117 80 97 211 117 80 211 212 124 212 212 220 78 74 75 73 73 78 70 60 64 62 60 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1102- ●
2 GUIDE; FAN 8-94393-779-1 01 1 0809- ●
60 GROMMET 1-09332-117-0 04 1 0809- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0809- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0809- ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0809- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0907- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0907- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1012- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0809-1011 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1012- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0809-1011 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1012- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0809- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1102- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0809- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 0809- ●
211 HOSE; RAD TO PIPE
(C) 		8-98171-358-0 01 1 1012- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0809- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0809- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 02 1 0809- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 01 1 0809- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809- ●

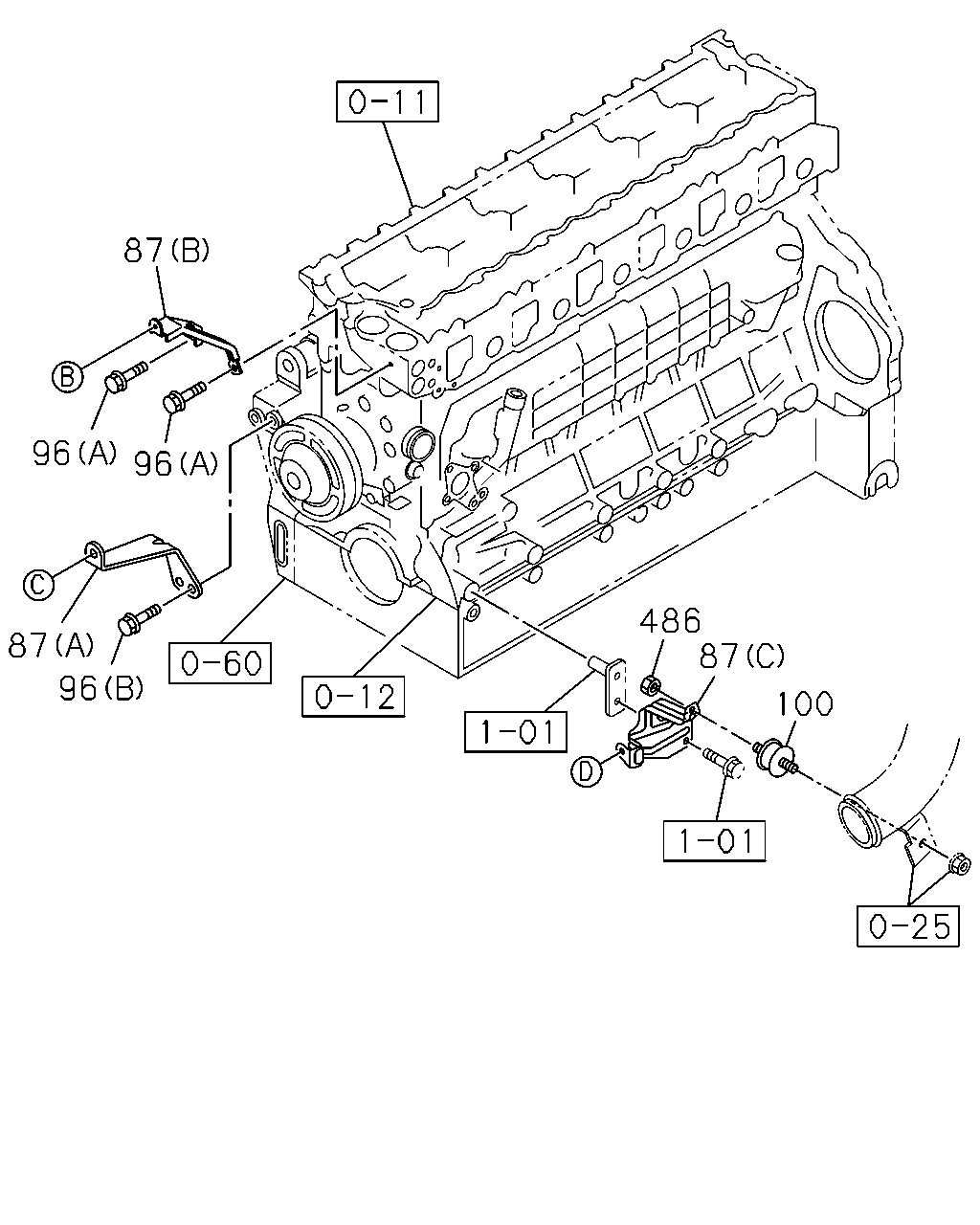

çizim 181245
87 96 96 486 87 87 96 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 0809- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 0809- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 0809- ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1102- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0809- ●
100 RUBBER; MTG 8-94394-268-1 01 1 0809-0910 ●
100 RUBBER; MTG 8-98148-109-0 01 1 0911- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0809- ●

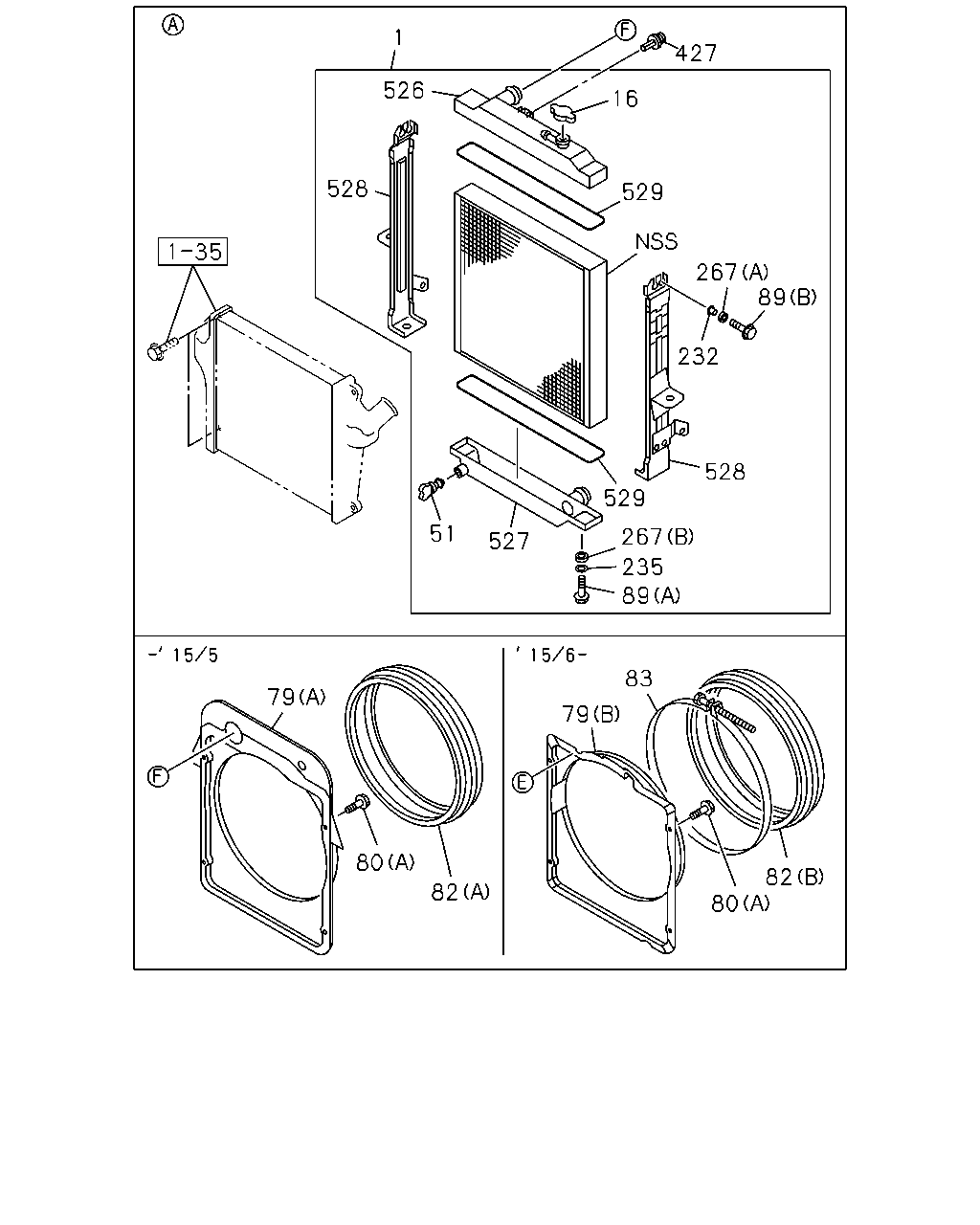

çizim 181247
1 526 528 427 529 16 267 89 232 528 529 527 267 235 89 51 79 80 82 79 83 82 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-321-0 01 1 1012- ●
1 RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-320-0 01 1 1012- ●
1 RADIATOR ASM 8-98043-027-1 01 1 0809-1505 ●
1 RADIATOR ASM 8-98299-725-0 01 1 1506- ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1012- ●
16 CAP; RAD 8-98096-226-0 01 1 0809-1011 ●
16 CAP; RAD 8-98096-226-0 01 1 1012- ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 1012- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809-1011 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1012- ● ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1012- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1012- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1012- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1012- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0809- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1012- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1011 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1012-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1012- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 1012- ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 0809- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1012- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ●

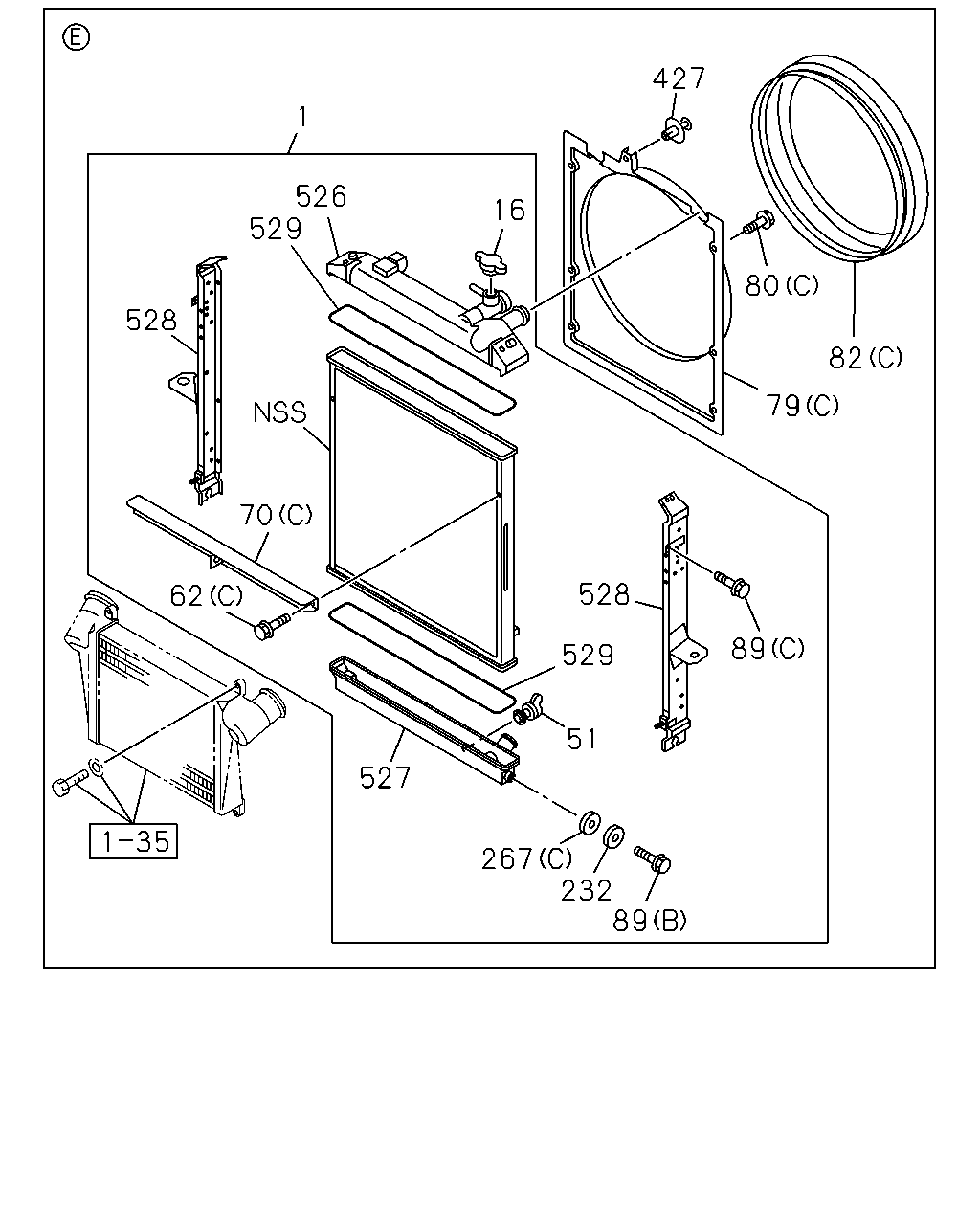

çizim 181487
427 1 16 526 529 528 70 62 527 51 267 232 89 89 528 529 82 80 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-321-0 01 1 1012- ●
1 RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-320-0 01 1 1012- ●
1 RADIATOR ASM 8-98043-027-1 01 1 0809-1505 ●
1 RADIATOR ASM 8-98299-725-0 01 1 1506- ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1012- ●
16 CAP; RAD 8-98096-226-0 01 1 0809-1011 ●
16 CAP; RAD 8-98096-226-0 01 1 1012- ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 1012- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809-1011 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1012- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 0809- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 0809- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0907- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0907- ●
79 GUIDE; FAN,RAD
(C) 		8-98010-297-0 01 1 1012- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 0809-1505 ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(C) 		8-98006-478-0 01 1 1012- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 0809-1505 ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1012- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0809- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1012- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0809- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1012- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0809- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0809- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1011 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1012-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1012- ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 0809- ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 1012- ●
527 TANK; LWR,RADIATOR CORE 8-98004-203-0 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1012- ●
528 PLATE; SIDE,RADIATOR CORE 8-98035-117-3 01 1 0809- ●
528 PLATE; SIDE,RADIATOR CORE 8-98043-029-1 01 1 0809- ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1012- ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 0809- ●

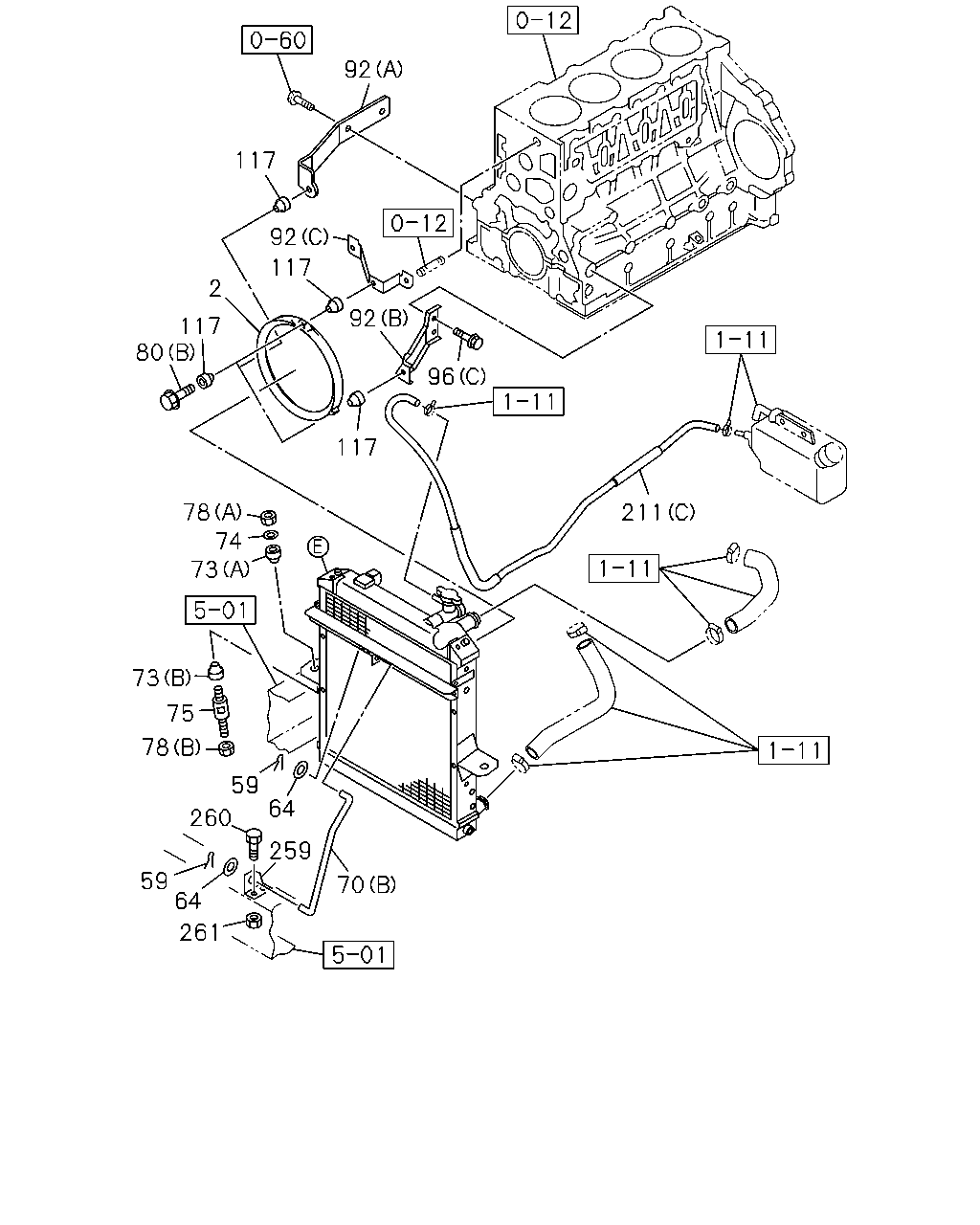

çizim 181612
92 117 92 117 2 92 117 80 96 117 78 211 74 73 73 75 78 59 64 260 259 59 64 70 261
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 1102- ●
2 GUIDE; FAN 8-94393-779-1 01 1 0809- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1012- ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0809- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1012- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-897-0 01 1 0907- ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0809-0906 ●
70 STAY; RAD
HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-896-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-899-0 01 1 0907- ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0809-0906 ●
70 STAY; RAD
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-98078-898-0 01 1 0907- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1012- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0809-1011 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1012- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0809-1011 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1012- ● ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1012- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1101 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1102- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 0809-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1102- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1102- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1012- ●
96 BOLT; STAY FIX
(C) M10X75 FLANGE 		8-94399-669-1 02 1 1110- ●
96 BOLT; STAY FIX
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1102- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 0809- ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1102- ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 0809- ●
211 HOSE; RAD TO PIPE
(C) 		8-98171-358-0 01 1 1012- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 0809- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 0809- ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1012- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
