Sayfa 0-60 - Isuzu EPC

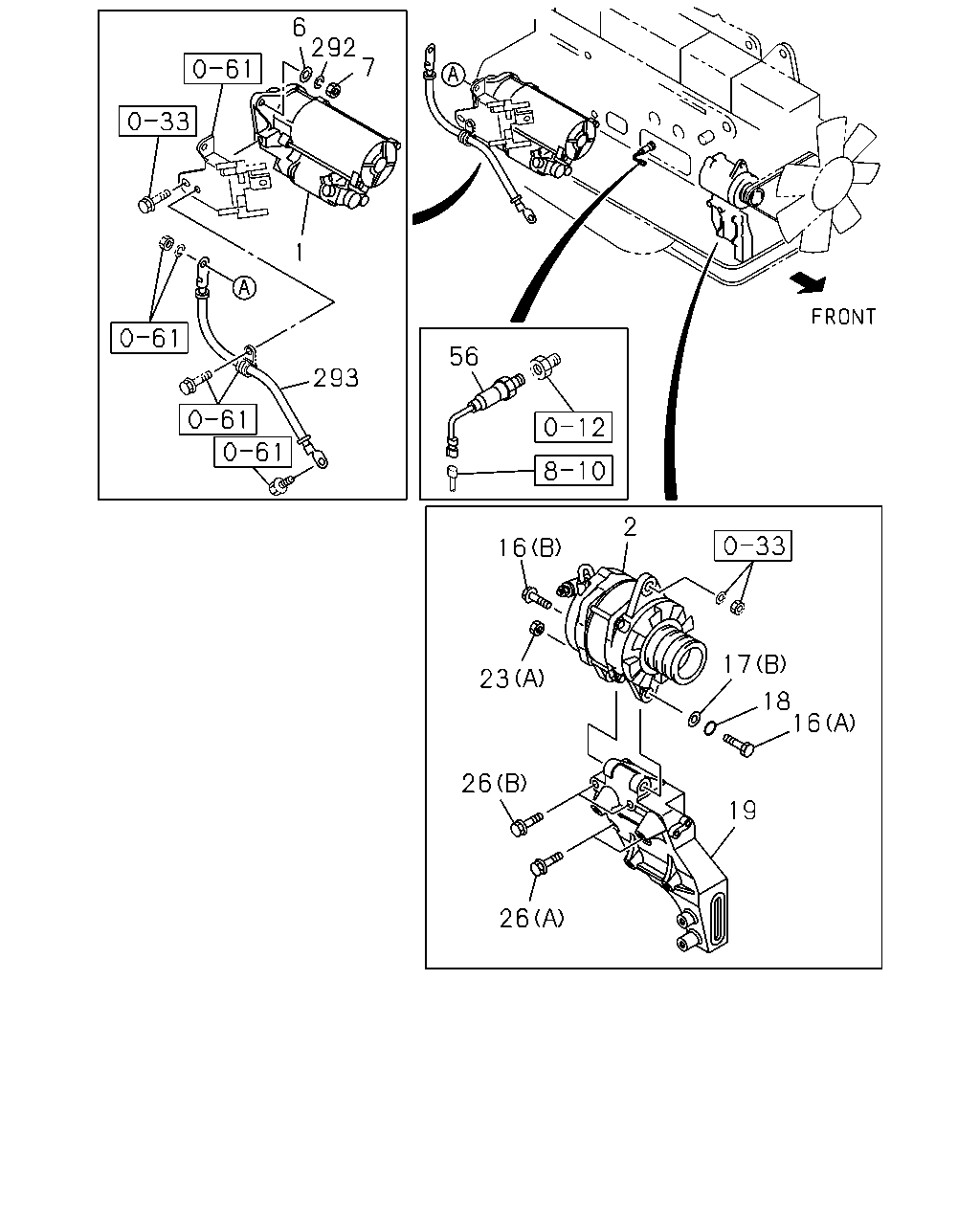

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#38751) — 162 parça

6 292 7 1 293 56 2 16 23 26 26 19 16 18 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1012-1207
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0809-0909
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-2	01	1	0910-1011
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1012-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-3	01	1	0809-1011
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-3	01	1	0809-1011
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	1012-
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0809-1011
6	WASHER; PL,STARTER 6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1012-
7	NUT; STARTER M14	0-91110-514-0	02	1	0809-1011
7	NUT; STARTER 6HK1-TCN ENG(82L) M14	0-91110-514-0	02	1	1012-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0910-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0809-
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0909
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	03	1	0910-0910
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	03	1	0911-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (A) ID=14.2	0-91510-514-0	01	1	1012-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1012-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0809-
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0809-1011
18	WASHER; LK,GEN 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1012-
19	BRACKET; GEN	8-98082-615-1	01	1	0809-1011
19	BRACKET; GEN 6HK1-TCN ENG(82L)	8-98082-615-1	01	1	1012-
23	NUT; GEN 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-112-0	01	1	1012-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0809-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (C) M10X50 FLANGE	0-28151-050-0	01	1	1012-
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	0809-1011
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1012-
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0809-1011
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1012-
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0809-1011
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1012-
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0809-1011
292	WASHER; LK,STARTER 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1012-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS) L=410	8-97620-375-0	01	1	1012-
293	CABLE; STARTER EARTH EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=645	8-98118-442-0	01	1	0809-0810
293	CABLE; STARTER EARTH EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=585	8-98134-247-0	01	1	0811-1011
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=585	8-98134-247-0	01	1	1012-
293	CABLE; STARTER EARTH HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=530	8-98097-226-0	01	1	0809-1011
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=530	8-98097-226-0	01	1	1012-

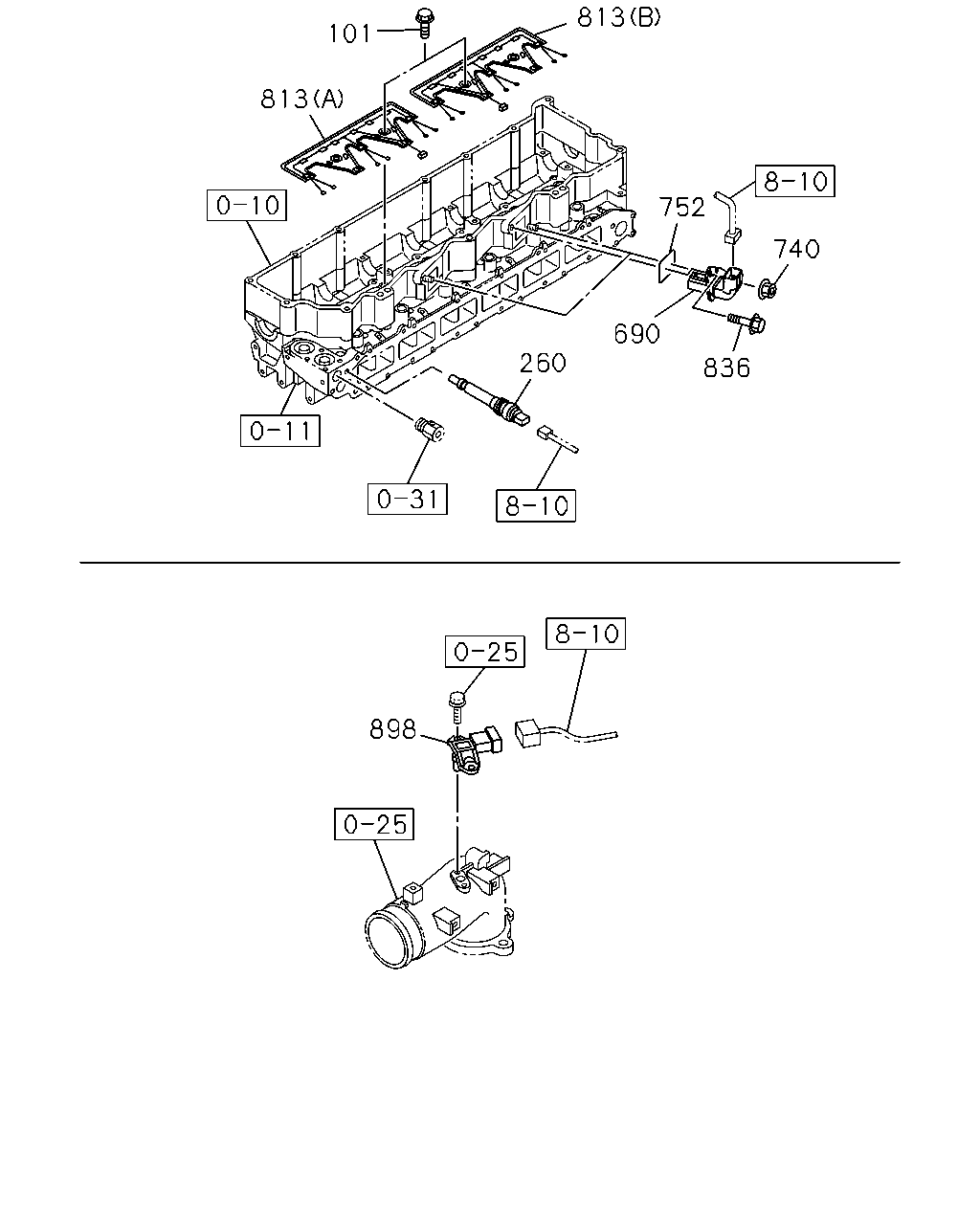

690 740 836 260 752 101 813 813 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0809-1011
101	BOLT; HARNESS 6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1012-
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0809-1011
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) MITSUBISHI	8-98023-883-0	01	1	1012-1503
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1504-
690	CONNECTOR	8-94390-858-1	02	1	0809-1011
690	CONNECTOR 6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1012-
740	NUT M8 FLANGE	0-91180-108-0	04	1	0809-1011
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-1311
740	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1312-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0809-1011
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1012-
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0809-1008
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1011
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A) FRONT	8-98177-447-0	01	1	1012-1112
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-1311
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A) FRONT	8-98204-717-0	01	1	1312-
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0809-1008
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1011
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B) REAR	8-98177-448-0	01	1	1012-1112
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-1311
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B) REAR	8-98204-718-0	01	1	1312-
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-1311
836	BOLT; CONNECTOR 6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1312-
898	SENSOR; BOOST	8-98009-418-0	01	1	0809-1011
898	SENSOR; BOOST 6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1012-

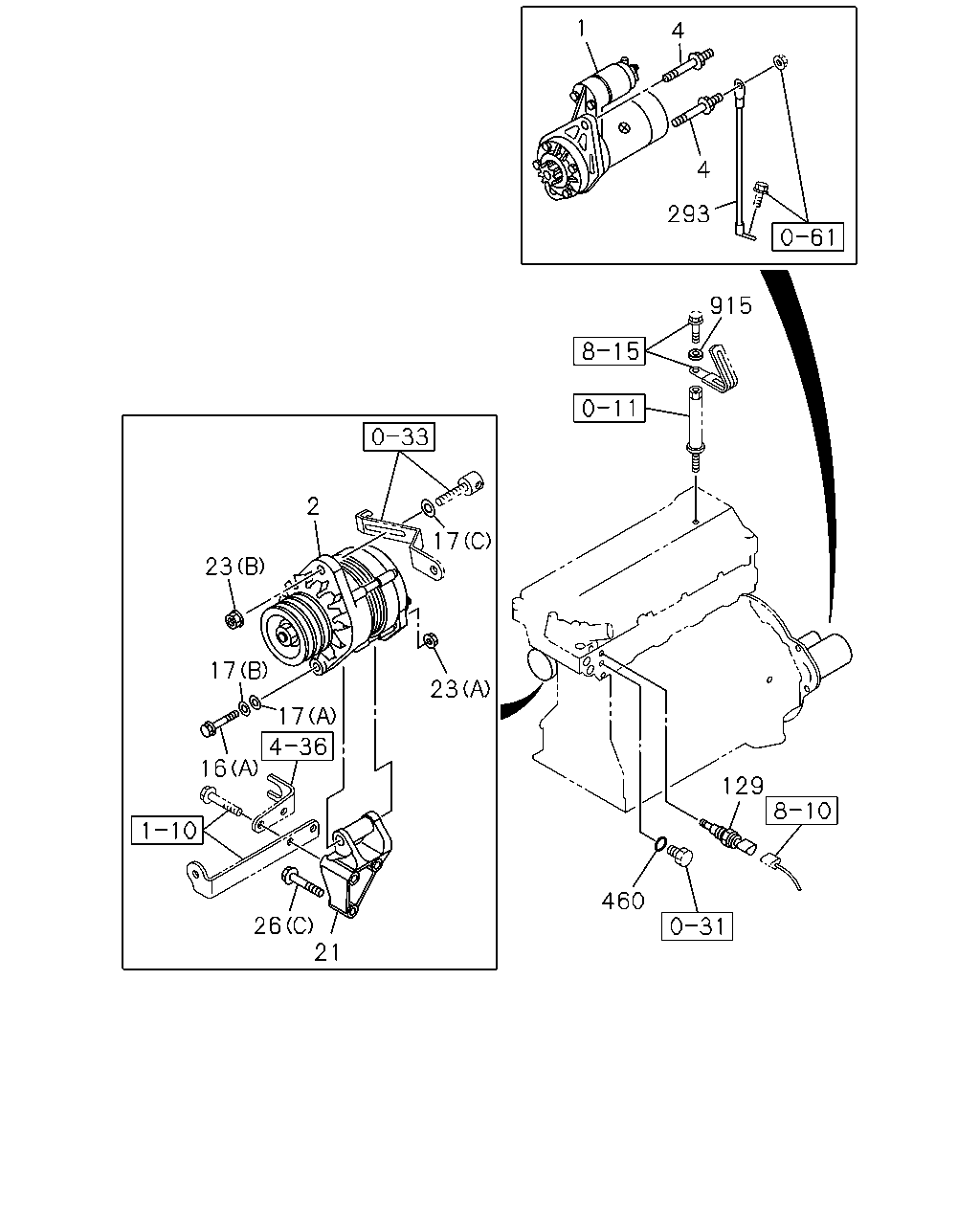

1 4 293 915 2 23 17 17 23 17 16 26 21 460 129 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98009-043-2	01	1	1012-1207
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0809-0909
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-2	01	1	0910-1011
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1012-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-3	01	1	0809-1011
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	1012-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-3	01	1	0809-1011
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	1012-
4	BOLT; STARTER 4HK1-TCS ENG(RJS) M10X15,M14X82 L=110	8-98029-095-0	02	1	1102-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0910-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0809-
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0909
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	03	1	0910-0910
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	03	1	0911-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (A) ID=14.2	0-91510-514-0	01	1	1012-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (C) ID=12.5 OD=32	9-09160-712-0	01	1	1012-
17	WASHER; PL,GEN (B) ID=15	0-91610-514-0	01	1	0809-
21	BRACKET; GEN 4HK1-TCS ENG(RJS)	8-97381-404-0	01	1	1012-
23	NUT; GEN 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-112-0	01	1	1012-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0809-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (C) M10X50 FLANGE	0-28151-050-0	01	1	1012-
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	0809-1011
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1012-
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	0809-1011
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1012-
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) MITSUBISHI	8-98023-883-0	01	1	1012-1503
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS) L=410	8-97620-375-0	01	1	1012-
293	CABLE; STARTER EARTH EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=645	8-98118-442-0	01	1	0809-0810
293	CABLE; STARTER EARTH EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=585	8-98134-247-0	01	1	0811-1011
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=585	8-98134-247-0	01	1	1012-
293	CABLE; STARTER EARTH HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=530	8-98097-226-0	01	1	0809-1011
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=530	8-98097-226-0	01	1	1012-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2	1-09630-086-0	01	1	1012-
915	SPACER; HARNESS 4HK1-TCS ENG(RJS) ID=8.4 OD=19	5-11779-001-0	01	1	1012-1301
915	SPACER; HARNESS 4HK1-TCS ENG(RJS) ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-

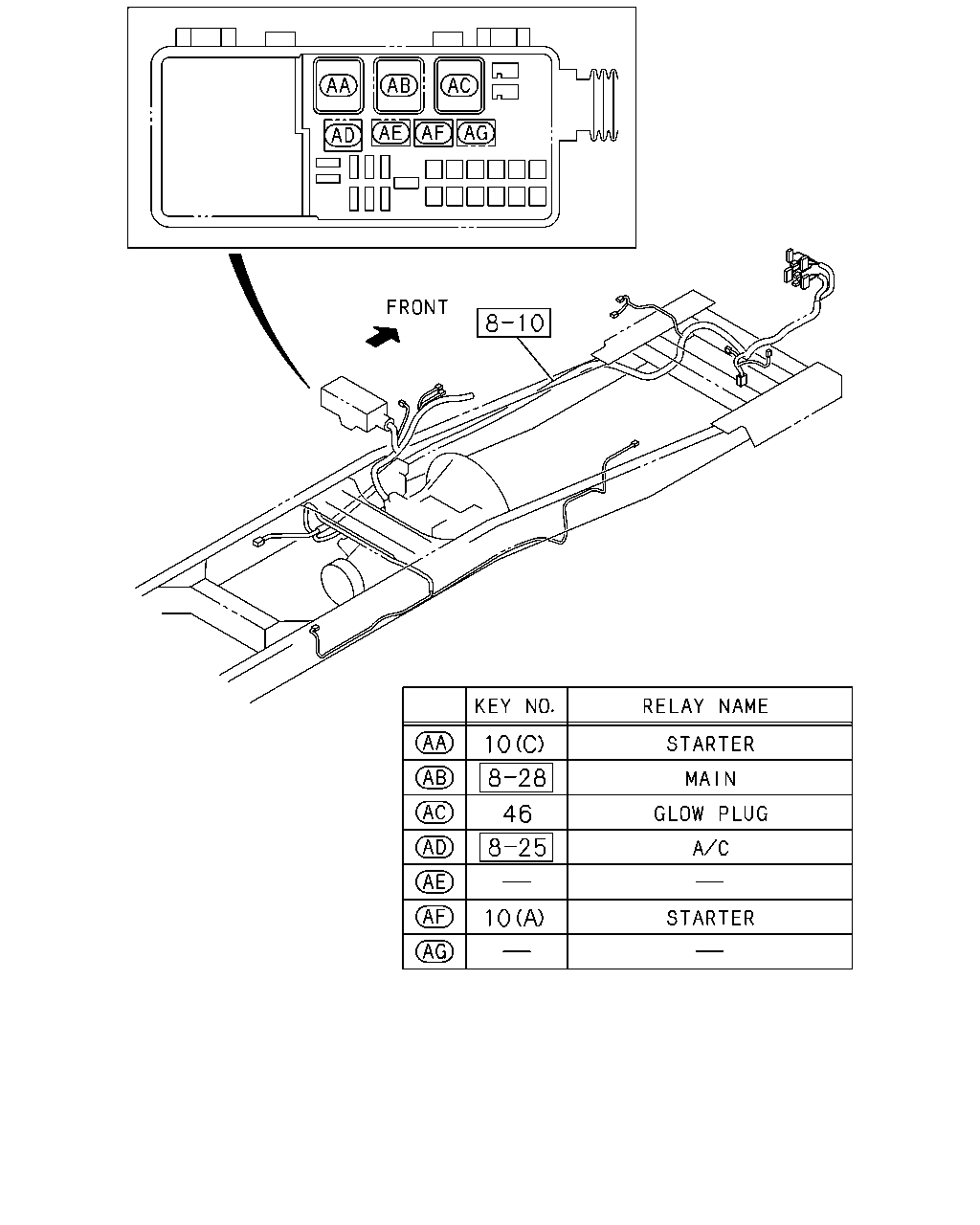

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1012-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0809-1011
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1012-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0809-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-

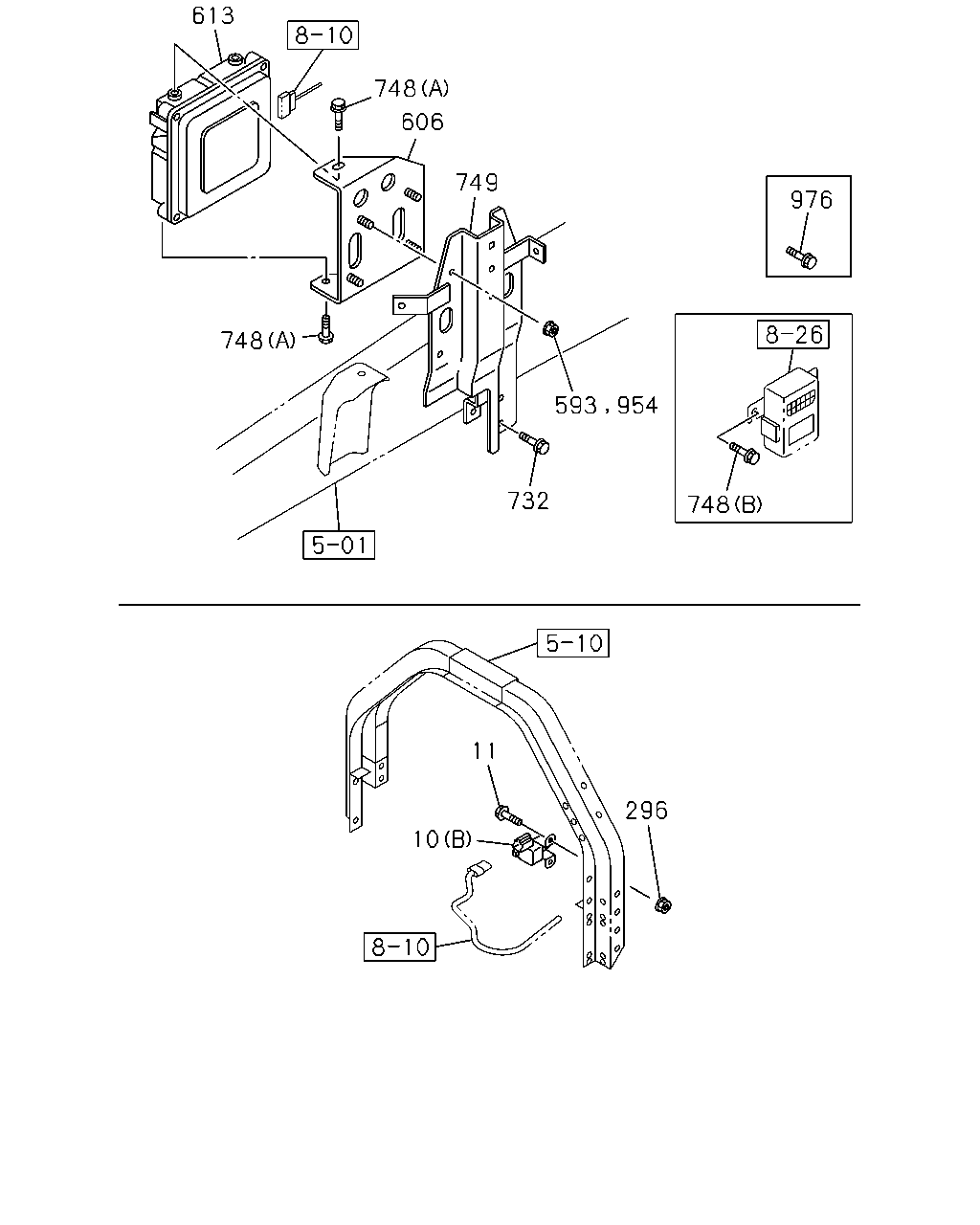

613 748 749 606 748 732 593 954 976 748 296 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1012-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0809-1011
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1012-
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0809-1011
11	BOLT; RELAY STARTER 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1012-
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0809-1011
296	NUT; RELAY,STARTER 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0809-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0809-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98257-206-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-179-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-205-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98257-207-0	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>,GLOW SYSTEM DELETE<7RK>	8-98216-177-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) ,SAUDI ARABIA EQUIPMENT(GH3)	8-98081-130-4	01	1	1012-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SAUDI ARABIA EQUIPMENT(GH3),GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) ,SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL+5%Q(T1A)	8-98081-129-4	01	1	1012-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EXC. SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1312-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-243-0	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98154-243-0	01	1	0911-1006
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98170-974-1	01	1	1007-1311
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98170-974-1	01	1	1312-
613	CONTROL UNIT; ENG INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98074-888-3	01	1	0809-0906
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98074-888-3	01	1	0907-0908
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46)	8-98074-888-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. HIGHLAND ZONE PACKAGE<W02>	8-98074-888-4	01	1	0911-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98257-198-0	01	1	1312-
613	CONTROL UNIT; ENG EXC. SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-680-3	01	1	0809-0906
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-680-3	01	1	0907-0908
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. COLOMBIA EQUIPMENT(CB7),ECUADOR EQUIPMENT(E46) ,INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98092-680-3	01	1	0909-0910
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98092-680-4	01	1	0911-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) GLOW SYSTEM DELETE<7RK> EXC. SAUDI ARABIA EQUIPMENT(GH3),INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-199-0	01	1	1312-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0809-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0809-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	0809-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS)	1-53194-596-3	01	1	1012-
749	STAY; CONT UNIT	1-53194-595-3	01	1	0809-1011
749	STAY; CONT UNIT 6HK1-TCN ENG(82L)	1-53194-595-3	01	1	1012-
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0809-0906
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0809-0906

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
