Isuzu WW
▶
TRUCKS
▶
FSR
▶
11123 - FSR(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#38750) — 28 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[057A] 6HK1 (17 parça)
[057A] 4HK1 (11 parça)
▶

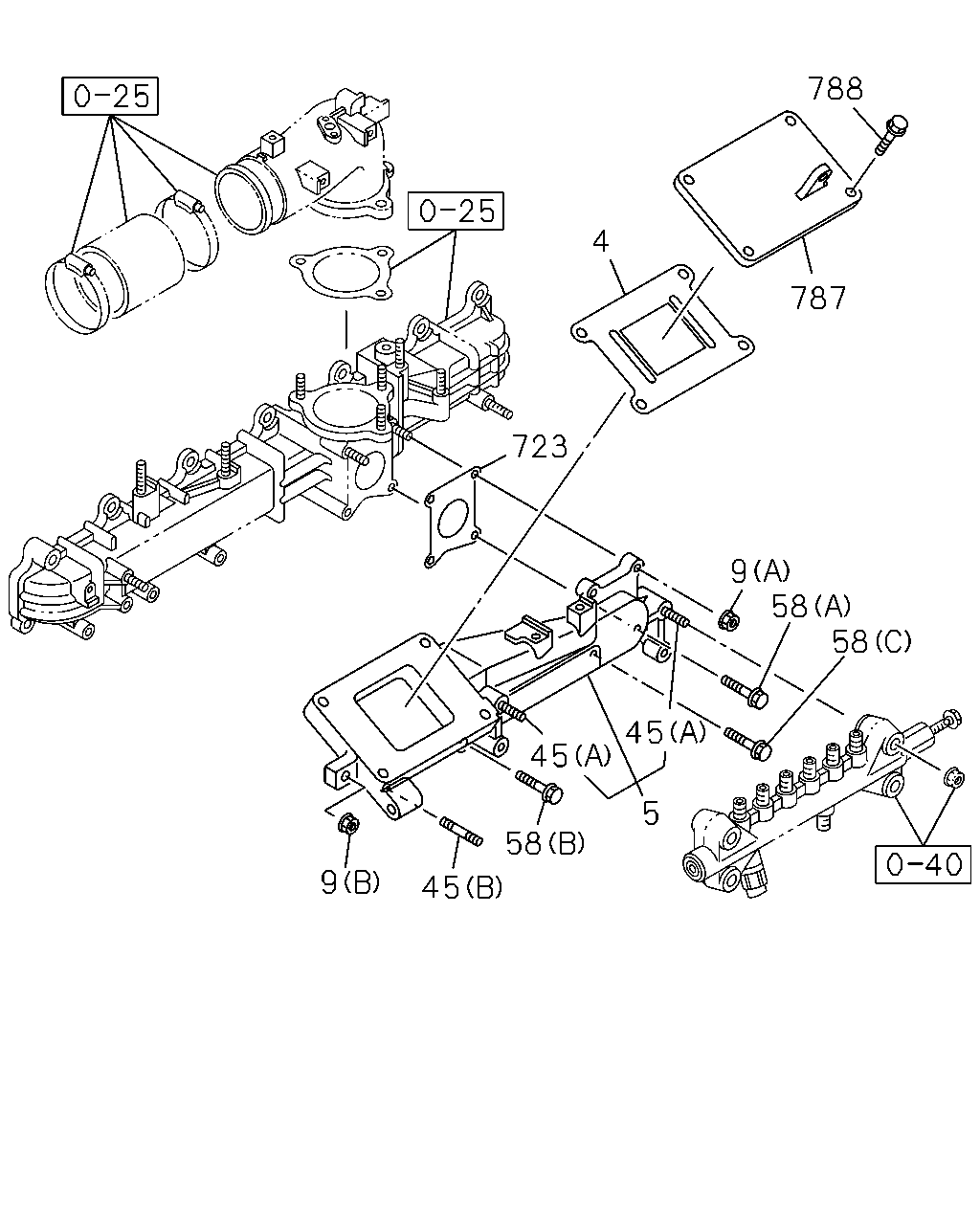

788
4
787
723
9
58
58
45
45
5
58
9
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
1012-
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97608-423-0
01
1
0809-
●
5
ADAPTER ASM
8-97377-804-0
01
1
1012-
●
5
ADAPTER ASM
8-97606-201-3
01
1
0809-1305
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
9
NUT; EGR ADAPTER
(A) M8 FLANGE
0-91180-108-0
02
1
0809-
●
9
NUT; EGR ADAPTER
(B) M10 FLANGE
0-91180-110-0
02
1
0809-
●
45
STUD; ADAPTER,EGR
(B) M10X30 L=45
0-44011-030-0
01
1
0809-
●
45
STUD; ADAPTER,EGR
(A) M10X50 L=65
0-44011-050-0
02
1
0809-
●
58
BOLT; PIPE
(B) M10X30 FLANGE
0-28151-030-0
01
1
0809-
●
58
BOLT; PIPE
(C) M8X30 FLANGE
0-28650-830-0
01
1
0809-
●
58
BOLT; PIPE
(A) M8X30 FLANGE
8-98034-764-0
01
1
0809-
●
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52
8-97605-995-0
01
1
0809-
●
787
COVER; DUCT,EGR VLV
8-98058-709-0
01
1
0809-1402
●
787
COVER; DUCT,EGR VLV
8-98238-416-0
01
1
1403-
●
788
BOLT; COVER
M10X35 FLANGE
0-28751-035-0
04
1
0809-1402
●
788
BOLT; COVER
M10X25 FLANGE
0-28751-025-0
04
1
1403-
●

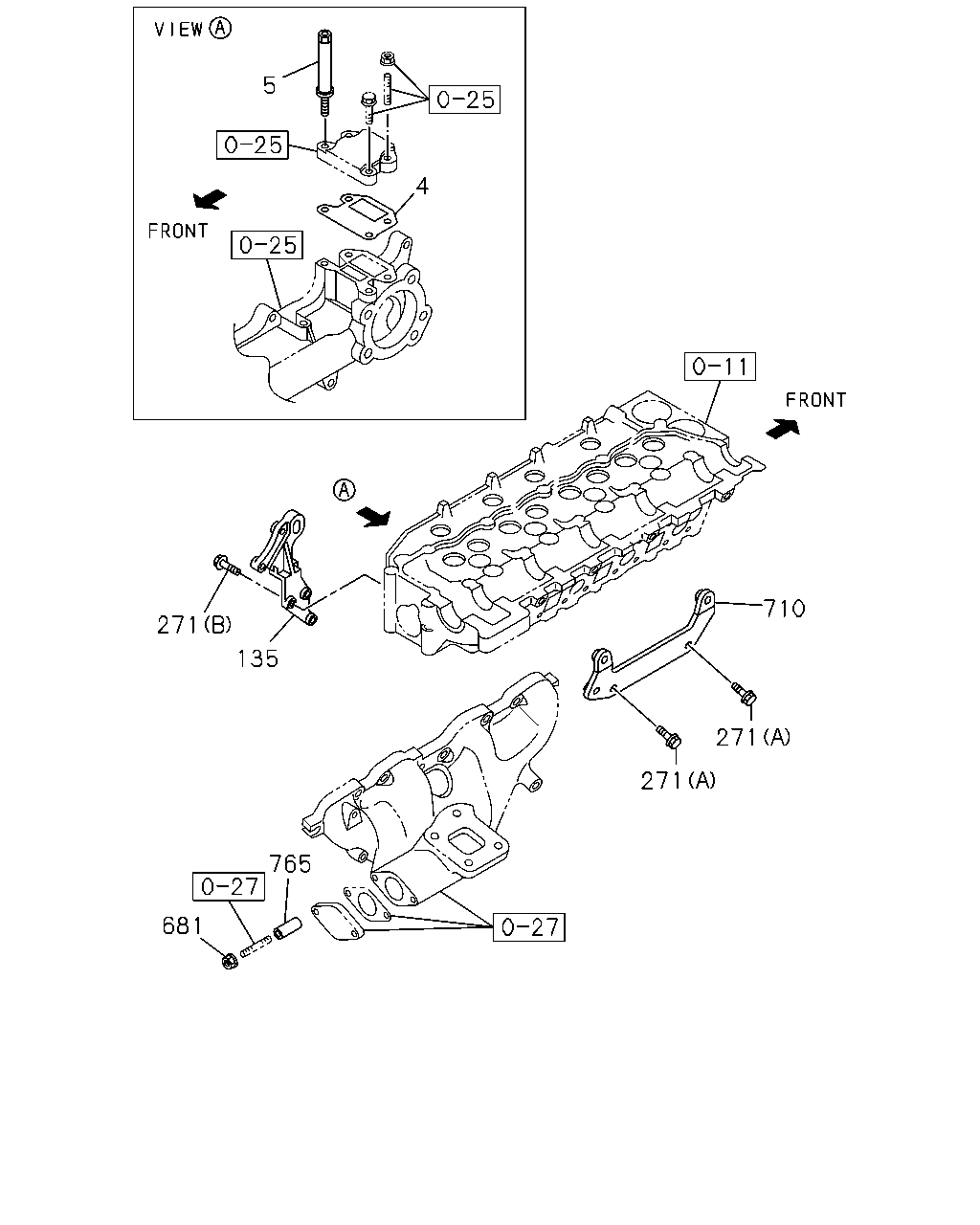

5
4
710
271
135
271
271
765
681
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97306-040-0
01
1
1012-
●
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97608-423-0
01
1
0809-
●
5
ADAPTER ASM
8-97377-804-0
01
1
1012-
●
5
ADAPTER ASM
8-97606-201-3
01
1
0809-1305
●
5
ADAPTER ASM
8-98240-157-0
01
1
1306-
●
135
BRACKET; EGR
8-97310-498-2
01
1
1012-
●
271
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1012-
●
271
BOLT; BRKT
(B) M12X30 FLANGE
0-28151-230-0
03
1
1012-
●
681
NUT; EGR PIPE
M8 FLANGE
0-91180-208-0
02
1
1012-
●
710
BRACKET; EGR COOLER
8-98079-255-1
01
1
1012-
●
765
SPACER; EGR PIPE
8-94225-562-0
02
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
