Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#3875) — 181 parça

50 51 77 505 51 494

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	BRACKET; HORN AIR HORN<WB8>	1-79738-840-0	01	1	9804-0004	●	●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9804-9804	●	●
51	BOLT; HORN TO BRKT AIR HORN<WB8> M8X20 FLANGE	0-28680-820-0	04	1	9805-0004	●	●
77	HORN ASM AIR HORN<WB8>	1-83430-038-2	01	1	9804-0004	●	●
494	PIPE; AIR,UNION TO HORN AIR HORN<WB8>	1-49117-797-0	01	1	9804-0004	●	●
505	JOINT; AIR HORN AIR HORN<WB8>	1-83439-005-0	01	1	9804-0004	●	●

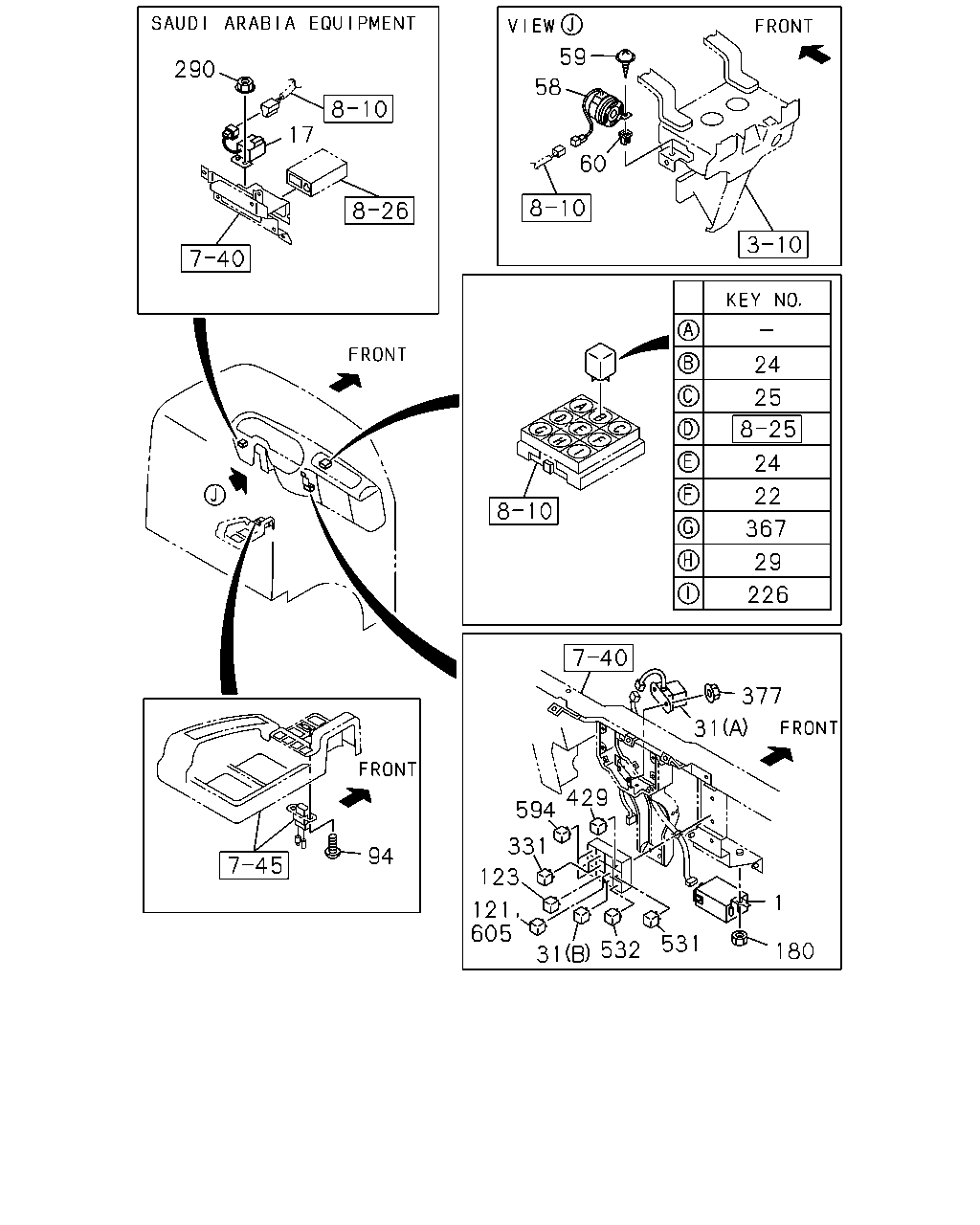

59 290 58 17 60 24 25 24 22 367 29 226 377 31 429 594 331 94 123 1 121 605 531 532 180 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	1-83470-060-1	01	1	9601-	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9601-0308	●	●
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	0309-		●
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-0111	●	●
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-9803	●	●
29	RELAY; HORN EXC. AIR HORN<WB8> 24V 12.5A MITUBA	8-97062-815-1	01	1	9804-0004	●	●
29	RELAY; HORN 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●
29	RELAY; HORN 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	9601-0004	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (A) 24V	1-82550-187-1	01	1	0005-	●
31	RELAY; PTO CONT PTO CONTROL<SV6> EXC. A/T<X9D> (A) 24V	1-82550-187-1	01	1	0005-		●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
31	RELAY; PTO CONT PTO CONTROL<SV6> (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCC ENG(81L) METRO DENSO	1-83460-075-0	01	1	0610-0612		●
58	BUZZER; AIR PRESSURE WARNING 6HK1 TCC ENG(81L) METRO DENSO	8-98069-859-0	01	1	0701-		●
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9601-0004	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-1	01	1	0005-0607	●	●
58	BUZZER; AIR PRESSURE WARNING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) METRO DENSO	1-83460-074-1	01	1	0608-0612	●	●
58	BUZZER; AIR PRESSURE WARNING 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) METRO DENSO	8-98069-865-0	01	1	0701-	●	●
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907	●	●
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-0004	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9601-0604	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-0607	●	●
59	SCREW; BUZZER M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0608-	●	●
60	GROMMET; SCREW,BUZZER D=8.6X7.7 L=7.5	8-94279-078-0	01	1	9601-	●	●
94	SCREW; CONSENT TO BLIND PNL M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	9601-9810	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9811-0604	●	●
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-	●	●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0004	●
121	RELAY; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0004		●
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111	●	●
121	RELAY; PARKING BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
123	RELAY; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9601-0602	●	●
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91150-106-0	02	1	9601-0308	●	●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91150-106-0	02	1	0309-0602		●
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91180-106-0	02	1	0603-		●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9601-0111	●	●
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0111		●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0607		●
367	RELAY; NEUTRAL 6HK1 TCC ENG(81L) EXC. STARTER SWITCH DELETION<E5D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0608-		●
367	RELAY; NEUTRAL A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0608-		●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91150-106-0	02	1	9601-0602	●	●
377	NUT; RELAY PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	9710-0004	●	●
429	RELAY; POWER CUT 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0005-0006	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A MITUBA	8-97062-815-1	01	1	0007-0111	●	●
429	RELAY; POWER CUT EURO2 SPECIFICATION<THN> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-	●	●
531	RELAY; MAIN 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0608-		●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA	8-97062-815-1	01	1	9601-0111	●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-0308	●	●
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0309-		●
594	RELAY; A/T A/T<X9D> 24V 12.5A MITUBA	8-97062-815-1	03	1	0005-0111		●
594	RELAY; A/T A/T<X9D> 24V 12.5A PANASONIC	8-97262-933-0	03	1	0112-		●
605	RELAY; PCV 6HK1 TCC ENG(81L) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0608-		●

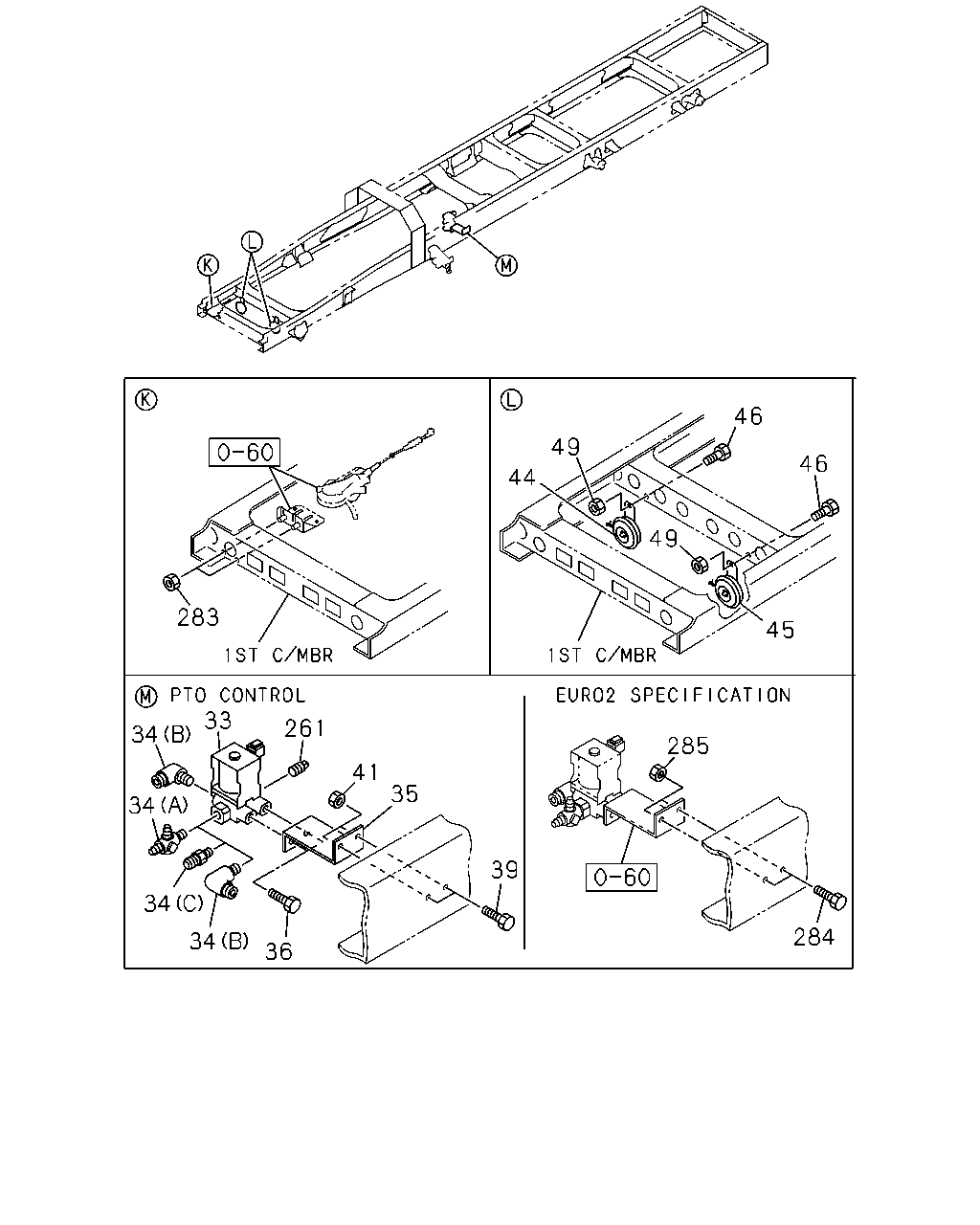

46 49 46 44 49 283 45 33 261 34 285 41 34 35 39 34 284 34 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6>	1-82563-600-5	01	1	9601-	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (A)	1-09660-718-1	01	1	9601-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9804-0004	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-	●	●
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9601-9803	●	●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9804-0004	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0005-0011	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0005-0011	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0204	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0012-0204	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0205-0406	●	●
34	CONNECTOR; MAG VLV,INL PORT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0205-0406	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-1102	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0407-1102	●	●
34	CONNECTOR; MAG VLV,INL PORT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-	●
34	CONNECTOR; MAG VLV,INL PORT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1103-		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (A) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9601-9803		●
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PTO CONTROL<SV6> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9804-0004		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L) ISUZU M/T<X9A> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6>	1-47477-967-0	01	1	9706-9806	●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-967-0	01	1	9807-0004	●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH>	1-47477-967-0	01	1	0005-0612	●	●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-967-0	01	1	0701-	●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> ISUZU M/T<X9A> EXC. FUEL TANK 400L<SDH>	1-47477-967-0	01	1	0701-		●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-462-0	01	1	9601-9704	●	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-0	01	1	9705-9705	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 STD ENG(37L),6HH1 STD ENG(65L) ISUZU M/T<X9A> PTO CONTROL<SV6>	1-47477-953-0	01	1	9706-0004	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-0	01	1	9706-0004	●
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6>	1-47477-953-0	01	1	9706-0004		●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-0	01	1	0005-0011	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-0	01	1	0005-0011	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-1	01	1	0012-1102	●	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-1	01	1	0012-1102	●	●
35	BRACKET; MAG VLV,PTO CONT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47477-953-1	01	1	1103-	●	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-47477-953-1	01	1	1103-	●
35	BRACKET; MAG VLV,PTO CONT ZF 9S109 OD M/T(Y2L) PTO CONTROL<SV6>	1-47477-953-1	01	1	1103-		●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L) FUEL TANK 400L<SDH> PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47478-702-0	01	1	0005-0612	●	●
35	BRACKET; MAG VLV,PTO CONT 6HE1 TC ENG(57L) FUEL TANK 400L<SDH> PTO CONTROL<SV6> ISUZU M/T<X9A>	1-47478-702-0	01	1	0701-		●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28080-820-0	02	1	9601-0512	●	●
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28680-835-0	02	1	9607-0512	●	●
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8	9-09110-408-0	02	1	9601-9606	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-061-1	01	1	9601-9710	●	●
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-061-1	01	1	9711-9803	●
44	HORN; HIGH NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-061-1	01	1	9711-9803		●
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1) EXC. AIR HORN<WB8>	1-83410-061-1	01	1	9804-0004	●
44	HORN; HIGH NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. AIR HORN<WB8>	1-83410-061-1	01	1	9804-0004		●
44	HORN; HIGH NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-061-1	01	1	0005-0308	●
44	HORN; HIGH NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-061-1	01	1	0005-0308		●
44	HORN; HIGH NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-061-1	01	1	0309-		●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	9601-9710	●	●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	9711-9803	●
44	HORN; HIGH NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-057-1	01	1	9711-9803		●
44	HORN; HIGH NOTE EXC. AIR HORN<WB8>,SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	9804-0004	●
44	HORN; HIGH NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), AIR HORN<WB8>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-057-1	01	1	9804-0004		●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-057-1	01	1	0005-0210	●
44	HORN; HIGH NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-057-1	01	1	0005-0210		●
44	HORN; HIGH NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-065-1	01	1	0211-0308	●
44	HORN; HIGH NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-065-1	01	1	0211-0308		●
44	HORN; HIGH NOTE	1-83410-065-1	01	1	0309-	●
44	HORN; HIGH NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-065-1	01	1	0309-		●
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-062-1	01	1	9601-9710	●	●
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-062-1	01	1	9711-9803	●
45	HORN; LOW NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-062-1	01	1	9711-9803		●
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1) EXC. AIR HORN<WB8>	1-83410-062-1	01	1	9804-0004	●
45	HORN; LOW NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. AIR HORN<WB8>	1-83410-062-1	01	1	9804-0004		●
45	HORN; LOW NOTE SAUDI ARABIA EQUIPMENT(WH1)	1-83410-062-1	01	1	0005-0308	●
45	HORN; LOW NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-062-1	01	1	0005-0308		●
45	HORN; LOW NOTE CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-062-1	01	1	0309-		●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	9601-9710	●	●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	9711-9803	●
45	HORN; LOW NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-058-1	01	1	9711-9803		●
45	HORN; LOW NOTE EXC. AIR HORN<WB8>,SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	9804-0004	●
45	HORN; LOW NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), AIR HORN<WB8>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-058-1	01	1	9804-0004		●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-058-1	01	1	0005-0210	●
45	HORN; LOW NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-058-1	01	1	0005-0210		●
45	HORN; LOW NOTE EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-83410-064-1	01	1	0211-0308	●
45	HORN; LOW NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-064-1	01	1	0211-0308		●
45	HORN; LOW NOTE	1-83410-064-1	01	1	0309-	●
45	HORN; LOW NOTE EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-83410-064-1	01	1	0309-		●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●
46	BOLT; HORN TO BODY EXC. AIR HORN<WB8> M8X25 FLANGE	0-28680-825-0	02	1	9804-0004	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
46	BOLT; HORN TO BODY M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59>,AIR HORN<WB8> M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
49	NUT; HORN TO BODY EXC. FRONT STABILIZER SHAFT<F59> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
261	PLUG; MAG VLV PTO CONTROL<SV6> PT1/4	9-99204-513-0	01	1	9601-	●	●
283	NUT; BRKT M8 FLANGE	5-09440-005-0	02	1	9601-9606	●	●
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
283	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●
283	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9710-9803	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	9805-0004		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0005-0109		●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	02	1	0110-0512	●	●
284	BOLT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
285	NUT; MAG VLV EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9710-9803	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9805-0004		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0005-0109		●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	0110-0602	●	●
285	NUT; MAG VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
