0-50 — OIL COOLER AND OIL FILTER (#38747) — 98 parça

496 386 434 66 13 265 307 308 2 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0809-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
13	VALVE; RELIEF	8-98238-944-0	01	1	1308-	●
66	SPRING; VLV	8-98238-943-0	01	1	1308-	●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0809-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0809-1307	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0809-1307	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0809-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0809-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0809-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0809-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●

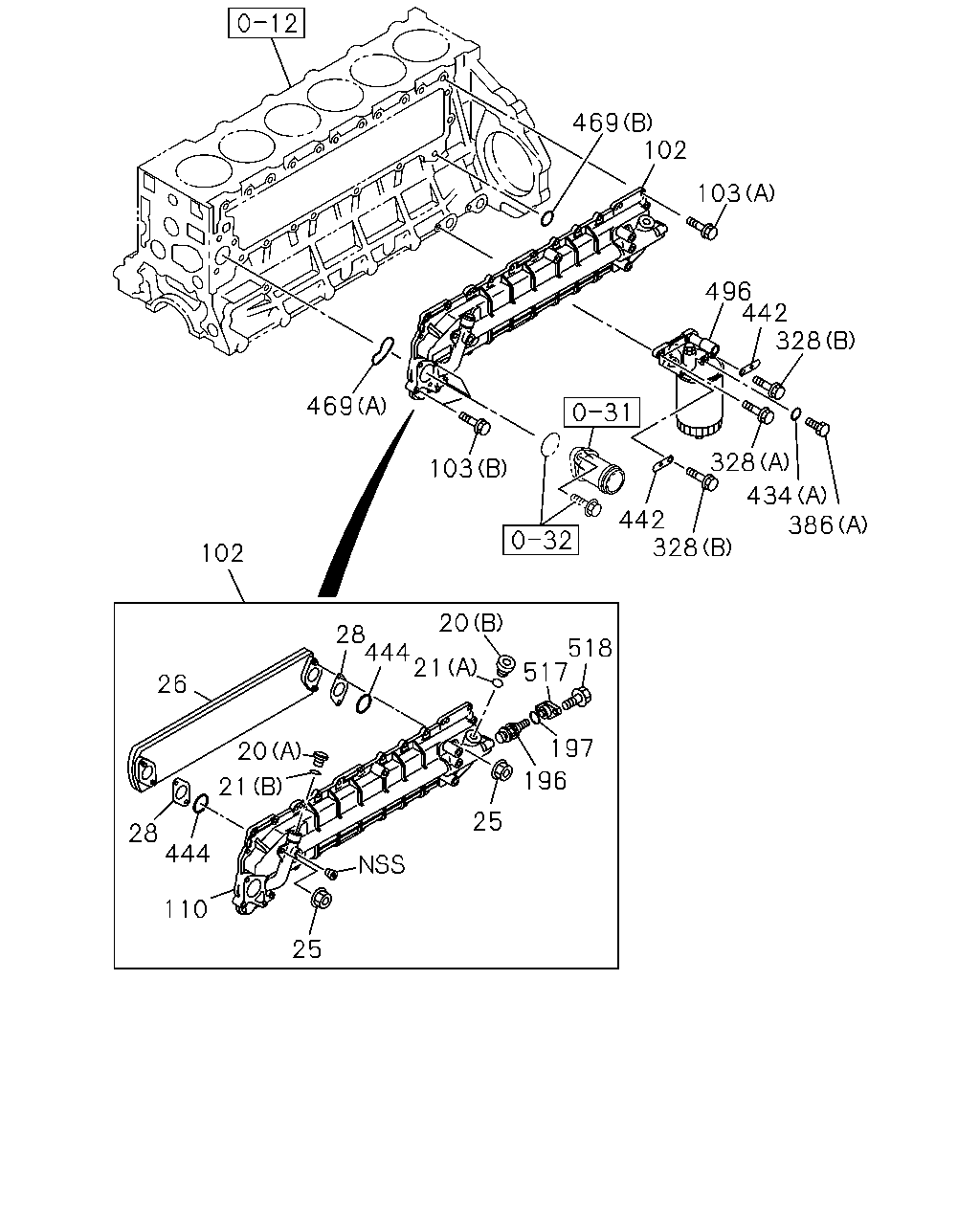

469 103 496 328 442 328 386 434 442 328 103 469 102 28 26 444 21 20 518 517 197 196 25 25 110 444 28 20 21 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	PLUG; COOLER BODY (A)	8-94393-604-0	01	1	0809-	●
20	PLUG; COOLER BODY (B)	8-94396-753-0	01	1	0809-	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0809-	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0809-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0809-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0809-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0809-	●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-		●
102	COOLER ASM; OIL	8-97600-156-1	01	1	0809-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
110	BODY; CASE,OIL COOLER	8-97600-158-0	01	1	0809-0906	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0809-	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0809-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0809-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0809-	●
386	PLUG; OIL FILTER (B)	8-98238-941-0	01	1	1308-	●
386	PLUG; OIL FILTER (A) M10X10	1-09604-074-0	01	1	0809-	●
434	GASKET; PLUG,OIL FILTER (B)	8-98238-942-0	01	1	1308-	●
434	GASKET; PLUG,OIL FILTER (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0809-	●
442	BRACKET; HARNESS,OIL FILTER	8-97601-310-0	02	1	0809-1011	●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1012-		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0809-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0809-	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0809-	●

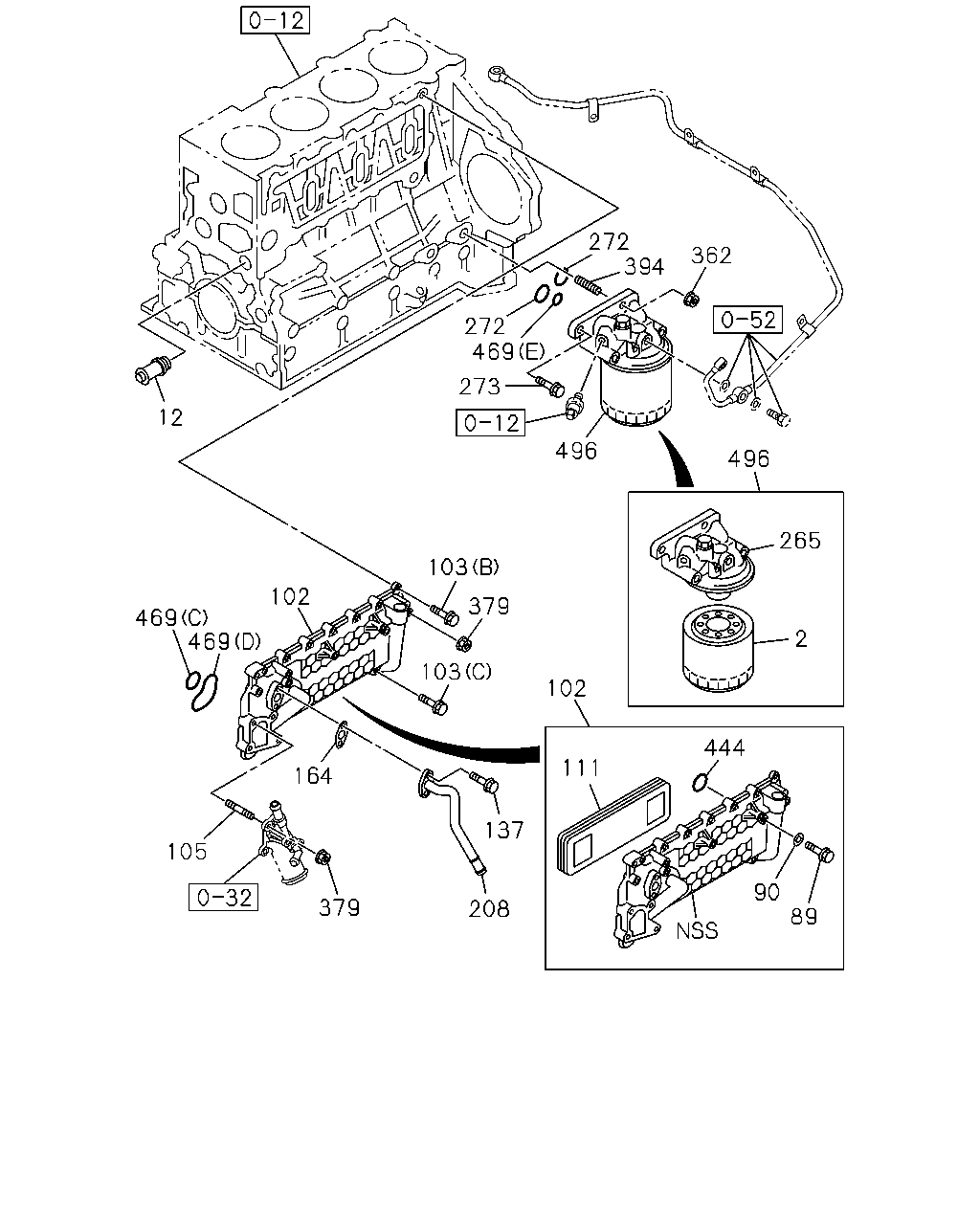

272 394 362 272 469 273 12 496 496 265 103 102 379 469 469 2 103 102 444 111 164 137 105 90 379 208 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-011-1	01	1	1010-1110	●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	1-87610-064-0	01	1	1111-	●
2	ELEMENT; OIL FILTER	8-94391-049-4	01	1	0809-	●
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	1012-1509		●
2	ELEMENT; OIL FILTER BEST VALUE PARTS	5-87610-117-0	01	1	1012-1509		●
2	ELEMENT; OIL FILTER	8-98328-207-0	01	1	1510-		●
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	1012-		●
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	1012-		●
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	1012-		●
102	COOLER ASM; OIL	8-98085-312-5	01	1	1012-		●
102	COOLER ASM; OIL	8-97600-156-1	01	1	0809-	●
103	BOLT; OIL COOLER (C) M8X20 FLANGE	0-28050-820-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	1012-		●
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	03	1	0809-	●
103	BOLT; OIL COOLER (A) M8X22 FLANGE	0-28080-822-0	24	1	0809-	●
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	1012-		●
111	CORE; OIL COOLER	8-97334-100-2	01	1	1012-		●
137	BOLT M8X20 FLANGE	0-28650-820-0	04	1	1012-		●
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.6	8-97146-684-0	01	1	1012-		●
208	PIPE; WATER,HTR	8-97146-519-0	01	1	1012-		●
265	BODY; OIL FILTER	8-97096-677-4	01	1	1012-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0809-1307	●
265	BODY; OIL FILTER	8-98238-939-0	01	1	1308-	●
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	1012-		●
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	1012-		●
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	1012-		●
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	1012-		●
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	1012-		●
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	1012-		●
444	GASKET; ELEMENT TO BODY	8-94396-810-0	02	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-94338-878-1	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=9.8	8-94399-339-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	1012-		●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0809-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0809-	●
496	FILTER ASM; OIL	8-97148-268-4	01	1	1012-1509		●
496	FILTER ASM; OIL	8-98328-202-0	01	1	1510-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0809-1307	●
496	FILTER ASM; OIL	8-98236-649-0	01	1	1308-	●
