0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#38743) — 78 parça

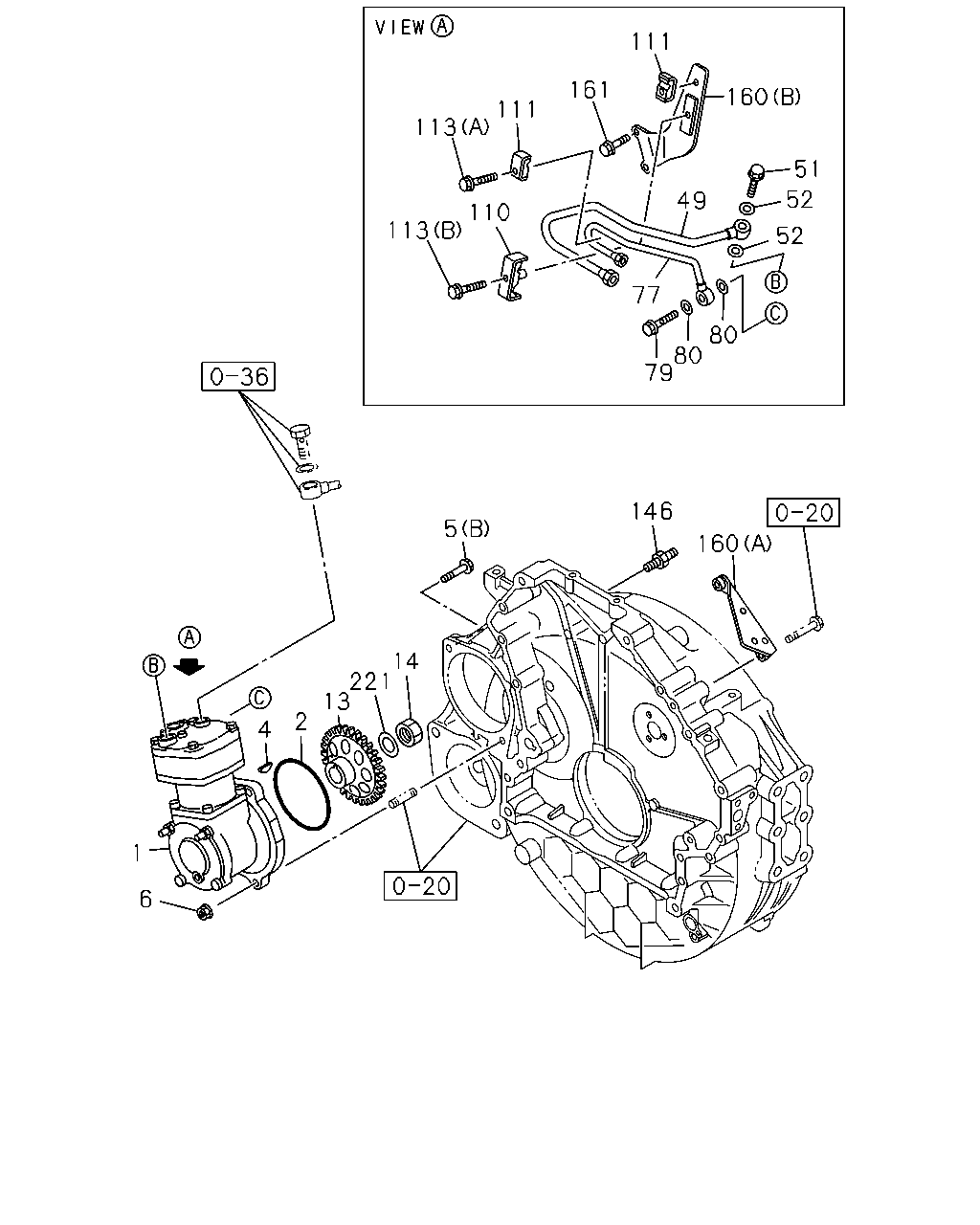

111 161 160 111 113 51 52 49 110 113 52 77 80 80 79 146 5 160 14 221 13 2 4 1 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97619-244-2	01	1	0809-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0809-		●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0809-		●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	0809-		●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1012-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0809-		●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0809-		●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0809-		●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-	●
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	0809-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0809-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0809-1011		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
77	PIPE; AIR,GOV	8-97618-724-0	01	1	0809-		●
79	BOLT; EYE,AIR PIPE TO CMPR M10X23	8-98037-824-0	01	1	0809-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	02	1	0809-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0809-		●
111	CLIP; AIR PIPE ID=5.5 L=10.5	8-98029-953-1	02	1	0809-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0809-		●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28650-640-0	01	1	0809-		●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	0809-		●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	1012-	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0809-		●
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	0809-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0809-		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0809-		●

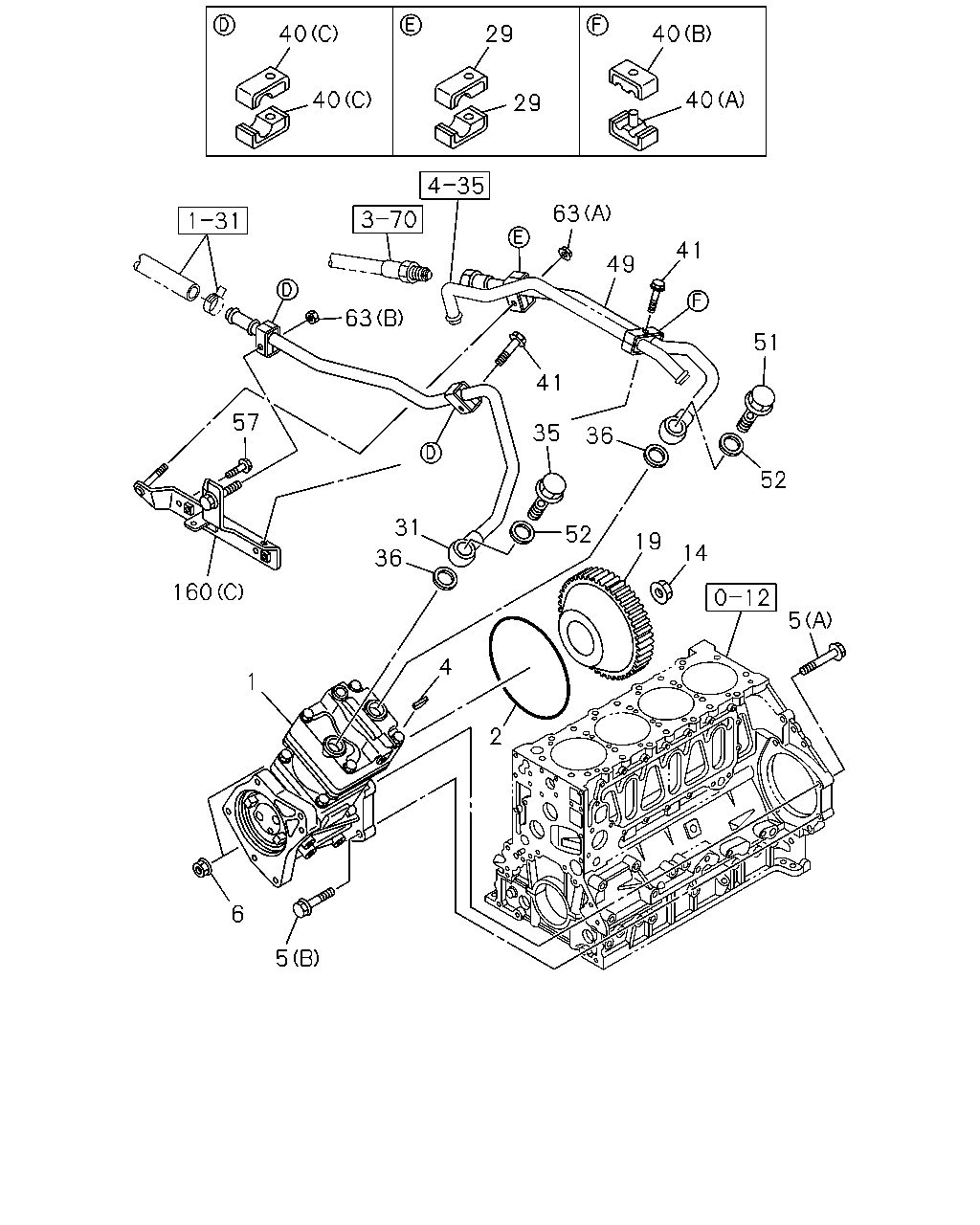

40 29 40 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-448-5	01	1	1012-1101	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1102-1109	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97619-244-2	01	1	0809-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-299-0	01	1	1108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	0809-		●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0809-		●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	02	1	0809-		●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1012-	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	0809-		●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0809-		●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●
29	CLIP; AIR PIPE ID=14 L=15	1-09701-282-0	02	1	1012-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-98067-830-1	01	1	1012-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	1012-	●
40	CLIP; AIR PIPE (A) ID=14&17 L=32.5	8-97619-417-0	01	1	1012-	●
40	CLIP; AIR PIPE (B) ID=14&17 L=32.5	8-97619-418-0	01	1	1012-	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1012-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-	●
49	PIPE; AIR,CHARGE	8-97618-722-0	01	1	0809-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0809-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0809-1011		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●
160	BRACKET; AIR PIPE (C)	8-98076-098-0	01	1	1012-	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	0809-		●
160	BRACKET; AIR PIPE (B)	8-98074-255-0	01	1	0809-		●
