◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#3874) — 64 parça

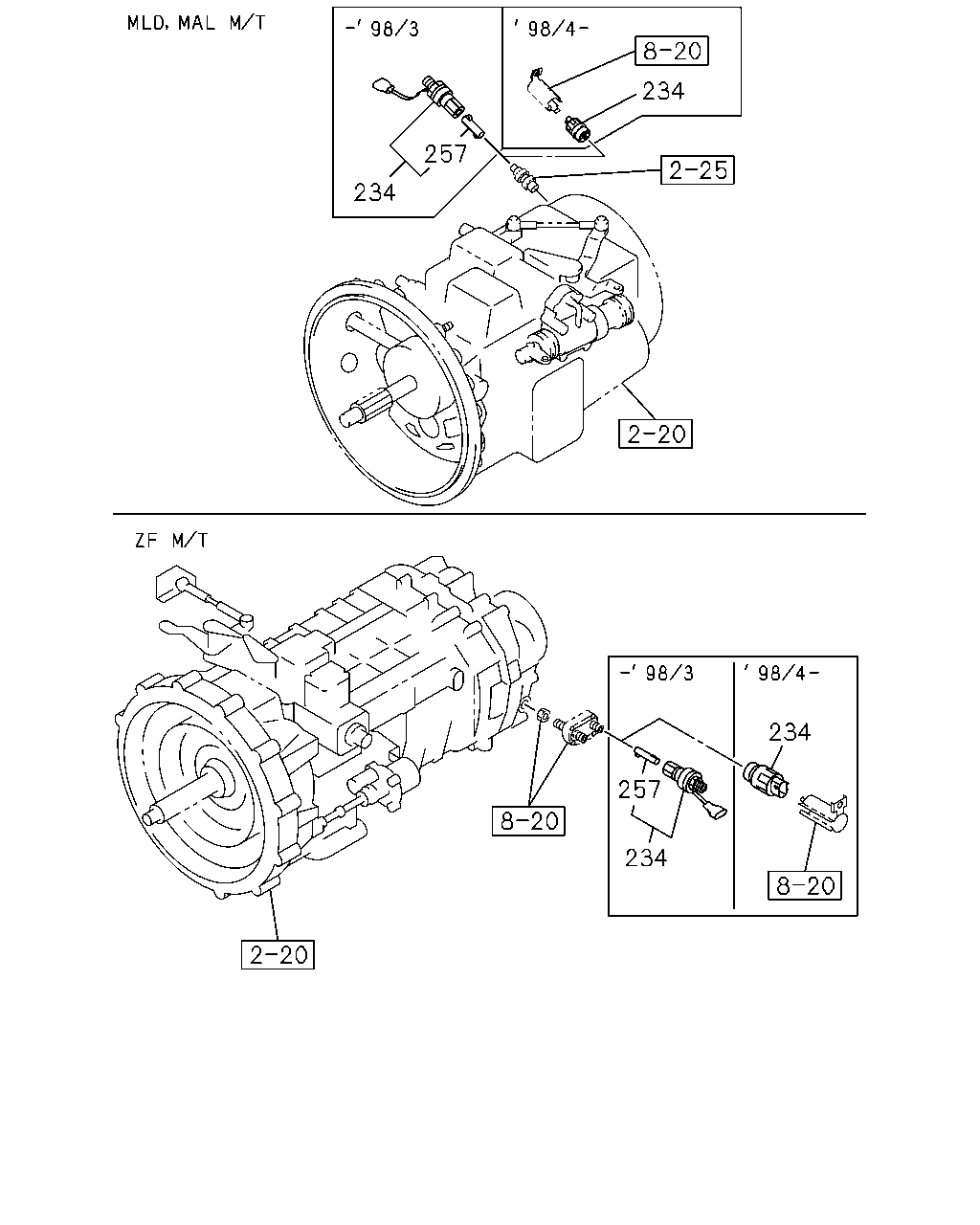

çizim 7024
234 257 234 234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9705 ●
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9601-9705 ●
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MLD6B M/T(X5P),ZF 9S109 OD M/T(Y2L) 		1-83127-241-1 01 1 9706-9803 ● ●
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80240-001-1 01 1 9804-0202 ● ●
234 SENSOR; VEHICLE SPD
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0203-0403 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0404-1102 ●
234 SENSOR; VEHICLE SPD
EXC. A/T<X9D> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0404-1102 ●
234 SENSOR; VEHICLE SPD
ZF 9S109 OD M/T(Y2L) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ● ●
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1103- ● ●
234 SENSOR; VEHICLE SPD
MAL6S M/T(Y1V) 		1-83127-254-2 01 1 9601-9803 ● ●
257 KEY; SPEED SENSOR
MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9705 ●
257 KEY; SPEED SENSOR
MLD6Q M/T(X5J),MLD7R M/T(X5L),MLD6A M/T(X5N),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9601-9705 ●
257 KEY; SPEED SENSOR
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MLD6B M/T(X5P),ZF 9S109 OD M/T(Y2L) 		1-83129-126-0 01 1 9706-9803 ● ●
257 KEY; SPEED SENSOR
MAL6S M/T(Y1V) 		1-83129-125-0 01 1 9601-9803 ● ●

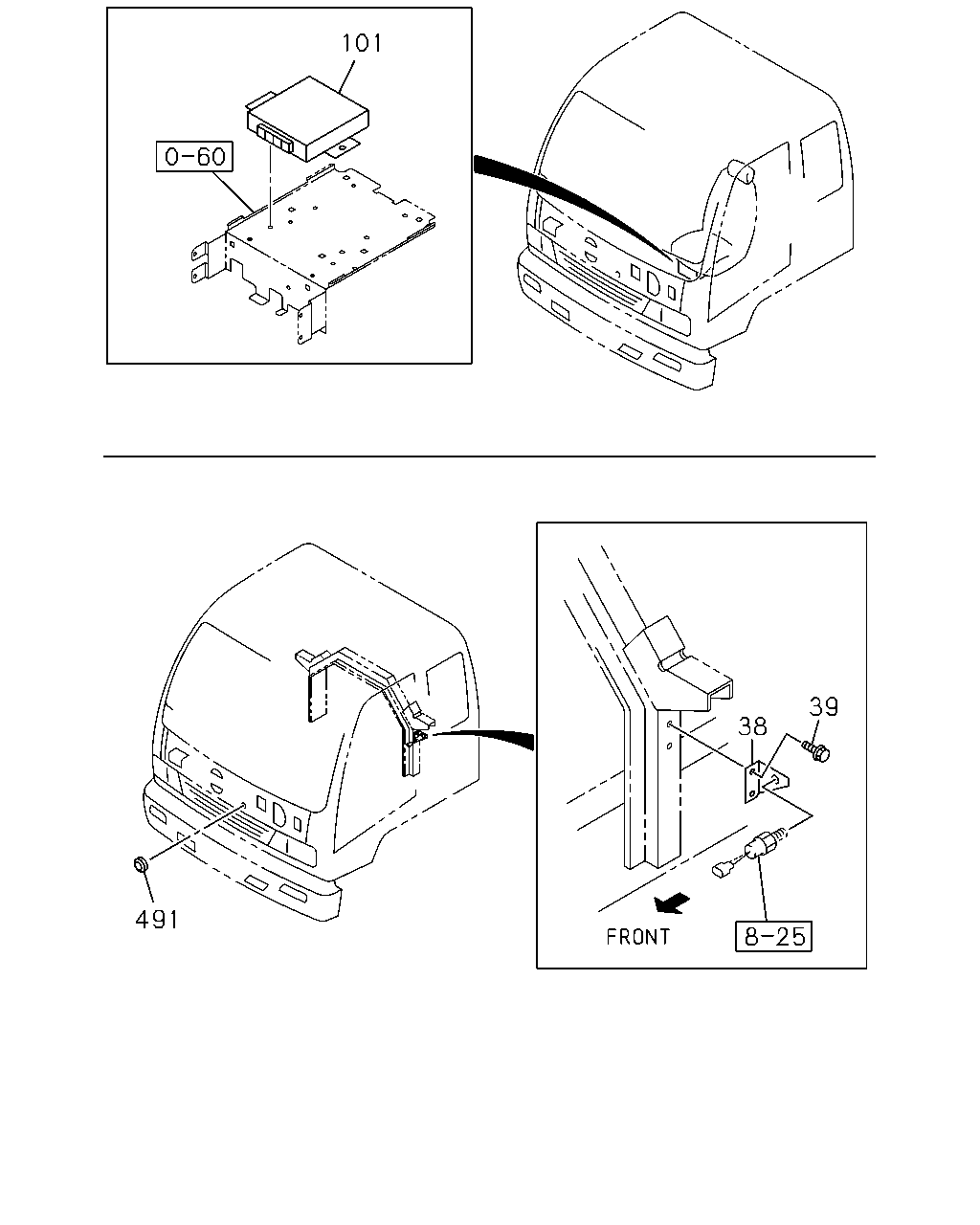

çizim 8059
101 39 38 491
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9601-9804 ● ●
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9805-0004 ●
38 BRACKET; SW,STARTER SUB
EXC. TAIWAN EQUIPMENT(WW5) 		1-82699-351-0 01 1 9805-0004 ●
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0005-0211 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9802-9804 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9805-0004 ●
39 BOLT; BRKT,STARTER SUB SW
EXC. TAIWAN EQUIPMENT(WW5) M8X20 FLANGE 		0-28680-820-0 02 1 9805-0004 ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0211 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
101 CONTROL UNIT; ELEC,A/T
6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) 		1-80110-627-0 01 1 0005-0005 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) 		1-80110-748-0 01 1 0006-0008 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) 		1-80110-756-0 01 1 0009-0208 ●
101 CONTROL UNIT; ELEC,A/T
6SD1 STD ENG(37L) ALLISON MD3060P A/T(Y4G) 		1-80111-017-0 01 1 0209- ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9601-9709 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9710-0112 ● ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0201-0201 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN>,A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0201-0201 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0202-0607 ● ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0202-0607 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
6SD1 TCN ENG(31L) EURO2 SPECIFICATION<THN> A/T<X9D> OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
EXC. EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ>, EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0608- ●

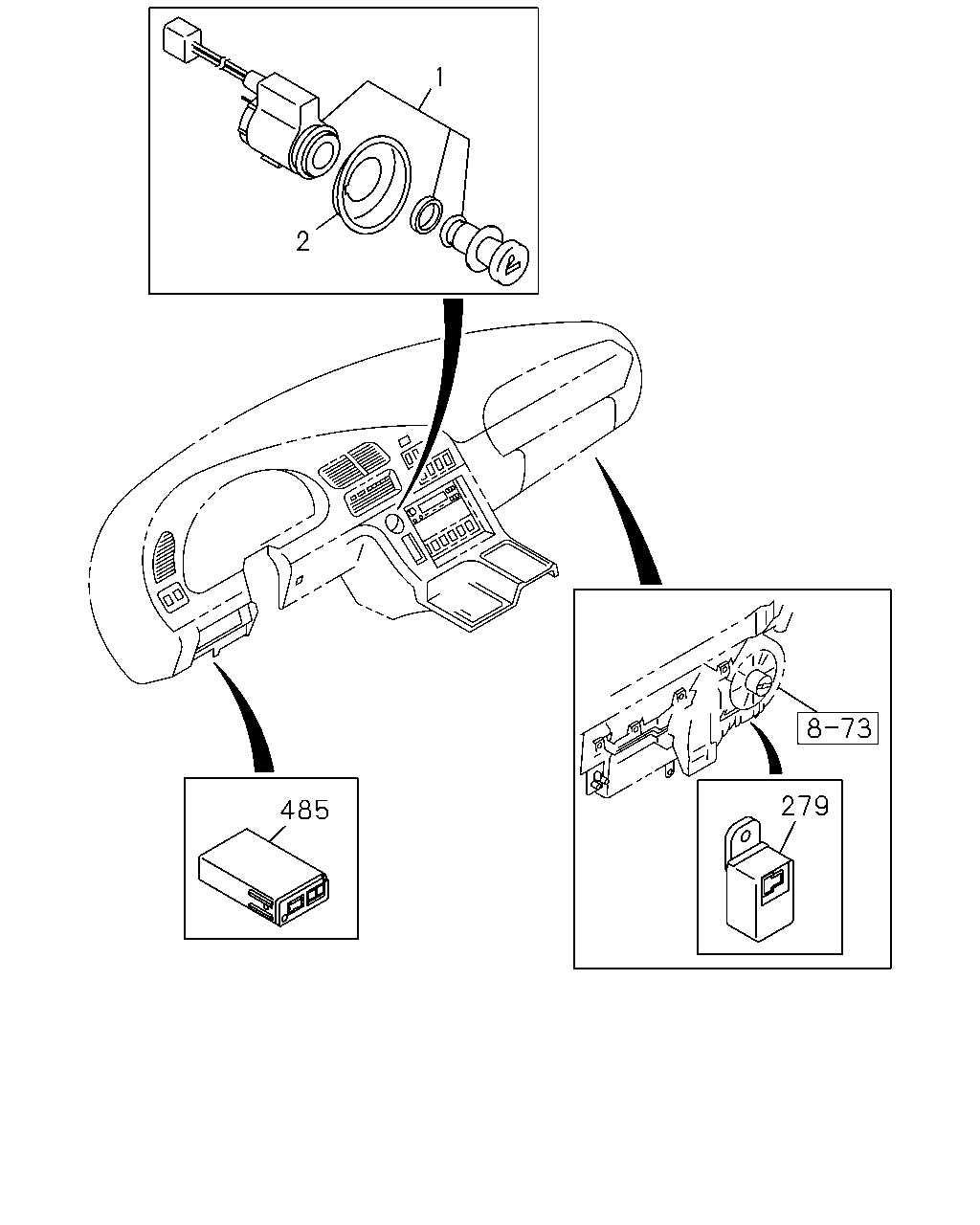

çizim 37961
1 2 279 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9601-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9601- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9601-0308 ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 0309- ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1103- ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9601-9809 ● ●
485 CONTROL UNIT; SPEED SENSOR
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-82540-065-0 01 1 9810-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		1-80190-038-1 01 1 0005-0403 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0404-0410 ●
485 CONTROL UNIT; SPEED SENSOR
EXC. A/T<X9D> 		1-80190-149-0 01 1 0404-0410 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-1102 ●
485 CONTROL UNIT; SPEED SENSOR
EXC. A/T<X9D> 		1-80190-158-0 01 1 0411-1102 ●
485 CONTROL UNIT; SPEED SENSOR
ZF 9S109 OD M/T(Y2L) 		1-80190-158-0 01 1 1103- ● ●
485 CONTROL UNIT; SPEED SENSOR
ISUZU M/T<X9A> 		1-80190-158-0 01 1 1103- ● ●
485 CONTROL UNIT; SPEED SENSOR
ALLISON MD3060P A/T(Y4G) 		1-80190-061-0 01 1 0005-0403 ●
485 CONTROL UNIT; SPEED SENSOR
A/T<X9D> 		1-80190-061-0 01 1 0404- ●

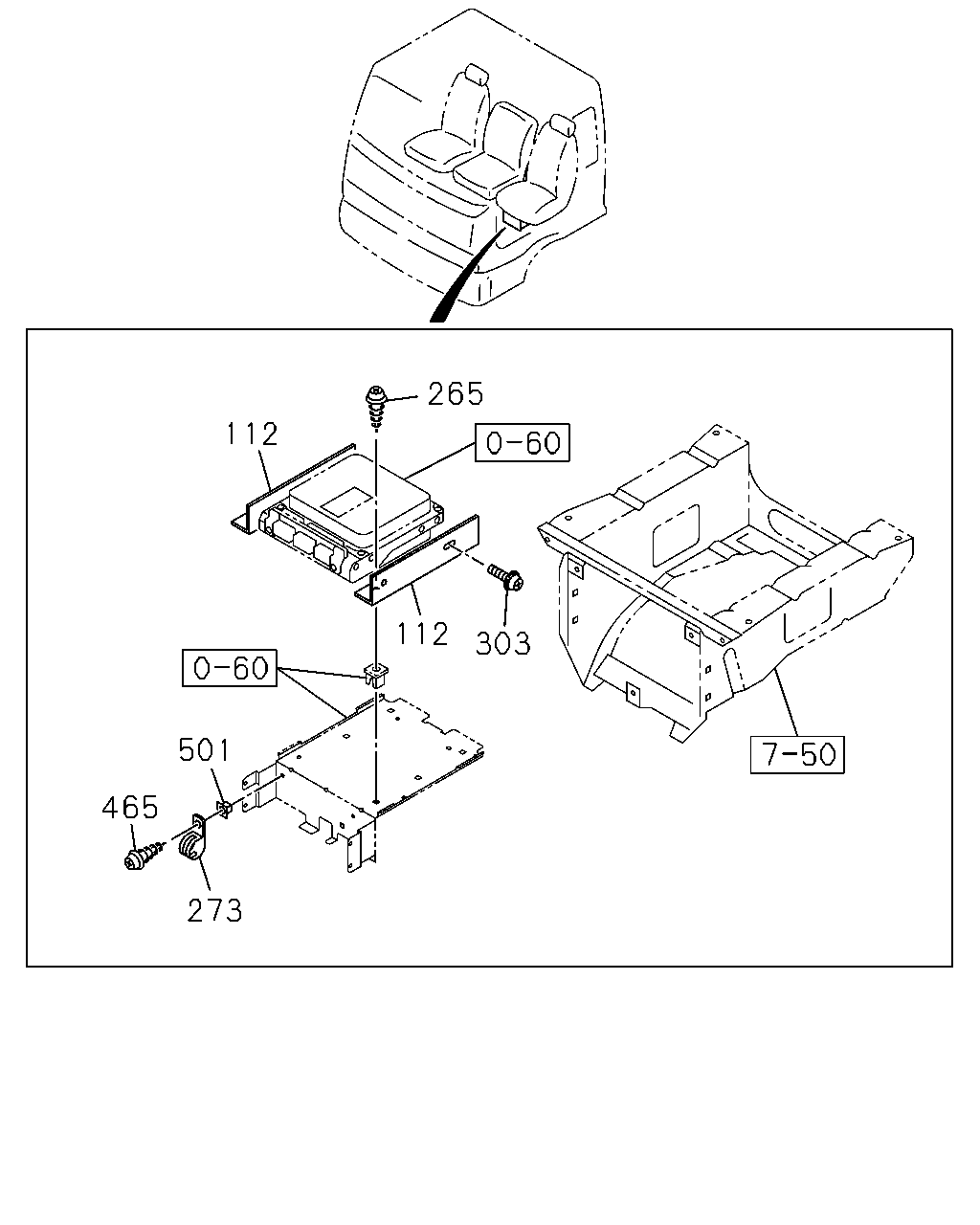

çizim 40631
265 112 112 303 501 465 273
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 		1-75558-566-0 02 1 0608- ●
265 SCREW; BRKT,CONT UNIT
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0608- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) ID=35 L=35 		1-09700-726-0 01 1 0608- ●
303 SCREW; CONT UNIT
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0608- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0608- ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0608- ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
