Isuzu WW
▶
TRUCKS
▶
FSR
▶
11123 - FSR(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#38735) — 27 parça
Tümü
A - 6HK1-TCN ENG
B - 4HK1-TCS ENG
◀

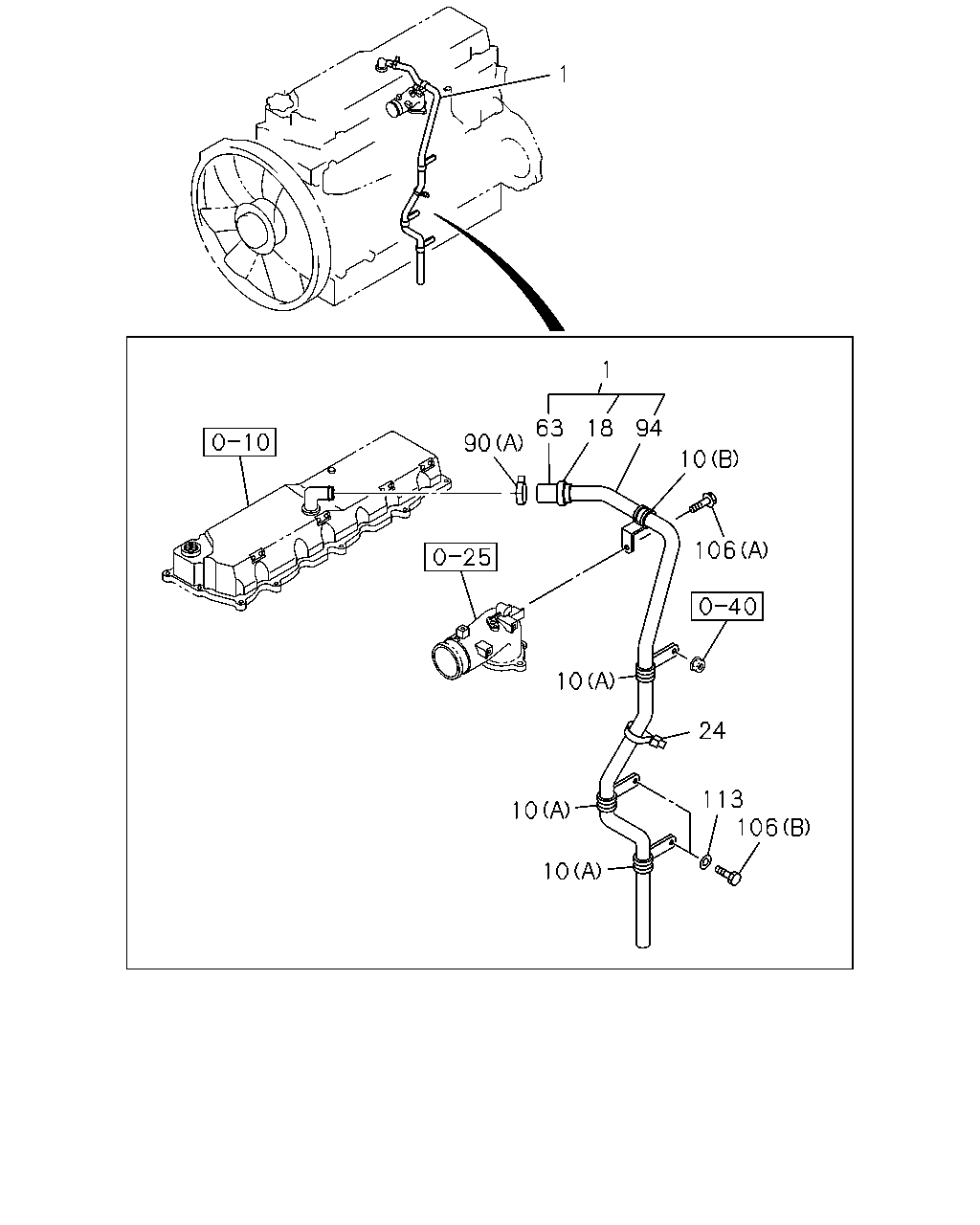

[028A] 6HK1 (15 parça)
[028A] 4HK1 (12 parça)
▶
1
1
63
18
94
90
10
106
10
24
113
106
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
8-94392-083-3
01
1
0809-
●
10
CLIP; AIR BREATHER
(A) ID=32 L=75
1-09700-704-1
03
1
0809-
●
10
CLIP; AIR BREATHER
(B) ID=31 H=30 L=35
1-09700-994-0
01
1
0809-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
0809-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
01
1
0903-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02828-070-0
01
1
0809-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
90
CLIP; RUBBER HOSE
(C) ID=11
8-94238-570-0
01
1
1012-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5
8-97138-011-0
01
1
1012-
●
90
CLIP; RUBBER HOSE
(A) ID=33.6
8-94362-518-0
01
1
0809-
●
94
HOSE; BREATHER TO PIPE
L=1260
8-94392-082-0
01
1
0809-
●
106
BOLT; DRAIN PIPE
(A) M6X12 FLANGE
0-28050-612-0
01
1
0809-
●
106
BOLT; DRAIN PIPE
(B) M10X16 FLANGE
0-28151-016-0
02
1
0809-
●
113
WASHER; PL,CLIP
ID=10.5
0-91610-510-0
02
1
0809-
●

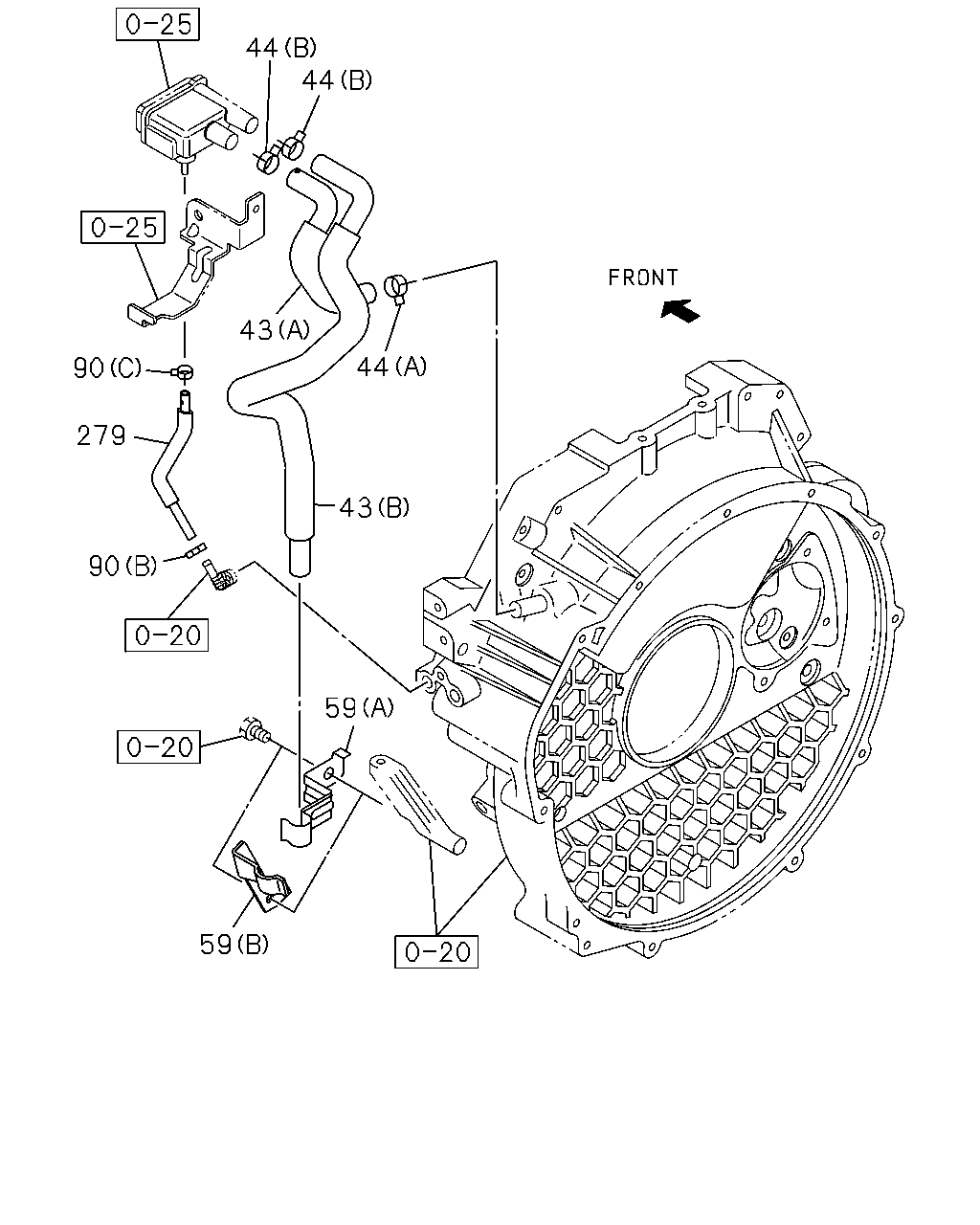

44
43
43
44
44
90
90
279
59
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
43
HOSE; PCV
(A)
8-97149-012-3
01
1
1012-
●
43
HOSE; PCV
(B)
8-98012-831-0
01
1
1012-1308
●
43
HOSE; PCV
(B)
8-98249-509-0
01
1
1309-
●
44
CLIP; HOSE,PCV
(A) ID=21
8-94242-034-0
01
1
1012-
●
44
CLIP; HOSE,PCV
(B) ID=22.7
8-94466-382-0
02
1
1012-
●
59
CLIP; HOSE
(A)
8-97369-959-0
01
1
1012-1101
●
59
CLIP; HOSE
(A)
8-97369-959-0
01
1
1102-1308
●
59
CLIP; HOSE
(B)
8-98249-517-0
01
1
1309-
●
90
CLIP; RUBBER HOSE
(C) ID=11
8-94238-570-0
01
1
1012-
●
90
CLIP; RUBBER HOSE
(B) ID=11.5
8-97138-011-0
01
1
1012-
●
90
CLIP; RUBBER HOSE
(A) ID=33.6
8-94362-518-0
01
1
0809-
●
279
HOSE; RUBBER,OIL DRAIN
8-98075-714-0
01
1
1012-
●
