◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#3873) — 68 parça
çizim 37960
257 29 30 60
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 9601- ● ●
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9601-9906 ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907- ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9601-9804 ● ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9805-0004 ●
60 SWITCH; STARTER SUB
EXC. TAIWAN EQUIPMENT(WW5) 		1-82380-107-1 01 1 9805-0004 ●
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0005-0211 ● ●
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212- ● ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601- ● ●

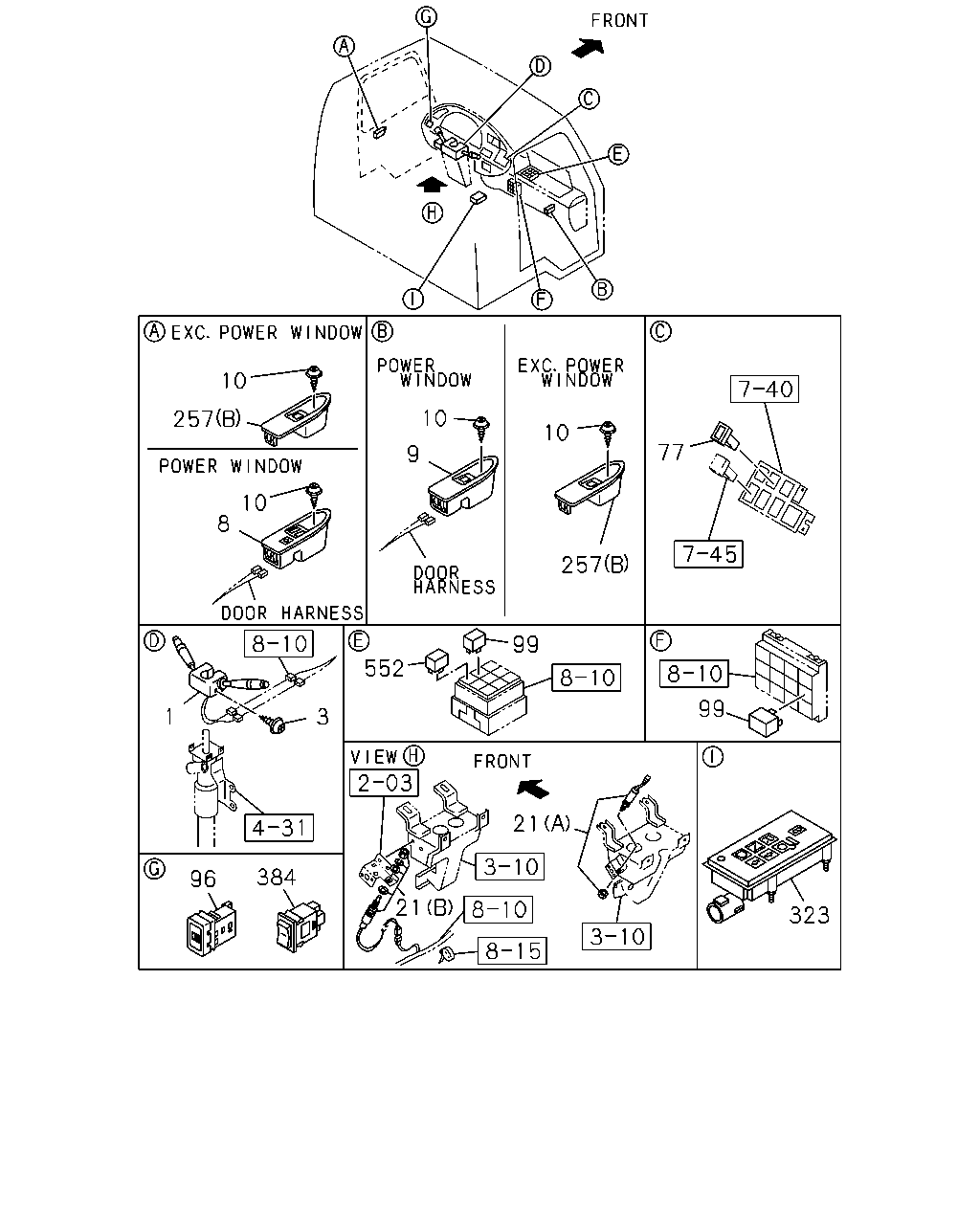

çizim 38068
10 10 257 10 77 9 10 8 257 99 552 99 3 1 21 21 384 96 323
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-3 01 1 9601-9702 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-3 01 1 9703-9803 ● ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> 		1-82360-405-3 01 1 9703-9803 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-4 01 1 9804-0004 ● ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> 		1-82360-405-4 01 1 9804-0004 ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-405-4 01 1 0005-0103 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-647-0 01 1 0104-0312 ● ●
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-734-0 01 1 0401- ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-3 01 1 9601-9702 ● ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-3 01 1 9703-9803 ●
1 SWITCH; COMB
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-3 01 1 9703-9803 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 9804-0004 ●
1 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 9804-0004 ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 0005-0103 ●
1 SWITCH; COMB
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-371-4 01 1 0005-0103 ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-642-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-642-0 01 1 0104-0312 ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-731-0 01 1 0401-0409 ●
1 SWITCH; COMB
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-731-0 01 1 0401-0409 ●
1 SWITCH; COMB
EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-731-0 01 1 0410- ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 		1-82360-731-0 01 1 0410- ●
1 SWITCH; COMB
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-731-0 01 1 0410- ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-539-0 01 1 0005-0103 ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-654-0 01 1 0104-0309 ●
1 SWITCH; COMB
BUMPER W/HEADLAMPS<SLB> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82360-704-1 01 1 0310- ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9601-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-142-1 01 1 9601-9709 ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-4 01 1 9710- ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-143-0 01 1 9601-9709 ● ●
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9710- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU
6HK1 TCC ENG(81L) (A) 		1-82440-116-1 01 1 0608-0608 ●
21 SWITCH; CLU
6HK1 TCC ENG(81L) (A) 		1-82440-126-1 01 1 0609- ●
21 SWITCH; CLU
(B) 		1-82380-114-3 01 1 9601-0607 ● ●
21 SWITCH; CLU
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) 		1-82380-114-3 01 1 0608- ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 9601-0004 ● ●
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0005- ●
77 SWITCH; PTO
PTO CONTROL<SV6> EXC. A/T<X9D> 		1-82340-403-0 01 1 0005- ●
77 SWITCH; PTO
PTO CONTROL<SV6> A/T<X9D> 		1-82340-413-0 01 1 0005- ●
96 SWITCH; FOG LAMP
CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82340-676-0 01 1 0005- ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9601-9702 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9703-0004 ● ●
99 RELAY; FOG LAMP
BUMPER W/HEADLAMPS<SLB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9703-0004 ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0005-0111 ● ●
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
99 RELAY; FOG LAMP
BUMPER W/HEADLAMPS<SLB> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 12.5A MITUBA 		8-97062-815-1 02 1 0005-0111 ●
99 RELAY; FOG LAMP
BUMPER W/HEADLAMPS<SLB> CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0112- ●
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 9601- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-012-2 01 1 9601- ● ●
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (B) 		1-82389-011-2 01 1 9601- ● ●
323 SWITCH ASM; SELECTOR
A/T<X9D> 		1-80290-001-0 01 1 0005-0109 ●
323 SWITCH ASM; SELECTOR
A/T<X9D> 		1-80290-013-0 01 1 0110- ●
384 SWITCH; IDLING CONT,ELEC
6HK1 TCC ENG(81L) 		1-82350-213-1 01 1 0608- ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 9601-0111 ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112- ● ●
