◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#38726) — 165 parça

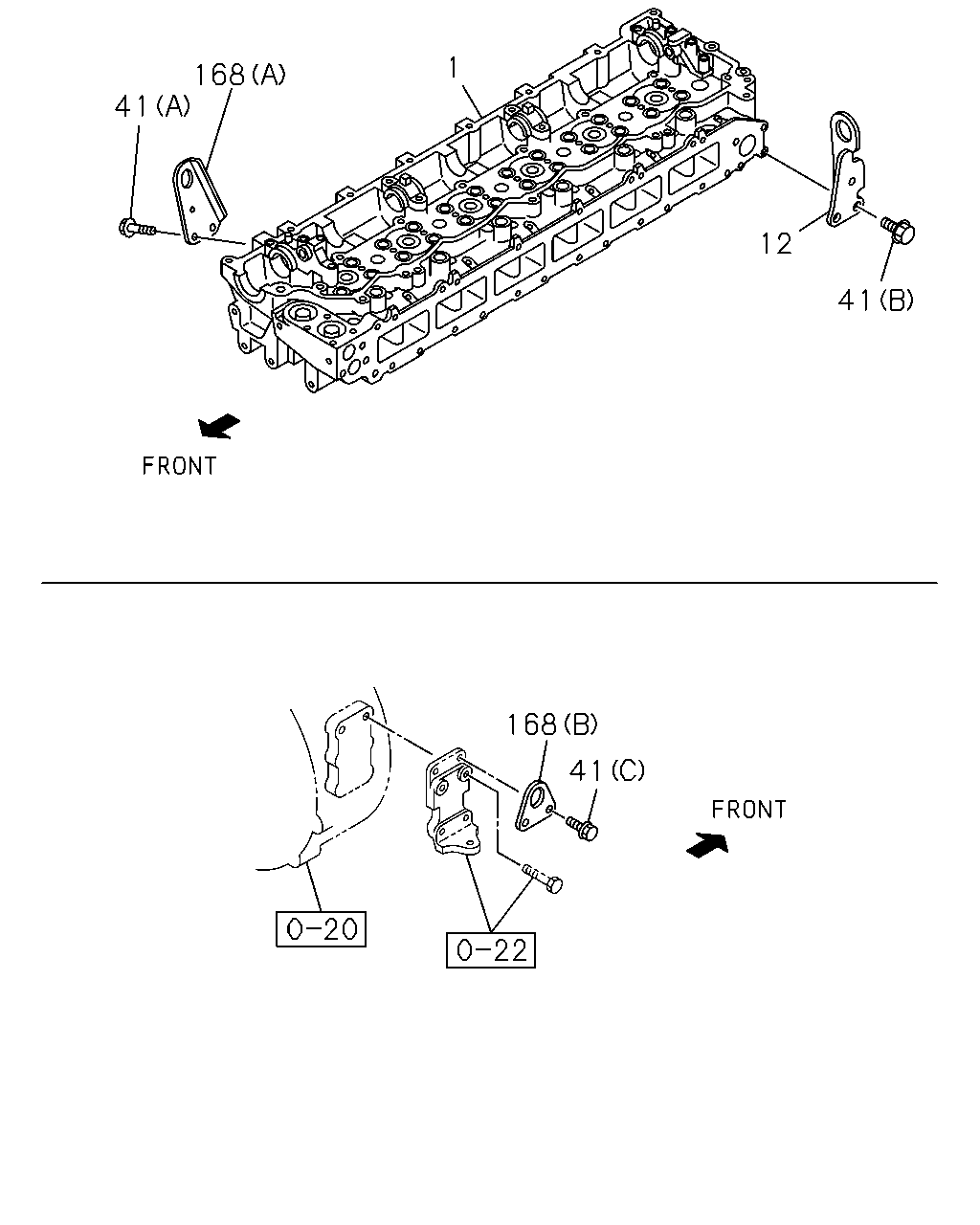

çizim 181193
41 168 1 12 41 168 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-620-0 01 1 1012- ●
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305 ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ●
12 HANGER; ENG,RR 8-94392-081-1 01 1 0809- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0809- ●
41 BOLT; ENG HANGER
(B) M10X25 FLANGE 		0-28751-025-0 02 1 0809- ●
41 BOLT; ENG HANGER
(C) M12X25 FLANGE 		0-28751-225-0 02 1 0809- ●
168 HANGER; ENG,FRT
(C) 		8-97383-001-1 01 1 1012- ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-2 01 1 0809- ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 0809- ●

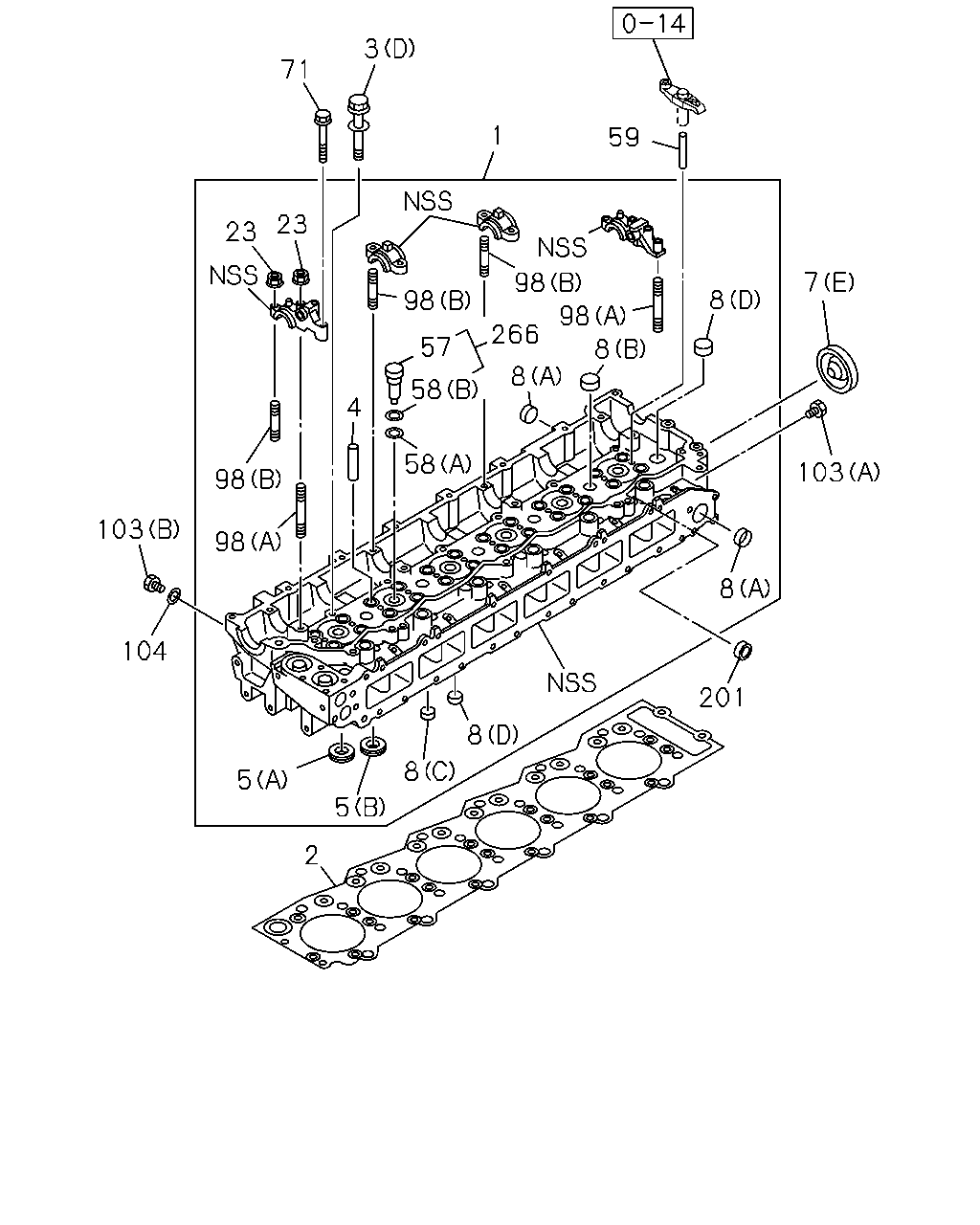

çizim 181204
3 71 1 59 7 8 23 23 98 98 266 98 57 58 4 98 103 98 104 5 2 5 8 8 201 58 8 8 103 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-620-0 01 1 1012- ●
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305 ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0809- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1012- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-94396-207-3 26 1 0809-0901 ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1012- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0809- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1012- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1012- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 0809- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0809- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1012- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 1012- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1012- ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 1012- ●
7 CUP; SEALING,CYL HEAD
(E) OD=51 		8-97096-826-0 01 1 0809- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 07 1 0809- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0809- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0809- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0809- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1012- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0809- ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0809-0906 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 04 1 1012- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0809- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0809-0906 ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 1012- ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0809- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0809-1011 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1012- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0809- ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0809- ●
103 PLUG; HD
(A) M8X10 		8-98003-416-0 01 1 0809- ●
103 PLUG; HD
(B) M14X14 		9-09862-156-0 01 1 0809- ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312 ●
104 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1012- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0809- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0907- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1012- ●

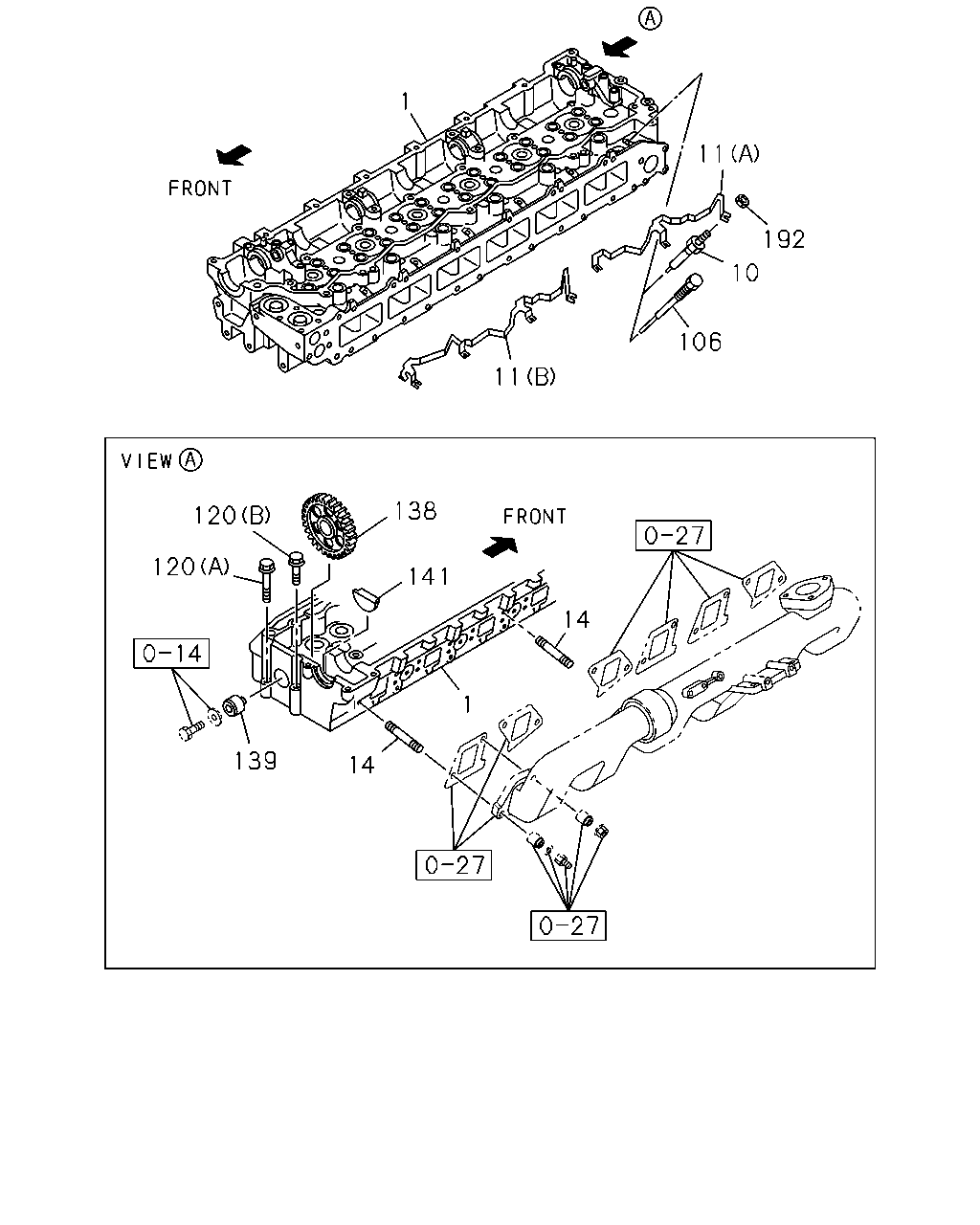

çizim 181206
1 11 106 10 192 11 14 1 141 138 120 120 139 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-620-0 01 1 1012- ●
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305 ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012-1311 ●
10 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1312- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0809-1311 ●
10 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 06 1 1312- ●
11 CONNECTOR; GLOW PLUG
(C) 		8-97332-358-2 01 1 1012-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (C) 		8-97332-358-2 01 1 1312- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0809-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (B) 		8-98040-648-0 01 1 1312- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0809-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (A) 		8-98040-649-0 01 1 1312- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1012- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0809- ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 04 1 1312- ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 06 1 1312- ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0809- ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0809- ●
138 GEAR; IDLE
Z=41 		8-97606-929-0 01 1 0809- ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0809- ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0809-1005 ●
141 PLUG; RUBBER,CYL HD 8-98163-813-0 02 1 1006- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1012-1311 ●
192 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 04 1 1312- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0809-1311 ●
192 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 06 1 1312- ●

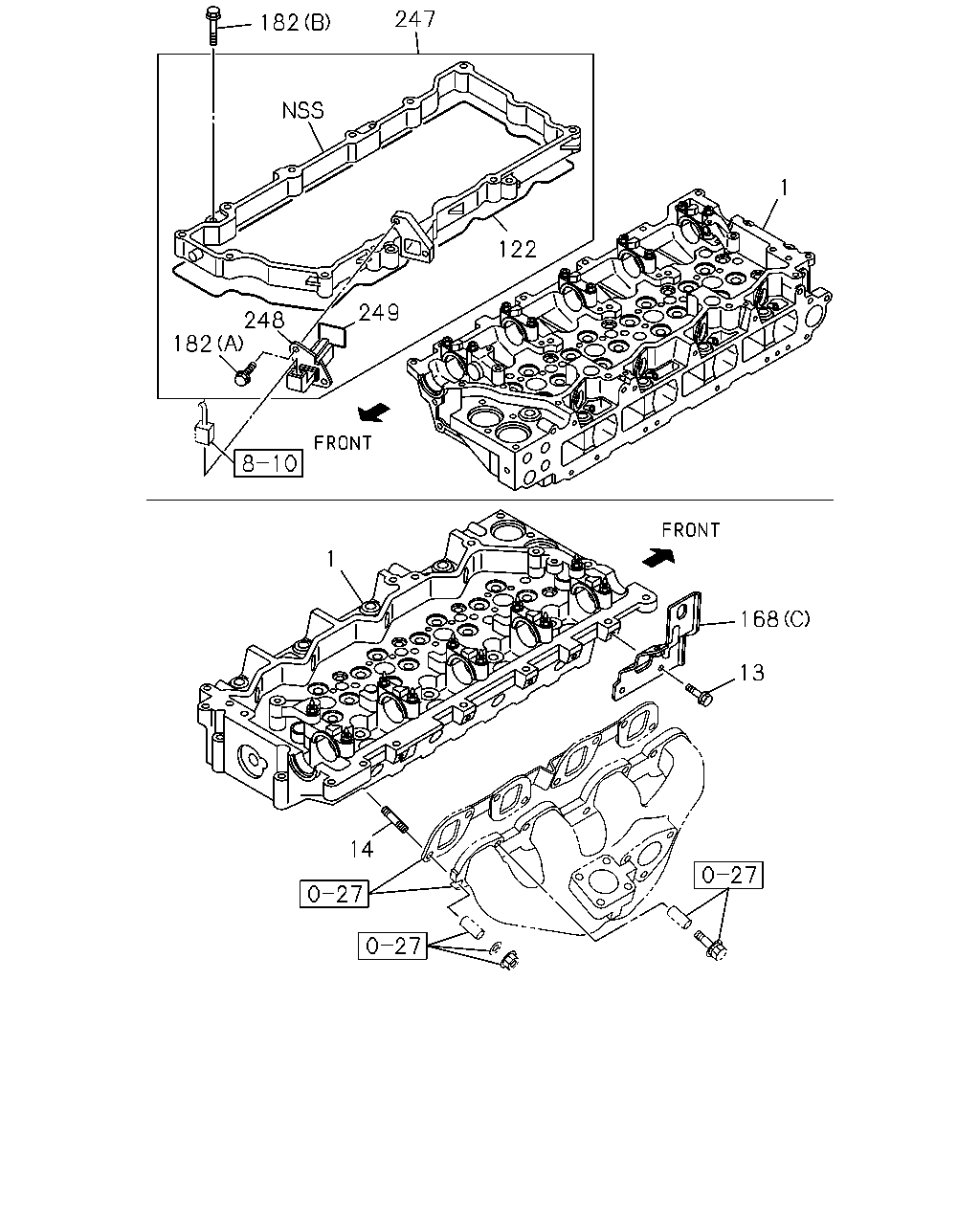

çizim 181453
247 182 1 122 249 248 182 1 168 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-620-0 01 1 1012- ●
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305 ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ●
13 BOLT; HANGER
M10X20 FLANGE 		0-28151-020-0 02 1 1012- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1012- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0809- ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1012- ●
168 HANGER; ENG,FRT
(C) 		8-97383-001-1 01 1 1012- ●
168 HANGER; ENG,FRT
(A) 		8-94394-071-2 01 1 0809- ●
168 HANGER; ENG,FRT
(B) 		8-94394-398-1 01 1 0809- ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
182 BOLT; CASE
(B) M8X45 FLANGE 		0-28050-845-0 04 1 1012- ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1012- ●
248 CONNECTOR 8-94390-858-1 01 1 1012- ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 01 1 1012- ●

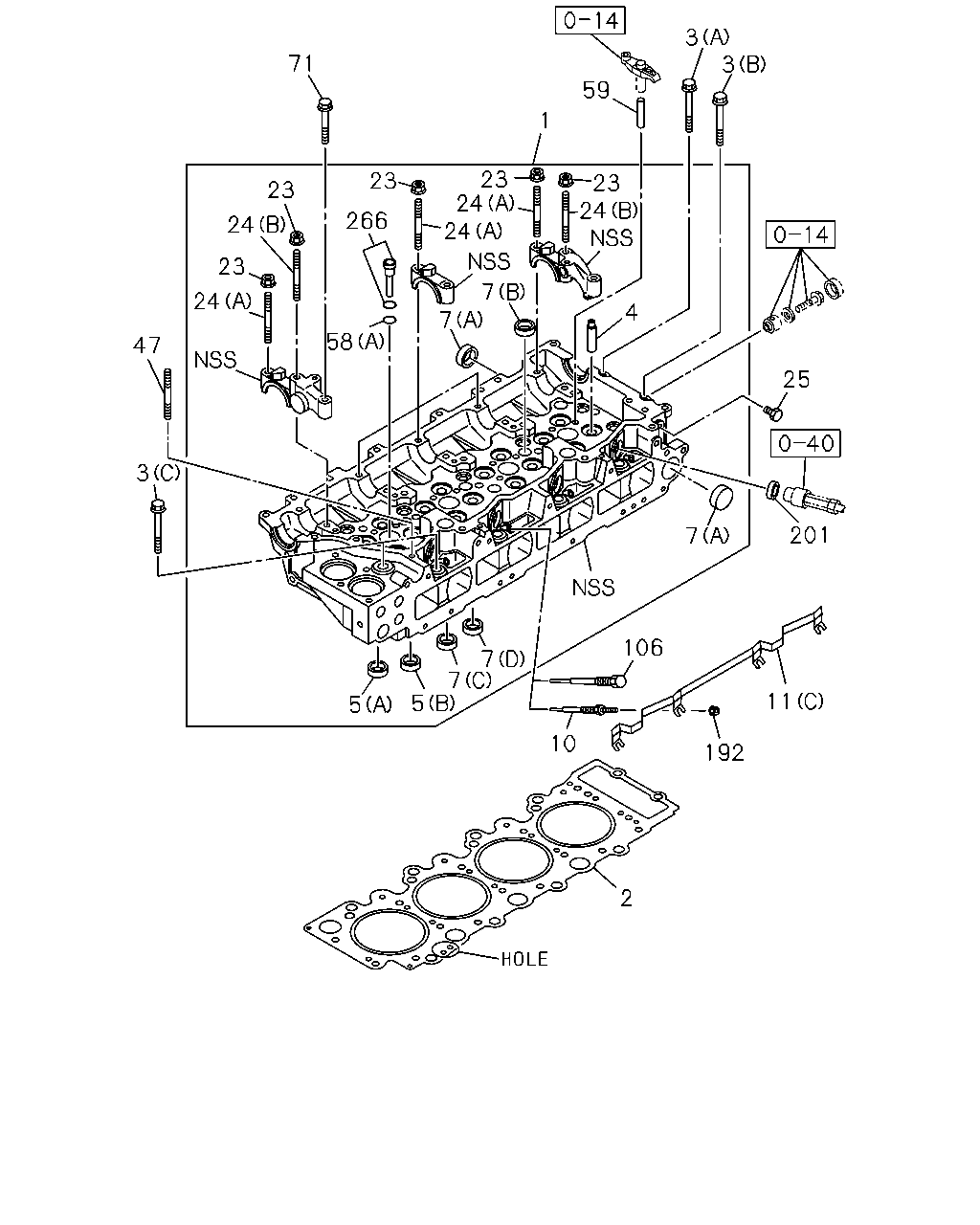

çizim 181471
71 23 24 23 24 47 3 58 266 23 23 1 59 3 3 4 23 24 25 7 201 11 192 2 10 106 7 7 5 5 7 7 24 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-620-0 01 1 1012- ●
1 HEAD ASM; CYL 8-97604-903-7 01 1 0809-1305 ●
1 HEAD ASM; CYL 8-98243-824-0 01 1 1306- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1012-1505 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97601-819-5 01 1 0809- ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1012- ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-94396-207-3 26 1 0809-0901 ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-97077-638-0 26 1 0902-1407 ●
3 BOLT; CYL HD TO BLOCK
(D) M14X115 W/FLANGE 		8-98260-005-0 26 1 1408- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1012- ●
4 GUIDE; VLV
L=57 		8-97376-719-2 24 1 0809- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1012- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1012- ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 12 1 0809- ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0809- ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1012- ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 1012- ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1012- ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 1012- ●
7 CUP; SEALING,CYL HEAD
(E) OD=51 		8-97096-826-0 01 1 0809- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012-1311 ●
10 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1312- ●
10 PLUG; GLOW
NGK 		8-94390-777-6 06 1 0809-1311 ●
10 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 06 1 1312- ●
11 CONNECTOR; GLOW PLUG
(C) 		8-97332-358-2 01 1 1012-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (C) 		8-97332-358-2 01 1 1312- ●
11 CONNECTOR; GLOW PLUG
(B) 		8-98040-648-0 01 1 0809-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (B) 		8-98040-648-0 01 1 1312- ●
11 CONNECTOR; GLOW PLUG
(A) 		8-98040-649-0 01 1 0809-1311 ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> (A) 		8-98040-649-0 01 1 1312- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1012- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 08 1 0809- ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1012- ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1012- ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 1012- ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 1012- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 04 1 1012- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0809- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0809-0906 ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 1012- ●
59 GUIDE; BRIDGE 8-97381-603-1 12 1 0809- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0809-1011 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1012- ● ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 04 1 1312- ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 06 1 1312- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1012-1311 ●
192 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 04 1 1312- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 06 1 0809-1311 ●
192 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 06 1 1312- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1012- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 06 1 0809- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 06 1 0907- ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
