1 |

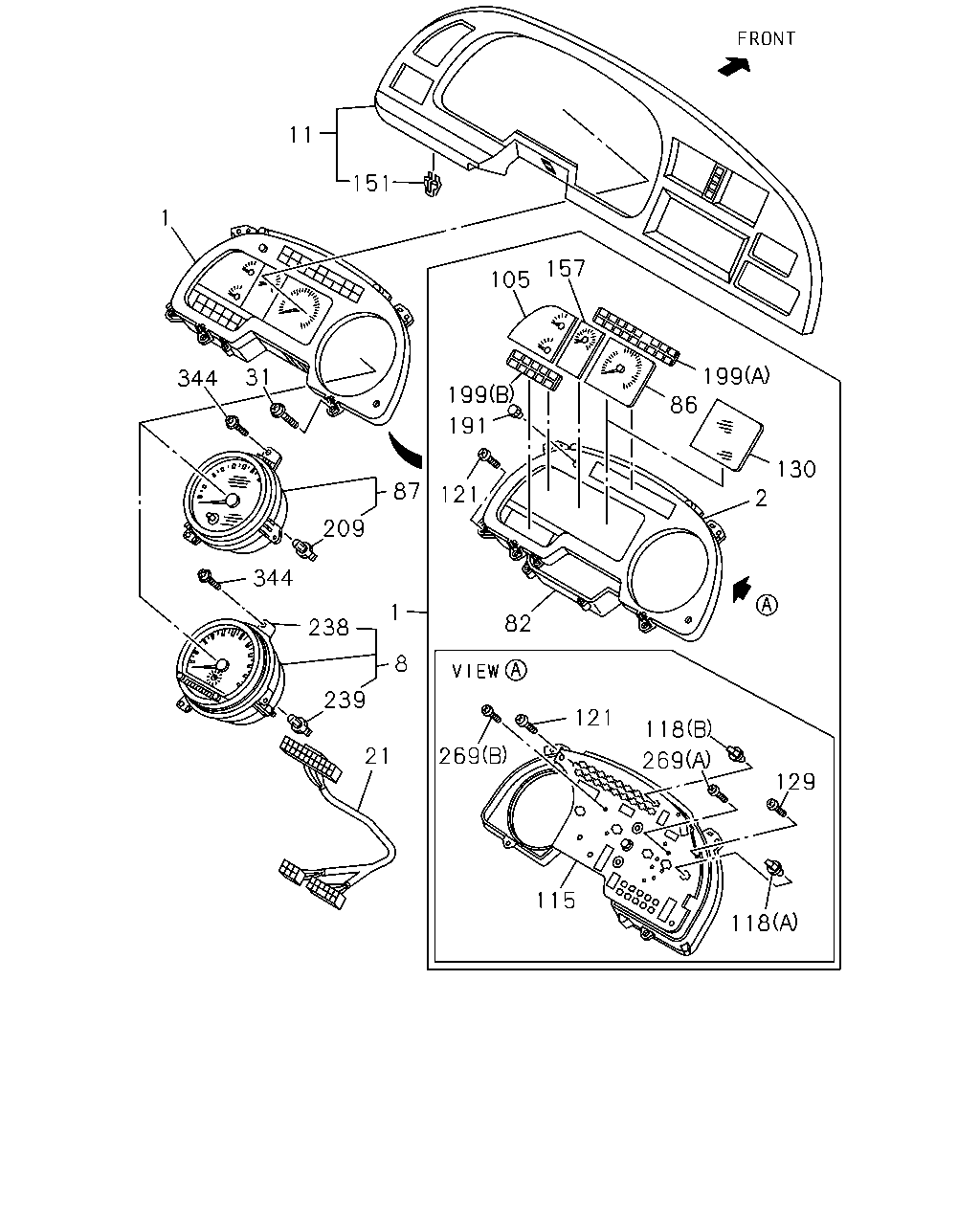

METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83116-116-0 |
01 |
1 |
0303- |
● |
|
| |
1 |
METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>
|
1-83114-748-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>
|
1-83114-973-0 |
01 |
1 |
9705-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
|
1-83114-973-0 |
01 |
1 |
0005- |
|
● |
| |
1 |
METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>,A/T<X9D>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83114-973-0 |
01 |
1 |
0005- |
● |
|
| |
1 |
METER COMPL; CLUSTER
EURO2 SPECIFICATION<THN>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-995-0 |
01 |
1 |
9710-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-995-0 |
01 |
1 |
0005-0607 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-995-0 |
01 |
1 |
0608- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HK1 TCC ENG(81L)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-995-0 |
01 |
1 |
0608- |
● |
|
| |
1 |
METER COMPL; CLUSTER
EURO2 SPECIFICATION<THN>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-112-0 |
01 |
1 |
9710-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-112-0 |
01 |
1 |
0005-0607 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-112-0 |
01 |
1 |
0608- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HK1 TCC ENG(81L)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-112-0 |
01 |
1 |
0608- |
● |
|
| |
1 |
METER COMPL; CLUSTER
6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-750-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-975-0 |
01 |
1 |
9705-9705 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-975-0 |
01 |
1 |
9706-9709 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83114-975-0 |
01 |
1 |
9710-9806 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD
ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83114-975-0 |
01 |
1 |
9807-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83114-975-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-751-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-976-0 |
01 |
1 |
9705-9705 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-976-0 |
01 |
1 |
9706-9709 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
|
1-83114-976-0 |
01 |
1 |
9710-9806 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD
ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
|
1-83114-976-0 |
01 |
1 |
9807-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
|
1-83114-976-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-753-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-978-0 |
01 |
1 |
9705-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
EXC. A/T<X9D>,INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-978-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-754-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-979-0 |
01 |
1 |
9705-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. A/T<X9D>
|
1-83114-979-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-182-0 |
01 |
1 |
9808-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
EURO2 SPECIFICATION<THN>
EXC. A/T<X9D>,INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-182-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-755-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-980-0 |
01 |
1 |
9705-9807 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83114-980-0 |
01 |
1 |
9808-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,A/T<X9D>,INDICATOR
TAIL & STOP LAMP<YD6>
|
1-83114-980-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-756-1 |
01 |
1 |
9601-9704 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83114-981-0 |
01 |
1 |
9705-9807 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
|
1-83114-981-0 |
01 |
1 |
9808-0004 |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>,A/T<X9D>
|
1-83114-981-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
|
1-83115-609-0 |
01 |
1 |
0005- |
● |
|
| |
1 |
METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-83114-739-1 |
01 |
1 |
9601-9704 |
● |
|
| |
1 |
METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-83114-964-0 |
01 |
1 |
9705-0004 |
● |
|
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EURO2 SPECIFICATION<THN>
EXC. A/T<X9D>
|
1-83114-996-0 |
01 |
1 |
0005- |
● |
● |
| |
1 |
METER COMPL; CLUSTER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-610-0 |
01 |
1 |
0005- |
● |
|
| |
1 |
METER COMPL; CLUSTER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83115-191-0 |
01 |
1 |
0005- |
● |
|
| |
2 |
PANEL; CLUSTER
|
1-83119-499-0 |
01 |
1 |
9601- |
● |
● |
| |
8 |
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-663-1 |
01 |
1 |
9601-9706 |
● |
● |
| |
8 |
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-807-0 |
01 |
1 |
9707-0301 |
● |
● |
| |
8 |
TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-857-0 |
01 |
1 |
0302- |
● |
● |
| |
11 |
CLUSTER ASM; METER
|
1-72418-022-7 |
01 |
1 |
9601- |
● |
● |
| |
21 |
HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-82624-665-1 |
01 |
1 |
9601- |
● |
● |
| |
31 |
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
03 |
1 |
9601-0604 |
● |
● |
| |
31 |
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
03 |
1 |
0605- |
● |
● |
| |
82 |
CASE ASM; CLUSTER METER
|
1-83119-432-0 |
01 |
1 |
9601- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
EURO2 SPECIFICATION<THN>
|
1-83120-836-0 |
01 |
1 |
9710-0004 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
|
1-83120-836-0 |
01 |
1 |
0005-0607 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
|
1-83120-836-0 |
01 |
1 |
0608- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HK1 TCC ENG(81L)
TACHOMETER<UD7>
|
1-83120-836-0 |
01 |
1 |
0608- |
● |
|
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
|
1-83120-667-0 |
01 |
1 |
9601-9704 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
|
1-83120-566-0 |
01 |
1 |
9705-9709 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>
|
1-83120-566-0 |
01 |
1 |
9710-9803 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
|
1-83120-566-0 |
01 |
1 |
9804-9806 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD
ENG(65L)
TACHOMETER<UD7>
|
1-83120-566-0 |
01 |
1 |
9807-0004 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>
|
1-83120-566-0 |
01 |
1 |
0005- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
|
1-83120-673-0 |
01 |
1 |
9601-9704 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
|
1-83120-835-0 |
01 |
1 |
9705-0004 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
EXC. A/T<X9D>
|
1-83120-835-0 |
01 |
1 |
0005- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83120-835-0 |
01 |
1 |
0005- |
● |
|
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83120-701-0 |
01 |
1 |
9808-0004 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
EURO2 SPECIFICATION<THN>
EXC. A/T<X9D>
|
1-83120-701-0 |
01 |
1 |
0005-0302 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
A/T<X9D>
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83120-701-0 |
01 |
1 |
0005-0302 |
● |
|
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
|
1-83120-701-0 |
01 |
1 |
0303- |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
|
1-83120-671-0 |
01 |
1 |
9601-9704 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
|
1-83120-833-0 |
01 |
1 |
9705-0004 |
● |
● |
| |
86 |
TACHOMETER; CLUSTER METER
6SD1 TCN ENG(31L)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,A/T<X9D>
|
1-83120-833-0 |
01 |
1 |
0005- |
● |
● |
| |
87 |
SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83120-490-1 |
01 |
1 |
9601- |
● |
● |
| |
105 |
GAUGE; THERMO & FUEL,CLUSTER METER
|
1-83180-209-0 |
01 |
1 |
9601-9704 |
● |
● |
| |
105 |
GAUGE; THERMO & FUEL,CLUSTER METER
|
1-83180-274-0 |
01 |
1 |
9705- |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-308-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. A/T<X9D>
|
1-83189-308-0 |
01 |
1 |
0005- |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-320-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7>
EXC. A/T<X9D>,INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-320-0 |
01 |
1 |
0005- |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>
|
1-83189-307-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
|
1-83189-307-0 |
01 |
1 |
0005- |
|
● |
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>,A/T<X9D>,INDICATOR TAIL &
STOP LAMP<YD6>
|
1-83189-307-0 |
01 |
1 |
0005- |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-83189-304-0 |
01 |
1 |
9601-0004 |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
|
1-83189-429-0 |
01 |
1 |
0005- |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-430-0 |
01 |
1 |
0005-0302 |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-430-0 |
01 |
1 |
0303- |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-430-0 |
01 |
1 |
0303- |
● |
|
| |
115 |
CIRCUIT; PRINTED,CLUSTER METER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
INDICATOR TAIL & STOP LAMP<YD6>
|
1-83189-354-0 |
01 |
1 |
0005- |
● |
|
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9601-9709 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9710-9807 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9710-9807 |
● |
● |
| |
118 |
BULB; CLUSTER METER
6SD1 STD ENG(37L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
DUAL AIR GAUGE<UG2>
INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
6SD1 TCN ENG(31L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
DUAL AIR GAUGE<UG2>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
6HE1 TC ENG(57L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
DUAL AIR GAUGE<UG2>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HE1 TCN
ENG(58L),6HH1 STD ENG(65L)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
DUAL AIR GAUGE<UG2>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. EURO2 SPECIFICATION<THN>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
EXC. A/T<X9D>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
15 |
1 |
0005- |
● |
● |
| |
118 |
BULB; CLUSTER METER
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
15 |
1 |
0005- |
● |
|
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9601-9709 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9601-9709 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9710-9806 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9710-9806 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>,INDICATOR TAIL &
STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9807-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
9807-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
0005- |
● |
● |
| |
118 |
BULB; CLUSTER METER
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
14 |
1 |
0005- |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9601-9806 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9807-9807 |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9807-9807 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
9808-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
0005-0604 |
● |
● |
| |
118 |
BULB; CLUSTER METER
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
0005-0604 |
● |
● |
| |
118 |
BULB; CLUSTER METER
TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
0605- |
● |
● |
| |
118 |
BULB; CLUSTER METER
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
04 |
1 |
0605- |
● |
|
| |
118 |
BULB; CLUSTER METER
EXC. TACHOMETER<UD7>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
03 |
1 |
9601-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
03 |
1 |
0005- |
|
● |
| |
118 |
BULB; CLUSTER METER
EXC. TACHOMETER<UD7>,A/T<X9D>,INDICATOR TAIL &
STOP LAMP<YD6>
(A)
24V 3W GREEN SOCKET
|
1-82194-061-0 |
03 |
1 |
0005- |
● |
|
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
15 |
1 |
9601-9709 |
● |
|
| |
118 |
BULB; CLUSTER METER
EURO2 SPECIFICATION<THN>
INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
15 |
1 |
9710-0004 |
● |
● |
| |
118 |
BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
15 |
1 |
9710-0004 |
● |
|
| |
118 |
BULB; CLUSTER METER
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
13 |
1 |
0005- |
● |
● |
| |
118 |
BULB; CLUSTER METER
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
INDICATOR TAIL & STOP LAMP<YD6>
(B)
24V 1.8W BROWN SOCKET
|
1-82194-062-0 |
16 |
1 |
0005- |
● |
|
| |
121 |
SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING
|
1-83119-442-0 |
08 |
1 |
9601- |
● |
● |
| |
129 |
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
|
1-83119-052-0 |
10 |
1 |
9601- |
● |
● |
| |
130 |
COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7>
|
1-83119-523-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
130 |
COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
|
1-83119-523-0 |
01 |
1 |
0005- |
● |
● |
| |
151 |
CLIP; METER CLUSTER
|
8-97853-939-4 |
10 |
1 |
9601-9812 |
● |
● |
| |
151 |
CLIP; METER CLUSTER
|
8-97217-066-0 |
10 |
1 |
9901- |
● |
● |
| |
157 |
METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-83150-187-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
157 |
METER; AIR PRESSURE,CLUSTER METER
|
1-83150-187-0 |
01 |
1 |
0005- |
● |
● |
| |
157 |
METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-83150-178-0 |
01 |
1 |
9601-0004 |
● |
|
| |
191 |
KNOB; BULB CHECK
|
1-83119-500-0 |
01 |
1 |
9601- |
● |
● |
| |
199 |
LENS; WARNING LAMP
(B)
|
1-83119-435-0 |
01 |
1 |
9601- |
● |
● |
| |
199 |
LENS; WARNING LAMP
(A)
|
1-83119-526-0 |
01 |
1 |
9601-0004 |
● |
● |
| |
199 |
LENS; WARNING LAMP
(A)
|
1-83119-526-0 |
01 |
1 |
0005-0607 |
|
● |
| |
199 |
LENS; WARNING LAMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
(A)
|
1-83119-526-0 |
01 |
1 |
0005-0607 |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
TACHOMETER<UD7>
EXC. A/T<X9D>
(A)
|
1-83119-526-0 |
01 |
1 |
0005-0607 |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. TACHOMETER<UD7>,A/T<X9D>,INDICATOR TAIL &
STOP LAMP<YD6>
(A)
|
1-83119-526-0 |
01 |
1 |
0005-0607 |
● |
|
| |
199 |
LENS; WARNING LAMP
(A)
|
1-83119-526-0 |
01 |
1 |
0608- |
|
● |
| |
199 |
LENS; WARNING LAMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L)
(A)
|
1-83119-526-0 |
01 |
1 |
0608- |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HK1 TCC
ENG(81L)
TACHOMETER<UD7>
EXC. A/T<X9D>
(A)
|
1-83119-526-0 |
01 |
1 |
0608- |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L),6SD1 STD ENG(37L)
EXC. TACHOMETER<UD7>,A/T<X9D>,INDICATOR TAIL &
STOP LAMP<YD6>
(A)
|
1-83119-526-0 |
01 |
1 |
0608- |
● |
|
| |
199 |
LENS; WARNING LAMP
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(A)
|
1-83119-620-0 |
01 |
1 |
0005-0302 |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(A)
|
1-83119-620-0 |
01 |
1 |
0005-0302 |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
INDICATOR TAIL & STOP LAMP<YD6>
(A)
|
1-83119-620-0 |
01 |
1 |
0005-0302 |
● |
|
| |
199 |
LENS; WARNING LAMP
A/T<X9D>
EXC. TACHOMETER<UD7>,INDICATOR TAIL & STOP
LAMP<YD6>
(A)
|
1-83119-620-0 |
01 |
1 |
0303- |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 STD ENG(37L)
TACHOMETER<UD7>
A/T<X9D>
EXC. INDICATOR TAIL & STOP LAMP<YD6>
(A)
|
1-83119-620-0 |
01 |
1 |
0303- |
● |
|
| |
199 |
LENS; WARNING LAMP
6SD1 TCN ENG(31L)
EURO2 SPECIFICATION<THN>
TACHOMETER<UD7>
A/T<X9D>
(A)
|
1-83119-620-0 |
01 |
1 |
0303- |
● |
|
| |
209 |
BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 3W GREEN SOCKET
|
1-82194-061-0 |
02 |
1 |
9601- |
● |
● |
| |
238 |
PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
|
1-83129-311-0 |
01 |
1 |
9601- |
● |
● |
| |
239 |
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 1.8W
|
1-82194-076-0 |
03 |
1 |
9601-0301 |
● |
● |
| |
239 |
BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7>
24V 1.4W
|
5-82194-034-0 |
03 |
1 |
0302- |
● |
● |
| |
269 |
SCREW; METER CLUSTER
(A)
M3 TAPPING
|
1-83119-441-0 |
06 |
1 |
9601- |
● |
● |
| |
269 |
SCREW; METER CLUSTER
TACHOMETER<UD7>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9601-9806 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9807-9807 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
TACHOMETER<UD7>
EXC. EURO2 SPECIFICATION<THN>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9807-9807 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<THN>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9808-0004 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
TACHOMETER<UD7>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
9808-0004 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
EURO2 SPECIFICATION<THN>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
0005-0302 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
TACHOMETER<UD7>
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
0005-0302 |
● |
● |
| |
269 |
SCREW; METER CLUSTER
(B)
M3 TAPPING
|
1-83119-439-0 |
03 |
1 |
0303- |
● |
● |
| |
344 |
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
03 |
1 |
9601-0604 |
● |
● |
| |
344 |
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
03 |
1 |
0605- |
● |
● |
