◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#3871) — 26 parça

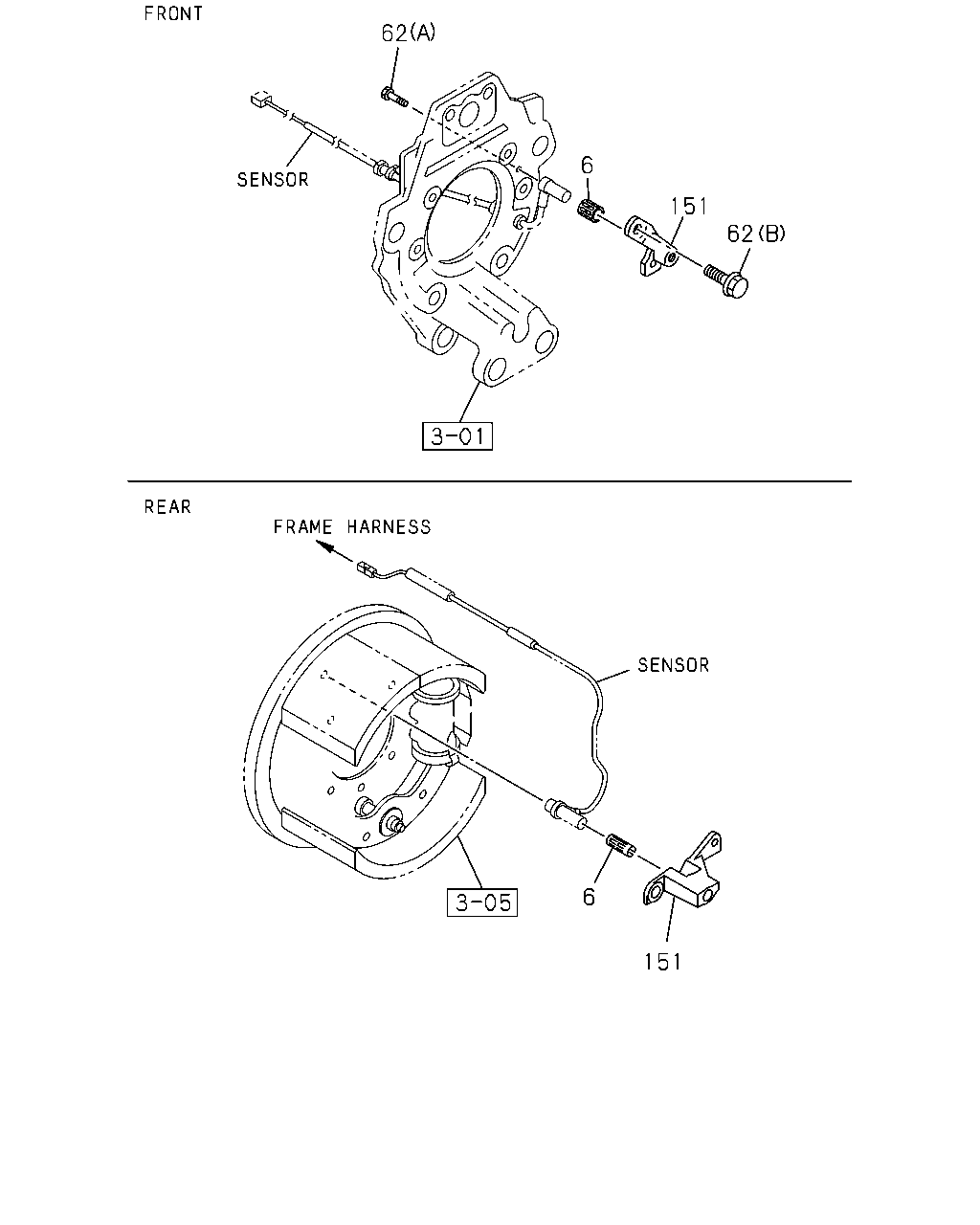

çizim 7768
62 6 151 62 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FINAL GEAR 39/7 17.5" HYPOID(W3Z) REAR AXLE R130<B5V> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-83129-260-1 02 1 0610-0904 ● ●
6 HOLDER; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-83129-260-1 02 1 0610-0904 ● ●
6 HOLDER; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-83129-260-1 02 1 0905- ● ●
6 HOLDER; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FINAL GEAR 43/7 17.5" HYPOID(W3Y),FINAL GEAR 39/7 17.5" HYPOID(W3Z) REAR AXLE R130<B5V> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-83129-260-1 02 1 0905- ● ●
62 BOLT; SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (A) M12X40 		0-20851-240-0 02 1 0610- ● ●
62 BOLT; SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (B) M16X74 FLANGE 		1-09044-057-2 02 1 0610- ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT 		1-83129-421-0 01 1 0610- ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FRONT 		1-83129-422-0 01 1 0610- ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR 		1-83129-403-0 01 1 0610-1504 ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR 		8-98299-396-0 01 1 1505- ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR 		1-83129-404-0 01 1 0610-1504 ● ●
151 BRACKET; SPD SENSOR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> REAR 		8-98299-397-0 01 1 1505- ● ●

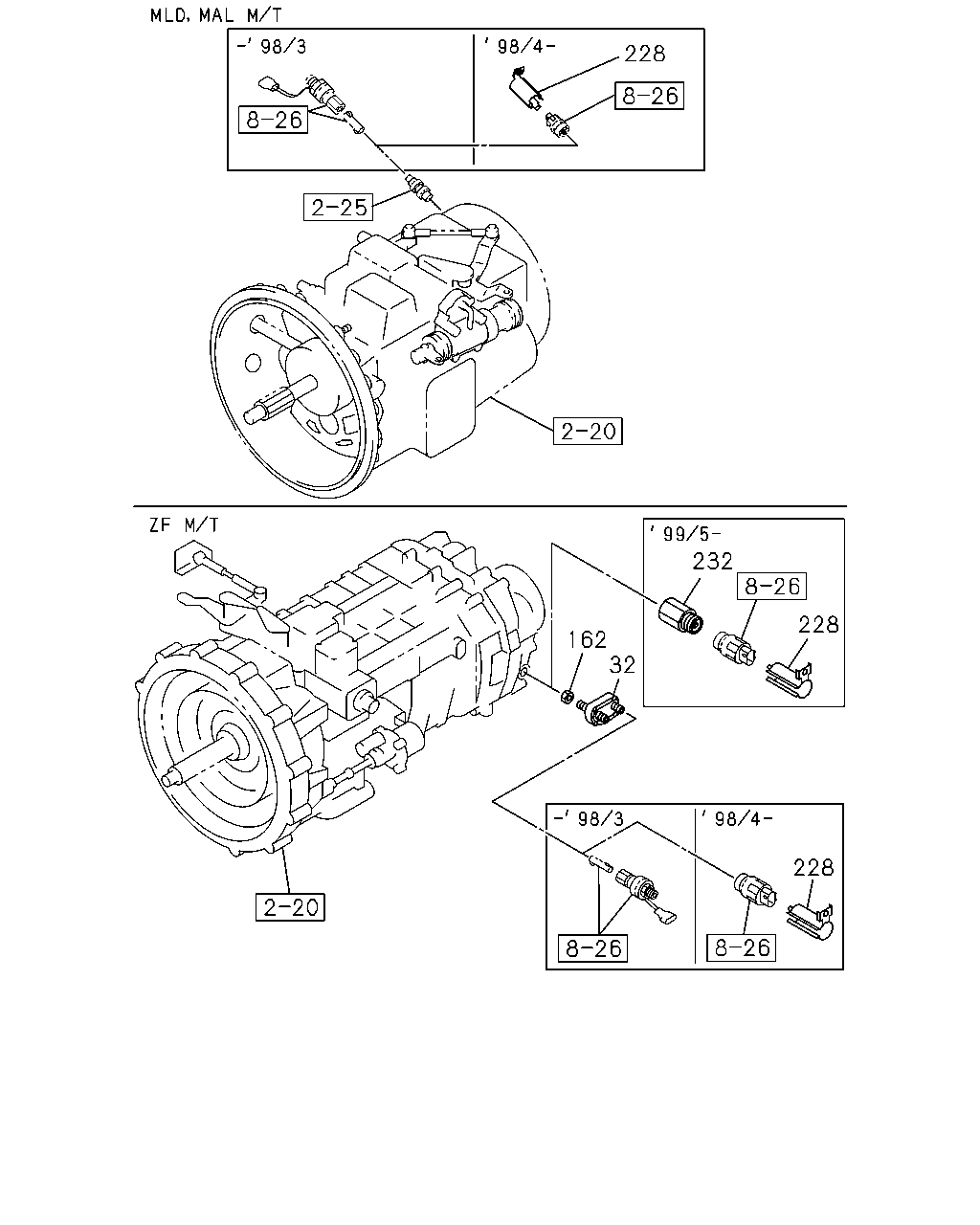

çizim 40573
228 232 228 162 32 228
BalonParca AdiParca NoAdetTipApplied Date A B
32 BOX; GEAR,FLEX SHAFT
ZF 9S109 OD M/T(Y2L) 		1-83126-262-0 01 1 9601-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
ZF 9S109 OD M/T(Y2L) 		1-83126-409-0 01 1 9703-9904 ● ●
162 NUT; GEAR BOX
ZF 9S109 OD M/T(Y2L) M22 		9-83111-951-0 01 1 9601-9809 ● ●
162 NUT; GEAR BOX
ZF 9S109 OD M/T(Y2L) M22 		1-80249-005-0 01 1 9810-9904 ● ●
228 PROTECTOR; SENSOR
MLD6Q M/T(X5J),MLD7Q M/T(X5K),MLD7R M/T(X5L), MLD6AM/T(X5N),MAL6S M/T(Y1V),ZF 9S109 OD M/T(Y2L) 		8-97168-308-0 01 1 9804-0403 ● ●
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 0404-0808 ●
228 PROTECTOR; SENSOR
EXC. A/T<X9D> 		8-97168-308-0 01 1 0404-0808 ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 0809-1102 ●
228 PROTECTOR; SENSOR
EXC. A/T<X9D> 		8-98119-901-0 01 1 0809-1102 ●
228 PROTECTOR; SENSOR
ZF 9S109 OD M/T(Y2L) 		8-98119-901-0 01 1 1103- ● ●
228 PROTECTOR; SENSOR
ISUZU M/T<X9A> 		8-98119-901-0 01 1 1103- ● ●
232 ADAPTER; SPEED SENSOR
ZF 9S109 OD M/T(Y2L) 		1-80249-006-0 01 1 9905- ● ●

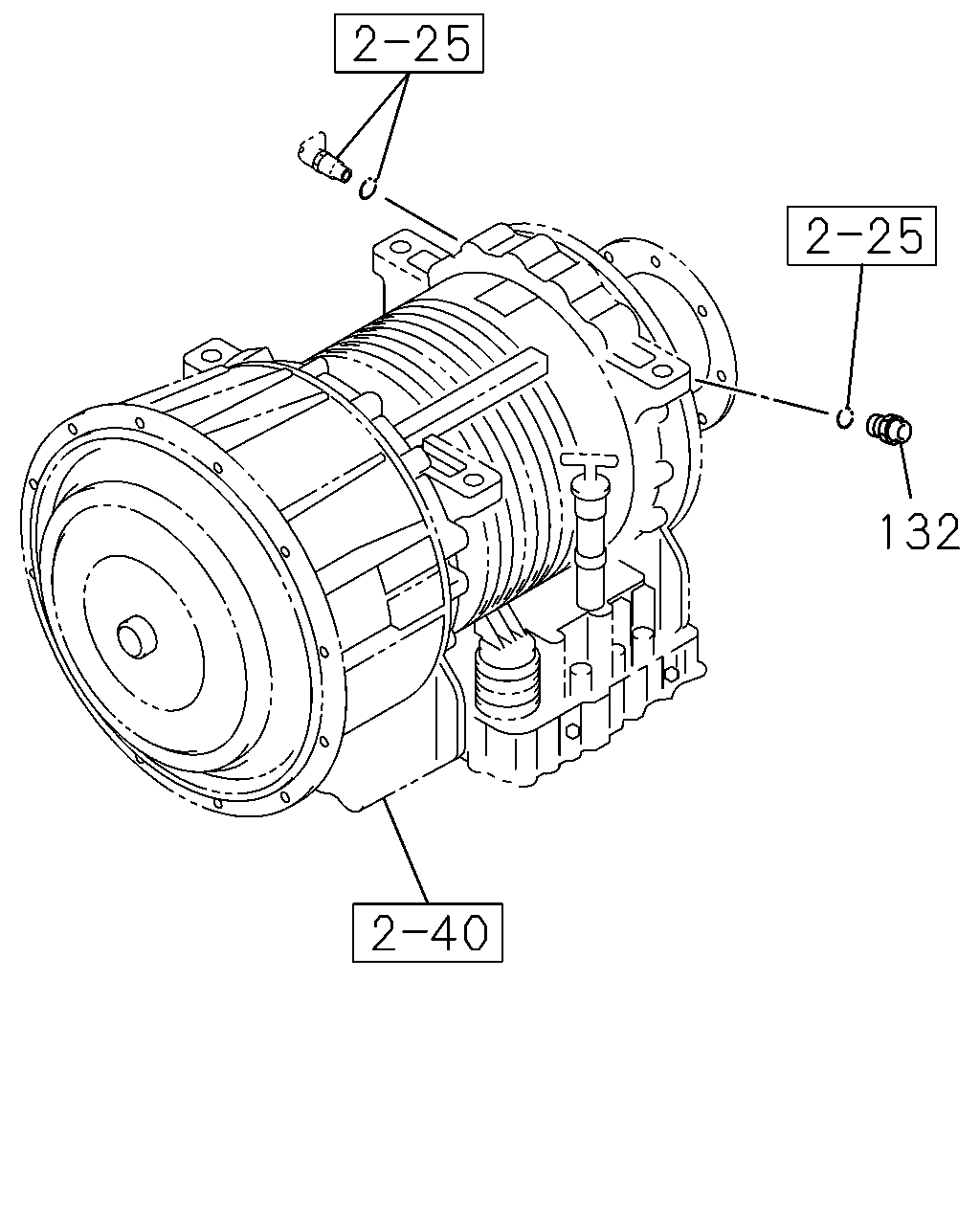

çizim 40628
132
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-34119-069-0 01 1 0005-0112 ●
132 SENSOR; SPD,SPEEDOMETER
6SD1 TCN ENG(31L) ALLISON MD3060P A/T(Y4G) 		1-80240-013-0 01 1 0201- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
