8-21 — METER ASM (#38707) — 40 parça

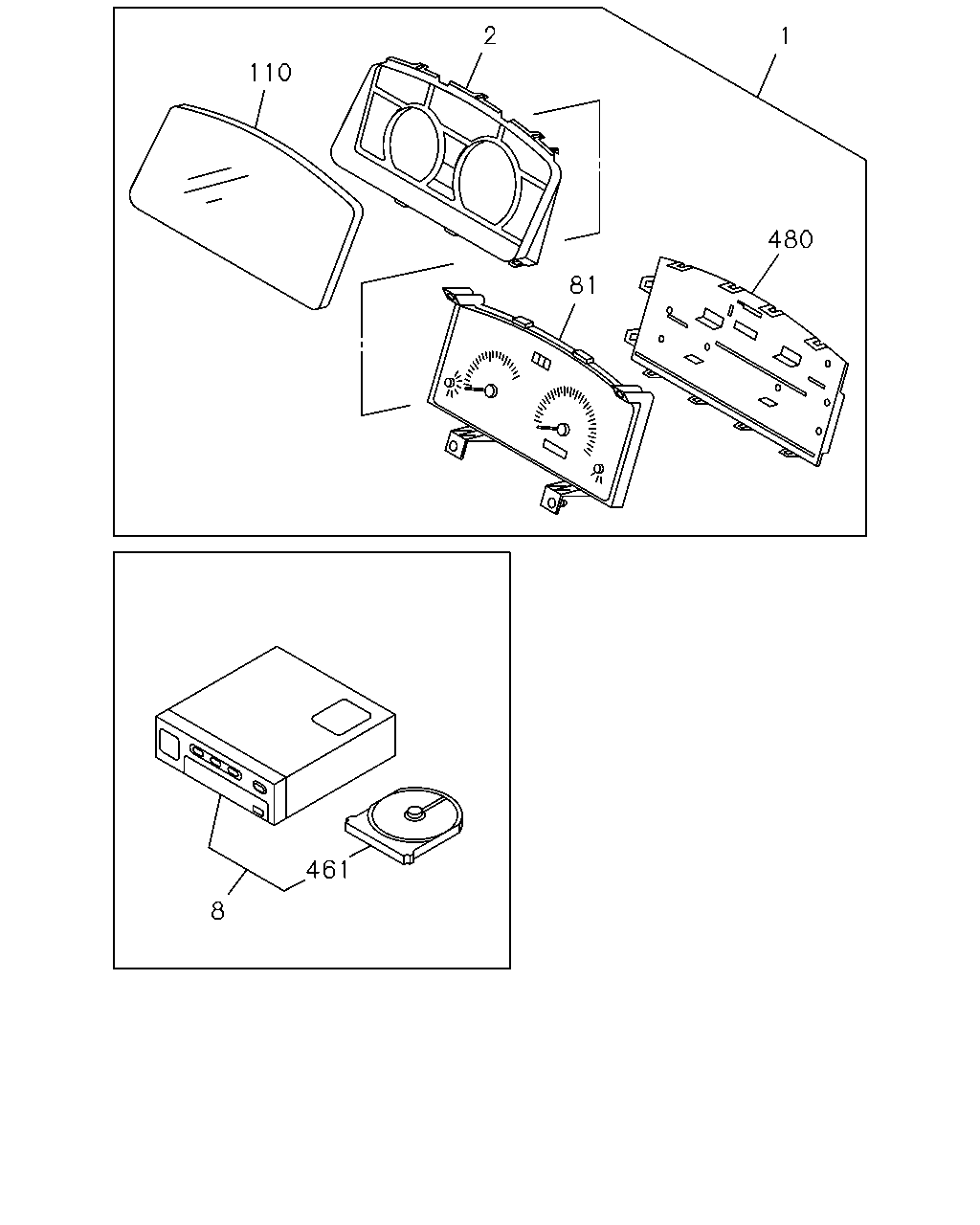

2 1 110 480 81 461 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	8-98195-720-0	01	1	1510-
1	METER COMPL; CLUSTER BRAKE REGULATION ECE VAR.2(NBE) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98064-926-6	01	1	1309-
1	METER COMPL; CLUSTER SAUDI ARABIA EQUIPMENT(GH3)	8-98064-905-5	01	1	0809-
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98064-903-6	01	1	0809-1308
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE)	8-98064-903-6	01	1	1309-1509
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE),VIN MODEL YEAR 2015<VZF>	8-98064-903-6	01	1	1510-
2	PANEL; CLUSTER	8-98054-432-0	01	1	0809-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0809-
81	METER SUB ASM ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	8-98195-727-0	01	1	1510-
81	METER SUB ASM BRAKE REGULATION ECE VAR.2(NBE) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98079-674-0	01	1	1309-
81	METER SUB ASM SAUDI ARABIA EQUIPMENT(GH3)	8-98079-675-0	01	1	0809-
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98079-673-0	01	1	0809-1308
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE)	8-98079-673-0	01	1	1309-1509
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE),VIN MODEL YEAR 2015<VZF>	8-98079-673-0	01	1	1510-
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0809-
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0809-
480	COVER; METER BLACK	8-98054-433-0	01	1	0809-

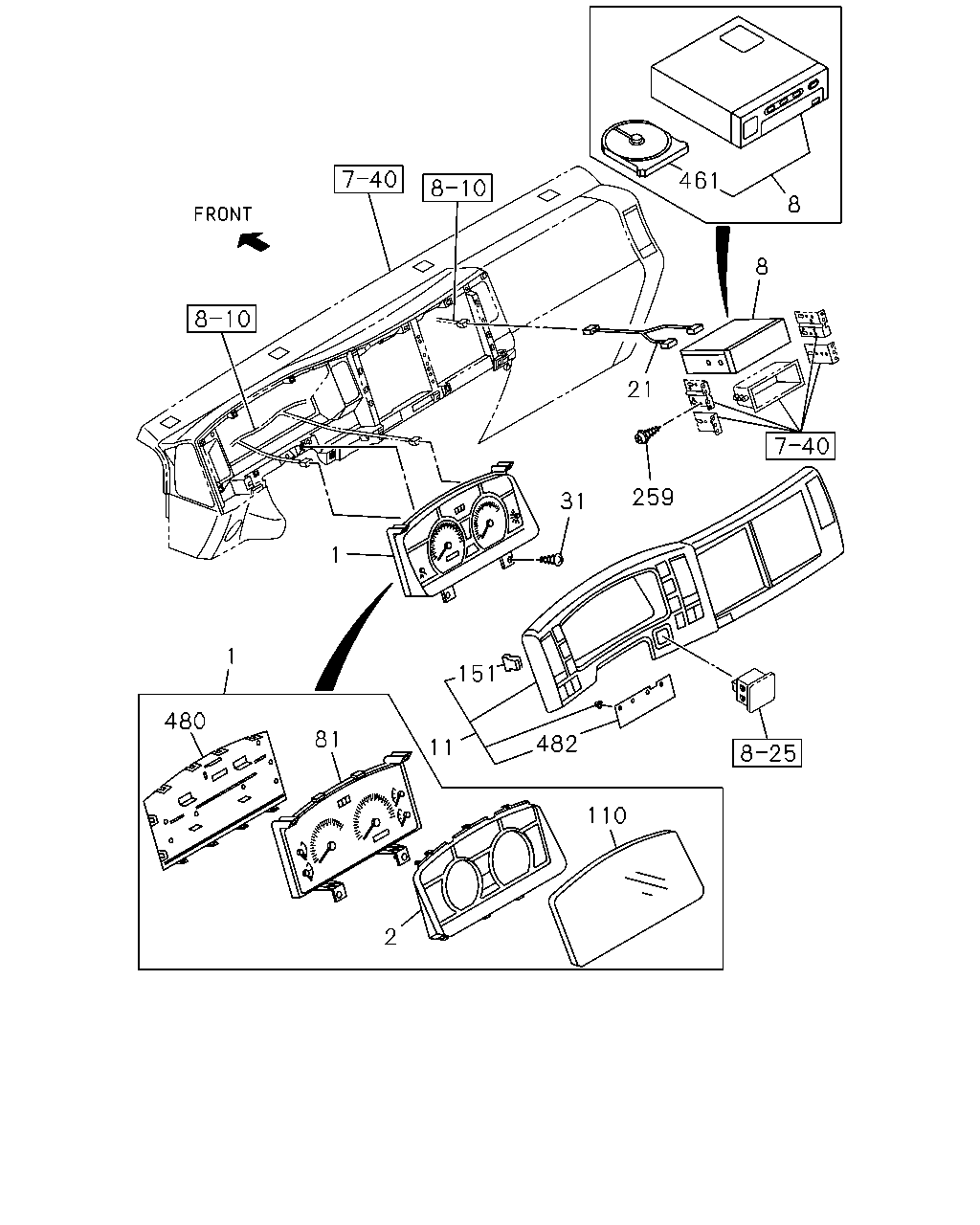

461 8 8 21 259 31 1 1 151 480 81 482 11 110 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	8-98195-720-0	01	1	1510-
1	METER COMPL; CLUSTER BRAKE REGULATION ECE VAR.2(NBE) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98064-926-6	01	1	1309-
1	METER COMPL; CLUSTER SAUDI ARABIA EQUIPMENT(GH3)	8-98064-905-5	01	1	0809-
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98064-903-6	01	1	0809-1308
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE)	8-98064-903-6	01	1	1309-1509
1	METER COMPL; CLUSTER EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE),VIN MODEL YEAR 2015<VZF>	8-98064-903-6	01	1	1510-
2	PANEL; CLUSTER	8-98054-432-0	01	1	0809-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7>	8-97387-082-2	01	1	0809-
11	CLUSTER ASM; METER DARK GRAY	8-97406-005-6	01	1	0809-
21	HARNESS; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	8-98074-077-0	01	1	0809-
31	SCREW; METER,INST PANEL M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0809-
81	METER SUB ASM ECUADOR EQUIPMENT(E46) BRAKE REGULATION ECE(TDV) VIN MODEL YEAR 2015<VZF>	8-98195-727-0	01	1	1510-
81	METER SUB ASM BRAKE REGULATION ECE VAR.2(NBE) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98079-674-0	01	1	1309-
81	METER SUB ASM SAUDI ARABIA EQUIPMENT(GH3)	8-98079-675-0	01	1	0809-
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98079-673-0	01	1	0809-1308
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE)	8-98079-673-0	01	1	1309-1509
81	METER SUB ASM EXC. SAUDI ARABIA EQUIPMENT(GH3),BRAKE REGULATION ECE VAR.2(NBE),VIN MODEL YEAR 2015<VZF>	8-98079-673-0	01	1	1510-
110	GLASS; CLUSTER METER	8-98054-431-0	01	1	0809-
151	CLIP; METER CLUSTER	8-98021-271-0	13	1	0809-
259	SCREW; TACHOGRAPH TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	0809-
461	CARTRIDGE ASM; TACHOGRAPH TACHOGRAPH 140KM/H<WC7>	1-83129-433-0	01	1	0809-
480	COVER; METER BLACK	8-98054-433-0	01	1	0809-
482	SEAL; CLUSTER METER	8-98116-843-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
