Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#38706) — 573 parça

139 127 524 294 219 515 219 525 294 184 524 84 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ANTI LOCK BRAKE(JE5) ID=14.2	0-91510-814-0	02	1	1510-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-

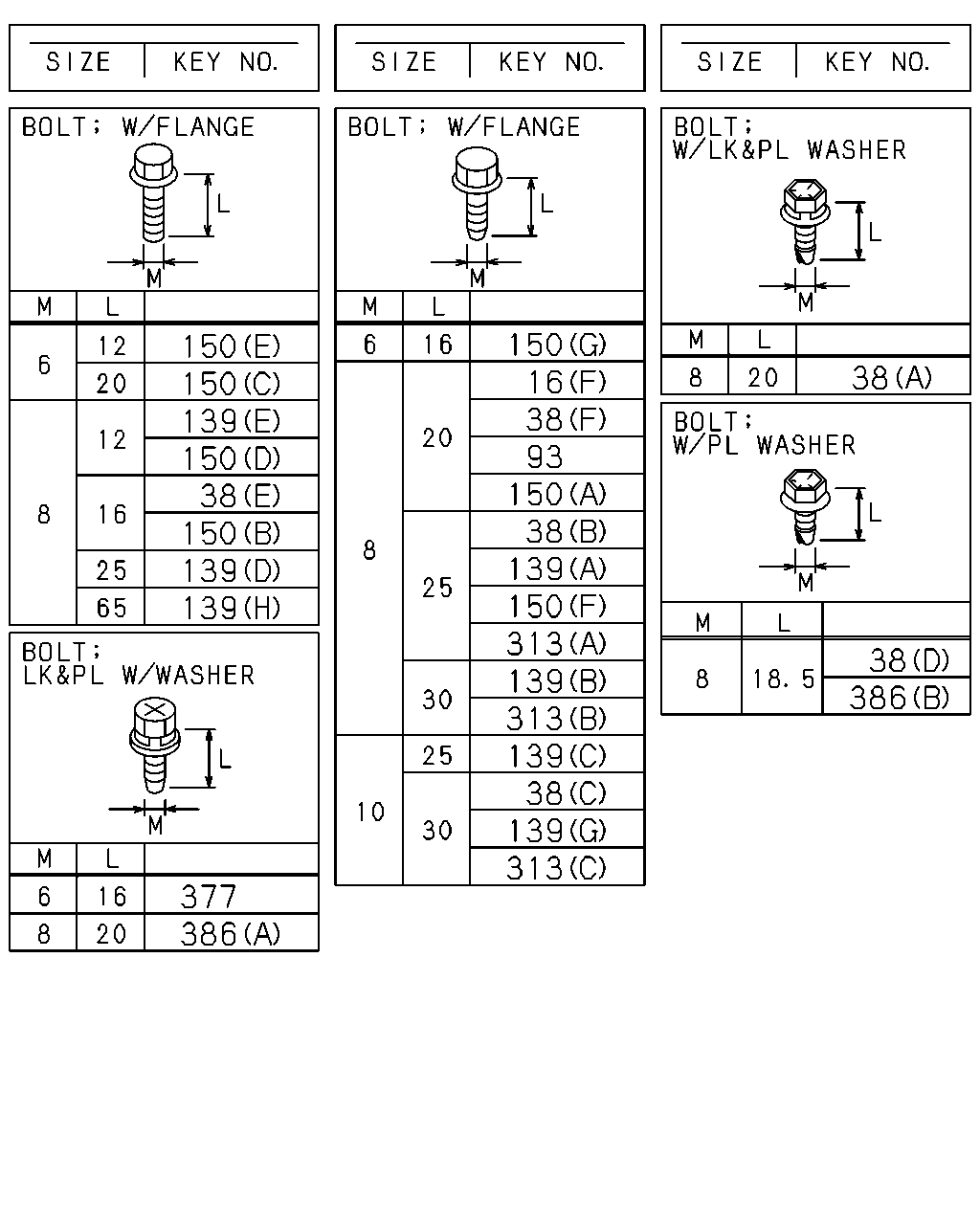

139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1510-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0809-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	0809-1011
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1012-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
219	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0809-
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0809-1509
219	NUT (B) M8 FLANGE	0-91180-108-0	01	1	1510-
219	NUT ANTI LOCK BRAKE(JE5) (B) M8 FLANGE	0-91180-108-0	01	1	1510-
219	NUT MLD6S M/T(X7W) (A) M10 FLANGE	0-91180-210-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-1509
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0902-1509
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	04	1	1510-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0809-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-1011
294	NUT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0809-1010
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0809-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0809-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	0809-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0809-0901
525	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0902-0905
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0906-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-0901

16 483 16 483 48 16 483 171 483 49 483 16 81 16 16 16 16 306 48 213 48 48 16 483 171 483 483 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

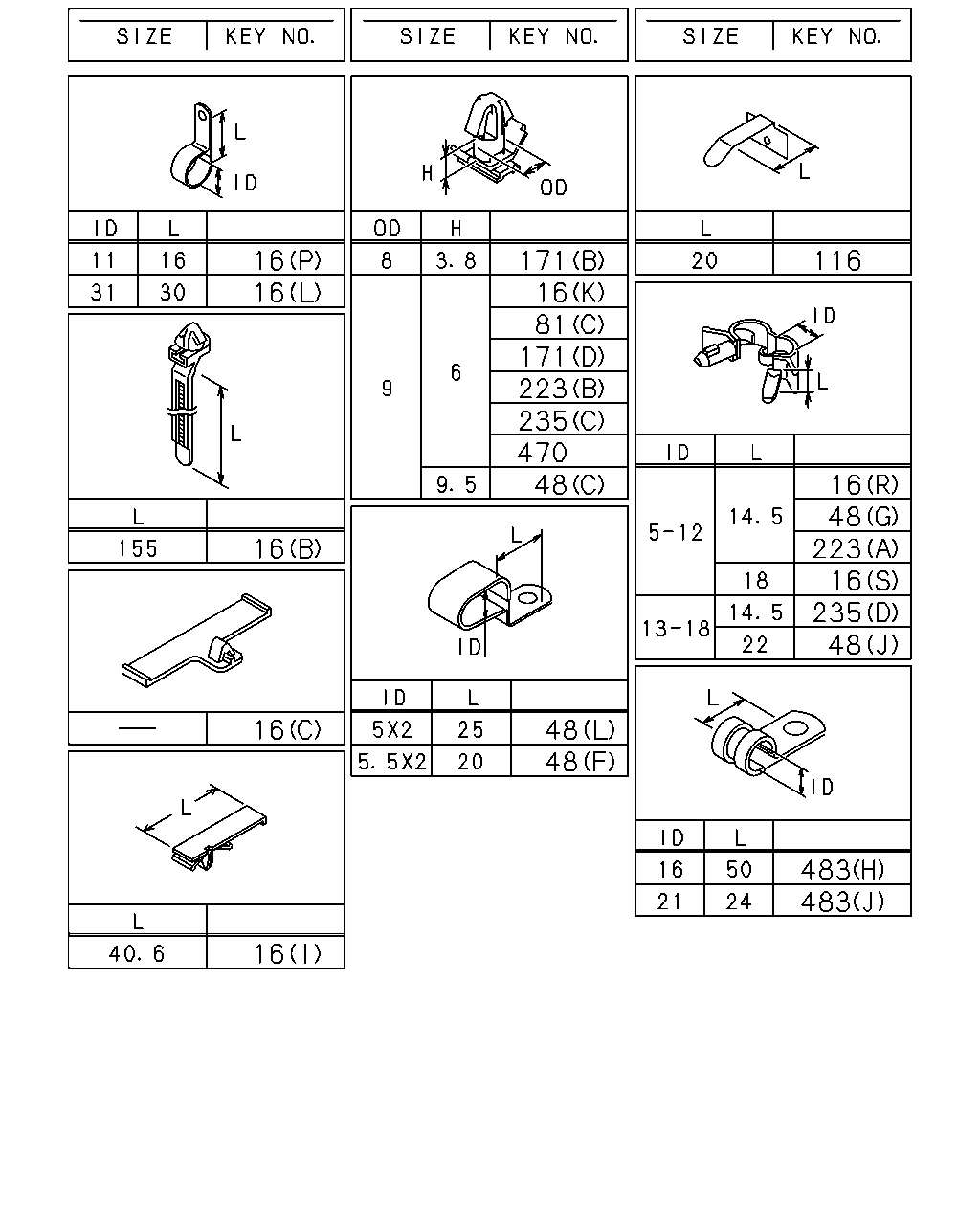

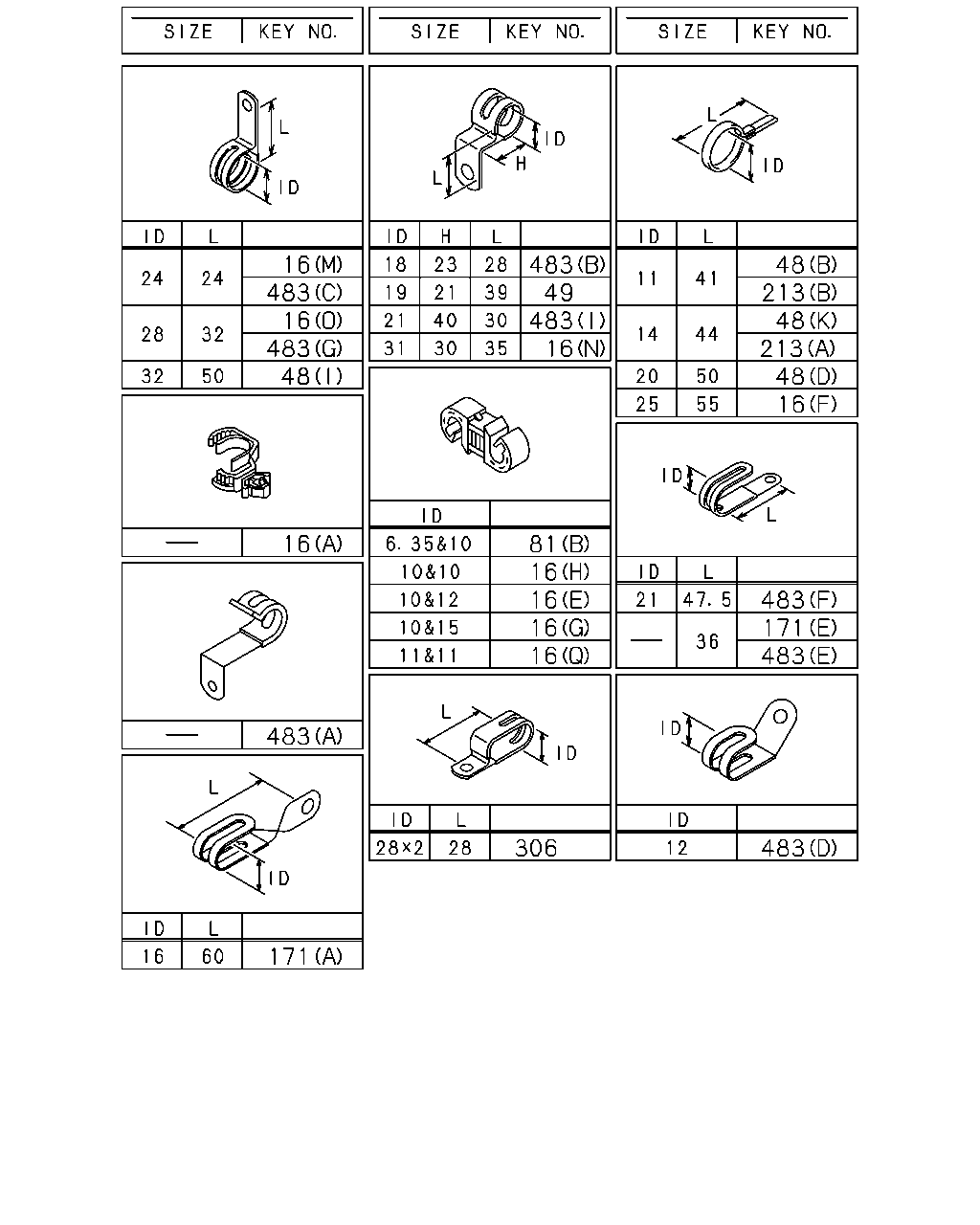

16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (S) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=31 L=30	1-09700-969-0	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	02	1	0809-1007
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1008-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	03	1	0809-0907
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	0908-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	02	1	0809-0809
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0810-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-1011
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0809-0811
16	CLIP; HARNESS (G) ID=10 & 15	1-09709-279-1	03	1	0809-0811
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (F) ID=25 L=55	9-09917-573-0	01	1	0809-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (L) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) EXC. ECUADOR EQUIPMENT(E46) (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0810-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	04	1	1008-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (H) L=180	1-09707-162-1	01	1	0809-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (A) L=250	5-09707-030-1	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	05	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	06	1	0810-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (K) ID=14 L=44	9-09917-427-0	06	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	06	1	0809-0809
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	05	1	0810-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1008-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	09	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (K) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-1509
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0809-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0809-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1007
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0809-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0809-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0809-
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (B) ID=11 L=41	1-09700-403-0	02	1	1510-
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (A) ID=14 L=44	9-09917-427-0	03	1	1510-
213	CLIP; END CROSS HARNESS EXC. ECUADOR EQUIPMENT(E46) (A) ID=14 L=44	9-09917-427-0	03	1	1510-
213	CLIP; END CROSS HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	0809-1509
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (A) ID=14 L=44	9-09917-427-0	07	1	1510-
306	CLIP; HARNESS,ELEC GOV ID=28X2 L=28	1-09701-302-0	01	1	0809-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1201-1210
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	03	1	1012-1109
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (E) L=36	8-94224-891-1	03	1	1110-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-1110
483	CLIP; ENG HARNESS SAUDI ARABIA EQUIPMENT(GH3) (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-1110
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1201-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1201-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (H) ID=16 L=50	1-09701-158-0	01	1	1110-1110
483	CLIP; ENG HARNESS SAUDI ARABIA EQUIPMENT(GH3) (H) ID=16 L=50	1-09701-158-0	01	1	1110-1110
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1201-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1201-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) ID=21 L=47.5	8-94178-108-0	01	1	1004-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0809-1112
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (J) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS (C) ID=24 L=24	1-09701-001-1	01	1	0809-1007
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1008-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0809-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	03	1	0809-1007
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1110-1311
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) (E) L=36	8-94224-891-1	02	1	1110-1311
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1312-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1312-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	1-09987-281-0	01	1	0810-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (E) L=36	8-94224-891-1	01	1	0810-

150 139 150 150 150 38 139 377 139 386 150 38 16 93 38 150 139 313 313 139 139 38 139 313 38 38 386 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (S) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=31 L=30	1-09700-969-0	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	02	1	0809-1007
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1008-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	03	1	0809-0907
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	0908-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	02	1	0809-0809
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0810-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-1011
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0809-0811
16	CLIP; HARNESS (G) ID=10 & 15	1-09709-279-1	03	1	0809-0811
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (F) ID=25 L=55	9-09917-573-0	01	1	0809-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0809-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (E) M8X16 FLANGE	0-28050-816-0	03	1	1510-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (F) M8X20 FLANGE	0-28650-820-0	01	1	1510-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0809-0809
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-0809
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0809-
38	BOLT; CLIP,HARNESS (C) M10X30 FLANGE	0-28651-030-0	01	1	0809-
38	BOLT; CLIP,HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1510-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0809-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0809-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	0809-1011
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1012-
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) M6X16 FLANGE	0-28650-616-0	01	1	1401-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1008-1109
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (E) M6X12 FLANGE	0-28050-612-0	02	1	1110-1110
150	BOLT; CLIP SAUDI ARABIA EQUIPMENT(GH3) (E) M6X12 FLANGE	0-28050-612-0	02	1	1110-1110
150	BOLT; CLIP 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (E) M6X12 FLANGE	0-28050-612-0	02	1	1111-1112
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1111-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (E) M6X12 FLANGE	0-28050-612-0	02	1	1111-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1111-1112
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1201-1312
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	02	1	1201-1312
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	04	1	1401-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) M6X12 FLANGE	0-28050-612-0	04	1	1401-
150	BOLT; CLIP (C) M6X20 FLANGE	0-28050-620-0	01	1	0809-1007
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1008-1011
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-1109
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-1109
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-1311
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-1311
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	1110-1311
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	01	1	1312-
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	01	1	1312-
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	1312-
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0810-1007
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE	0-28050-620-0	01	1	1008-1011
150	BOLT; CLIP 4HK1-TCC ENG(RDV) (C) M6X20 FLANGE	0-28050-620-0	01	1	1012-1109
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE	0-28050-620-0	01	1	1012-1109
150	BOLT; CLIP 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE	0-28050-620-0	01	1	1110-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M6X20 FLANGE	0-28050-620-0	01	1	1110-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M6X20 FLANGE	0-28050-620-0	01	1	1201-
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (C) M6X20 FLANGE	0-28050-620-0	01	1	1201-
150	BOLT; CLIP (D) M8X12 FLANGE	0-28050-812-0	01	1	0809-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-0809
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	0810-1007
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1008-1109
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (F) M8X25 FLANGE	0-28650-825-0	01	1	1110-1110
150	BOLT; CLIP SAUDI ARABIA EQUIPMENT(GH3) (F) M8X25 FLANGE	0-28650-825-0	01	1	1110-1110
150	BOLT; CLIP 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (F) M8X25 FLANGE	0-28650-825-0	01	1	1111-1112
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1111-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (F) M8X25 FLANGE	0-28650-825-0	01	1	1111-1112
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1111-1112
150	BOLT; CLIP 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1201-
150	BOLT; CLIP 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (F) M8X25 FLANGE	0-28650-825-0	01	1	1201-
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-1109
150	BOLT; CLIP 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) M8X16 FLANGE	0-28050-816-0	02	1	1110-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
313	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0809-
313	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	0809-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-

16 16 16 16 16 171 16 81 171 223 235 48 48 48 116 16 48 223 16 235 48 483 483 470

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (S) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=31 L=30	1-09700-969-0	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	02	1	0809-1007
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1008-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	03	1	0809-0907
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	0908-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	02	1	0809-0809
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0810-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-1011
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0809-0811
16	CLIP; HARNESS (G) ID=10 & 15	1-09709-279-1	03	1	0809-0811
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (F) ID=25 L=55	9-09917-573-0	01	1	0809-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0809-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (L) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) EXC. ECUADOR EQUIPMENT(E46) (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0810-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	04	1	1008-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (H) L=180	1-09707-162-1	01	1	0809-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (A) L=250	5-09707-030-1	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	05	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	06	1	0810-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (K) ID=14 L=44	9-09917-427-0	06	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	06	1	0809-0809
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	05	1	0810-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1008-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	09	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (K) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-1509
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0809-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0809-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1007
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	1510-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-1509
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	1510-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0809-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0809-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0809-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-1011
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1012-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0809-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (C) OD=9 H=6	1-09709-178-0	02	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-1	01	1	0809-0809
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) L=350	1-09707-183-0	01	1	0809-0907
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-1509
470	CLIP; HARNESS,LICENSE LAMP ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> OD=9 H=6	1-09709-178-0	01	1	1510-
470	CLIP; HARNESS,LICENSE LAMP EXC. ECUADOR EQUIPMENT(E46) OD=9 H=6	1-09709-178-0	01	1	1510-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (D) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1201-1210
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	03	1	1012-1109
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (E) L=36	8-94224-891-1	03	1	1110-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-1110
483	CLIP; ENG HARNESS SAUDI ARABIA EQUIPMENT(GH3) (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-1110
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1201-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (I) ID=21 L=30 H=40	1-09700-991-1	01	1	1201-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (H) ID=16 L=50	1-09701-158-0	01	1	1110-1110
483	CLIP; ENG HARNESS SAUDI ARABIA EQUIPMENT(GH3) (H) ID=16 L=50	1-09701-158-0	01	1	1110-1110
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1111-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1201-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (H) ID=16 L=50	1-09701-158-0	01	1	1201-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (F) ID=21 L=47.5	8-94178-108-0	01	1	1004-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0809-1112
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (J) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS (C) ID=24 L=24	1-09701-001-1	01	1	0809-1007
483	CLIP; ENG HARNESS (G) ID=28 L=32	1-09701-107-1	01	1	1008-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0809-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	03	1	0809-1007
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1008-1109
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1110-1311
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) (E) L=36	8-94224-891-1	02	1	1110-1311
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1312-
483	CLIP; ENG HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (E) L=36	8-94224-891-1	02	1	1312-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	1-09987-281-0	01	1	0810-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (E) L=36	8-94224-891-1	01	1	0810-

14 22 305 14 48 206 217 225 235 305 48 81 171 225 16 305 16 102 208 235 305 48 14 305 14 178 178 530 538 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	0809-0809
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	0809-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	02	1	0809-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	04	1	0809-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	0809-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0809-1007
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	1008-1109
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1008-1109
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1110-1110
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (B) L=140	5-09707-031-1	01	1	1110-1110
14	CLIP; BAND,HARNESS SAUDI ARABIA EQUIPMENT(GH3) (B) L=140	5-09707-031-1	01	1	1110-1110
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) L=140	5-09707-031-1	01	1	1111-1112
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1111-1112
14	CLIP; BAND,HARNESS 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (B) L=140	5-09707-031-1	01	1	1111-1112
14	CLIP; BAND,HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1111-1112
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1201-1311
14	CLIP; BAND,HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1201-1311
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0809-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (Q) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (S) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (L) ID=31 L=30	1-09700-969-0	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	01	1	0809-0809
16	CLIP; HARNESS (M) ID=24 L=24	1-09701-001-1	02	1	0809-1007
16	CLIP; HARNESS (O) ID=28 L=32	1-09701-107-1	02	1	1008-
16	CLIP; HARNESS (D) L=350	1-09707-183-0	03	1	0809-0907
16	CLIP; HARNESS (D) L=350	1-09707-183-0	02	1	0908-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	02	1	0809-0809
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0810-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (N) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-1011
16	CLIP; HARNESS (N) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0809-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0809-0811
16	CLIP; HARNESS (G) ID=10 & 15	1-09709-279-1	03	1	0809-0811
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS (F) ID=25 L=55	9-09917-573-0	01	1	0809-0811
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (K) OD=9 H=6	1-09709-178-0	01	1	0809-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (L) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) EXC. ECUADOR EQUIPMENT(E46) (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	10	1	1510-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0810-
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	04	1	1008-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	01	1	1003-
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (H) L=180	1-09707-162-1	01	1	0809-0809
48	CLIP; FRAME HARNESS MLD6S M/T(X7W) (A) L=250	5-09707-030-1	04	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	05	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	06	1	0810-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (K) ID=14 L=44	9-09917-427-0	06	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	06	1	0809-0809
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	05	1	0810-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	1008-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	10	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (K) ID=14 L=44	9-09917-427-0	09	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	12	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (J) ID=13-18 L=22	1-09709-292-0	01	1	0809-
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (D) ID=20 L=50	9-09917-430-0	13	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5300MM(53W) (K) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS (F) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-1509
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (F) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (I) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (E) L=600	1-09707-107-1	01	1	0809-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-0809
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0809-
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0809-1002
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	1003-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1007
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	1008-1011
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0809-0809
102	CLIP; BAND L=350	1-09707-183-0	01	1	0810-0911
102	CLIP; BAND L=350	1-09707-183-0	01	1	0810-0911
102	CLIP; BAND L=350	1-09707-183-0	02	1	0912-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0809-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0809-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0809-
178	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1510-
178	GROMMET; HARNESS WHEEL BASE 4300MM(43W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1510-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0809-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0809-0810
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0811-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0809-0810
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0809-
217	CLIP; RR BODY HARNESS ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> L=250	5-09707-030-1	02	1	1510-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1510-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-1011
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1012-1509
217	CLIP; RR BODY HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1510-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0809-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0809-0811
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (C) OD=9 H=6	1-09709-178-0	02	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-1	01	1	0809-0809
235	CLIP; HARNESS,SPD SENSOR,SSPS 4HK1-TCS ENG(RJS) FRONT STABILIZER SHAFT<F59> (B) L=350	1-09707-183-0	01	1	0809-0907
305	CLIP; ENG HARNESS MZX6P M/T(RSW) (C) L=250	5-09707-030-1	01	1	0809-0809
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (C) L=250	5-09707-030-1	01	1	0810-
305	CLIP; ENG HARNESS (A) L=350	8-94152-256-1	01	1	0809-0905
305	CLIP; ENG HARNESS (E) L=300	1-09707-001-1	01	1	0906-
305	CLIP; ENG HARNESS (B) L=150	8-97355-273-0	01	1	0809-0905
305	CLIP; ENG HARNESS (D) L=140	5-09707-031-1	01	1	0906-
305	CLIP; ENG HARNESS (D) L=140	5-09707-031-1	01	1	0809-0905
305	CLIP; ENG HARNESS (D) L=140	5-09707-031-1	01	1	0809-0905
305	CLIP; ENG HARNESS (D) L=140	5-09707-031-1	02	1	0906-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	0809-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

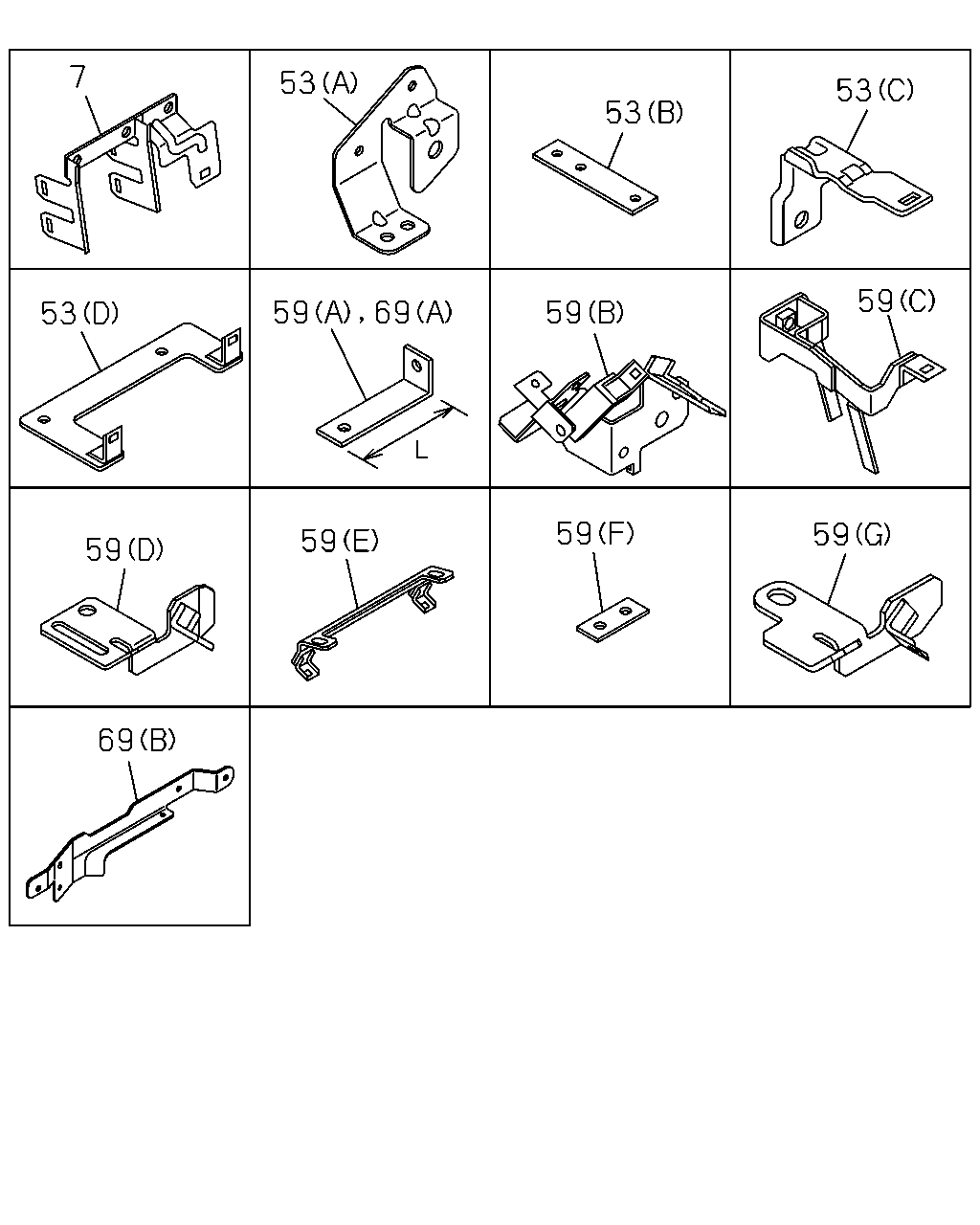

7 53 53 53 53 59 69 59 59 59 59 59 59 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS (D)	8-98125-300-1	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	0809-0912
59	BRACKET; FRAME HARNESS (F) L=85	8-98044-743-0	01	1	1001-1011
59	BRACKET; FRAME HARNESS (F) L=85	8-98044-743-0	01	1	1012-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0809-
59	BRACKET; FRAME HARNESS (B)	8-97619-535-0	01	1	0809-1401
59	BRACKET; FRAME HARNESS (B)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (C)	8-98099-963-0	01	1	0809-
69	BRACKET; CLIP (A) L=95	1-82699-085-0	01	1	0809-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	0809-

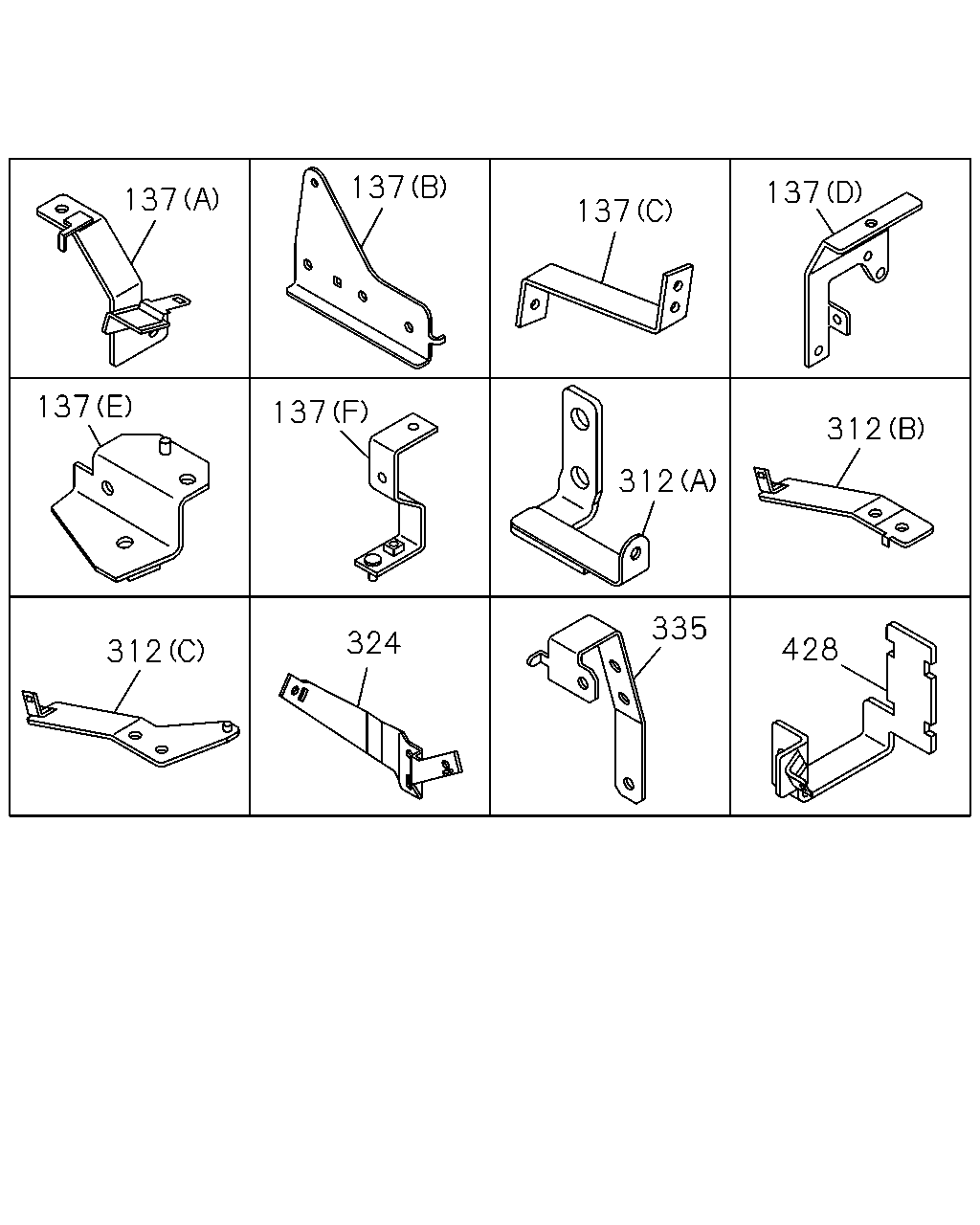

137 137 312 137 137 324 137 312 335 137 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (D)	8-97618-098-2	01	1	1510-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (E)	8-98058-354-1	01	1	1510-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (F)	8-98065-904-0	01	1	1510-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	0809-
137	BRACKET; HARNESS CLAMP (A)	8-98108-911-1	01	1	0809-1007
137	BRACKET; HARNESS CLAMP (C)	8-98170-409-0	01	1	1008-
312	BRACKET; CLIP HARNESS (B)	8-98125-301-0	01	1	0809-0904
312	BRACKET; CLIP HARNESS (C)	8-98143-865-0	01	1	0905-
312	BRACKET; CLIP HARNESS EURO3 SPECIFICATION<NT3> (A)	8-98094-804-0	01	1	0810-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-653-2	01	1	1510-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5)	8-98061-654-2	01	1	1510-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET	8-98116-461-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
