◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#38705) — 528 parça
çizim 181020
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98224-593-1 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3) 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98187-937-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER(AJ3) (A) BLACK 10P 		1-82699-703-0 01 1 1510-
2 DIODE; CABLE HARNESS
EXC. AIR BAG DRIVER(AJ3) (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 1510-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 0809-1509
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1510-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 02 1 0809-1509
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0809-1509
314 RESISTOR; HARNESS
EXC. AIR BAG DRIVER(AJ3) BLUE 		1-82691-204-0 01 1 1510-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (C) 10P BLUE 		1-82699-598-0 01 1 1510-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (G) 10P GREEN 		1-82699-599-0 01 1 1510-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1503

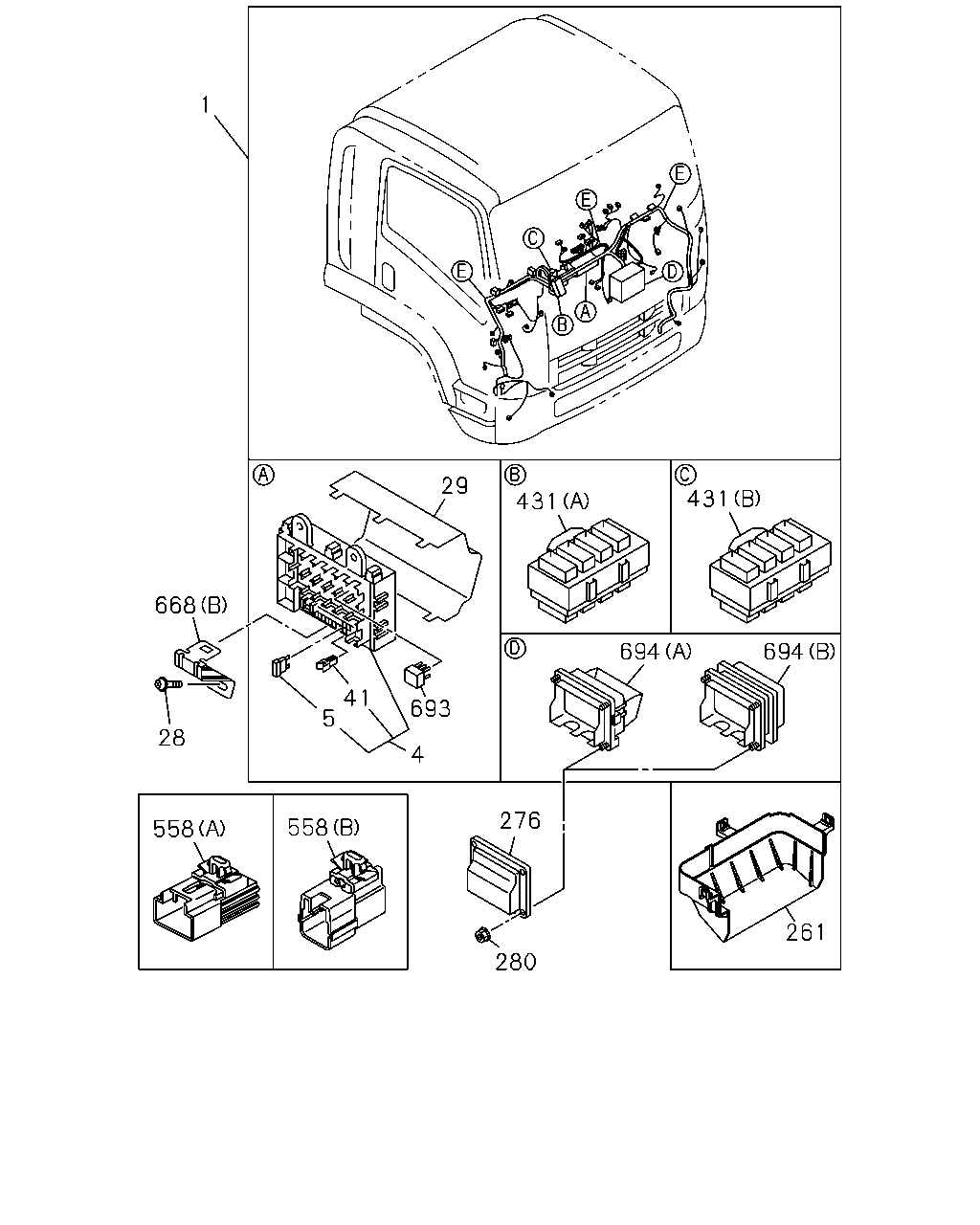

çizim 181022
29 431 431 668 693 694 694 276 5 41 28 558 558 280 261 1 4
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98224-593-1 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3) 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98187-937-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0809-
5 FUSE; FACIA HARNESS
EXC. AIR BAG DRIVER(AJ3) 25A WHITE 		8-98062-982-0 01 1 1510-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0809-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0809-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0809-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 0809-1509
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1510-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE 		0-28650-616-0 01 1 0909-
28 SCREW; FUSE BOX
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0809-0908
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 0909-
29 COVER; FUSE BOX 8-98056-968-0 01 1 0809-
41 PULLER; FUSE 8-98054-260-0 01 1 0809-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1510-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0809-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (C) 10P BLUE 		1-82699-598-0 01 1 1510-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (G) 10P GREEN 		1-82699-599-0 01 1 1510-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1503
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0809-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809-1011
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1012-
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1008-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (G) 		8-98061-805-2 01 1 1110-1110
668 BRACKET; HARNESS
SAUDI ARABIA EQUIPMENT(GH3) (G) 		8-98061-805-2 01 1 1110-1110
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0809-1408
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (D) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0809-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0809-
668 BRACKET; HARNESS
(C) 		8-98022-106-2 01 1 0809-1007
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1008-1011
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1110-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98022-106-2 01 1 1110-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0809-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 0809-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-
694 BOX ASM; CONNECTOR
(B) 		8-98057-771-0 01 1 1510-
694 BOX ASM; CONNECTOR
(A) 		8-98063-269-1 01 1 0809-1509
694 BOX ASM; CONNECTOR
EXC. AIR BAG DRIVER(AJ3) (A) 		8-98063-269-1 01 1 1510-

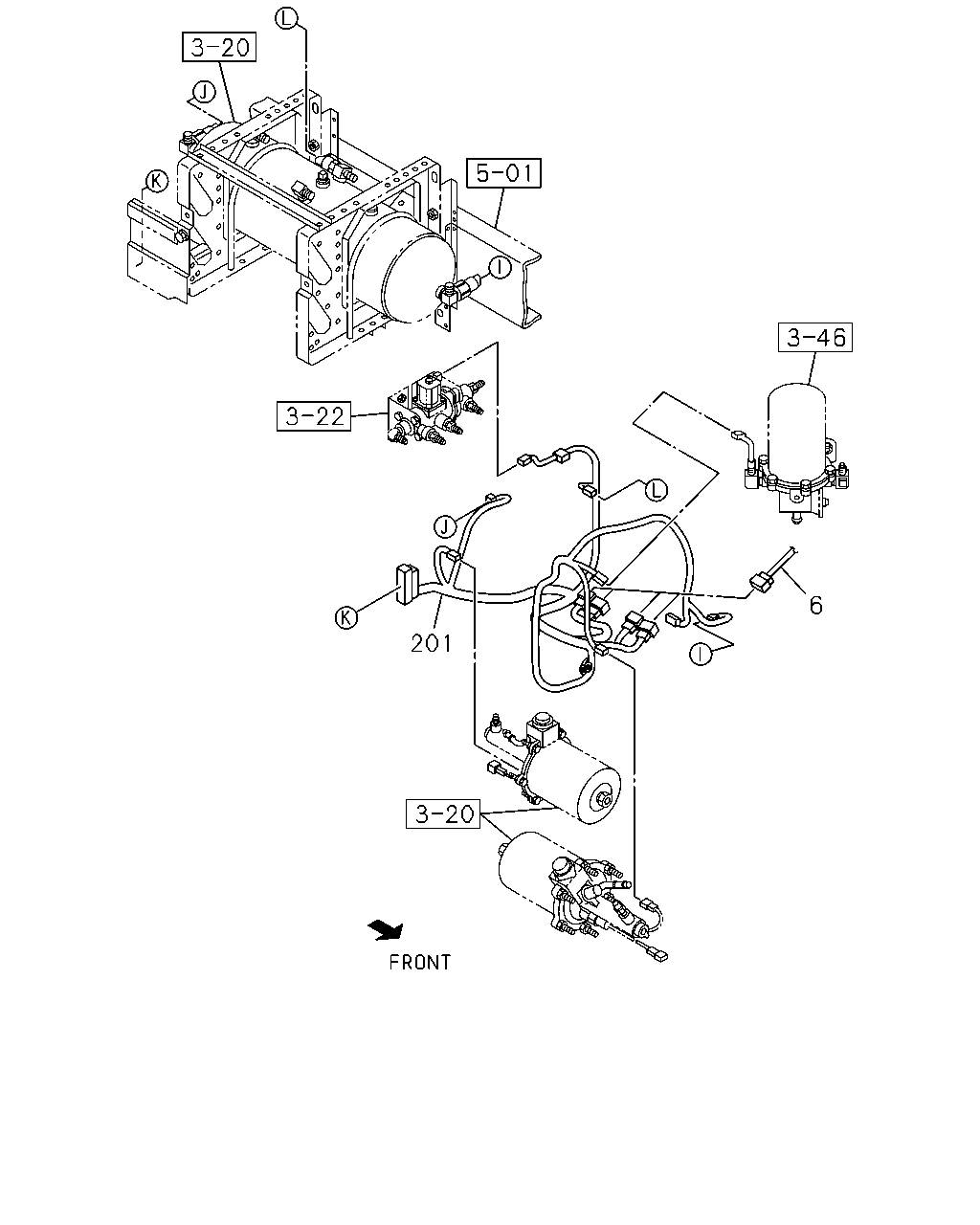

çizim 181029
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
201 HARNESS; AIR TANK
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) 		8-98156-711-2 01 1 1510-
201 HARNESS; AIR TANK
ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-710-2 01 1 1510-
201 HARNESS; AIR TANK
ANTI LOCK BRAKE(JE5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) 		8-98291-270-0 01 1 1510-
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98111-495-0 01 1 0809-1001
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-712-1 01 1 1002-1509
201 HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI LOCK BRAKE(JE5) 		8-98156-712-1 01 1 1510-
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98111-496-0 01 1 0809-1001
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98156-713-1 01 1 1002-1509
201 HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5) 		8-98156-713-1 01 1 1510-

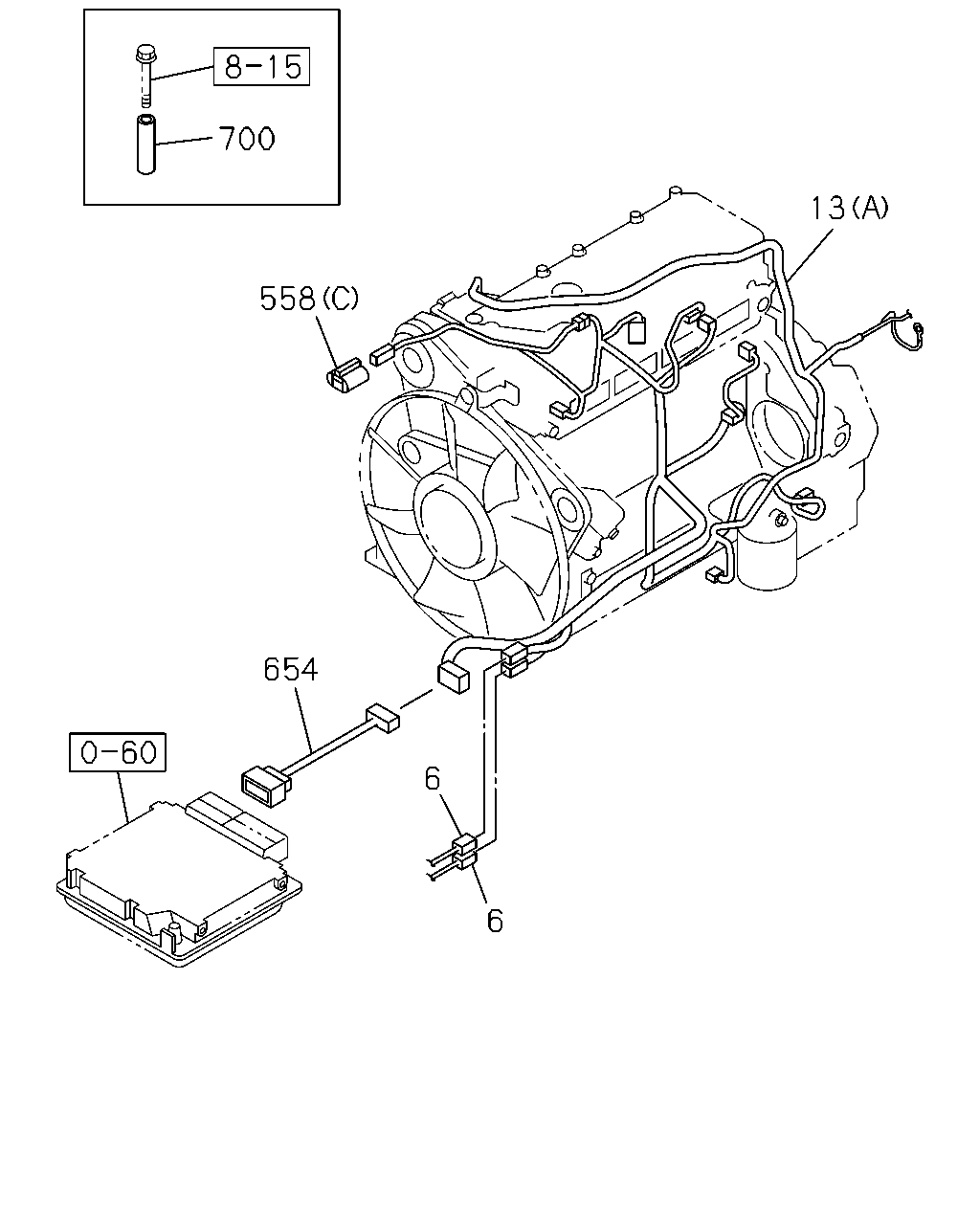

çizim 181035
700 13 558 654 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-156-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-156-2 01 1 1110-1405
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-022-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-155-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-155-2 01 1 1110-1405
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-021-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0809-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98077-329-3 01 1 0809-0809
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98077-329-3 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1012-1109
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98077-328-3 01 1 0809-0809
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98077-328-3 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1012-1109
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98114-864-1 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98171-158-1 01 1 1008-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98274-024-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98114-863-1 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98171-157-1 01 1 1008-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98274-023-0 01 1 1406-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0809-
558 CONNECTOR; HARNESS
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 0809-1011
558 CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-82690-668-0 01 1 1012-
654 HARNESS; EXT,ENG 8-98119-769-1 01 1 0809-1007
700 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 0809-1011
700 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51 		1-11369-157-0 01 1 1012-

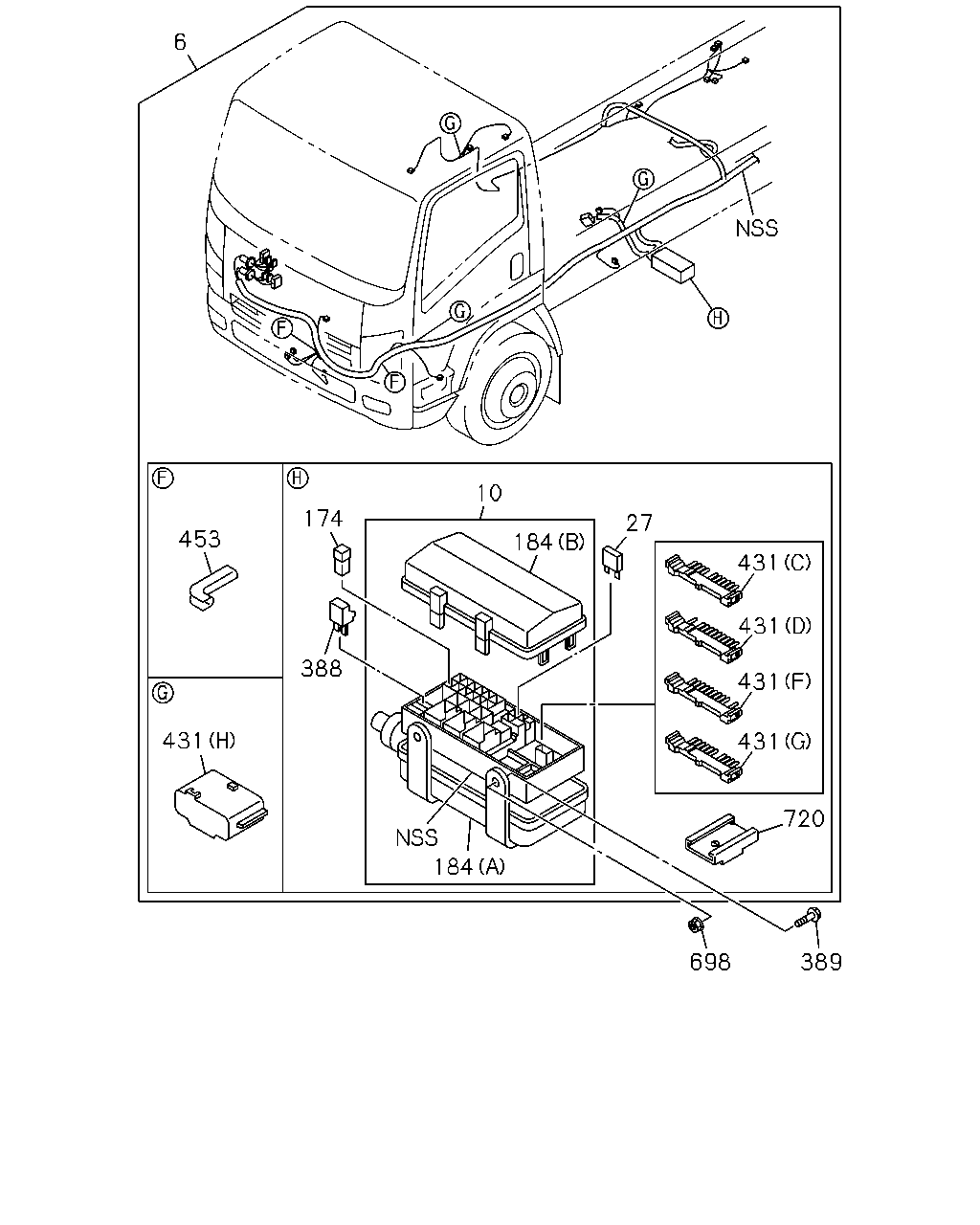

çizim 181037
6 10 174 27 453 184 431 431 388 431 431 431 720 184 698 389
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0809-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0809-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0809-
174 FUSE; SLOW BLOW
ANTI LOCK BRAKE(JE5) 40A GREEN 		8-98079-192-0 02 1 1510-
174 FUSE; SLOW BLOW
STARTER 60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0809-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0809-1509
174 FUSE; SLOW BLOW
EXC. ANTI LOCK BRAKE(JE5) 40A GREEN 		8-98079-192-0 01 1 1510-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0809-
174 FUSE; SLOW BLOW
60A YELLOW 		8-98079-194-0 03 1 0809-0809
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 03 1 0810-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0809-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 0809-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (C) 10P BLUE 		1-82699-598-0 01 1 1510-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (G) 10P GREEN 		1-82699-599-0 01 1 1510-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 0809-1509
431 CONNECTOR; JOINT
EXC. AIR BAG DRIVER(AJ3) (E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 0809-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 0809-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 0809-1503
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0809-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0809-0809
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0810-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0809-

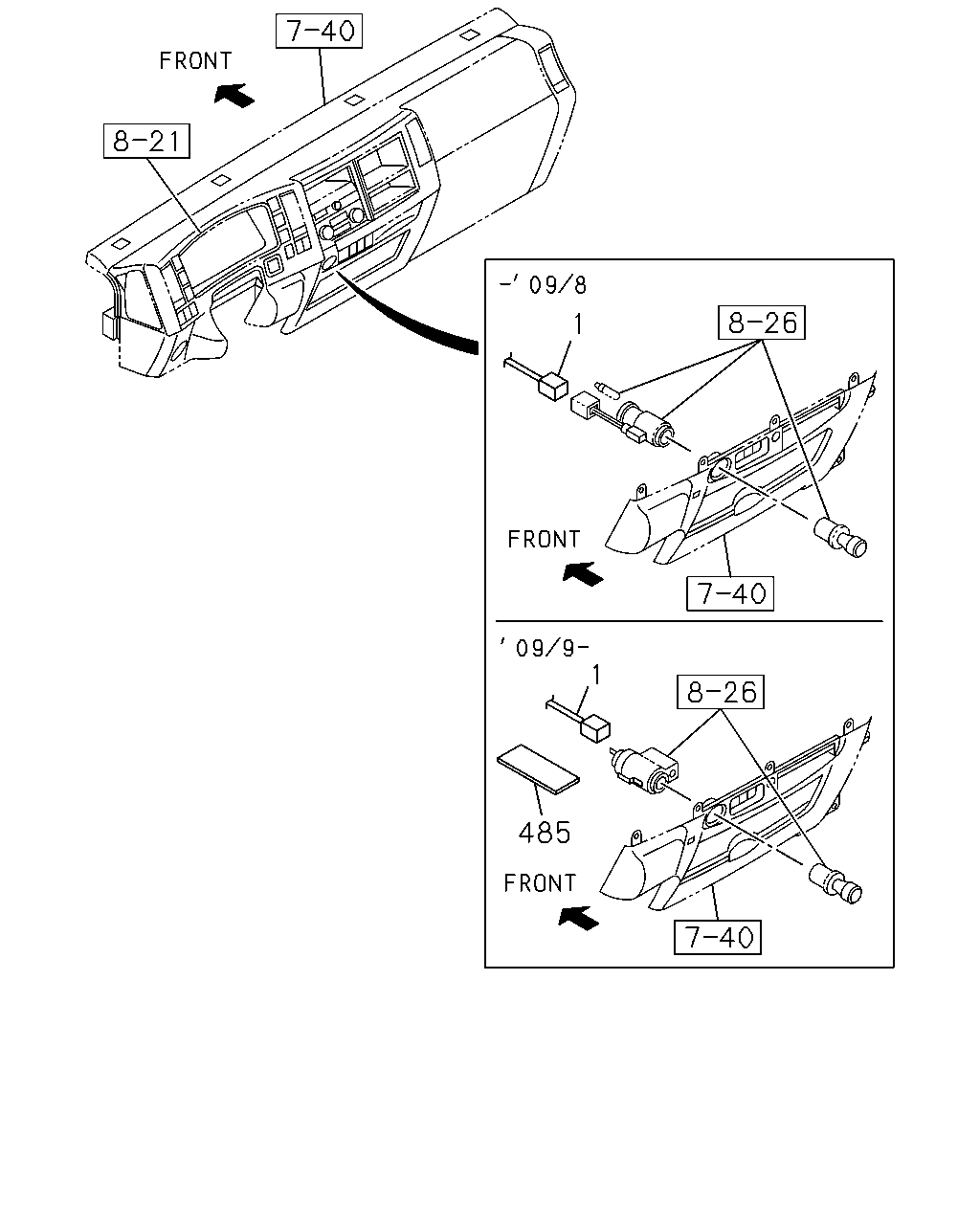

çizim 181038
1 1 485
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98224-593-1 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3) 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98187-937-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-

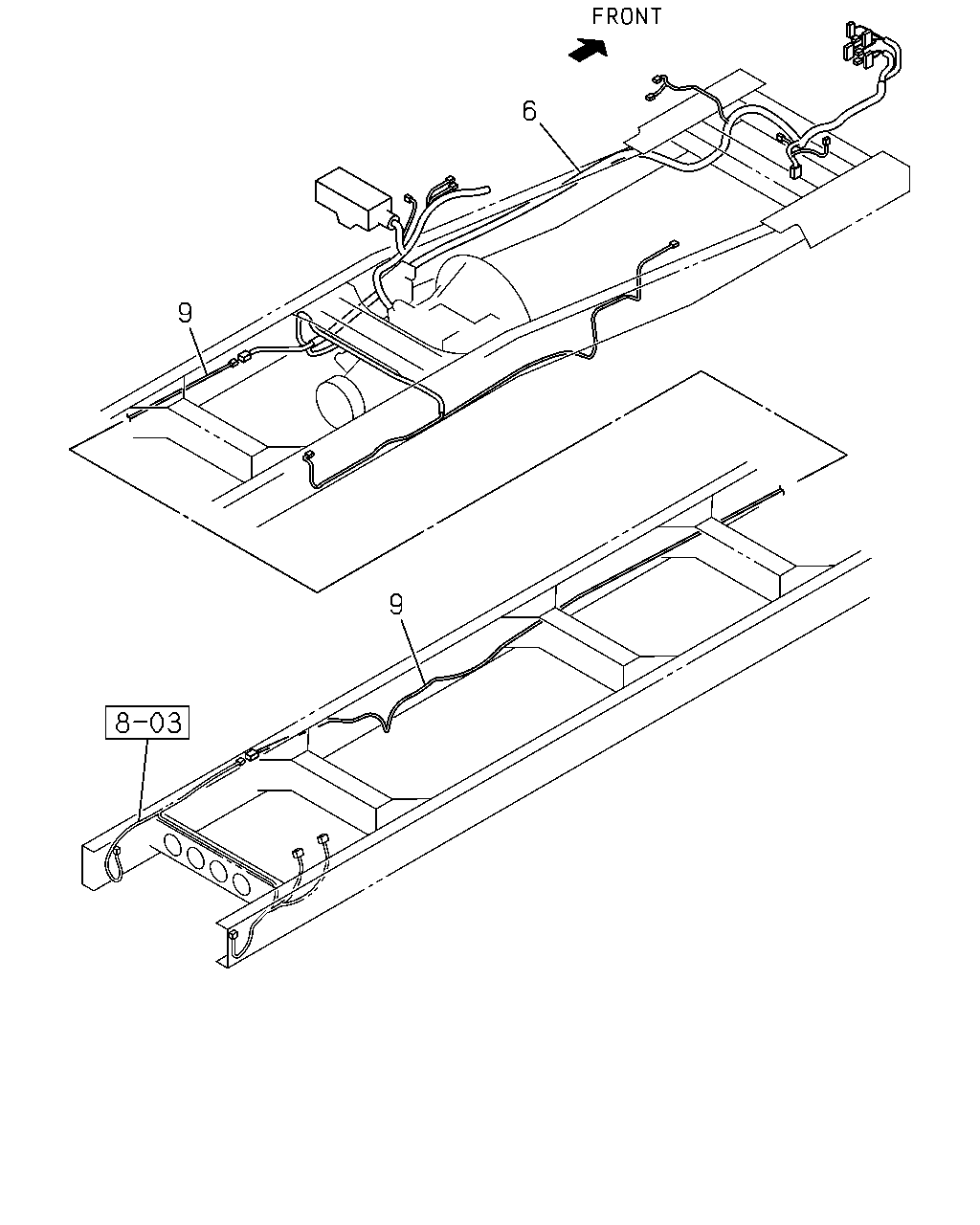

çizim 181039
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5) 		8-98064-313-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> 		8-98327-904-0 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) EXC. ECUADOR EQUIPMENT(E46) 		8-98168-572-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> 		8-98168-572-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) ANTI LOCK BRAKE(JE5) 		8-98064-319-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) ANTI LOCK BRAKE(JE5) 		8-98064-321-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) ANTI LOCK BRAKE(JE5) 		8-98078-077-1 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98064-314-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) 		8-98168-570-0 01 1 1008-1509
9 HARNESS; FRAME,RR
WHEEL BASE 3700MM(37W) EXC. ANTI LOCK BRAKE(JE5) 		8-98168-570-0 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98064-318-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) 		8-98168-573-0 01 1 1008-1509
9 HARNESS; FRAME,RR
WHEEL BASE 4300MM(43W) EXC. ANTI LOCK BRAKE(JE5) 		8-98168-573-0 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98064-320-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) 		8-98168-575-0 01 1 1008-1509
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) EXC. ANTI LOCK BRAKE(JE5) 		8-98168-575-0 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98064-322-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) 		8-98168-577-0 01 1 1008-1509
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) EXC. ANTI LOCK BRAKE(JE5) 		8-98168-577-0 01 1 1510-
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98064-323-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) 		8-98168-578-0 01 1 1008-1509
9 HARNESS; FRAME,RR
WHEEL BASE 5300MM(53W) EXC. ANTI LOCK BRAKE(JE5) 		8-98168-578-0 01 1 1510-

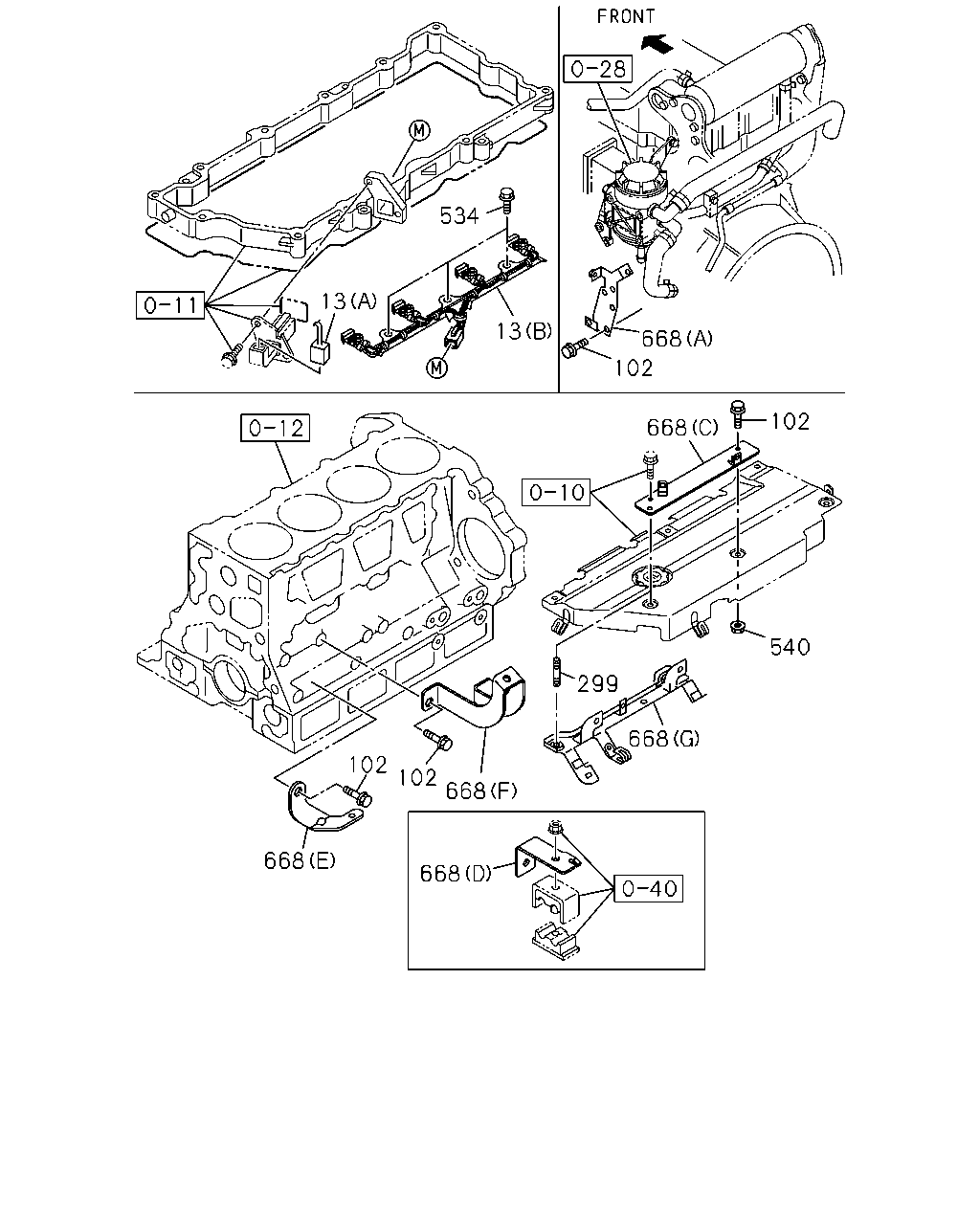

çizim 181042
534 13 13 668 102 102 668 540 299 668 102 102 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-156-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-156-2 01 1 1110-1405
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-022-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-155-2 01 1 1012-1109
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-155-2 01 1 1110-1405
13 HARNESS; ENG
4HK1-TCC ENG(RDV) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-021-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0809-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) (A) 		8-98077-329-3 01 1 0809-0809
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98077-329-3 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1012-1109
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-996-2 01 1 1110-1312
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98255-589-0 01 1 1401-1405
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-036-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) (A) 		8-98077-328-3 01 1 0809-0809
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98077-328-3 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1008-1011
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1012-1109
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98171-995-2 01 1 1110-1312
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98255-588-0 01 1 1401-1405
13 HARNESS; ENG
SAUDI ARABIA EQUIPMENT(GH3) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) 		8-98274-035-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98114-864-1 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98171-158-1 01 1 1008-1405
13 HARNESS; ENG
GENERATOR 24V60A(KG2) EURO3 SPECIFICATION<NT3> (A) 		8-98274-024-0 01 1 1406-
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98114-863-1 01 1 0810-1007
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98171-157-1 01 1 1008-1405
13 HARNESS; ENG
GENERATOR 24V50A(K89) EURO3 SPECIFICATION<NT3> (A) 		8-98274-023-0 01 1 1406-
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0809-1007
102 BOLT; BRKT,HARNESS CONNECTOR
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1008-1011
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1012-1109
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1110-1112
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) EXC. SAUDI ARABIA EQUIPMENT(GH3) M6X25 FLANGE 		0-28050-625-0 01 1 1110-1112
102 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) M6X25 FLANGE 		0-28050-625-0 01 1 1201-
102 BOLT; BRKT,HARNESS CONNECTOR
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 01 1 1201-
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0809-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0809-
299 STUD; BRKT
M6X20 L=28 		0-41010-620-0 02 1 1110-1110
299 STUD; BRKT
EURO3 SPECIFICATION<NT3> M6X20 L=28 		0-41010-620-0 02 1 1111-1111
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0809-
540 NUT; BRKT FIX
EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1008-1011
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) M6 FLANGE 		0-91180-106-0 01 1 1012-1109
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1012-1109
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1110-1112
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) EXC. SAUDI ARABIA EQUIPMENT(GH3) M6 FLANGE 		0-91180-106-0 01 1 1110-1112
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) M6 FLANGE 		0-91180-106-0 01 1 1201-
540 NUT; BRKT FIX
EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 01 1 1201-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 0809-1007
540 NUT; BRKT FIX
EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1008-1109
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) M6 FLANGE 		0-91180-106-0 02 1 1110-1110
540 NUT; BRKT FIX
SAUDI ARABIA EQUIPMENT(GH3) M6 FLANGE 		0-91180-106-0 02 1 1110-1110
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 02 1 1111-1112
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1111-1112
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> M6 FLANGE 		0-91180-106-0 02 1 1111-1112
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1111-1112
540 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1201-1312
540 NUT; BRKT FIX
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> M6 FLANGE 		0-91180-106-0 02 1 1201-1312
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1008-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (G) 		8-98061-805-2 01 1 1110-1110
668 BRACKET; HARNESS
SAUDI ARABIA EQUIPMENT(GH3) (G) 		8-98061-805-2 01 1 1110-1110
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1111-1112
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98061-805-2 01 1 1201-1312
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> (G) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> (G) 		8-98205-089-0 01 1 1401-
668 BRACKET; HARNESS
(D) 		8-98001-095-0 01 1 0809-1408
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (D) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0809-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(F) 		8-98011-484-0 01 1 0809-
668 BRACKET; HARNESS
(C) 		8-98022-106-2 01 1 0809-1007
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1008-1011
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1012-1109
668 BRACKET; HARNESS
4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1110-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98022-106-2 01 1 1110-1112
668 BRACKET; HARNESS
4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
EURO3 SPECIFICATION<NT3> (C) 		8-98022-106-2 01 1 1201-
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0809-
668 BRACKET; HARNESS
(B) 		8-98111-712-1 01 1 0809-

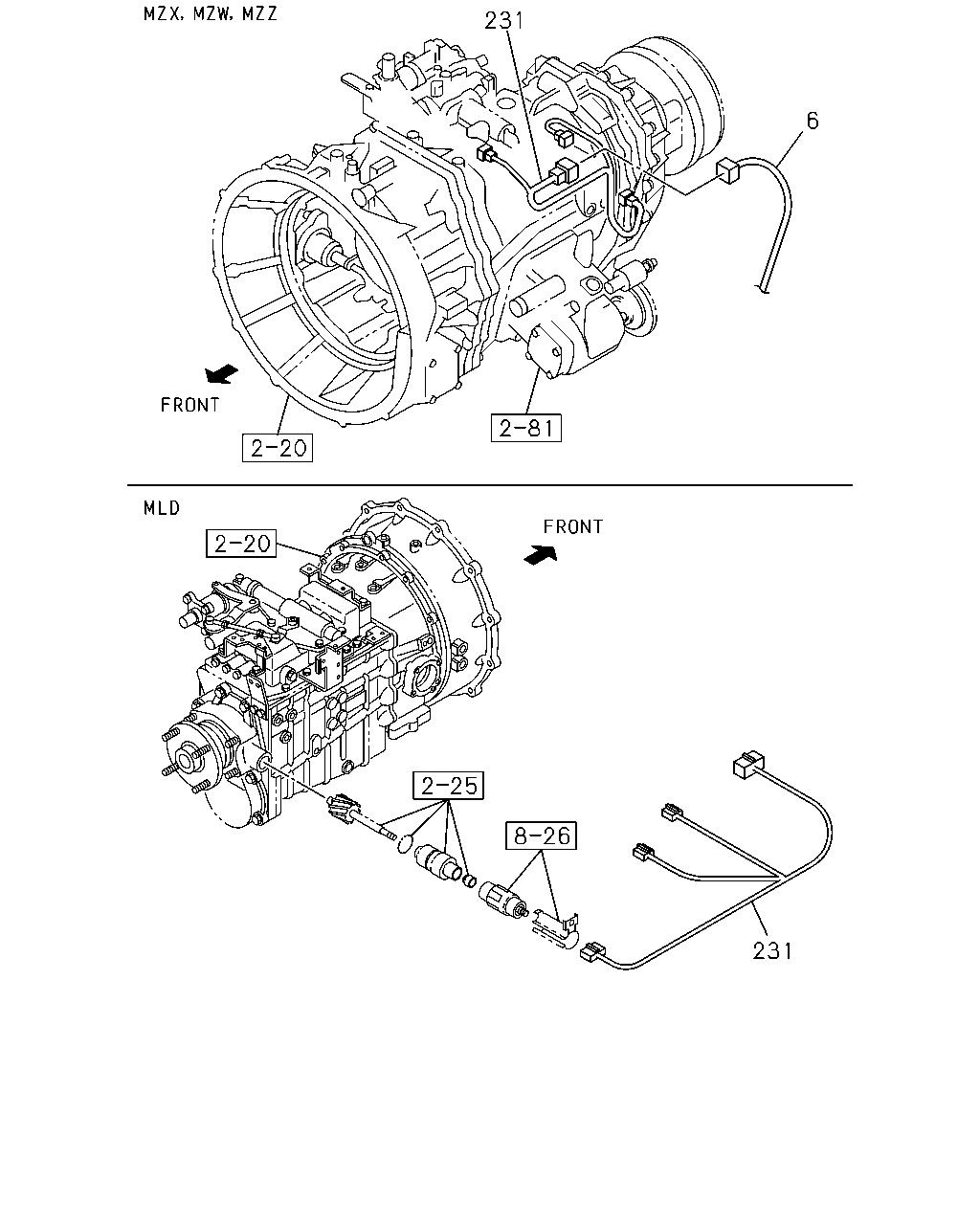

çizim 181050
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
231 HARNESS; TRANS
MZZ6W M/T(RSA) 		8-98170-740-0 01 1 1012-
231 HARNESS; TRANS
MZX6P M/T(RSW) 		8-97618-933-1 01 1 0809-0906
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-933-2 01 1 0907-
231 HARNESS; TRANS
MLD6S M/T(X7W) 		8-98114-228-1 01 1 0809-

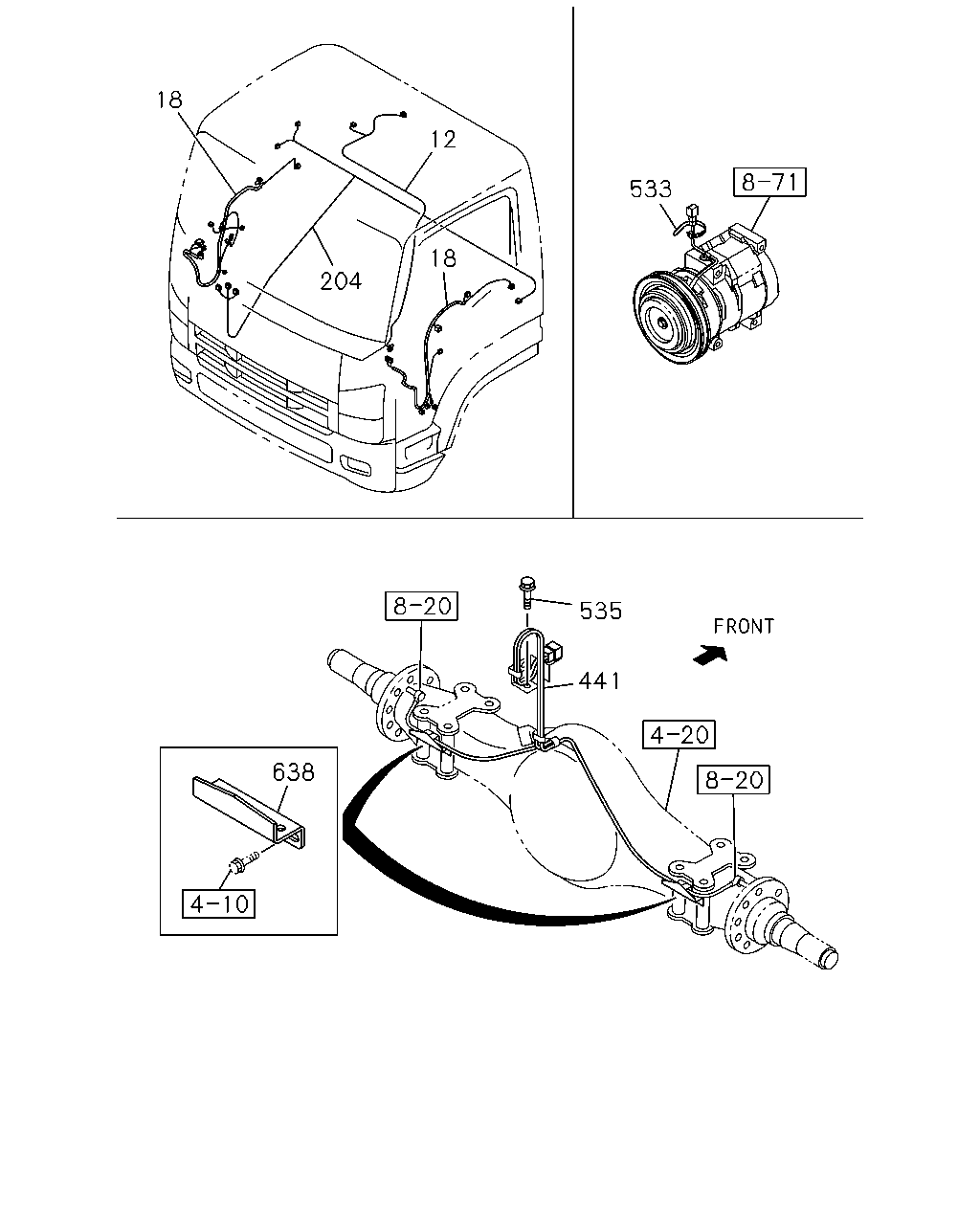

çizim 181051
18 204 18 12 533 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC> 		8-98079-073-2 01 1 1510-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC> 		8-98084-249-1 01 1 1510-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-441-0 01 1 0809-1509
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98071-441-0 01 1 1510-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98084-248-1 01 1 0809-1509
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC> 		8-98084-248-1 01 1 1510-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-127-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-803-0 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-128-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-804-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-801-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-802-0 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) 		8-98084-218-0 01 1 1510-
204 HARNESS; CABLE,FLOOR 8-98084-217-1 01 1 0809-1509
204 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3) 		8-98084-217-1 01 1 1510-
441 HARNESS; CABLE,SPEED SENSOR
ANTI LOCK BRAKE(JE5) 		8-98061-652-0 01 1 1510-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 0910-
535 BOLT; BRKT FIX
ANTI LOCK BRAKE(JE5) M8X10 W/LK WASHER 		8-98029-928-0 02 1 1510-
638 BRACKET; SPD SENSOR
ANTI LOCK BRAKE(JE5) 		8-98012-580-1 02 1 1510-

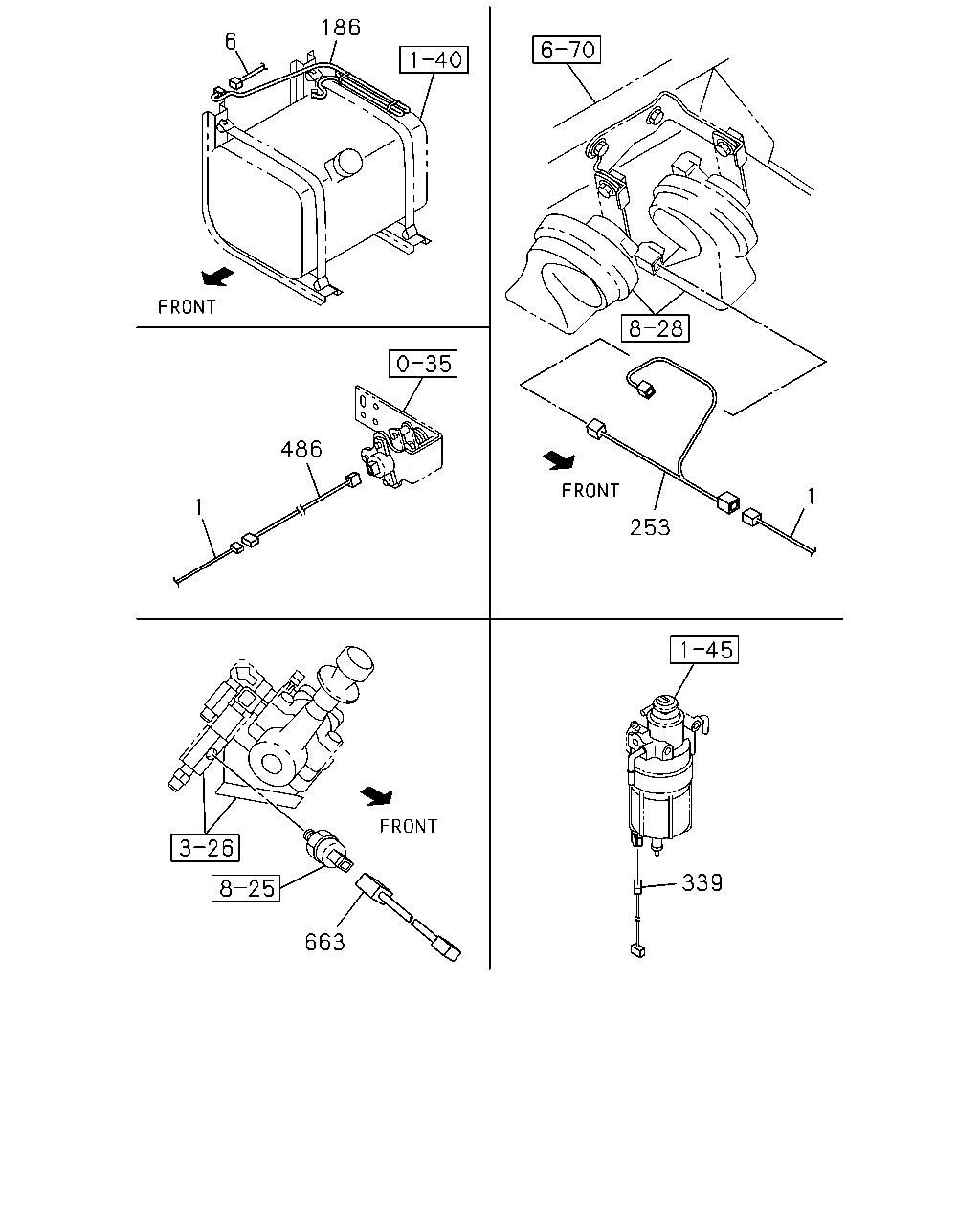

çizim 181055
186 6 486 1 1 253 339 663
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 8-98224-593-1 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98187-934-0 01 1 1112-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98187-934-0 01 1 1210-1509
1 HARNESS; CAB
ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3) 		8-98187-934-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1112-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98187-937-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, H.S.ASYSTEM<6EP> 		8-98187-937-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1101-1111
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98158-056-0 01 1 1112-1209
1 HARNESS; CAB 8-98084-005-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98084-005-4 01 1 1101-1111
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98084-005-4 01 1 1112-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-005-4 01 1 1112-1209
6 HARNESS; FRAME
ANTI LOCK BRAKE(JE5) 		8-98327-596-0 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) 		8-98117-557-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98117-557-2 01 1 0810-1010
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1011-1011
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> 		8-98169-023-2 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 3700MM(37W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98169-023-2 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98064-308-2 01 1 0809-0809
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 0810-1011
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> 		8-98064-308-5 01 1 1012-1509
6 HARNESS; FRAME
WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE(JE5) 		8-98064-308-5 01 1 1510-
6 HARNESS; FRAME
4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 0810-1011
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> 		8-98115-173-5 01 1 1012-1509
6 HARNESS; FRAME
EURO3 SPECIFICATION<NT3> EXC. ANTI LOCK BRAKE(JE5) 		8-98115-173-5 01 1 1510-
186 HARNESS; FUEL TANK
WHEEL BASE 3700MM(37W) 		8-97619-079-0 01 1 0809-1010
253 HARNESS; EXT,HORN
EXC. DUAL HEAVY DUTY HORN<6KK> 		8-98159-227-2 01 1 1002-
253 HARNESS; EXT,HORN 8-98074-080-1 01 1 0809-1001
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> 		8-98074-080-3 01 1 1002-
339 HARNESS; EXT,FUEL
WHEEL BASE 4300MM(43W) 		8-98119-943-0 01 1 0809-
339 HARNESS; EXT,FUEL
WHEEL BASE 4600MM(46W) 		8-98118-196-1 01 1 0809-
339 HARNESS; EXT,FUEL
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-98118-331-1 01 1 0809-
486 HARNESS; ALL SPEED ACCEL
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 0809-1101
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4> 		1-82675-898-0 01 1 1102-
663 HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98126-779-2 01 1 1008-

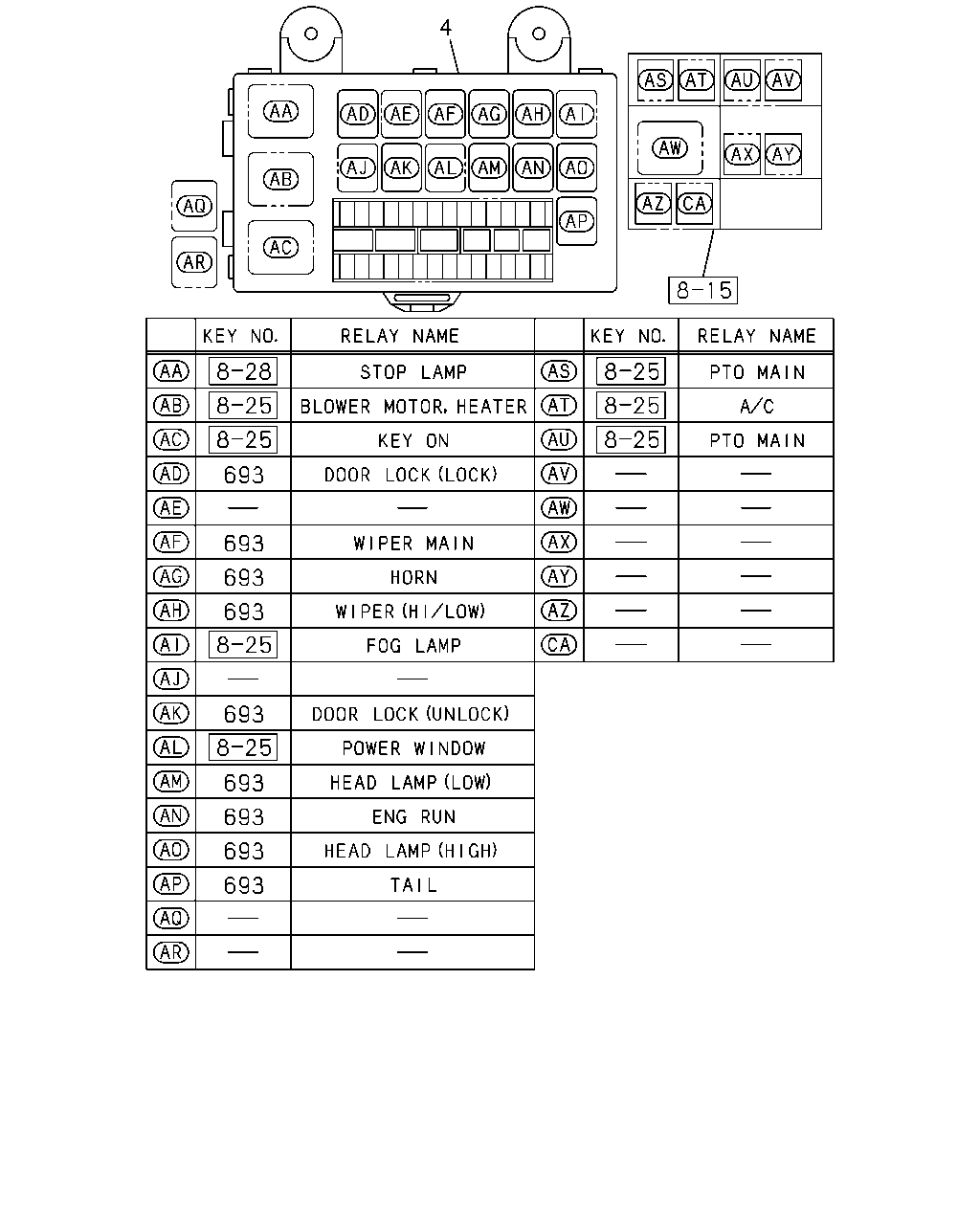

çizim 181103
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 0809-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
