4-40 — STEERING UNIT (#387) — 253 parça

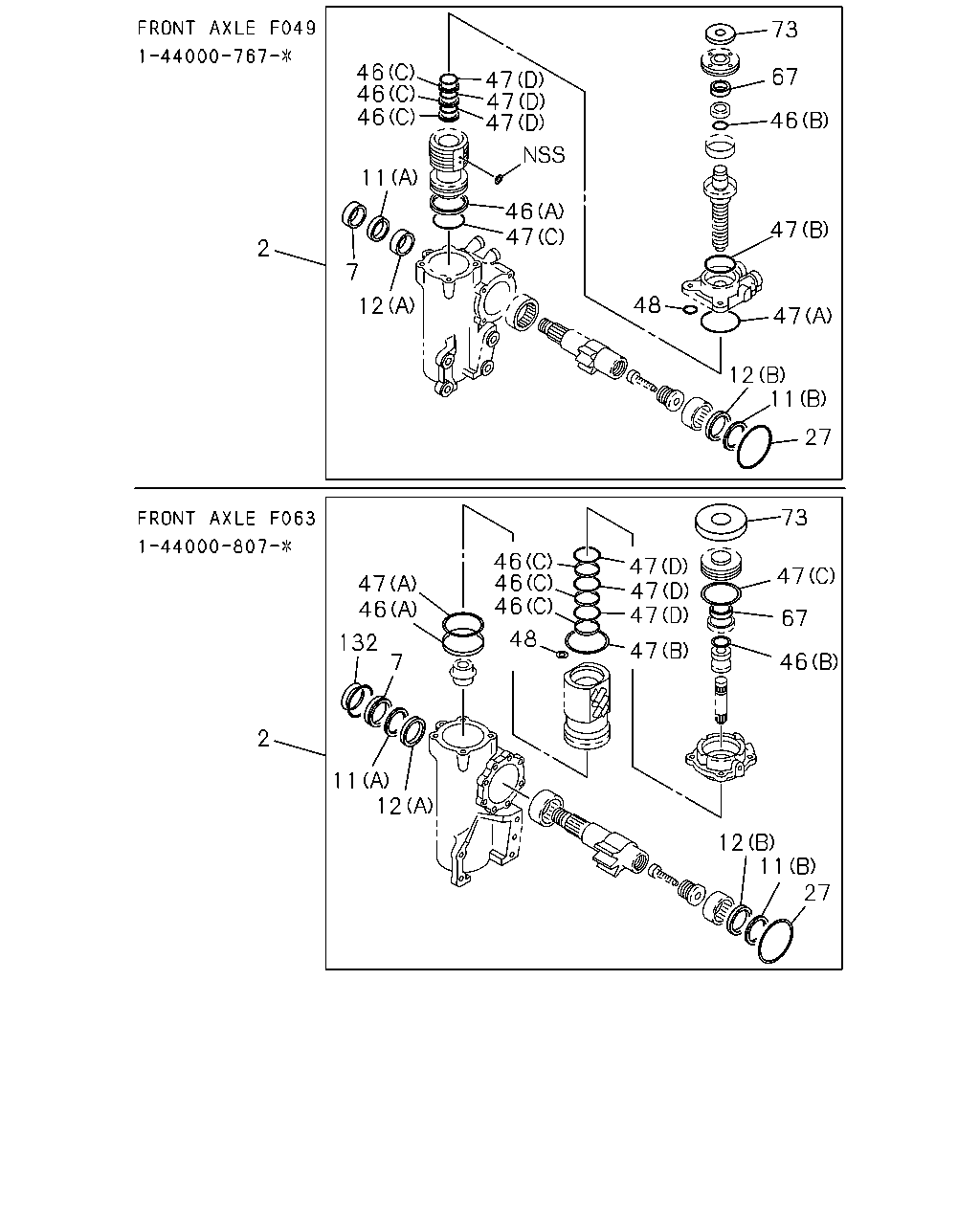

çizim 27422
73 46 46 46 67 47 47 47 46 11 46 47 47 2 7 48 12 47 12 11 27 73 46 46 46 47 47 47 47 47 46 67 48 132 47 46 7 2 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-767-3 		1-85574-024-1 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: C = 1-44000-807-2 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-807-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-767-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-036-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-227-0 01 1 -

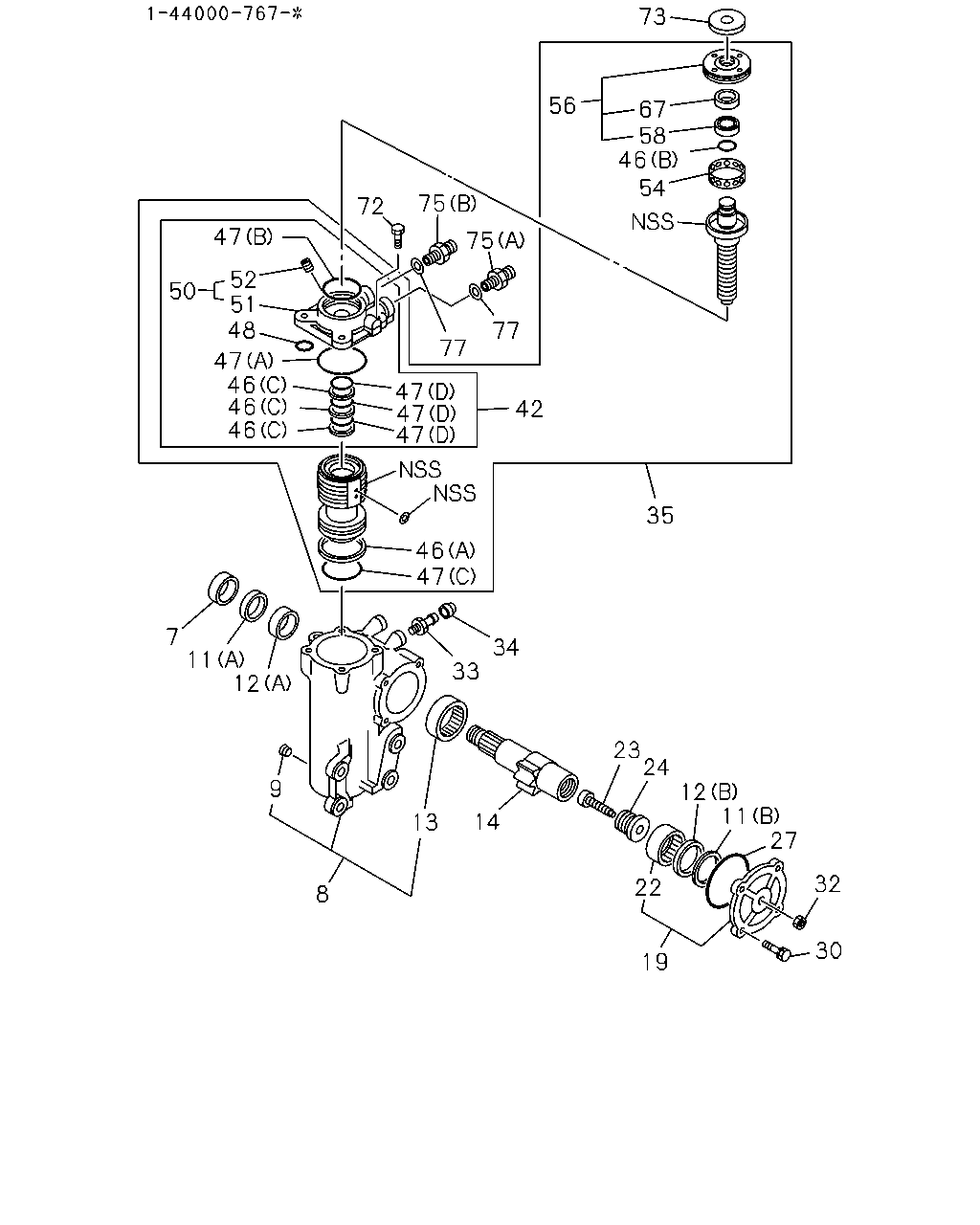

çizim 27851
73 56 67 58 46 54 75 72 47 75 52 51 48 50 77 77 47 46 46 46 47 47 47 42 35 46 47 7 34 11 12 33 23 24 9 12 11 27 14 13 32 22 8 30 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44240-058-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44240-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44241-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44260-008-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-718-4 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-767-3 		9-99110-512-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44150-026-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44150-037-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-807-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-767-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-068-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44561-017-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44250-006-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-036-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-89970-787-0 02 1 -

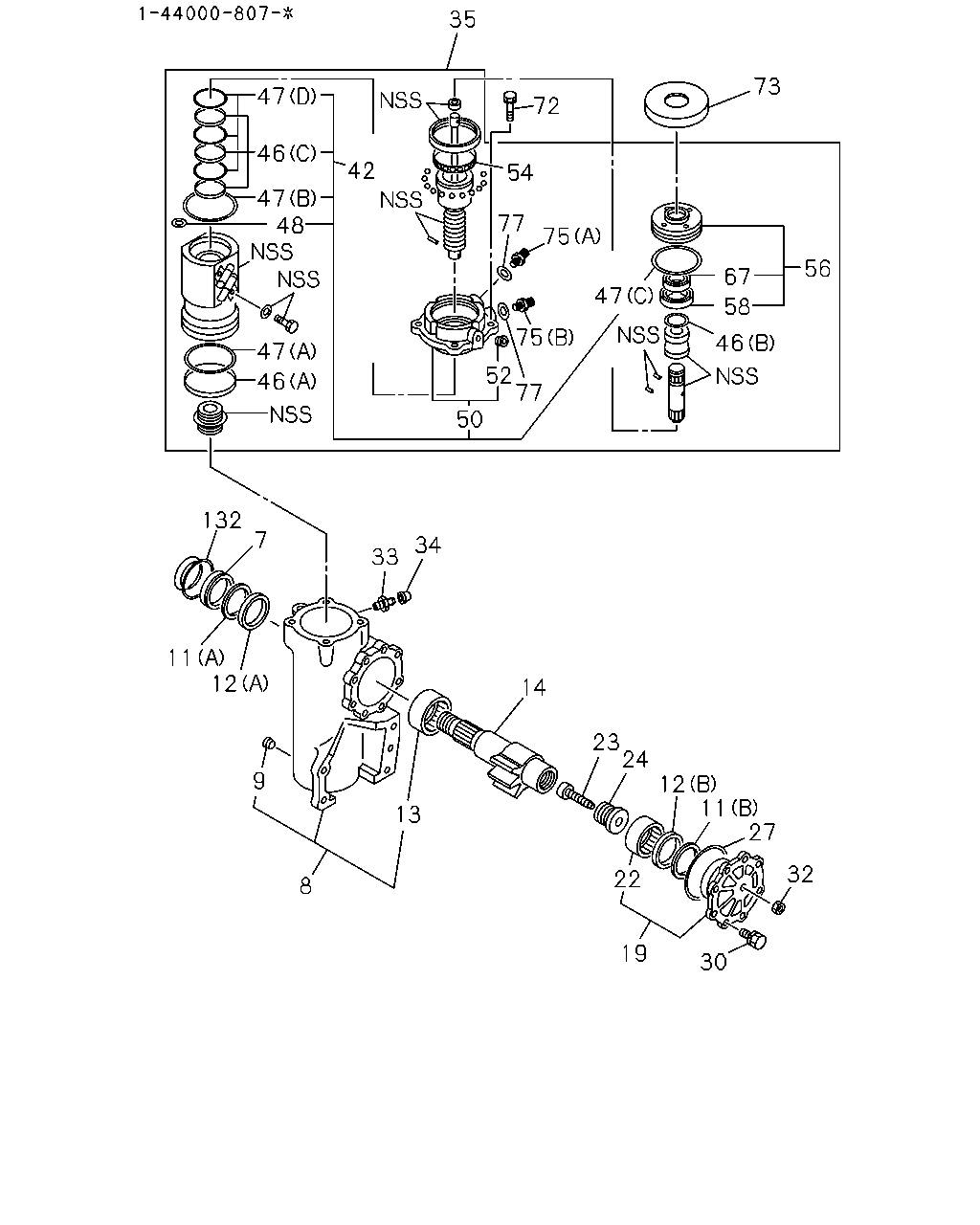

çizim 27920
35 73 47 72 46 42 54 47 48 77 75 56 67 47 58 75 46 47 52 77 46 50 132 7 34 33 11 12 14 23 24 9 12 11 27 13 32 22 8 19 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44240-058-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44240-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44241-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-103-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-162-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44260-008-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44279-011-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-016-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-718-4 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-767-3 		9-99110-512-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44150-026-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44150-037-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-069-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44159-063-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-100-0 03 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: C = 1-44000-807-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: C = 1-44000-807-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: C = 1-44000-807-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: C = 1-44000-807-2 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-767-3 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-767-3 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-767-3 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-767-3 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44560-068-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44241-088-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44250-006-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-029-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-036-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44259-017-0 04 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44159-062-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-227-0 01 1 -
çizim 95398
132 69 44 70 66 68 43 55 43 9 8 10 14 22 26 23 25 19 129 32 7 13 31 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-041-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-157-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44240-058-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44240-077-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44241-126-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-767-3, C = 1-44000-807-2 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99202-024-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-718-4 		9-09920-392-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44249-038-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44321-022-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44260-008-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-105-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44277-003-1 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 1-44000-718-4 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 1-44000-718-4 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 1-44000-718-4 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 1-44000-718-4 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 1-44000-718-4 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44279-012-0 08 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-767-3 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-718-4 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: A = 1-44000-718-4 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44269-007-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-718-4 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 1-44000-767-3 		9-99110-512-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-718-4 		1-09625-353-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44130-385-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44251-062-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.04 ASM PART: A = 1-44000-718-4 		1-44253-014-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 1-44000-718-4 		1-44253-015-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.06 ASM PART: A = 1-44000-718-4 		1-44253-016-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 1-44000-718-4 		1-44253-017-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 1-44000-718-4 		1-44253-018-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 1-44000-718-4 		1-44253-019-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 1-44000-718-4 		1-44253-020-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 1-44000-718-4 		1-44253-021-0 AR 1 -
69 BOLT; COVER FIX STRG UNIT
M14X35 ASM PART: A = 1-44000-718-4 		9-92051-435-0 04 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: A = 1-44000-718-4 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-718-4 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-807-2 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
