◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#38692) — 25 parça

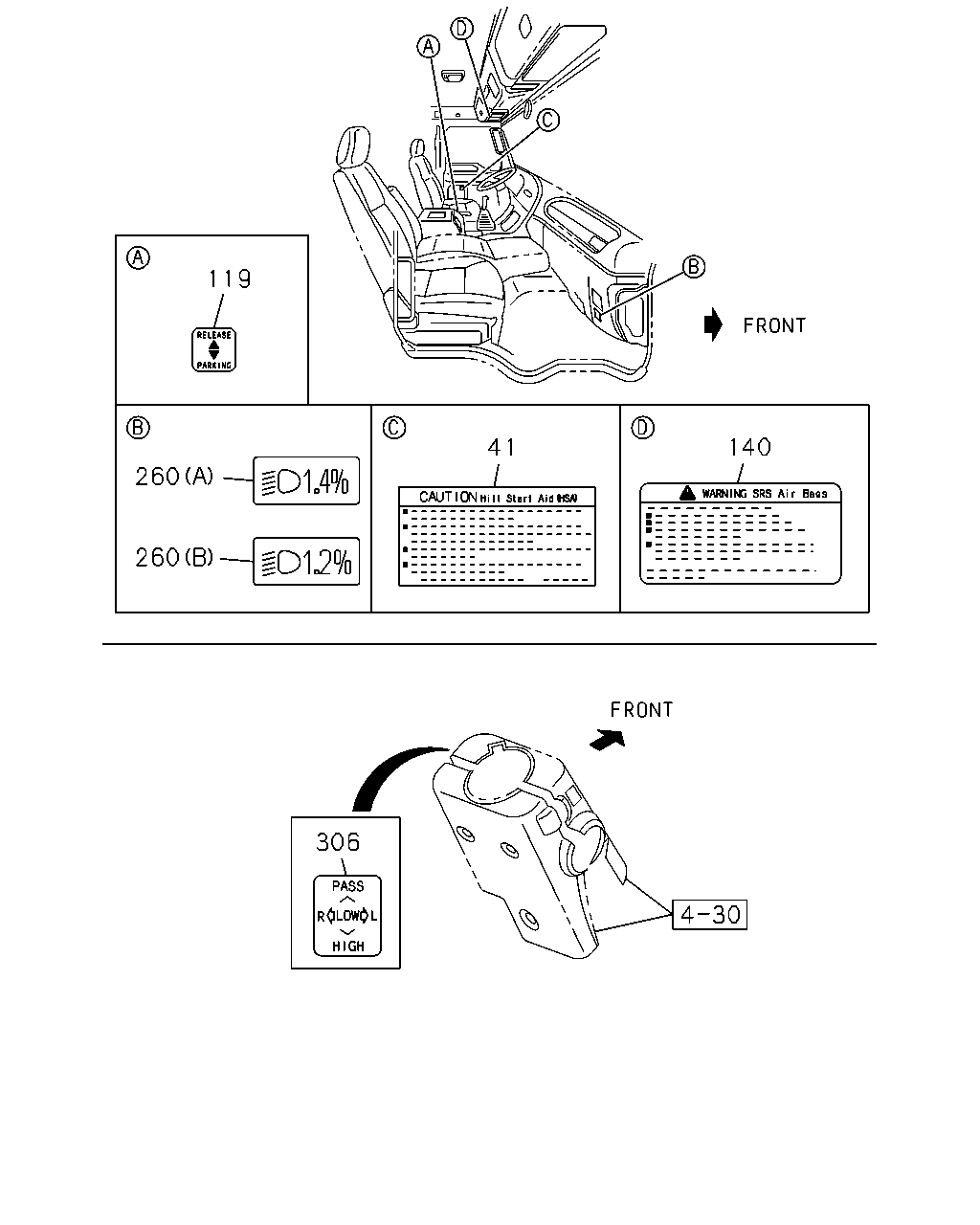

çizim 181171
140 41 306 260 260 119
BalonParca AdiParca NoAdetTipApplied Date
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> CAUTIONS ARABIAN<WJ7> 		8-98141-841-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> CAUTIONS FRENCH<WJ8> 		8-98141-839-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> CAUTIONS SPANISH<YN1> 		8-98141-840-0 01 1 0907-
41 PLATE; CAUTION,HSA
H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98141-836-0 01 1 0907-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0809-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) 		8-98139-964-0 01 1 1510-
260 PLATE; CAUTION,HEAD LAMP LEVELING
ECUADOR EQUIPMENT(E46) (B) 		1-85878-416-1 01 1 1510-
260 PLATE; CAUTION,HEAD LAMP LEVELING
(A) 		8-98008-779-0 01 1 0809-1509
260 PLATE; CAUTION,HEAD LAMP LEVELING
EXC. ECUADOR EQUIPMENT(E46) (A) 		8-98008-779-0 01 1 1510-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0809-
çizim 181172
35 49 228 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS FRENCH<WJ8> 		8-98082-440-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 0809-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS FRENCH<WJ8> 		8-98070-108-0 01 1 0809-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 0809-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		8-98127-560-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 0809-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 0809-
228 PLATE; CAUTION,AIR DRYER
CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0809-1001
228 PLATE; CAUTION,AIR DRYER
CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0809-1001
228 PLATE; CAUTION,AIR DRYER
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-48199-325-0 01 1 0809-1001
