Isuzu WW
▶
TRUCKS
▶
FRR
▶
11121 - FRR(LHD) SPACECAB
▶
5 - Frame, Cab Mounting
▶

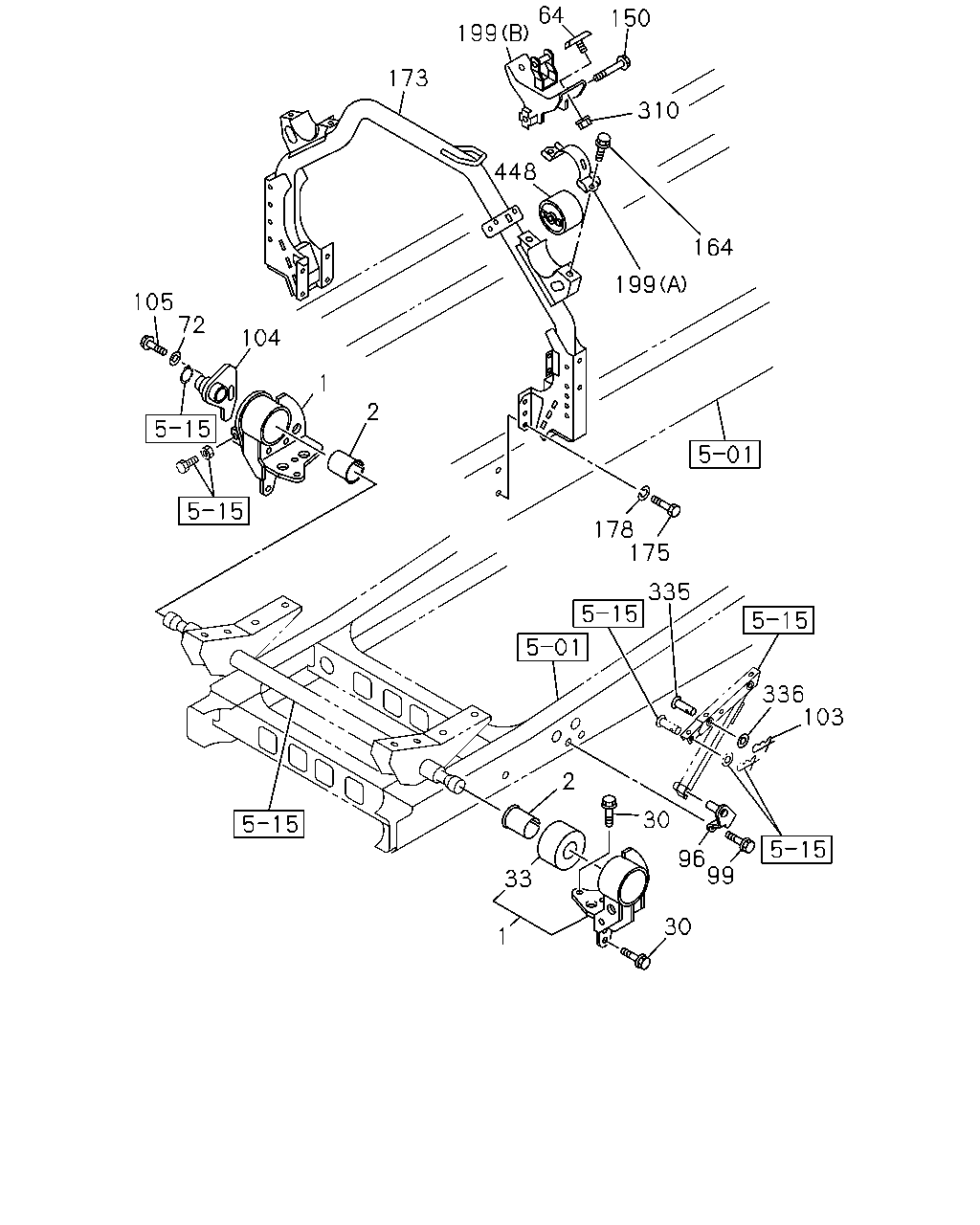

5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#38665) — 33 parça
64
199
150
173
310
448
164
199
105
72
104
1
2
178
175
335
336
103
2
30
96
99
33
30
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK>
8-98051-001-1
01
1
0809-
1
BRACKET; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK>
8-98051-002-1
01
1
0809-
1
BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71>
8-98010-751-2
01
1
0809-
1
BRACKET; CAB MTG
CAB SUSPENSION RIGID<W71>
8-98050-999-2
01
1
0809-
2
BUSHING; TORSION BAR
CAB SUSPENSION RIGID<W71>
8-98010-767-0
02
1
0809-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
0809-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION SEMI FLOATING<SDK>
8-98013-932-2
02
1
0809-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
CAB SUSPENSION RIGID<W71>
8-98013-933-1
02
1
0809-
64
RUBBER; CUSHION
8-97113-340-0
04
1
0809-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
0809-
96
BRACKET; CAB STAY
1-62500-628-0
01
1
0809-
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
0809-
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
0809-
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98017-610-3
01
1
0809-1511
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98330-669-0
01
1
1512-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
0809-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
0809-
164
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE
0-28651-225-0
04
1
0809-
173
MEMBER; CAB MTG RR
8-98010-756-5
01
1
0809-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
0809-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
0809-
199
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B)
8-98099-068-0
01
1
1503-
199
BRACKET; CAB RR MTG
EXC. KD PREPARATORY PACK<6HF> (B)
8-98297-105-0
01
1
1503-
199
BRACKET; CAB RR MTG
(B)
8-98023-692-0
01
1
0809-1301
199
BRACKET; CAB RR MTG
(A)
8-98044-556-1
02
1
0809-
199
BRACKET; CAB RR MTG
(B)
8-98099-068-0
01
1
0809-1301
199
BRACKET; CAB RR MTG
(B)
8-98099-068-0
02
1
1302-1502
199
BRACKET; CAB RR MTG
KD PREPARATORY PACK<6HF> (B)
8-98099-068-0
02
1
1503-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
0809-
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
0809-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
0809-
448
BUSHING; CAB MTG
CAB SUSPENSION SEMI FLOATING<SDK>
8-98010-759-2
02
1
0809-
448
BUSHING; CAB MTG
CAB SUSPENSION RIGID<W71>
8-98013-934-1
02
1
0809-
