◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#38663) — 57 parça

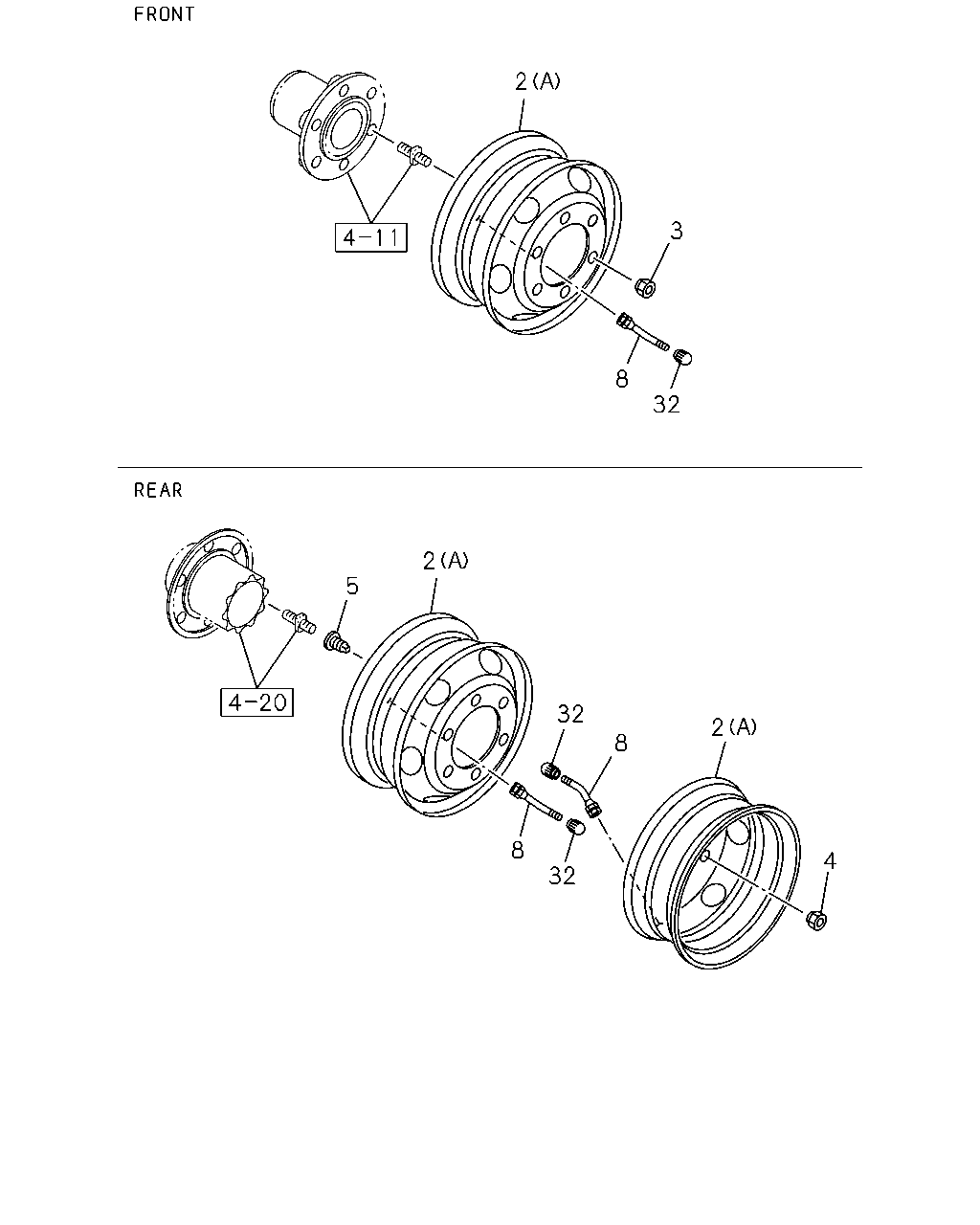

çizim 181134
2 3 8 32 2 5 32 2 8 8 4 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0809-0809
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0809-0809
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0810-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0810-
2 WHEEL; DISC
(B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0809-0809
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0810-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 01 1 0810-0906
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPARE<N79> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 01 1 0810-0906
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 06 1 0810-0906
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-767-0 01 1 0906-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-767-0 01 1 0906-
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR 		1-42350-767-0 06 1 0906-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 0809-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0809-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0809-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-019-3 01 1 0810-0906
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 0810-0906
8 VALVE; TIRE
WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR 		1-42370-019-3 06 1 0810-0906
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-007-1 01 1 0906-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-007-1 01 1 0906-
8 VALVE; TIRE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR 		1-42370-007-1 06 1 0906-
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0809-

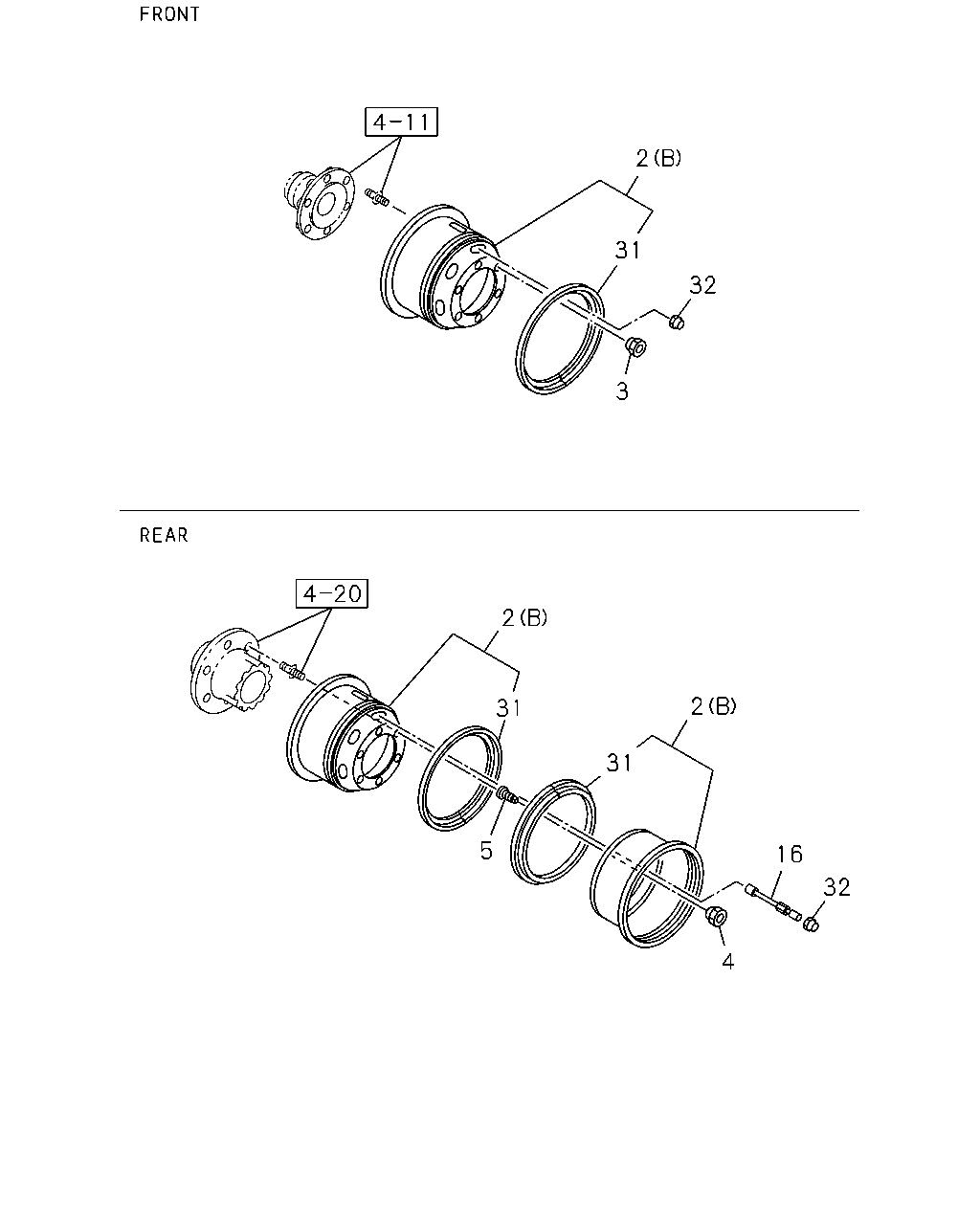

çizim 181135
2 31 32 3 2 2 31 31 5 16 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0809-0809
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0809-0809
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0810-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79> (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0810-
2 WHEEL; DISC
(B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0809-0809
2 WHEEL; DISC
WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0810-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 01 1 0810-0906
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00X17.5 135-9(SBG) EXC. DISC WHEEL SPARE<N79> (A) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 01 1 0810-0906
2 WHEEL; DISC
WHEEL 6STUD 6.00X17.5 135-9(SBG) (A) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE 		1-42350-770-0 06 1 0810-0906
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-767-0 01 1 0906-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-767-0 01 1 0906-
2 WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR 		1-42350-767-0 06 1 0906-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 0809-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 0809-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0809-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0809-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0809-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		1-42370-015-2 02 1 0809-0809
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115 		1-42370-015-2 02 1 0810-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115 		8-98167-051-0 02 1 1004-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0809-0809
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0809-0809
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0810-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL 6STUD 6.00GSX16 135-9(SG7) EXC. DISC WHEEL SPARE<N79> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0810-
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0809-0809
31 RING; SIDE,DISC WHEEL
WHEEL 6STUD 6.00GSX16 135-9(SG7) FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0810-
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0809-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 06 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
