◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#38656) — 25 parça

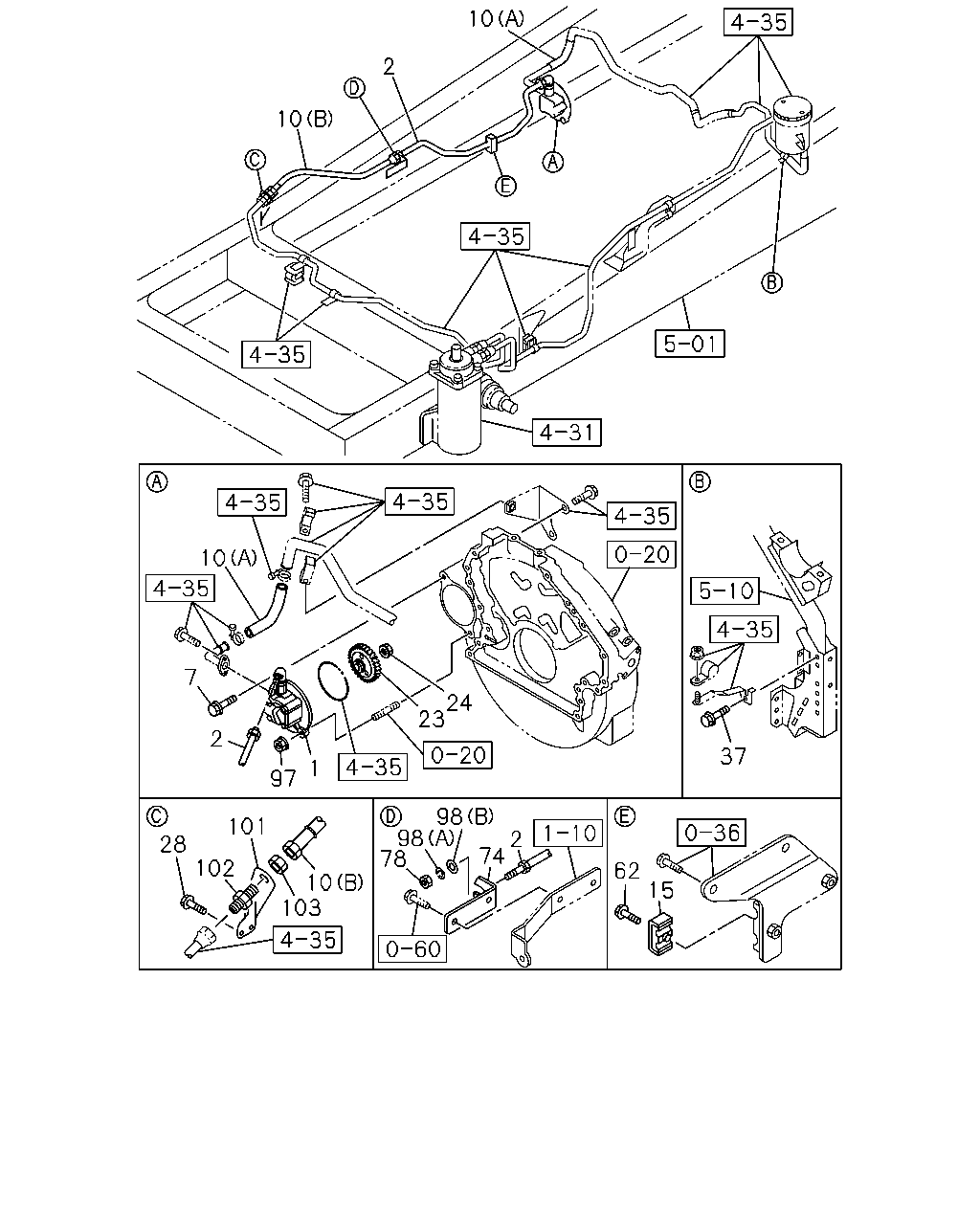

çizim 181147
10 2 10 10 7 24 23 2 37 1 97 98 98 78 101 2 74 28 102 62 10 103 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 0809-1101
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCC ENG(RDV) 		1-19500-636-1 01 1 1102-1102
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-636-1 01 1 1103-
2 PIPE ASM; OIL,SUCTION 8-98086-746-0 01 1 0809-
7 BOLT; OIL PUMP,P/S
M10X30 FLANGE 		0-28751-030-0 01 1 0809-
10 HOSE; FLEX,P/S OIL PUMP,INL
(A) 		1-21115-205-0 01 1 0809-
10 HOSE; FLEX,P/S OIL PUMP,INL
(B) L=500 		1-09364-957-2 01 1 0809-
15 CLIP; OIL PIPE SUCTION
ID=9 & 9 L=25 		1-09701-212-2 01 1 0809-
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 0809-1101
23 GEAR; OIL PUMP
4HK1-TCC ENG(RDV) Z=30 		8-94390-842-1 01 1 1102-1102
23 GEAR; OIL PUMP
Z=30 		8-94390-842-1 01 1 1103-
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 0809-1101
24 NUT; GEAR,P/S PUMP
4HK1-TCC ENG(RDV) M12 FLANGE 		0-91180-112-0 01 1 1102-1102
24 NUT; GEAR,P/S PUMP
M12 FLANGE 		0-91180-112-0 01 1 1103-
28 BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE 		0-28050-825-0 02 1 0809-
37 BOLT; P/S PUMP
M8X25 FLANGE 		0-28650-825-0 01 1 0809-
62 BOLT; CLIP
M6X30 FLANGE 		0-28650-630-0 01 1 0809-
74 BRACKET; PIPE 8-98060-044-1 01 1 0809-
78 NUT; BRKT
M20 		0-91111-520-0 01 1 0809-
97 NUT; OIL PUMP,P/S
M10 FLANGE 		0-91180-110-0 01 1 0809-
98 WASHER; LK,BRKT
(A) ID=20.2 		0-91510-620-0 01 1 0809-
98 WASHER; LK,BRKT
(B) ID=21 		0-91610-520-0 01 1 0809-
101 BRACKET; UNION 8-98076-297-0 01 1 0809-
102 UNION
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0809-
103 NUT; UNION
M22 		0-91111-522-0 01 1 0809-
