Sayfa 7-70 - Isuzu EPC

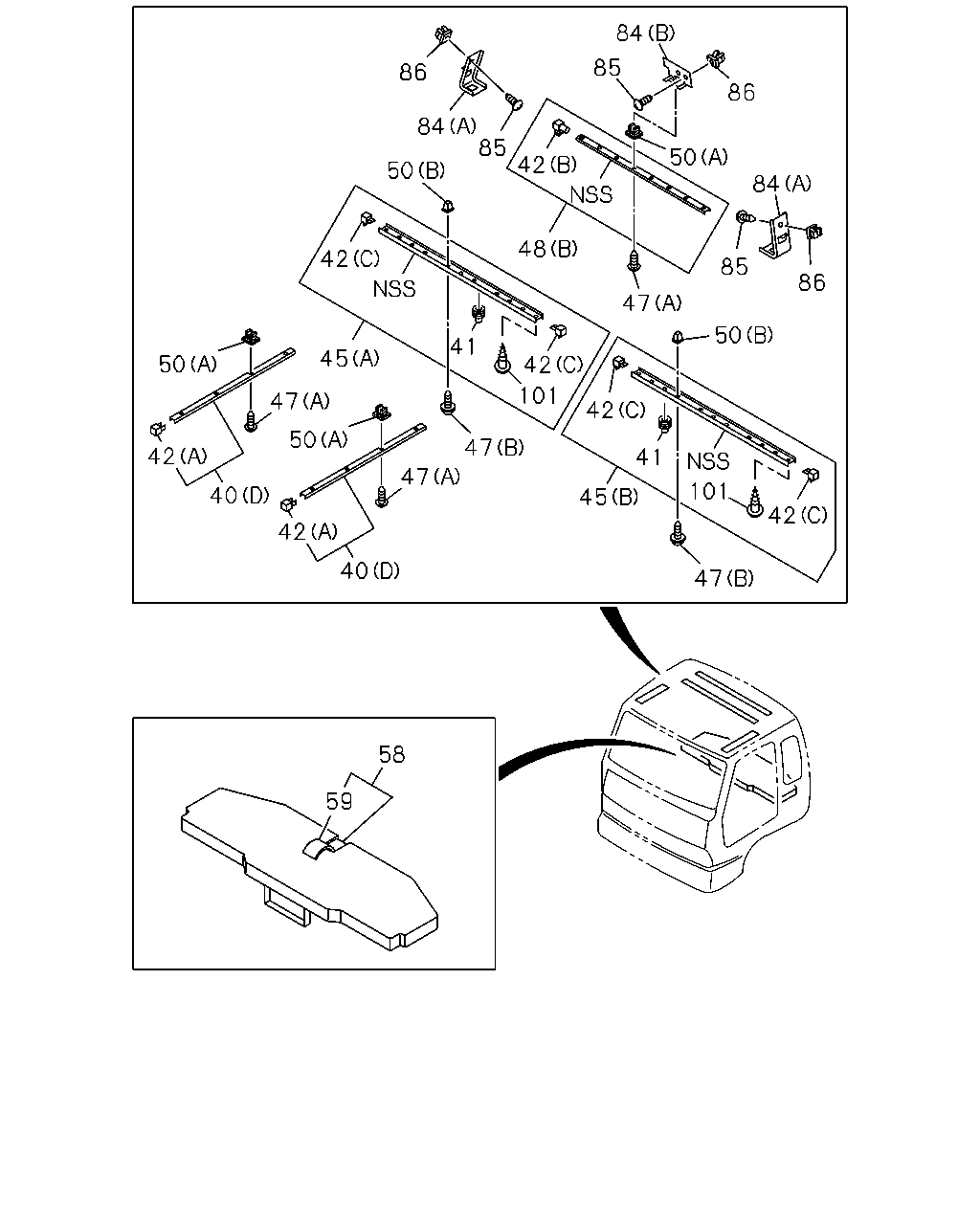

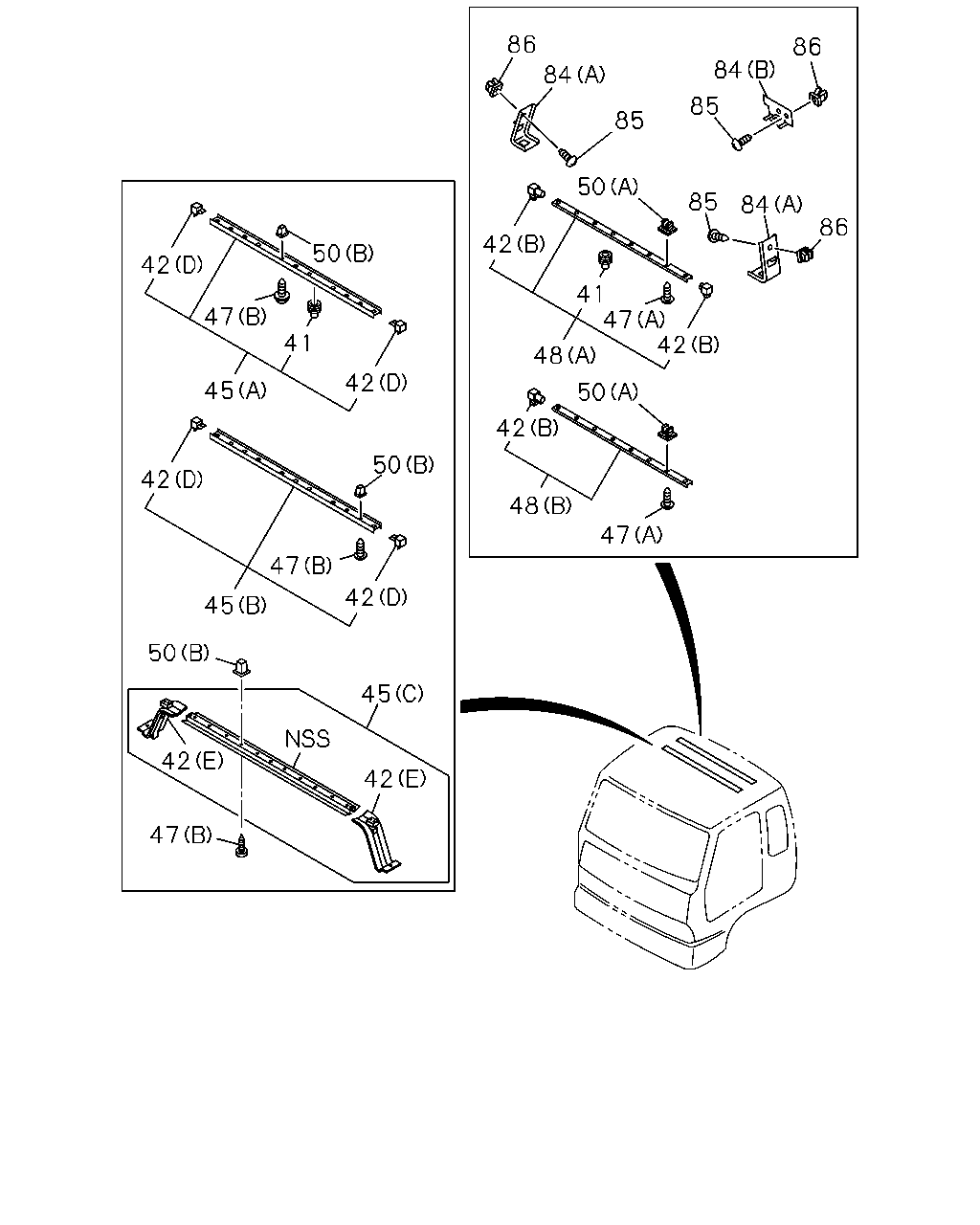

7-70 — SEPARATER AND BED (#3865) — 276 parça

86 86 84 84 85 85 50 85 84 86 42 50 42 41 47 47 42 41 48 42 45 50 42 50 42 48 47 47 42 45 50 45 42 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73907-449-2	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0212-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9601-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-303-3	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9601-0004	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73908-262-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0005-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9804-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9804-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9601-0004	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0005-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9601-0004	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0005-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0004	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0005-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9601-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9601-9803	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9804-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9601-9803	●	●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9804-	●	●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9804-	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9804-	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9804-	●	●

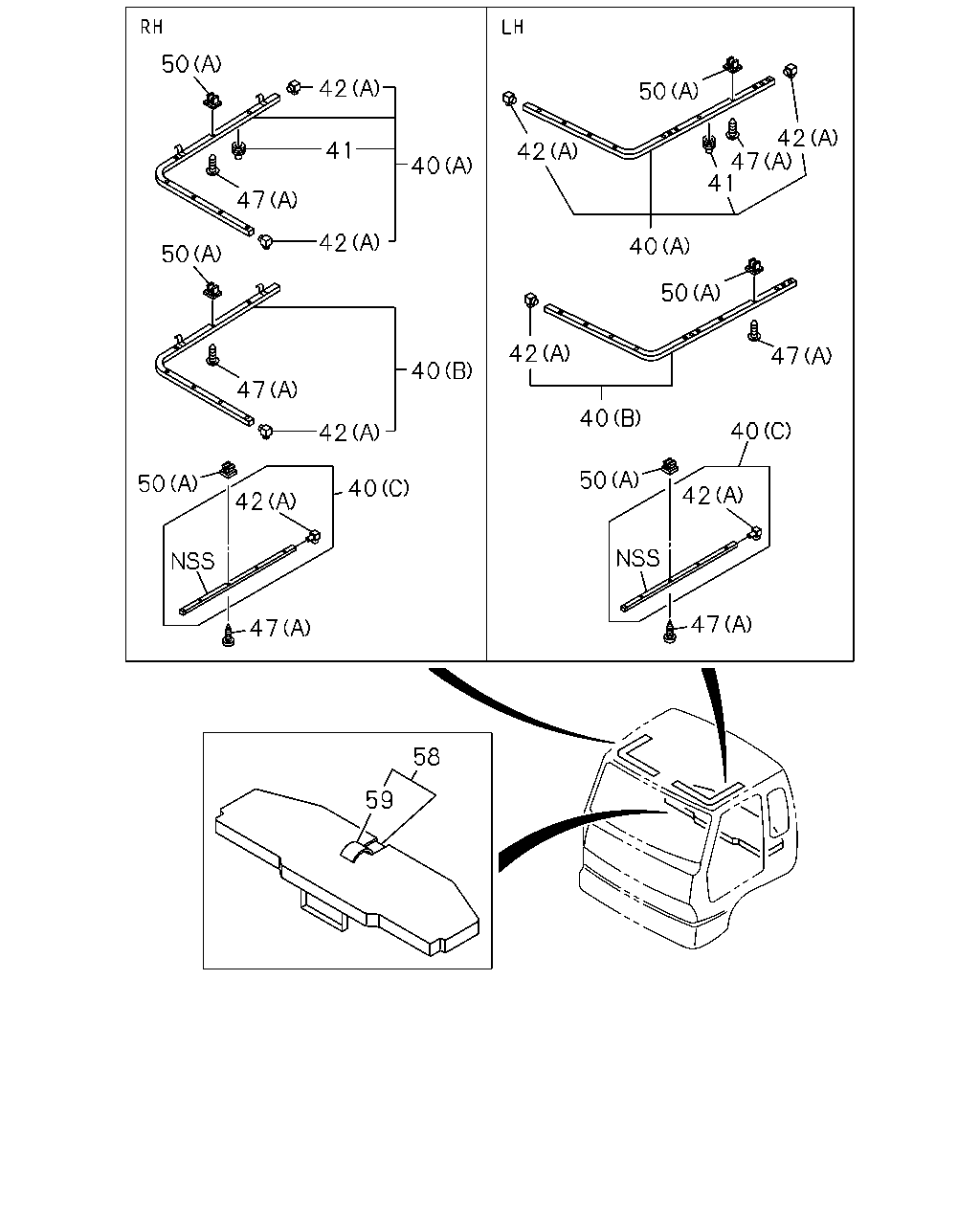

50 42 50 42 47 41 41 42 40 47 42 40 50 50 42 47 40 47 40 40 42 50 50 40 42 42 47 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-334-1	02	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0005-	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-220-0	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-380-1	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-219-0	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-379-0	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0005-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73907-449-2	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0212-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9804-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9804-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0004	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0005-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9601-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9601-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-	●	●

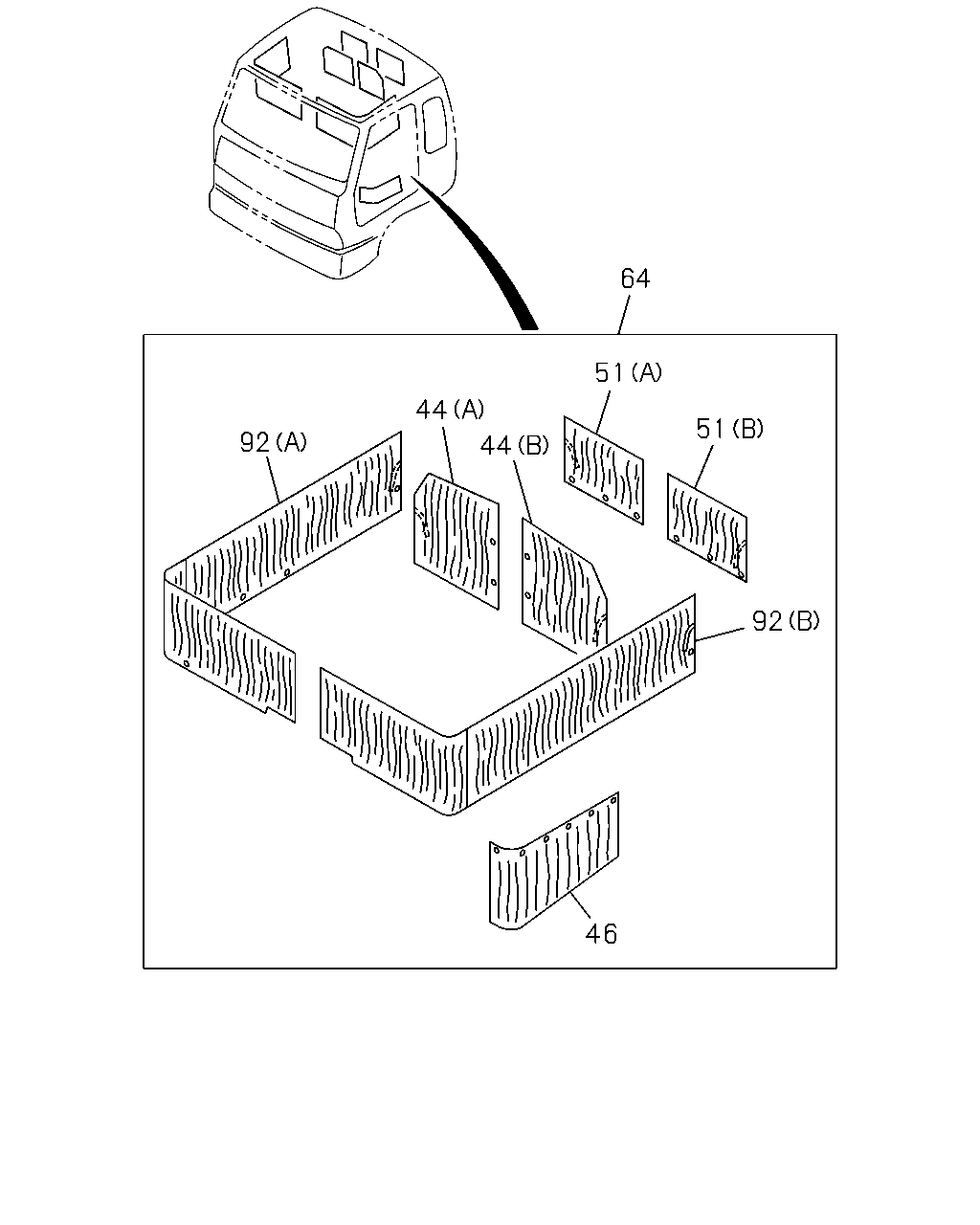

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-208-1	01	1	9601-	●	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73908-207-1	01	1	9601-	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	9601-0004	●	●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0005-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73908-211-1	01	1	9601-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73908-212-1	01	1	9601-	●	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-1	01	1	9601-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73908-216-1	01	1	9601-	●	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73908-215-1	01	1	9601-	●	●

84 85 86 86 84 85 50 42 50 84 48 42 85 86 47 50 41 45 50 42 101 47 42 50 47 42 41 47 101 40 45 42 42 40 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-1	01	1	9601-9803	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-334-1	02	1	9804-0004	●	●
40	RAIL; CURTAIN,SIDE HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-378-1	02	1	0005-	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-220-0	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-380-1	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73908-219-0	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE LOW ROOF<6XQ> (D)	1-73996-379-0	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-154-1	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-368-1	01	1	0005-	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-153-1	01	1	9601-0004	●	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-367-1	01	1	0005-	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	13	1	9601-9704	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 DARK GRAY	1-73996-105-0	13	1	9705-0004	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	13	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	32	1	0005-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	12	1	9705-9803	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 DARK GRAY	1-73996-105-0	14	1	9804-0004	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0005-0006	●	●
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0007-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0212-	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (D)	1-73907-279-2	02	1	9601-9803	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73907-449-2	02	1	9804-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (E)	1-73996-402-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-403-1	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (C)	1-73907-657-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL LOW ROOF<6XQ> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0005-	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73908-193-0	04	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0005-0211	●	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A)	1-73996-393-0	04	1	0212-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	9601-0004	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-150-0	01	1	9601-0004	●	●
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A)	1-73908-374-2	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-0	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-303-3	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C)	1-73996-369-1	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-148-0	01	1	9601-0004	●	●
45	RAIL; CURTAIN,FRT LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-373-1	01	1	0005-	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73996-101-4	01	1	9601-9803	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73908-262-0	01	1	9804-0004	●	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C)	1-73996-370-1	01	1	0005-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	21	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	30	1	9704-9803	●	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20	5-09981-059-0	25	1	9804-	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> (B) M5X25	5-09981-093-0	09	1	9601-9703	●	●
47	SCREW; CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	9804-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (A) M5X20	5-09981-059-0	17	1	9601-	●	●
47	SCREW; CURTAIN RAIL LOW ROOF<6XQ> (B) M5X25	5-09981-093-0	07	1	9601-9803	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	9804-	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-3	01	1	9601-0004	●	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0005-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-0	01	1	9601-0004	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0005-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (B) D=8X8 L=13 M5	1-09983-159-0	09	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	21	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	21	1	9709-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	9804-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	9601-9803	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	9804-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0212-	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	17	1	9601-9708	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	9709-0004	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0005-0211	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0212-0212	●	●
50	GROMMET; SCREW,CURTAIN RAIL LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5	8-94279-078-0	17	1	0212-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-226-1	01	1	9601-0003	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-521-0	01	1	0004-0004	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-522-1	01	1	0005-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-231-0	01	1	9601-0003	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-668-0	01	1	0004-0004	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-669-1	01	1	0005-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	9601-	●	●
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	02	1	9601-9803	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9804-	●	●
84	BRACKET; CURTAIN RAIL LOW ROOF<6XQ> (B)	1-73998-987-4	07	1	9601-9803	●	●
85	SCREW; BRKT HIGH ROOF<S2F> M5X20	5-09981-059-0	04	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	9804-	●	●
85	SCREW; BRKT LOW ROOF<6XQ> M5X20	5-09981-059-0	09	1	9601-9803	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9804-	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	04	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9804-	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	09	1	9601-9708	●	●
86	GROMMET; SCREW,BRKT LOW ROOF<6XQ> D=8.6X7.7 L=7.5	8-94279-078-0	09	1	9709-9803	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9804-	●	●
101	SCREW; STOPPER LOW ROOF<6XQ>	1-73907-400-0	02	1	0005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
