3-78 — FIXING PARTS; AIR PIPING (#38646) — 67 parça

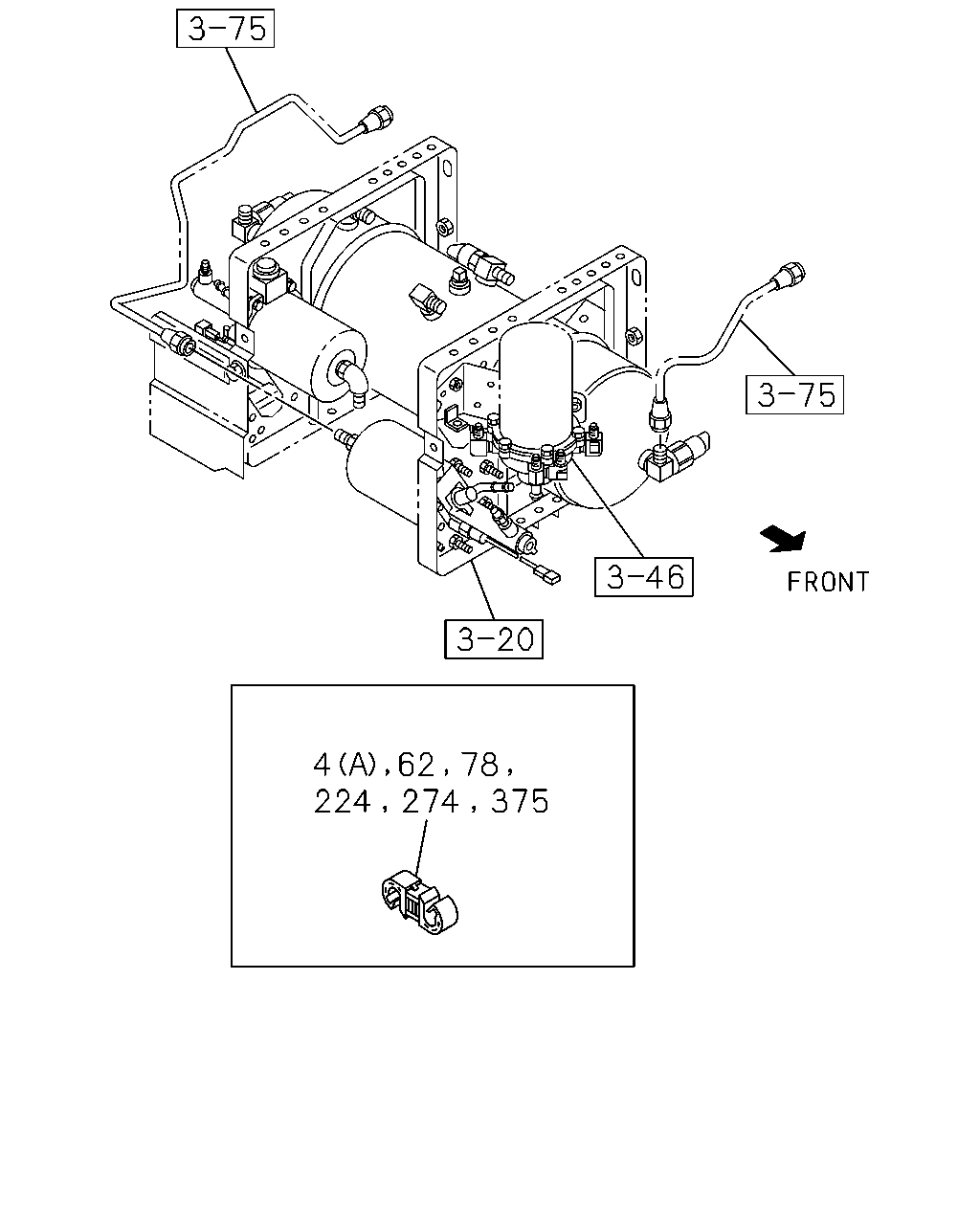

4 62 78 224 274 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0809-0901
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0809-0901
62	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0809-0809
62	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0810-0901
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	0809-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0809-0901
224	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=10 & 10	1-09709-277-1	01	1	0902-
224	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0809-0901
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 12	1-09709-275-1	01	1	0809-0901
224	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=6.35 & 10.0	1-09709-274-1	01	1	0902-
274	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	01	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	03	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=10 & 10	1-09709-277-1	05	1	1510-
274	CLIP; AIR PIPE THROTTLE CONTROL SYSTEM(6XH) ID=4.76 & 10.0	1-09709-305-0	01	1	1510-
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=6.35 & 10.0	1-09709-274-1	01	1	0809-0901
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> ID=6.35 & 10.0	1-09709-274-1	02	1	0902-1509
274	CLIP; AIR PIPE H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) ID=6.35 & 10.0	1-09709-274-1	02	1	1510-
375	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0809-0901

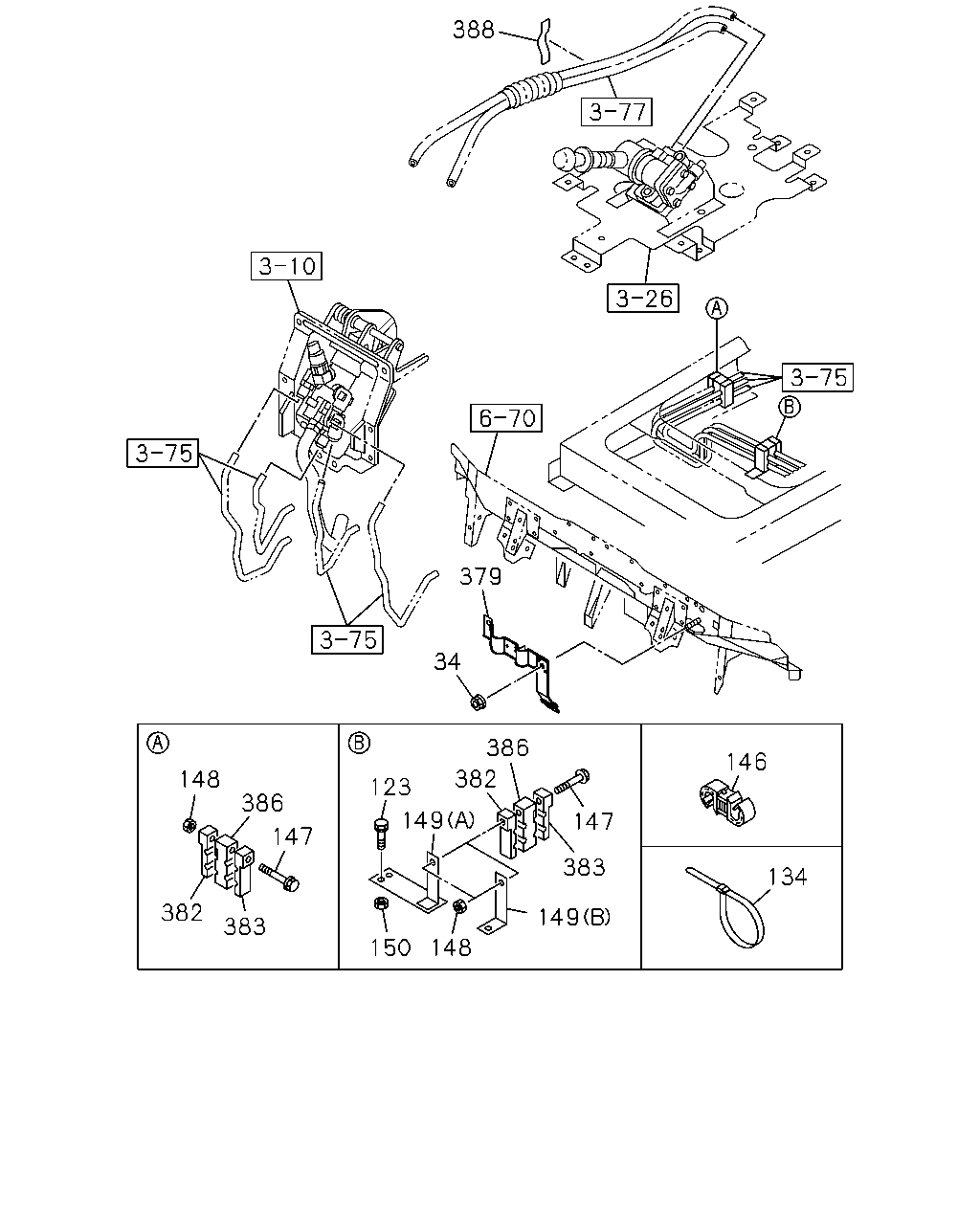

388 379 34 386 146 382 148 123 386 149 147 147 383 134 382 149 383 148 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	0809-
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0809-
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0809-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	0809-1011
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	1012-
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	03	1	0809-1011
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	1012-
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	0809-
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0809-
149	BRACKET; PIPE CLIP (A)	8-98090-114-0	01	1	0809-
149	BRACKET; PIPE CLIP (B)	8-98116-193-0	01	1	0809-
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0809-
379	BRACKET; NYLON TUBE	8-98112-515-1	01	1	0809-
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	0809-
383	CLIP; LWR ID=10 & 10	1-09709-241-0	04	1	0809-
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	0809-
388	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	0809-

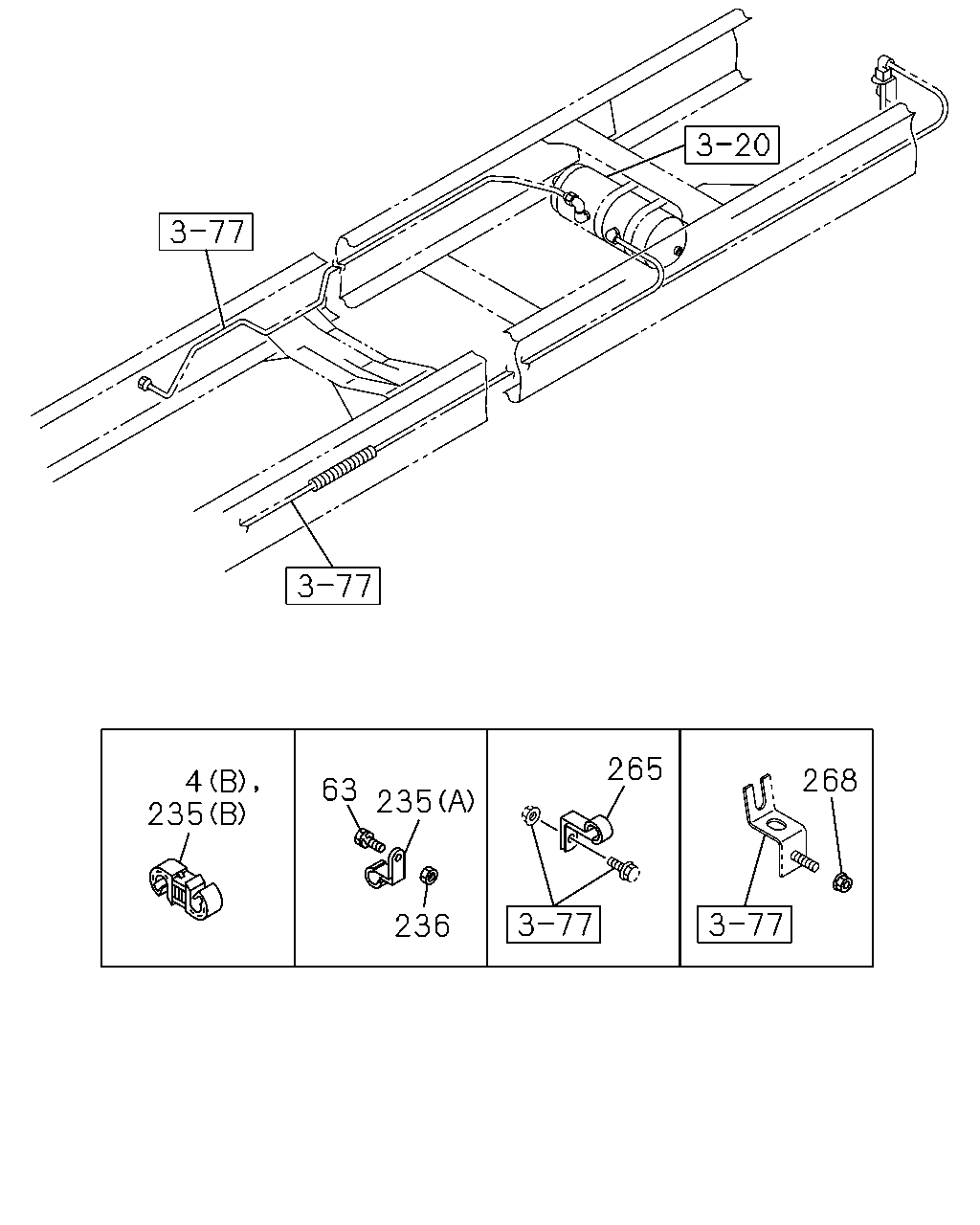

265 268 4 235 63 235 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-0901
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0902-
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	02	1	0809-0901
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	03	1	0902-
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	0809-0901
63	BOLT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0809-0810
63	BOLT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0811-
63	BOLT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	04	1	0809-0810
63	BOLT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0811-
63	BOLT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	05	1	0809-0810
63	BOLT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	06	1	0811-
235	CLIP; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	0809-1509
235	CLIP; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (B) ID=6.35 & 10.0	1-09709-274-1	01	1	1510-
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0809-0810
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	03	1	0811-
235	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	04	1	0809-0810
235	CLIP; AIR PIPE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0811-
235	CLIP; AIR PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	05	1	0809-0810
235	CLIP; AIR PIPE WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 H=20 L=20	8-98033-780-0	06	1	0811-
236	NUT; CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0809-0810
236	NUT; CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0811-
236	NUT; CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0809-0810
236	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0811-
236	NUT; CLIP WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	05	1	0809-0810
236	NUT; CLIP WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	06	1	0811-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	0809-
268	NUT; CLIP BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0809-
268	NUT; CLIP BRKT WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-
