3-77 — BRAKE PIPING; AIR,REAR (#38645) — 109 parça

318 97 144 37 98 37 223 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0809-0906
37	UNION; AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0907-1011
37	UNION; AIR PIPE MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1012-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0809-
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0809-
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42	0-92123-010-0	01	1	0809-
98	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0809-
144	PIPE; AIR,UNION TO UNION MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	0809-0906
144	PIPE; AIR,UNION TO UNION MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	0907-1011
144	PIPE; AIR,UNION TO UNION MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250	1-47428-876-0	01	1	1012-
144	PIPE; AIR,UNION TO UNION MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550	1-47428-879-0	01	1	0809-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0809-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	0809-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0809-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=593 SERVICED BY L=600	1-47428-868-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1158 SERVICED BY L=1250	1-47428-876-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1458 SERVICED BY L=1550	1-47428-879-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=1788 L=1783	1-47428-881-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) L=2118 SERVICED BY L=2500	1-47428-883-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=537 SERVICED BY L=550	1-47428-867-0	01	1	0809-1509
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=537 SERVICED BY L=550	1-47428-867-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1076 SERVICED BY L=1100	1-47428-875-0	01	1	0809-1509
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1076 SERVICED BY L=1100	1-47428-875-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1376 SERVICED BY L=1400	1-47428-878-0	01	1	0809-1509
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1376 SERVICED BY L=1400	1-47428-878-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1705 L=1783	1-47428-881-0	01	1	0809-1509
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=1705 L=1783	1-47428-881-0	01	1	1510-
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2035 SERVICED BY L=2100	1-47428-882-0	01	1	0809-1509
318	PIPE; AIR,UNION TO AIR TANK WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) L=2035 SERVICED BY L=2100	1-47428-882-0	01	1	1510-

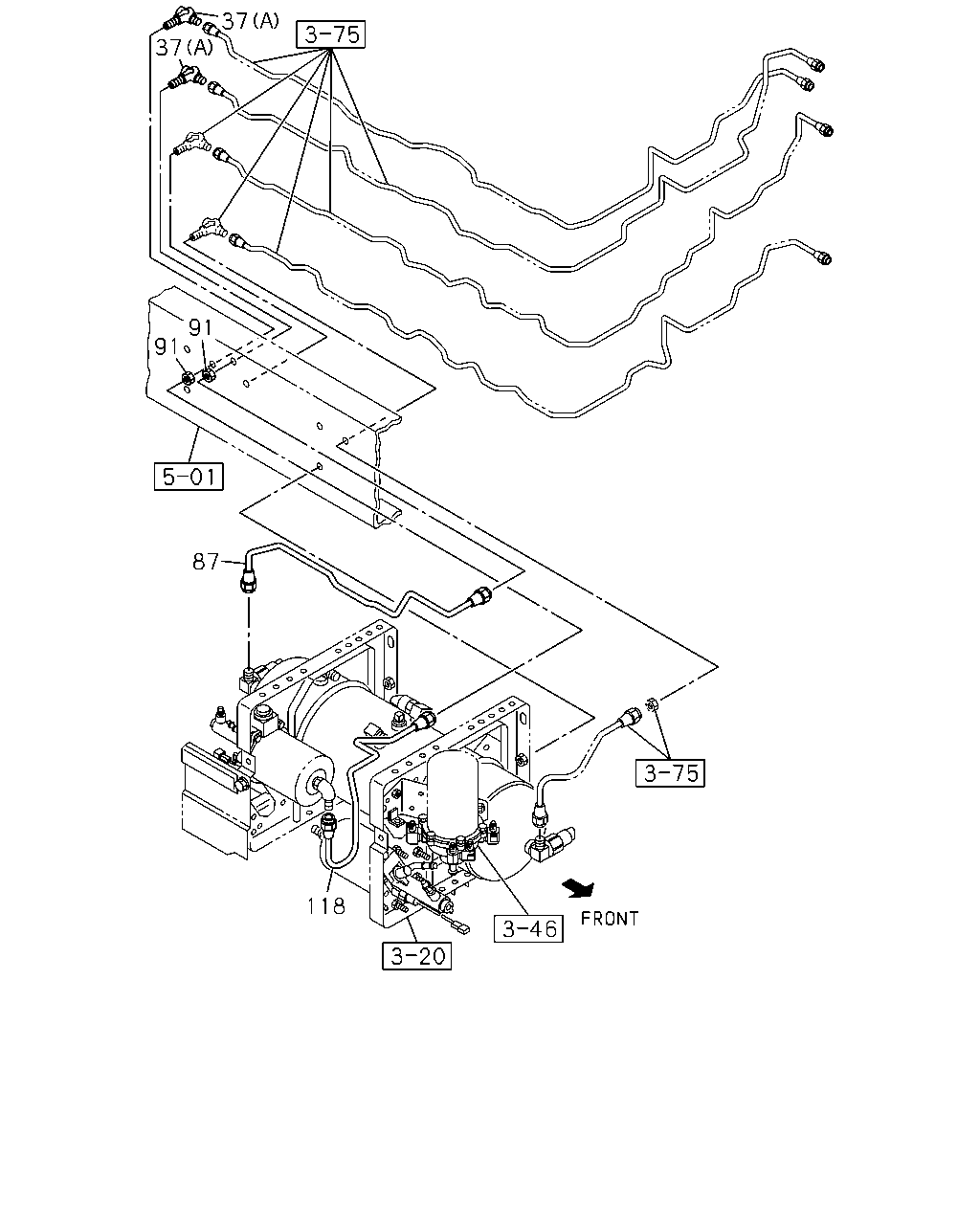

37 37 91 91 87 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0809-0906
37	UNION; AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0907-1011
37	UNION; AIR PIPE MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1012-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0809-
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0809-
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0809-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0809-
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP> L=692 SERVICED BY L=700	1-47428-870-0	01	1	0809-1509
118	PIPE; AIR,UNION TO AIR MASTER EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700	1-47428-870-0	01	1	1510-

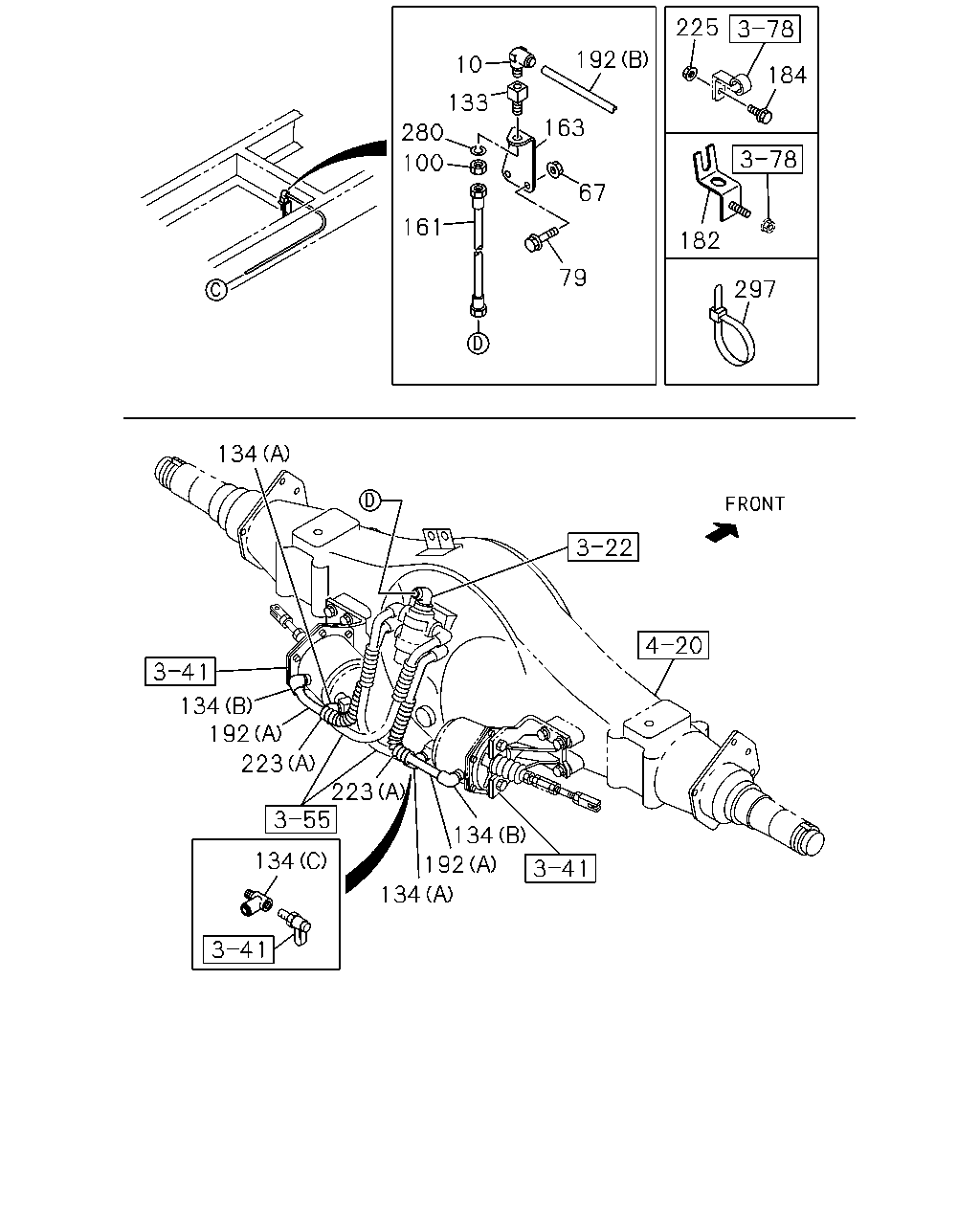

10 192 225 184 182 297 79 67 163 133 280 161 100 134 134 192 134 134 223 223 192 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0809-
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0809-
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0809-
100	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	0-91111-516-0	01	1	0809-
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09654-258-2	01	1	0809-1111
133	UNION; NIPPLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT	8-98202-001-0	01	1	1112-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (C) DIN12 & R3/8 & RC1/4 3WAY	1-09660-845-0	01	1	1510-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1510-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-1509
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1510-
134	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW	1-09661-234-0	02	1	0809-
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460	1-09363-963-0	01	1	0809-
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98044-842-0	01	1	0809-
182	BRACKET; TUBE CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	01	1	0809-
182	BRACKET; TUBE CLIP WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98096-272-0	02	1	0809-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0809-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0809-
223	TUBE; CORRUGATE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7	1-87411-016-0	02	1	0809-
223	TUBE; CORRUGATE (B) SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
223	TUBE; CORRUGATE (B) SERVICED BY L=6000 ID=15	1-87411-037-0	AR	1	0809-
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-1107
280	WASHER; LK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16.2	0-91510-816-0	01	1	0809-0809
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	05	1	0809-1109
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	05	1	0809-1109
297	CLIP; BAND WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	1110-
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	08	1	0809-1109
297	CLIP; BAND WHEEL BASE 4300MM(43W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	1110-
297	CLIP; BAND WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	09	1	0809-1109
297	CLIP; BAND WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	1110-
297	CLIP; BAND WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	10	1	0809-1109
297	CLIP; BAND WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	11	1	0809-1109
297	CLIP; BAND WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	13	1	1110-
297	CLIP; BAND WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	11	1	0809-1109
297	CLIP; BAND WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	12	1	0809-1109
297	CLIP; BAND WHEEL BASE 5300MM(53W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350	1-09707-183-0	14	1	1110-

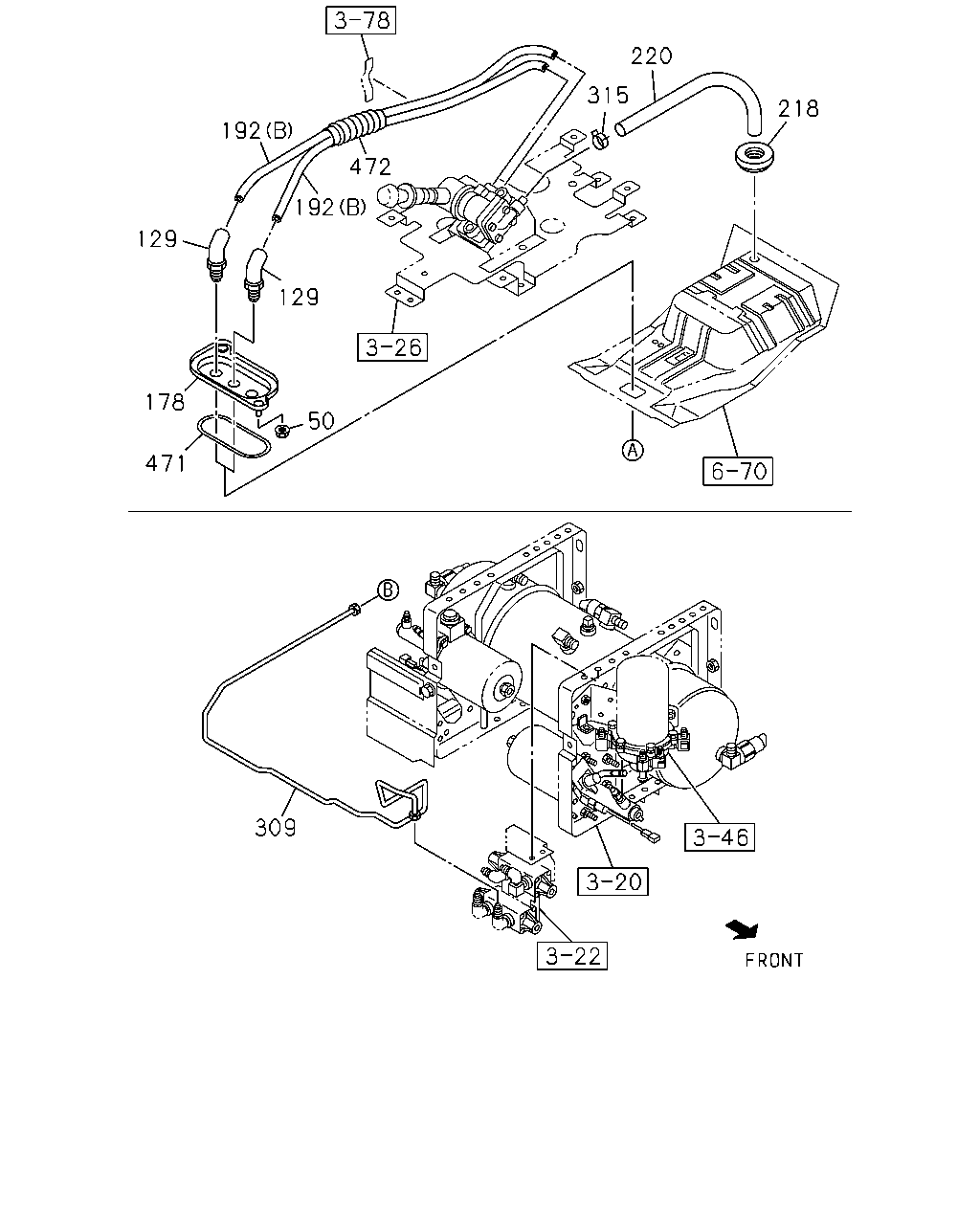

218 220 315 192 192 129 129 178 471 50 309 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	0809-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-054-1	01	1	0809-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98017-052-1	01	1	0809-
192	TUBE; NYLON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0809-
192	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0809-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0809-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0809-
309	PIPE; AIR,MPV TO UNION MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0809-0906
309	PIPE; AIR,MPV TO UNION MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	0907-1011
309	PIPE; AIR,MPV TO UNION MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550	1-47428-879-0	01	1	1012-
309	PIPE; AIR,MPV TO UNION MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660	1-47428-869-0	01	1	0809-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	8-94238-572-0	01	1	0809-
471	SEAL; BRKT	1-79738-832-0	01	1	0809-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0809-

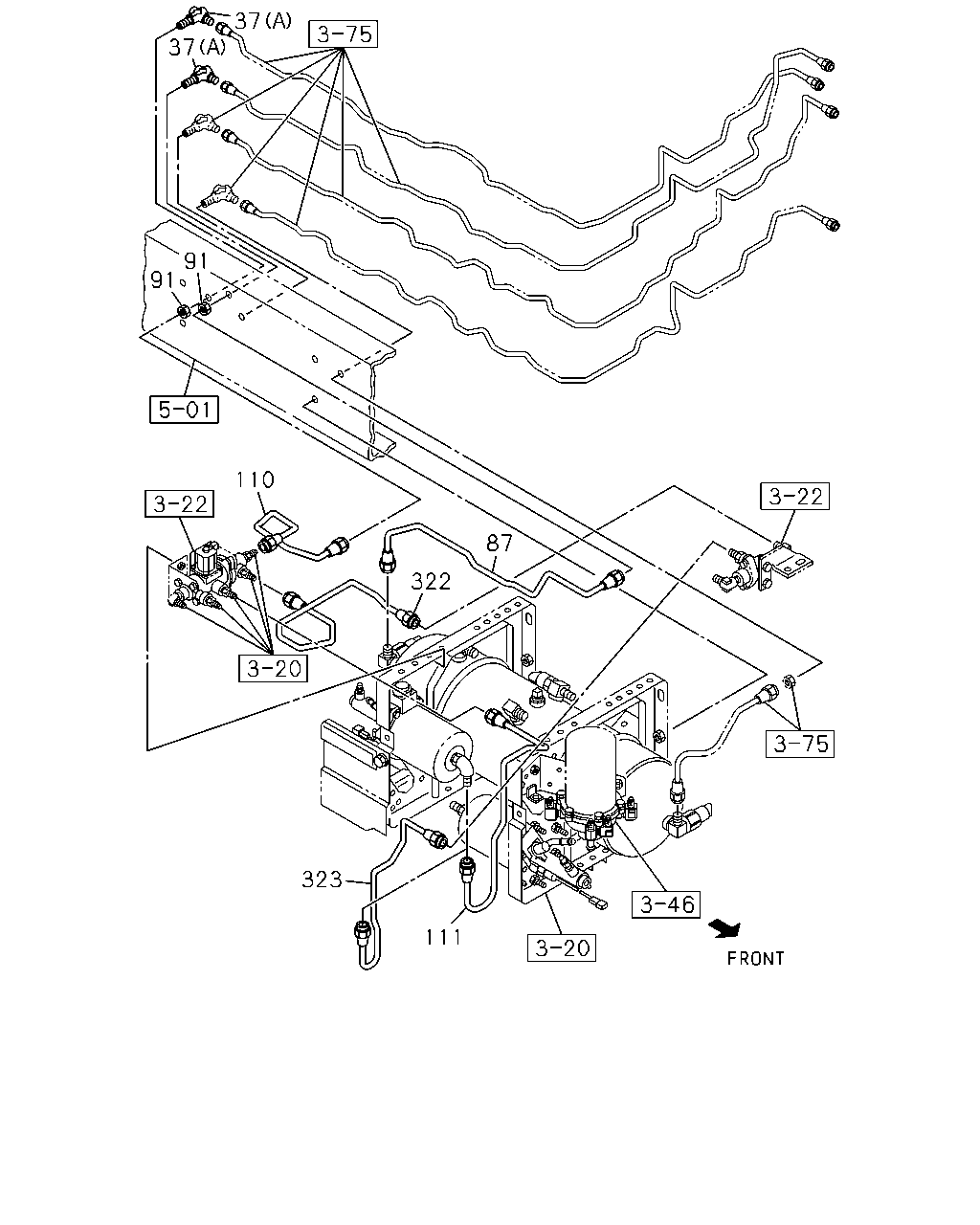

110 87 322 323 111 91 91 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0809-0906
37	UNION; AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	0907-1011
37	UNION; AIR PIPE MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74	0-92123-310-0	01	1	1012-
37	UNION; AIR PIPE MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW	0-92135-210-0	01	1	0809-
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	0809-
87	PIPE; AIR,AIR TANK TO UNION L=700 SERVICED BY L=700	1-47428-870-0	01	1	0809-
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	0809-
110	PIPE; AIR,UNION TO VLV H.S.A SYSTEM<6EP> L=473	8-98067-756-0	01	1	0809-
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> L=554 SERVICED BY L=600	1-47428-868-0	01	1	0809-1509
111	PIPE; AIR,VLV TO AIR MASTER H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600	1-47428-868-0	01	1	1510-
322	PIPE; AIR,HSA VLV TO DBL CHK VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700	1-47428-870-0	01	1	1510-
323	PIPE; AIR,DBL CHK VLV THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600	1-47428-868-0	01	1	1510-
