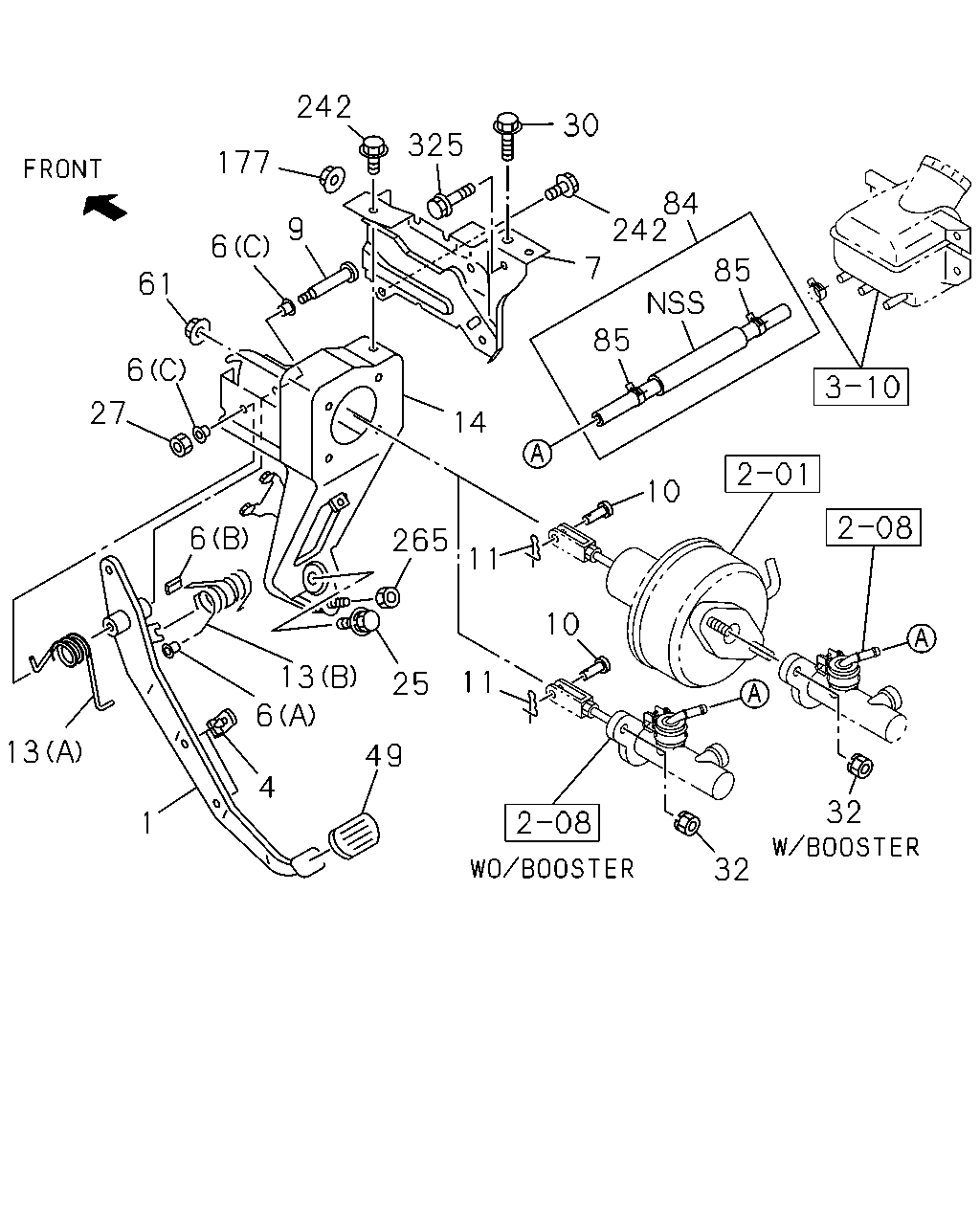

2-03 — CLUTCH PEDAL AND CONTROL (#38641) — 27 parça

242 30 325 177 84 242 7 9 6 85 61 85 6 27 14 10 6 265 11 10 11 13 25 6 13 49 4 32 1 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.830 PEDAL; CLU POWER ASSIST CLUTCH(S2T)	8-97853-220-2	01	1	0608-	●	●
1	00.830 PEDAL; CLU EXC. POWER ASSIST CLUTCH(S2T)	8-97853-219-2	01	1	0608-	●	●
4	00.829 STOPPER; CLU PEDAL	8-97853-534-1	02	1	0608-	●	●
6	00.831 BUSHING; CLU PEDAL 04.792 (C)	8-94238-596-0	02	1	0608-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97853-619-0	02	1	0608-	●	●
6	00.831 BUSHING; CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-620-0	01	1	0608-	●	●
7	00.829 BRACKET; CLU PEDAL	8-97853-522-5	01	1	0608-	●	●
9	00.833 PIN; CLU PEDAL 04.634	8-97866-667-0	01	1	0608-	●	●
10	00.833 PIN; CLU PEDAL 04.634	8-94410-276-0	01	1	0608-	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL 04.634	8-94279-912-0	01	1	0608-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH(S2T) (A)	8-97853-535-1	01	1	0608-	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97853-221-1	01	1	0608-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH(S2T)	8-97892-849-3	01	1	0608-	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG EXC. POWER ASSIST CLUTCH(S2T)	8-97892-848-3	01	1	0608-	●	●
25	00.833 BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	01	1	0608-	●	●
27	00.833 NUT; FULCRUM PIN M10 FLANGE	1-09440-022-0	01	1	0608-	●	●
30	00.829 BOLT; CLU MTG BRKT 07.833 M10X25 FLANGE	0-28661-025-0	01	1	0608-	●	●
32	00.777 NUT; BRKT TO CLU M/CYL M8 W/LK WASHER	8-94279-050-0	02	1	0608-	●	●
49	00.829 RUBBER; PAD,CLU PEDAL	8-97853-413-2	01	1	0608-	●	●
61	00.777 NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER	8-94279-050-0	04	1	0608-	●	●
84	00.785 HOSE; RUBBER,CLU LINE	8-97135-025-0	01	1	0608-	●	●
85	00.785 CLIP; HOSE TO M/CYL 04.681	8-97130-480-0	02	1	0608-	●	●
177	00.785 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	0608-	●	●
242	00.785 BOLT; BRKT,CLUTCH 03.604 M8X16 FLANGE	0-28450-816-0	02	1	0608-	●	●
265	00.777 NUT; BRKT,COLUMN SUPT TO C.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	0608-0610	●	●
265	00.777 NUT; BRKT,COLUMN SUPT TO C.PDL 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-	●	●
325	00.782 BOLT; BRKT,STRG SUPPORT 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0608-	●	●
