Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶
1-56 — EXHAUST BRAKE SYSTEM
(#38639) — 28 parça
Tümü
A - NPC5SF
B - NPN5SF
◀
[156A] (NO.2) (4 parça)
[156A] (NO.3) (14 parça)
[156A] (NO.1) (10 parça)
▶

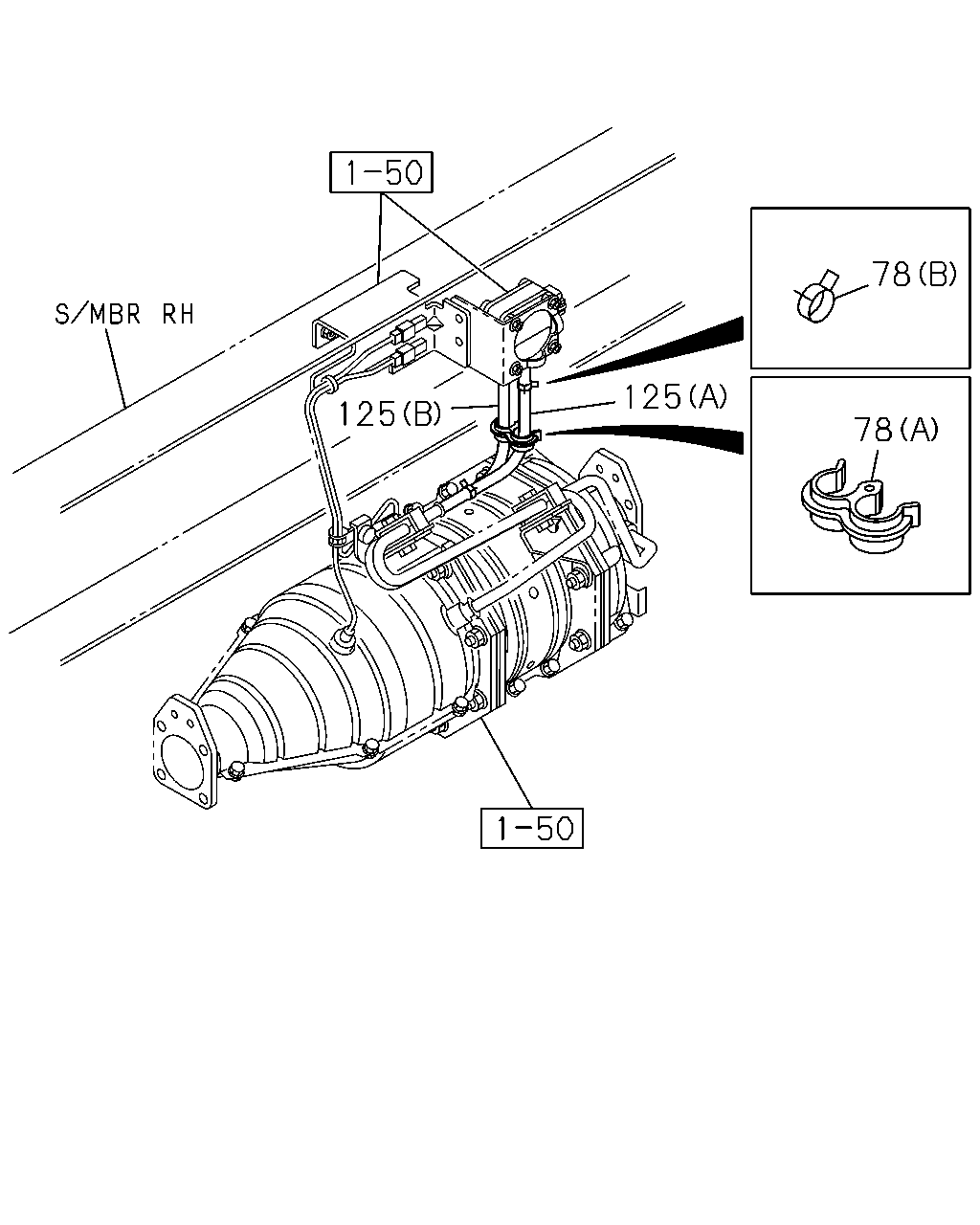

78
125
125
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
78
03.636 CLIP; HOSE
03.162 (A)
8-97173-119-0
01
1
0608-
●
●
78
03.636 CLIP; HOSE
03.162 (B) ID=13
8-97329-627-0
04
1
0608-
●
●
125
03.630 HOSE; DPD
03.163 (B) L=250 SERVICED BY L=3000
0-01558-300-0
01
1
0608-
●
●
125
03.630 HOSE; DPD
03.163 (A) L=220 SERVICED BY L=3000
0-01560-300-0
01
1
0608-
●
●

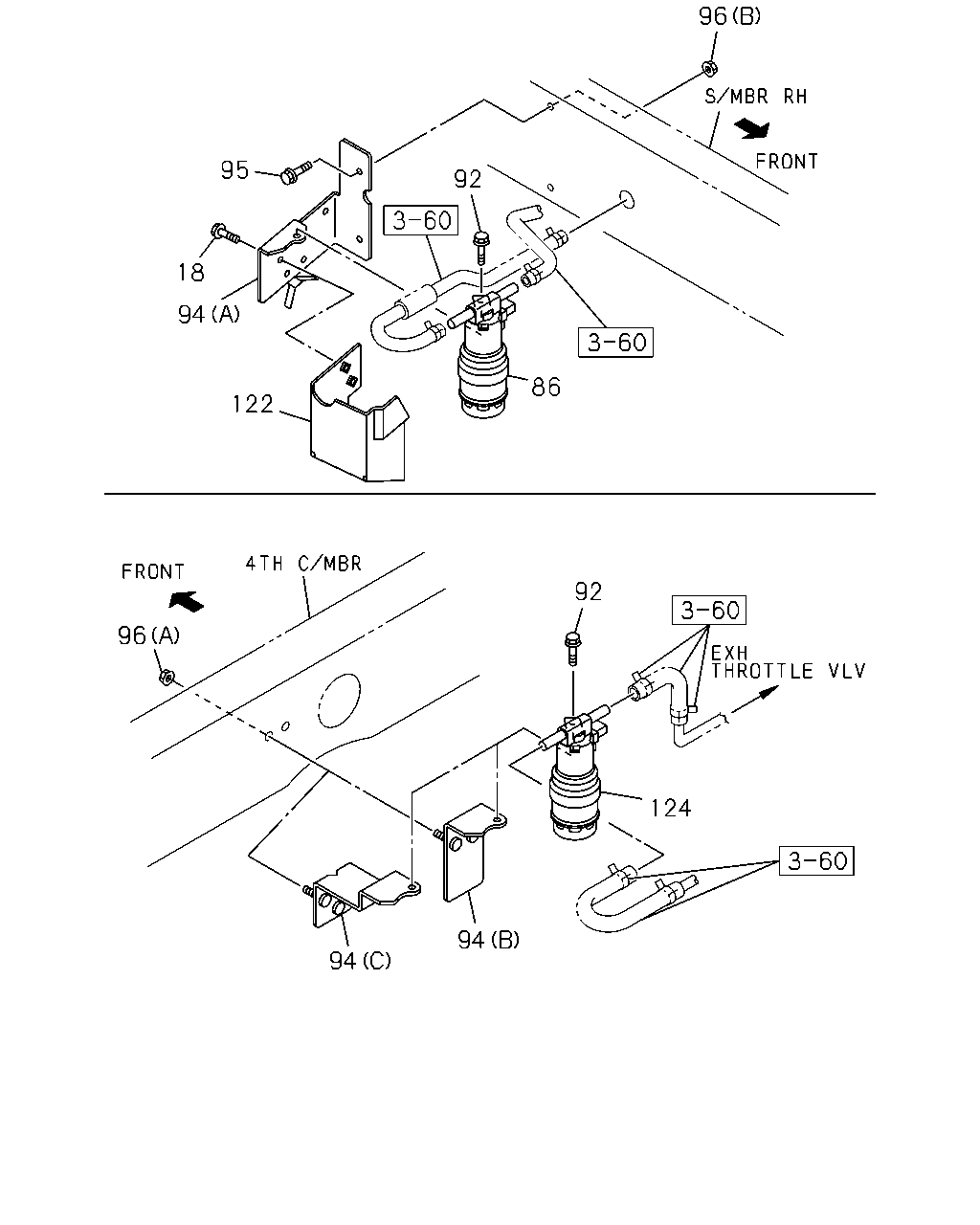

96
95
92
18
94
86
122
92
96
124
94
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
03.636 BOLT; PROTECTOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
0608-
●
●
86
03.636 VALVE; MAG,EXH BRK
8-97328-576-0
01
1
0608-0609
●
●
86
03.636 VALVE; MAG,EXH BRK
8-98043-344-0
01
1
0610-
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
92
08.900 BOLT; MAG VLV
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0608-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(C)
8-98036-835-0
01
1
0608-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(A)
8-98023-731-3
01
1
0608-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
(B)
8-97370-884-1
01
1
0608-
●
95
03.636 BOLT; BRKT,MAG VLV,EXH BRAKE
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0608-
●
●
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0608-
●
●
96
03.636 NUT; BRKT,MAG VLV,EXH BRAKE
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
0608-
●
●
122
03.640 PROTECTOR; MAG VLV
8-98022-052-0
01
1
0608-
●
●
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-97328-576-0
01
1
0608-0609
●
●
124
03.636 VALVE; MAG,DPD EXH THROTTLE
8-98043-344-0
01
1
0610-
●
●

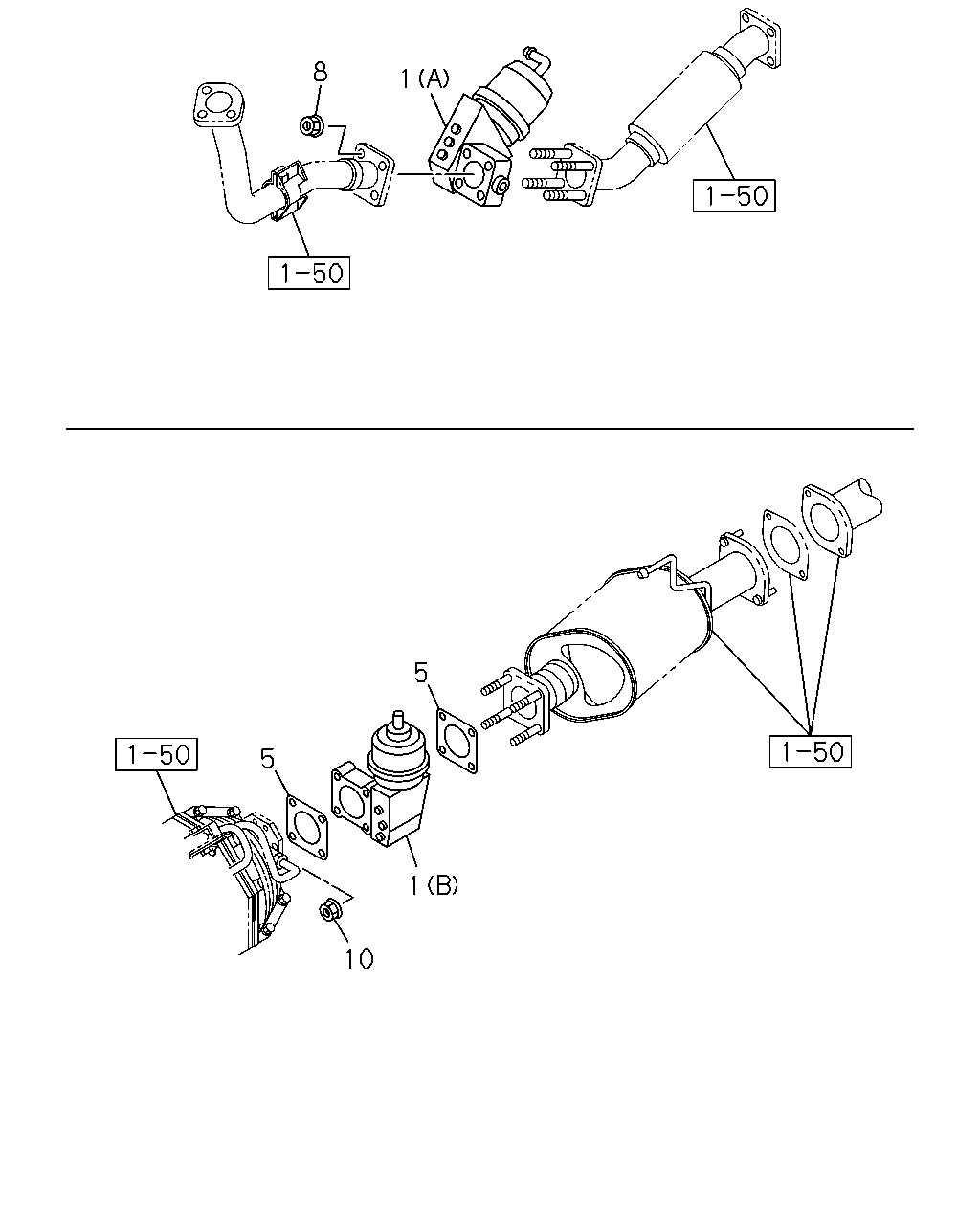

8
1
5
5
1
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.632 BRAKE UNIT; EXH
(A)
8-97384-097-1
01
1
0608-0610
●
●
1
03.632 BRAKE UNIT; EXH
(A)
8-98062-604-0
01
1
0611-0611
●
●
1
03.632 BRAKE UNIT; EXH
(A)
8-98068-178-1
01
1
0612-
●
●
1
03.632 BRAKE UNIT; EXH
(B)
8-97384-098-2
01
1
0608-1012
●
●
1
03.632 BRAKE UNIT; EXH
(B)
8-98167-677-1
01
1
1101-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
03.611 ID=64
8-97373-108-0
02
1
0608-
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
07.833 M8 W/LK WASHER
8-94327-073-0
04
1
0608-0805
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0806-
●
●
10
03.634 NUT; BRKT,EXH BRAKE
07.833 M8 W/LK WASHER
8-94327-073-0
04
1
0608-0805
●
●
10
03.634 NUT; BRKT,EXH BRAKE
03.417 M8 W/LK WASHER
8-97581-234-0
04
1
0806-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
