◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#38637) — 150 parça

2 44 25 44 43 568 1 36 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-98005-237-0	01	1	0608-	●	●
1	03.609 PIPE; EXH (A)	8-98026-060-0	01	1	0608-	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0608-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98026-062-2	01	1	0608-	●	●
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0608-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0608-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0608-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0608-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0608-	●	●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0608-	●	●

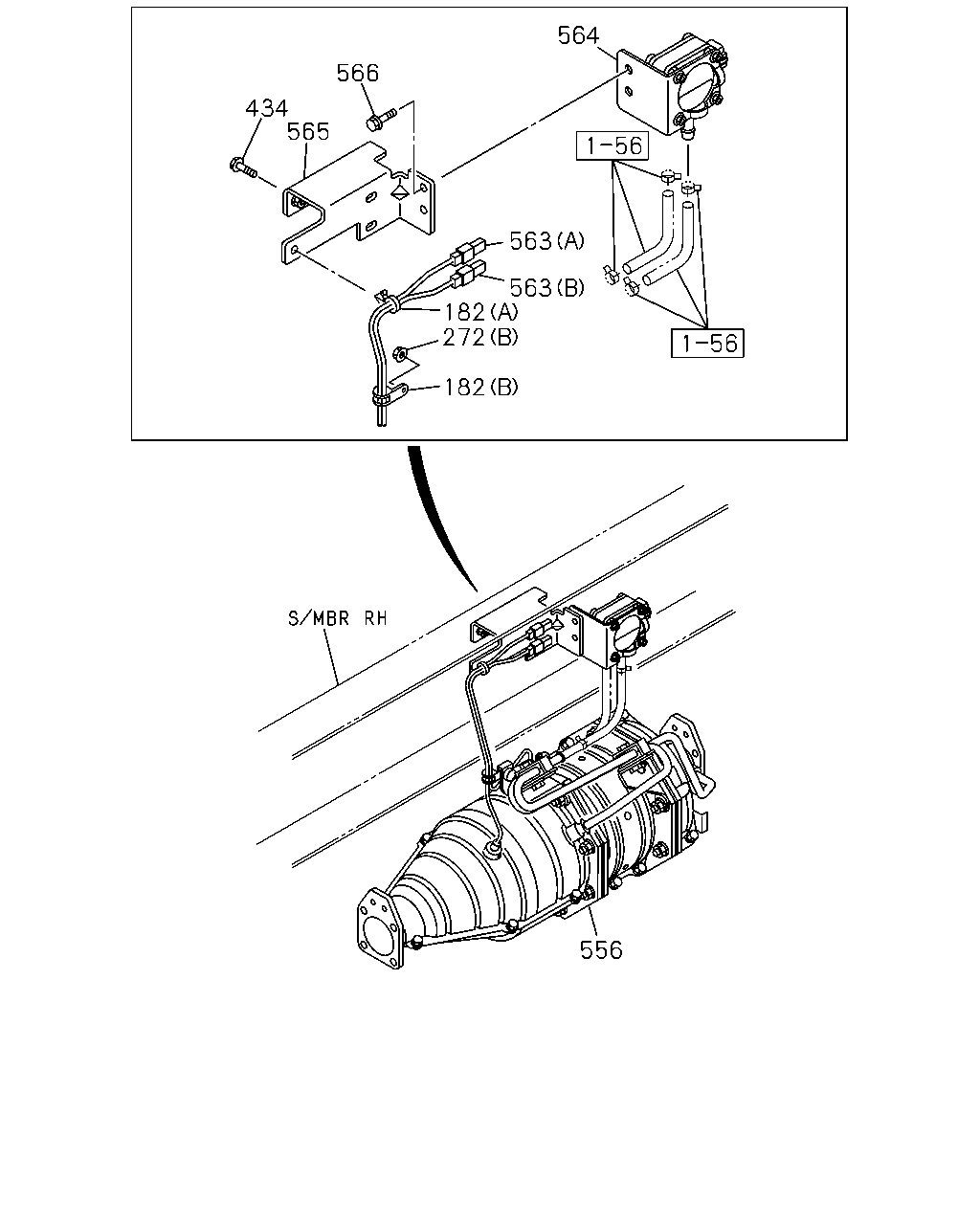

564 566 434 565 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0608-	●	●
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0608-	●	●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	0608-	●	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0608-	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0608-1011	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0608-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0608-	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97360-368-2	01	1	0608-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE	8-98020-036-1	01	1	0608-	●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0608-	●	●

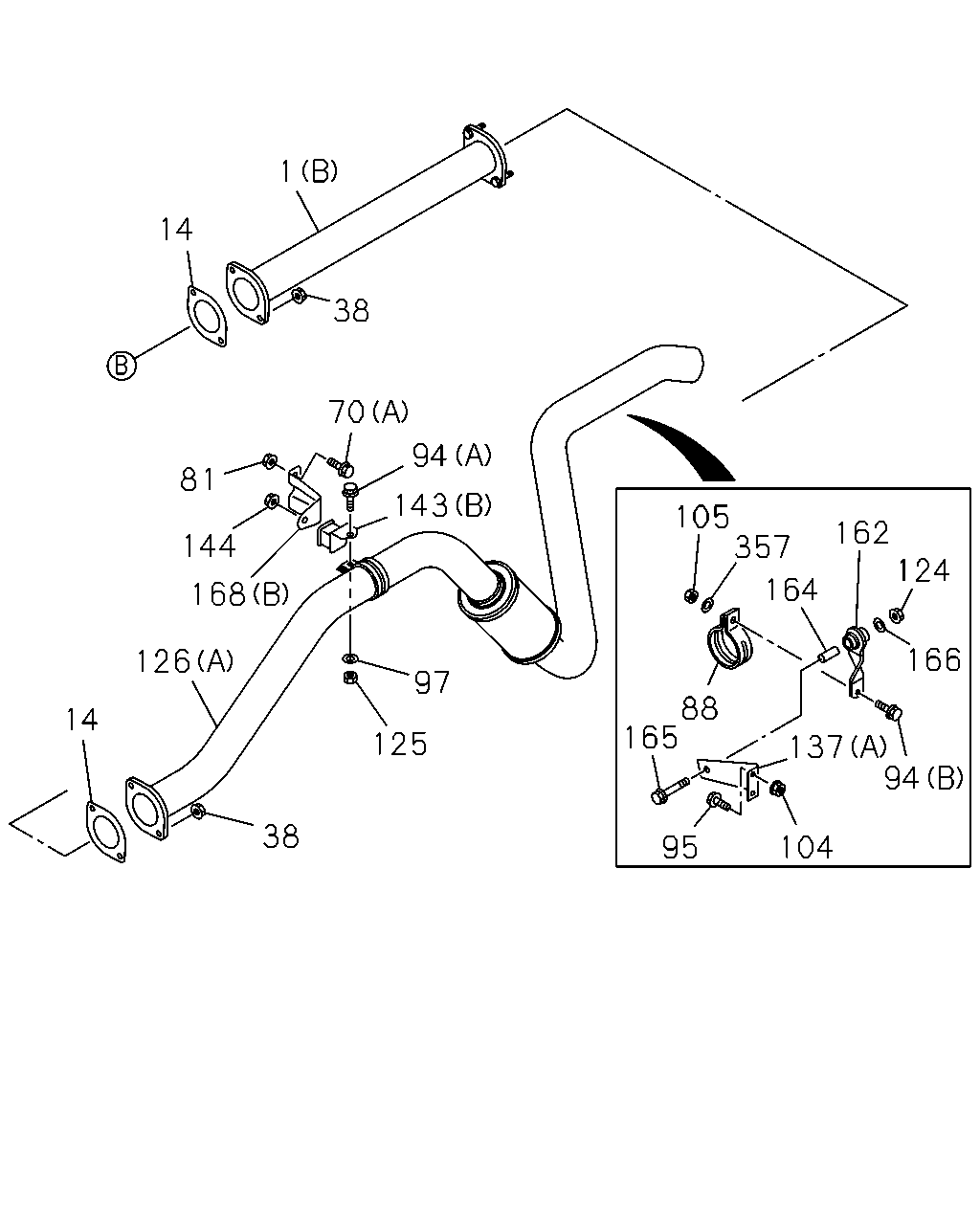

1 14 38 70 94 81 144 168 105 357 165 143 162 164 95 126 97 14 125 88 166 124 137 94 104 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-98005-237-0	01	1	0608-	●	●
1	03.609 PIPE; EXH (A)	8-98026-060-0	01	1	0608-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	0608-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	0608-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0608-	●	●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0608-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0608-	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0608-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0608-	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0608-		●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0608-	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	03	1	0608-		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0608-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0608-	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0608-	●	●
126	03.705 PIPE; EXH,RR (A)	8-98020-605-1	01	1	0608-	●
126	03.705 PIPE; EXH,RR (B)	8-98020-606-1	01	1	0608-		●
137	03.706 BRACKET; TAIL PIPE (A)	8-97232-759-0	01	1	0608-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97016-377-0	01	1	0608-		●
143	03.704 RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0608-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0608-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0608-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0608-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0608-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0608-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0608-	●	●

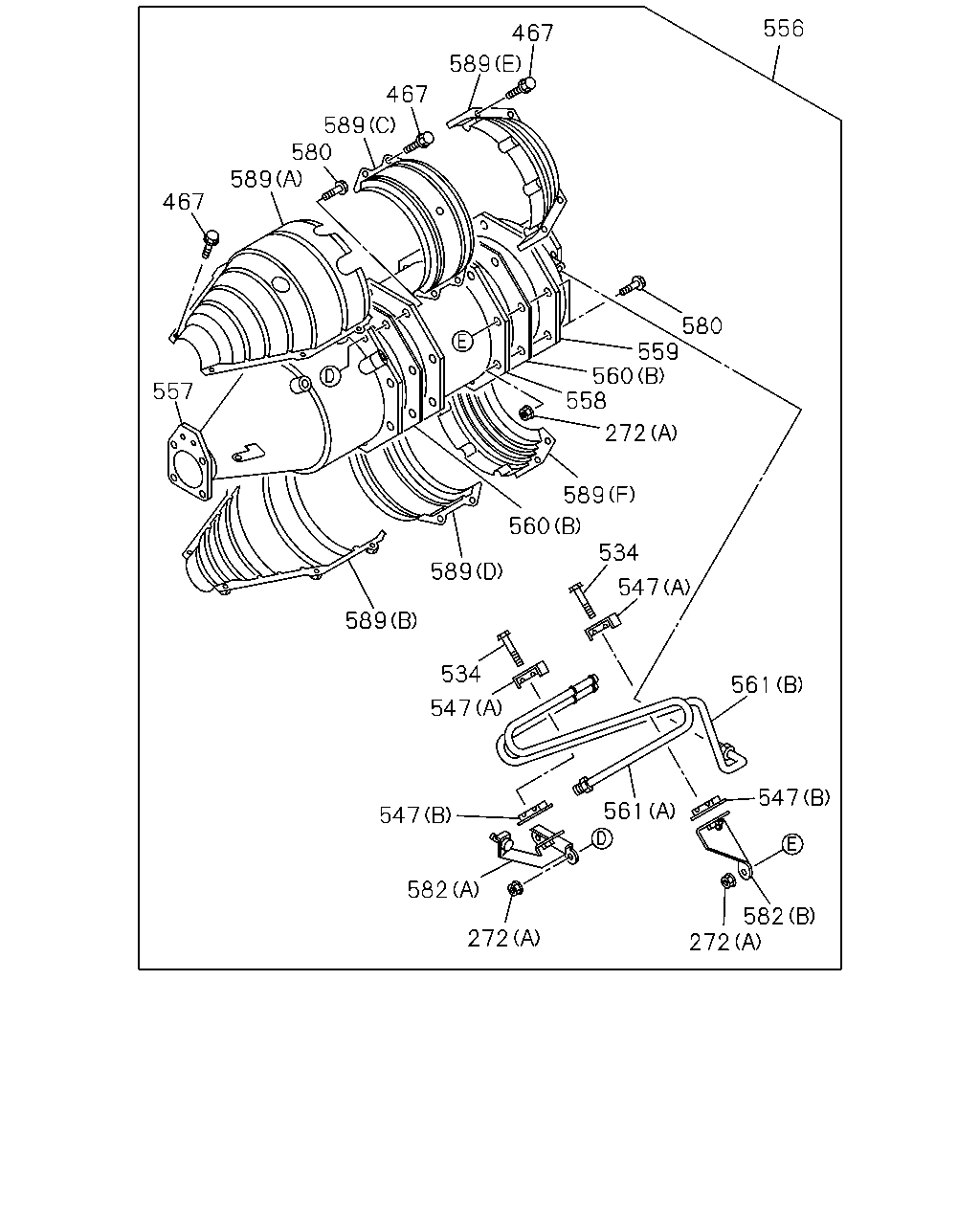

556 467 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0608-	●	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	0608-	●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0608-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0608-	●	●
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0608-	●	●
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0608-	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0608-1011	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●
557	03.701 CATALYST ASM	8-98036-815-6	01	1	0608-	●	●
558	03.634 FILTER ASM	8-98032-908-2	01	1	0608-	●	●
559	03.602 COVER; RR	8-98032-909-0	01	1	0608-0708	●	●
559	03.602 COVER; RR	8-98084-599-0	01	1	0709-1011	●	●
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-	●	●
560	03.611 GASKET; DPD (B)	8-97331-947-0	02	1	0608-	●	●
560	03.611 GASKET; DPD (A) ID=64	8-97373-108-0	01	1	0608-	●	●
561	03.609 PIPE; DPD (A)	8-98032-910-0	01	1	0608-1011	●	●
561	03.609 PIPE; DPD (A)	8-98084-600-0	01	1	1012-	●	●
561	03.609 PIPE; DPD (B)	8-98032-911-1	01	1	0608-1011	●	●
561	03.609 PIPE; DPD (B)	8-98084-601-0	01	1	1012-	●	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0608-	●	●
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0608-	●	●
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0608-	●	●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0608-	●	●

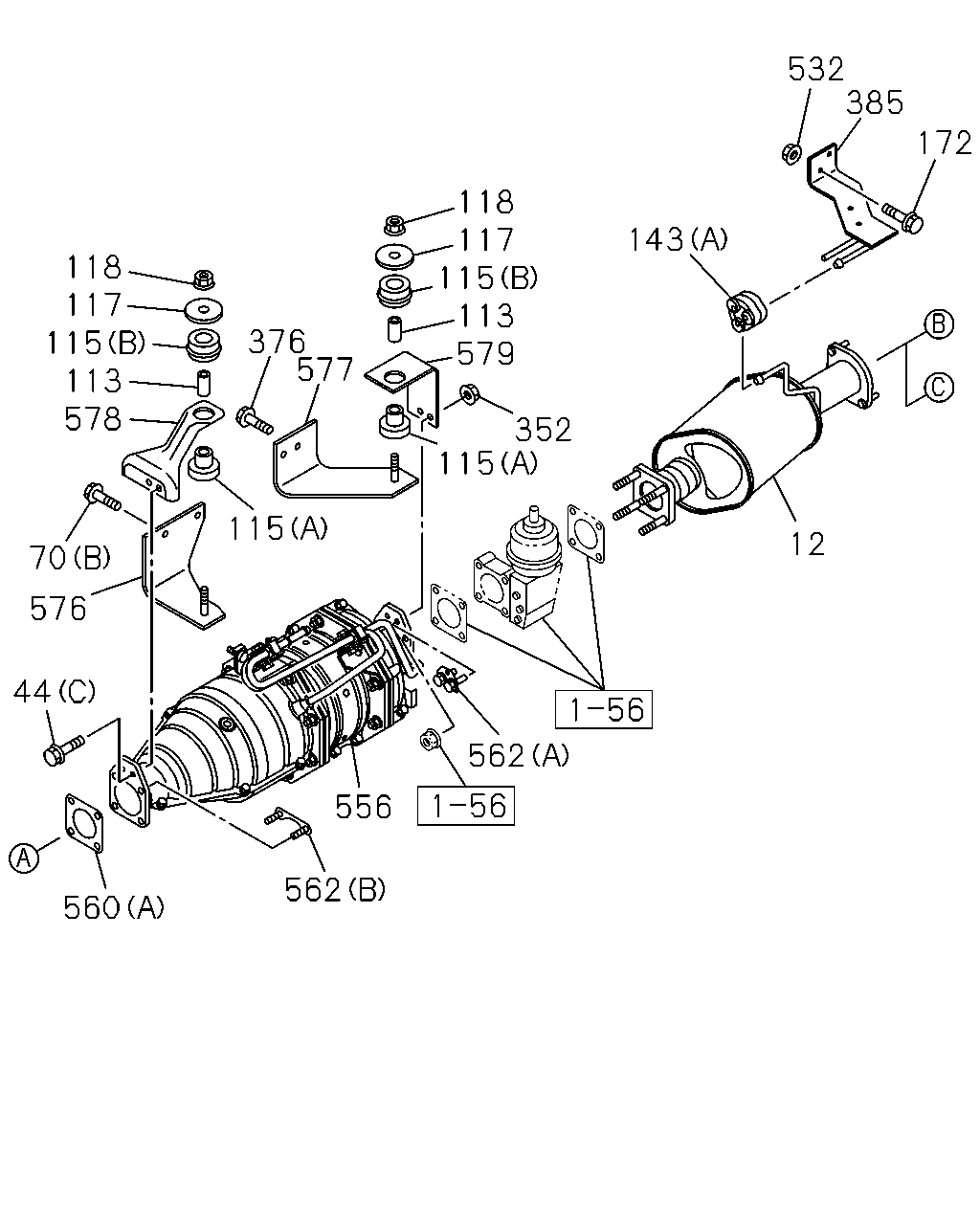

532 385 172 118 117 115 113 579 143 118 117 115 113 578 376 577 352 115 115 12 70 576 44 562 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH	8-97387-244-1	01	1	0608-	●	●
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0608-	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0608-	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0608-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0608-	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0608-	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0608-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0608-	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0608-	●	●
143	03.704 RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0608-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0608-	●	●
172	03.708 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
376	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0608-	●	●
385	03.704 BRACKET; SILENCER MTG	8-98020-600-1	01	1	0608-	●	●
532	03.704 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
556	03.701 DPD ASM	8-98036-810-7	01	1	0608-1011	●	●
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-	●	●
560	03.611 GASKET; DPD (B)	8-97331-947-0	02	1	0608-	●	●
560	03.611 GASKET; DPD (A) ID=64	8-97373-108-0	01	1	0608-	●	●
562	03.690 PLATE; STUD,BOLT (B)	8-97373-966-0	02	1	0608-	●	●
562	03.690 PLATE; STUD,BOLT (A)	8-98005-985-0	01	1	0608-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME	8-98020-563-0	01	1	0608-	●	●
577	03.706 BRACKET; DPD RR TO FRAME	8-98020-564-0	01	1	0608-	●	●
578	03.706 BRACKET; DPD FRT	8-97387-248-1	01	1	0608-	●	●
579	03.704 BRACKET; DPD RR	8-98020-598-1	01	1	0608-	●	●

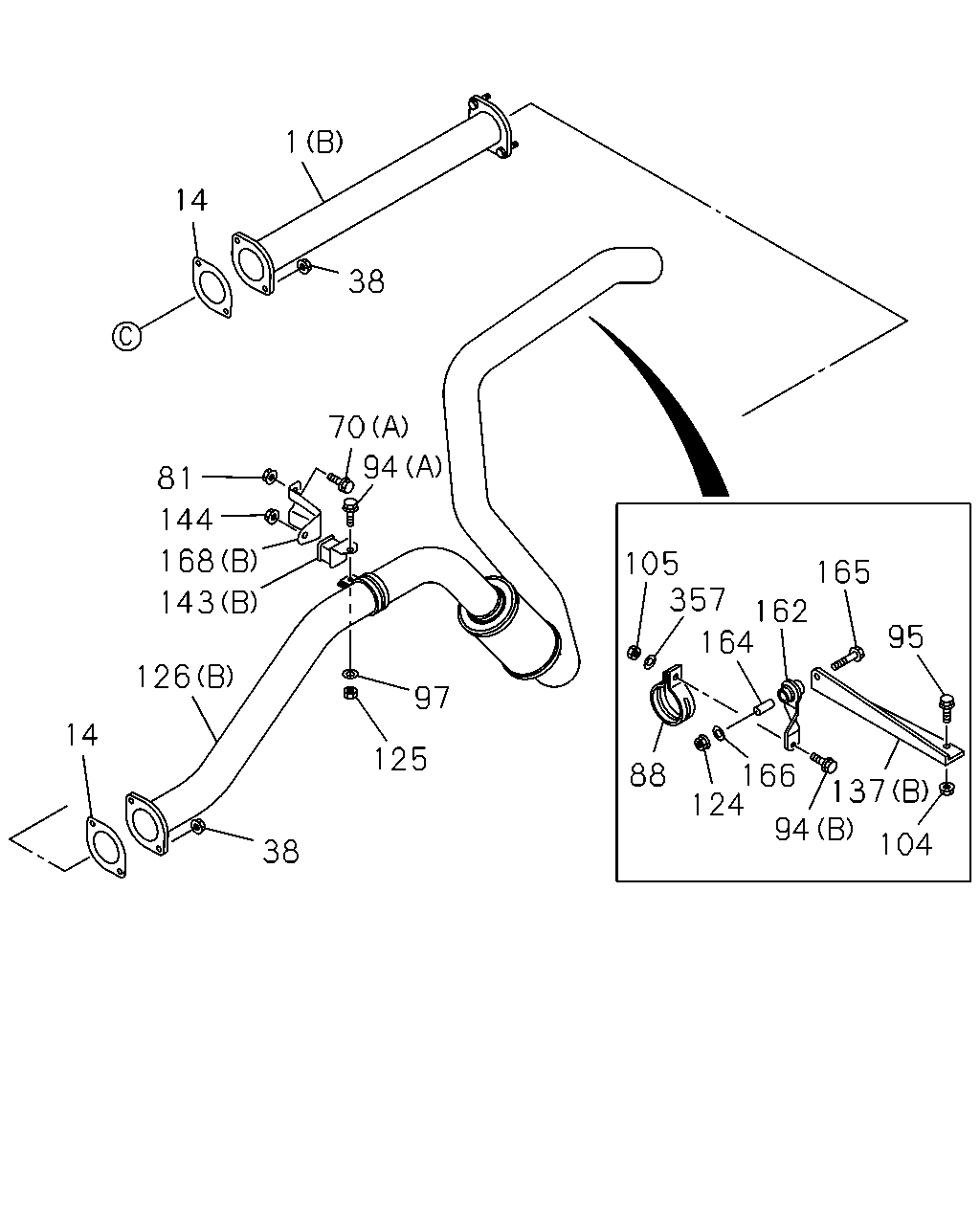

1 14 38 70 94 81 143 105 357 162 124 144 164 168 166 126 97 88 165 14 125 137 94 38 95 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-98005-237-0	01	1	0608-	●	●
1	03.609 PIPE; EXH (A)	8-98026-060-0	01	1	0608-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	0608-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	0608-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●
70	03.706 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0608-	●	●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0608-	●	●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0608-	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0608-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0608-	●	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0608-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0608-		●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0608-	●	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	03	1	0608-		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0608-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0608-	●	●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0608-	●	●
126	03.705 PIPE; EXH,RR (A)	8-98020-605-1	01	1	0608-	●
126	03.705 PIPE; EXH,RR (B)	8-98020-606-1	01	1	0608-		●
137	03.706 BRACKET; TAIL PIPE (A)	8-97232-759-0	01	1	0608-	●
137	03.706 BRACKET; TAIL PIPE (B)	8-97016-377-0	01	1	0608-		●
143	03.704 RUBBER; SUPPORT (A)	8-97080-694-0	01	1	0608-	●	●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0608-	●	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	0608-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0608-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0608-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (B)	8-94468-174-1	01	1	0608-	●	●
168	03.613 BRACKET; EXH PIPE,FRT (A)	8-98026-063-0	01	1	0608-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0608-	●	●
