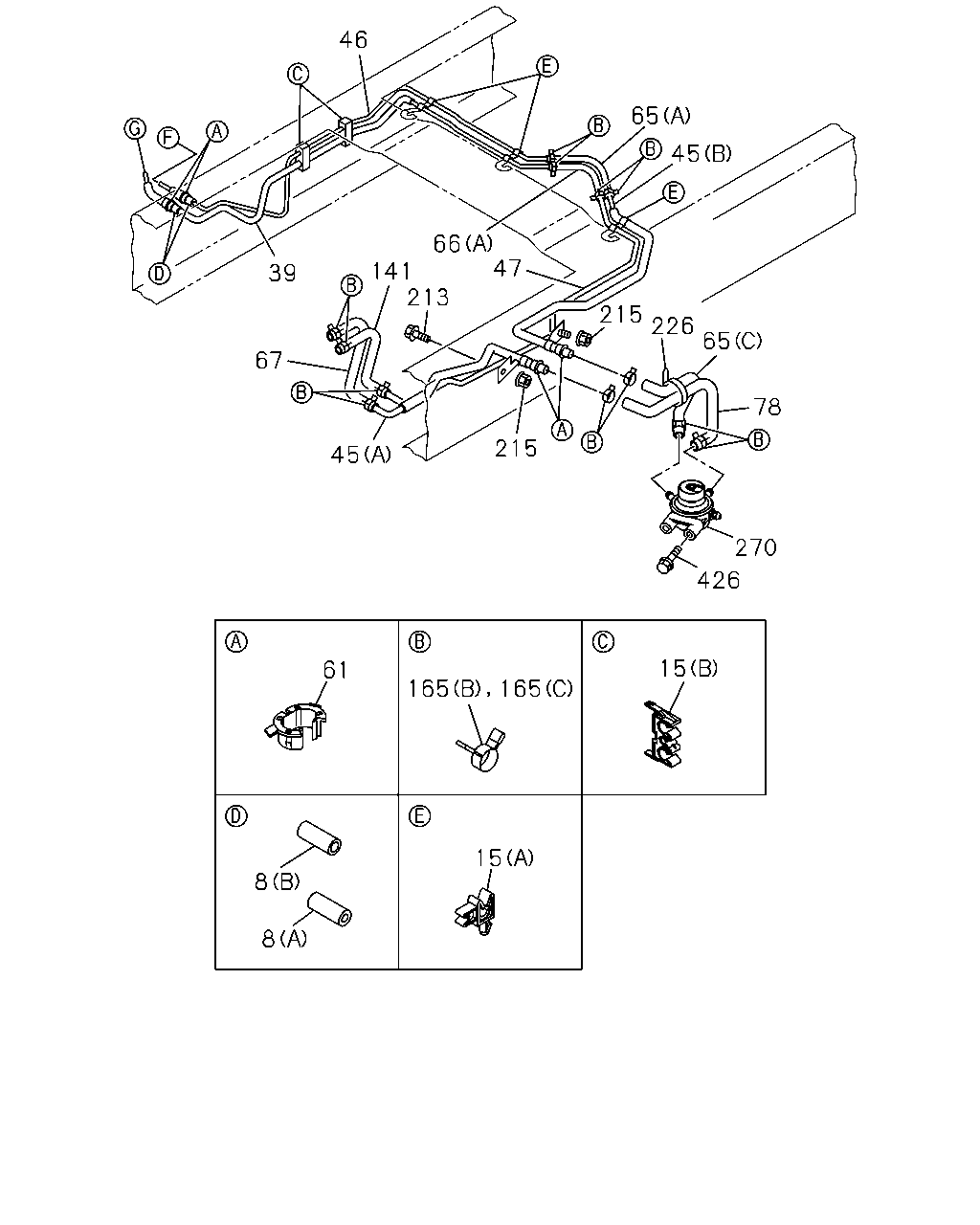

1-41 — FUEL PIPING; CHASSIS (#38636) — 47 parça

46 65 45 66 47 141 213 39 215 226 65 67 78 215 45 270 426 15 61 165 165 15 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0608-	●	●
8	03.162 RUBBER; MTG (B) OD=15 L=50	8-97077-629-0	01	1	0608-	●	●
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	03	1	0608-	●	●
15	03.162 CLIP; FUEL PIPE 04.930 (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0608-	●	●
39	03.163 PIPE; FUEL	8-97325-839-1	01	1	0608-	●	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-98027-340-2	01	1	0608-	●	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98027-342-1	01	1	0608-	●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-98030-660-0	01	1	0608-	●	●
47	03.163 PIPE; FUEL,RETURN	8-98027-341-0	01	1	0608-	●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0608-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0608-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) L=360	8-97353-520-0	01	1	0608-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98027-356-0	01	1	0608-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0608-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0608-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
67	03.163 HOSE; FUEL,DELIVERY	8-98027-355-0	01	1	0608-	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE	8-98027-357-0	01	1	0608-	●	●
141	03.163 HOSE; FUEL FILTER TO PIPE L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0608-0701	●	●
141	03.163 HOSE; FUEL FILTER TO PIPE SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
165	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0608-	●	●
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	09	1	0608-0911	●	●
165	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	09	1	0912-	●	●
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=13	8-94238-571-0	06	1	0608-0701	●	●
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	06	1	0702-0911	●	●
165	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	06	1	0912-	●	●
213	03.162 BOLT; FUEL PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0608-	●	●
215	03.162 NUT; FUEL PIPE FIX M10 FLANGE	0-91180-110-0	02	1	0608-	●	●
226	03.890 CLIP; BAND 03.162 L=140	5-09707-031-1	01	1	0608-	●	●
270	03.900 PUMP ASM; FUEL	8-98018-187-3	01	1	0608-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●

148 65 165 165 165 165 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0608-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (B) L=360	8-97353-520-0	01	1	0608-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98027-356-0	01	1	0608-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0608-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0608-0701	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=350 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●	●
148	03.162 CLIP; HOSE,FUEL 01.762 ID=19	8-94238-569-0	01	1	0608-0911	●	●
148	03.162 CLIP; HOSE,FUEL ID=19	8-98150-356-0	01	1	0912-	●	●
165	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0608-	●	●
165	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16	8-94238-568-0	09	1	0608-0911	●	●
165	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	09	1	0912-	●	●
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=13	8-94238-571-0	06	1	0608-0701	●	●
165	03.162 CLIP; FUEL HOSE 01.219 (C) ID=12	8-94238-610-0	06	1	0702-0911	●	●
165	03.162 CLIP; FUEL HOSE 01.240 (C) ID=12	8-98150-358-0	06	1	0912-	●	●
