Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#38633) — 38 parça
Tümü
A - NPC5SF
B - NPN5SF
◀

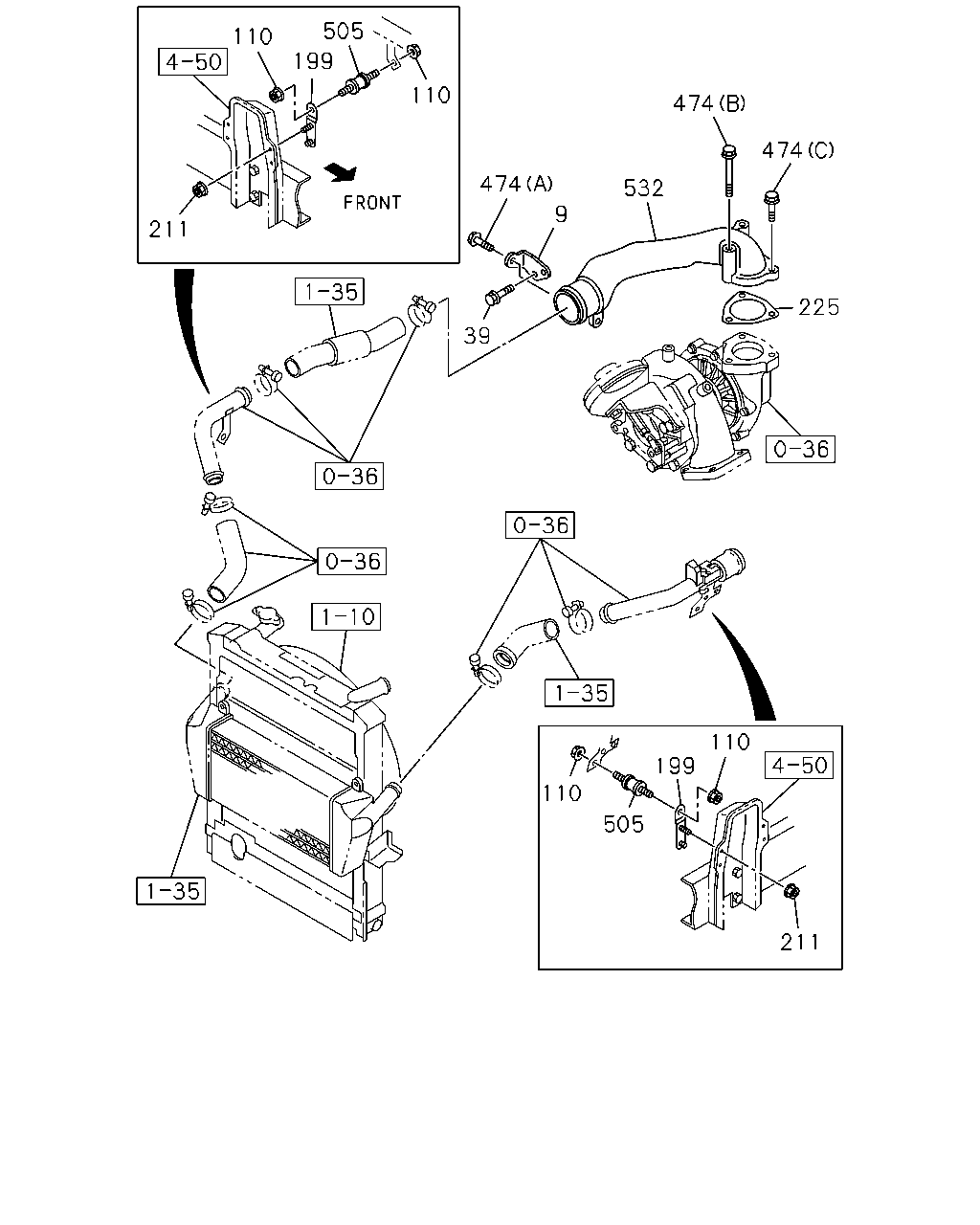

[131A] INTAKE PIPE;TURBOCHARGER (14 parça)

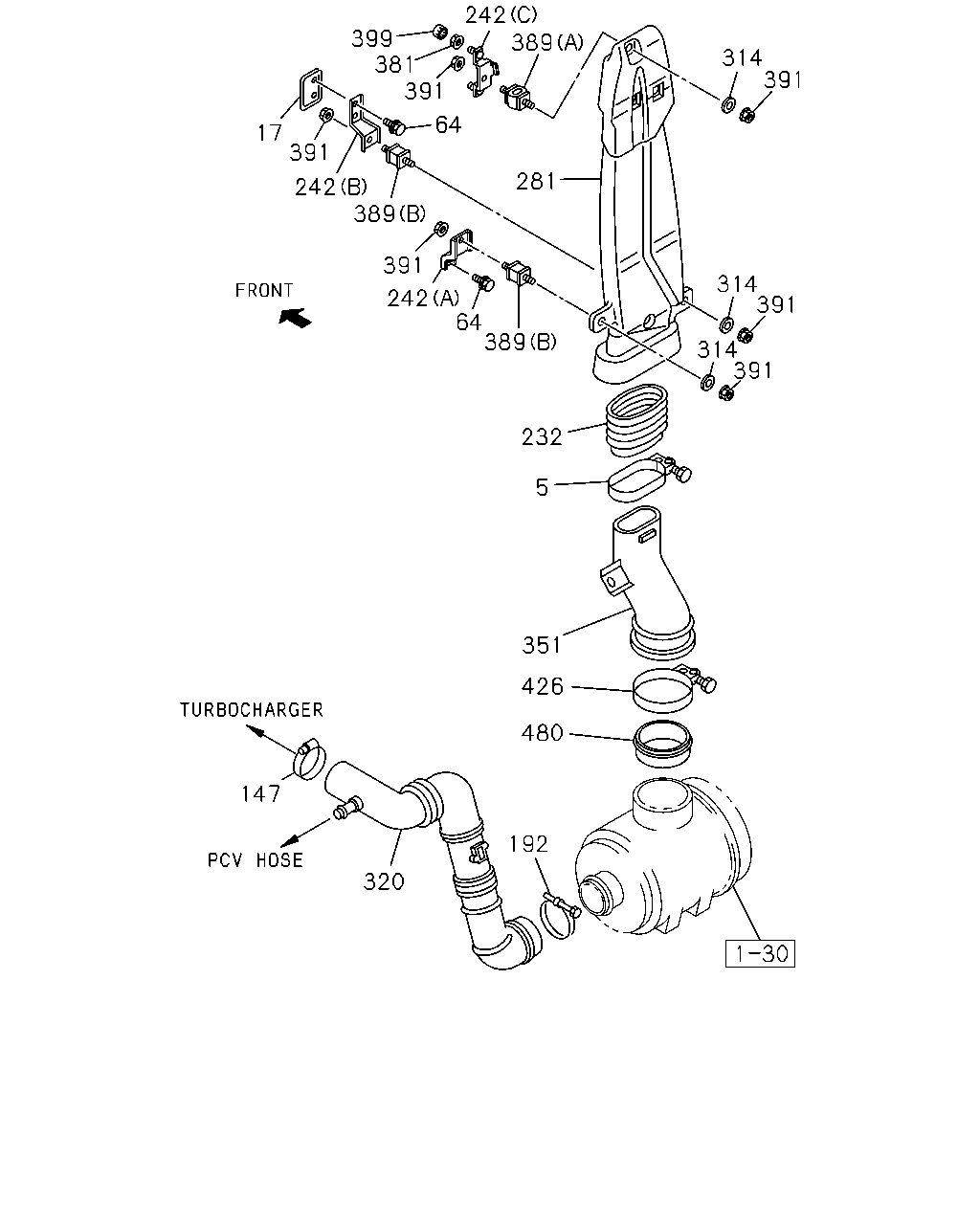

[131A] AIR INTAKE DUCT (24 parça)
▶
505
110
199
110
474
474
474
532
9
211
225
39
110
199
110
505
211
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
9
03.417 BRACKET; INT PIPE
8-98009-086-0
01
1
0608-
●
●
39
03.417 BOLT; BRKT
03.613 M8X14 FLANGE
8-97378-075-0
01
1
0608-
●
●
110
03.403 NUT; RUBBER MTG
01.062 M8 FLANGE
0-91180-108-0
04
1
0608-
●
●
199
03.417 BRACKET; PIPE
8-98011-753-1
01
1
0608-
●
●
199
03.417 BRACKET; PIPE
8-98011-752-1
01
1
0608-
●
●
211
03.405 NUT; BRKT
04.010 M8 FLANGE
8-97046-127-0
02
1
0608-0610
●
●
211
03.405 NUT; BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
0611-
●
●
225
03.417 GASKET; AIR PIPE
03.270
8-97202-328-1
01
1
0608-
●
●
474
03.417 BOLT; PIPE
(B) M6X70 FLANGE
0-28050-670-0
02
1
0608-
●
●
474
03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE
0-28050-816-0
01
1
0608-
●
●
474
03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE
0-28650-630-0
01
1
0608-
●
●
505
03.406 RUBBER; MTG
03.405
8-94158-155-1
02
1
0608-0611
●
●
505
03.406 RUBBER; MTG
03.417
8-98036-826-0
02
1
0612-
●
●
532
03.417 PIPE; INTAKE
8-97385-203-1
01
1
0608-
●
●
242
389
399
381
391
314
391
64
17
391
281
242
389
391
314
391
242
64
389
314
391
232
5
351
426
480
147
192
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
03.407 CLIP; AIR DUCT
D=101.6
9-09915-502-1
01
1
0608-
●
●
17
03.403 GASKET; AIR DUCT
8-97853-699-2
01
1
0608-
●
●
64
03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0608-
●
●
147
03.417 CLIP; HOSE TO ENG
03.407 ID=68-85
1-09707-202-0
01
1
0608-0810
●
●
147
03.417 CLIP; HOSE TO ENG
03.407 ID=65-85
8-98133-350-0
01
1
0811-
●
●
192
03.407 CLIP; HOSE
ID=117
9-09915-075-1
01
1
0608-
●
●
232
03.417 HOSE; CONN
8-97109-423-0
01
1
0608-0802
●
●
232
03.417 HOSE; CONN
03.407
8-98115-594-0
01
1
0803-
●
●
242
03.417 BRACKET; AIR DUCT
(A)
8-97312-894-1
01
1
0608-
●
●
242
03.417 BRACKET; AIR DUCT
(B)
8-97329-201-0
01
1
0608-
●
●
242
03.417 BRACKET; AIR DUCT
(C)
8-97329-306-0
01
1
0608-
●
●
281
03.417 DUCT; AIR,VERTICAL INT
8-97369-706-0
01
1
0608-
●
●
314
03.417 WASHER; PL,AIR INT DUCT
16.335 ID=10.2 T=3.2
8-94279-642-0
03
1
0608-
●
●
320
03.417 HOSE; CONN,ACL
8-98048-137-0
01
1
0608-
●
●
351
03.407 DUCT; AIR
8-98019-067-1
01
1
0608-
●
●
381
03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE
1-09984-018-0
02
1
0608-
●
●
389
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A)
8-97080-149-0
01
1
0608-
●
●
389
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B)
8-97081-886-0
02
1
0608-
●
●
391
03.417 NUT; SUPPORT RUBBER,UPR
M8 FLANGE
8-94279-517-0
06
1
0608-0910
●
●
391
03.417 NUT; SUPPORT RUBBER,UPR
M8 W/LK WASHER
8-97581-234-0
06
1
0911-
●
●
399
03.417 CAP; BRKT,AIR DUCT
8-94273-605-0
02
1
0608-
●
●
426
03.417 CLIP; DUCT
9-09915-504-1
01
1
0608-0802
●
●
426
03.417 CLIP; DUCT
03.407 ID=127
1-14239-263-0
01
1
0803-
●
●
480
03.417 ADAPTER
8-97093-075-0
01
1
0608-
●
●
