1-11 — RADIATOR HOSE AND SUB TANK (#38631) — 20 parça

55 56 56 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	01.173 HOSE; WATER,RAD OUTLET	8-97383-814-1	01	1	0608-	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	5-09704-049-0	02	1	0608-0610	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98036-282-0	02	1	0611-0901	●	●
56	01.166 CLIP; WATER HOSE,RAD ID=48	8-98133-956-0	02	1	0902-	●	●
128	01.159 HOSE; WATER,RAD INL	8-97383-812-1	01	1	0608-	●	●

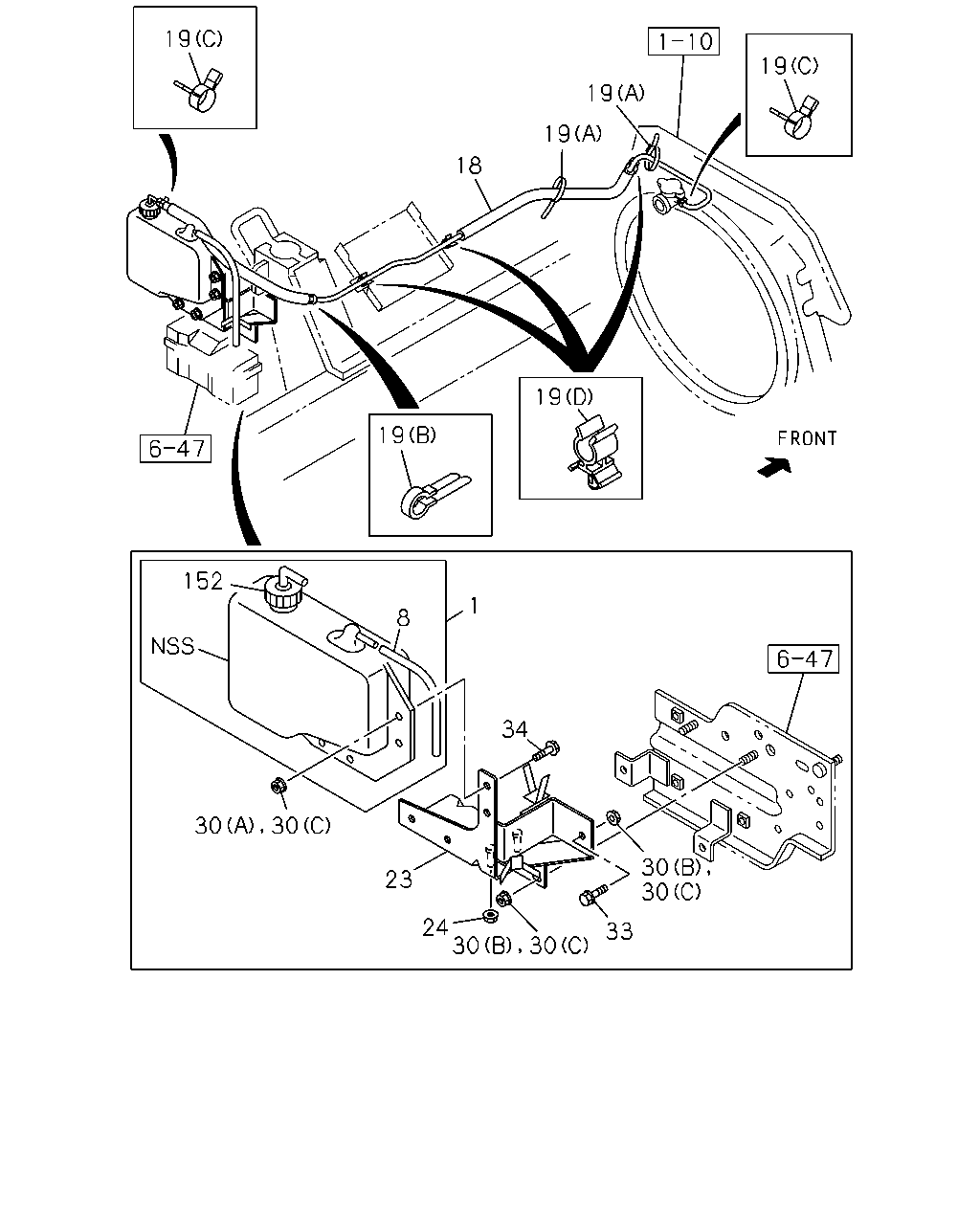

19 19 19 19 18 19 19 152 1 8 34 30 30 30 30 23 24 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 TANK; SURGE,RAD	8-97205-136-1	01	1	0608-	●	●
8	01.166 HOSE; VINYL 01.240 L=500	1-09366-179-0	01	1	0608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1710	8-98018-436-2	01	1	0608-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	0608-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (A) L=250	5-09707-030-1	02	1	0608-	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (C) ID=12	8-94238-610-0	02	1	0608-0911	●	●
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=12	8-98150-358-0	02	1	0912-	●	●
19	01.240 CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	03	1	0608-	●	●
23	01.219 BRACKET; RESERVE TANK	8-97225-271-1	01	1	0608-	●	●
30	01.203 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0608-0609	●	●
30	01.203 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	07	1	0610-	●	●
30	01.203 NUT 01.540 (B) M8 FLANGE	0-91180-208-0	03	1	0608-0609	●	●
33	01.277 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●
34	01.203 BOLT; RESERVE TANK 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0608-	●	●
152	01.203 CAP ASM; SURGE TANK	8-97217-799-0	01	1	0608-	●	●
