Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#38630) — 57 parça

1 132 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM	8-98018-950-2	01	1	0608-	●	●
131	01.166 CLIP; ENG SIDE TOP ID=48	5-09704-049-0	01	1	0608-0610	●	●
131	01.166 CLIP; ENG SIDE TOP ID=48	8-98036-282-0	01	1	0611-0901	●	●
131	01.166 CLIP; ENG SIDE TOP ID=48	8-98133-956-0	01	1	0902-	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=48	5-09704-049-0	01	1	0608-0610	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=48	8-98036-282-0	01	1	0611-0901	●	●
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=48	8-98133-956-0	01	1	0902-	●	●

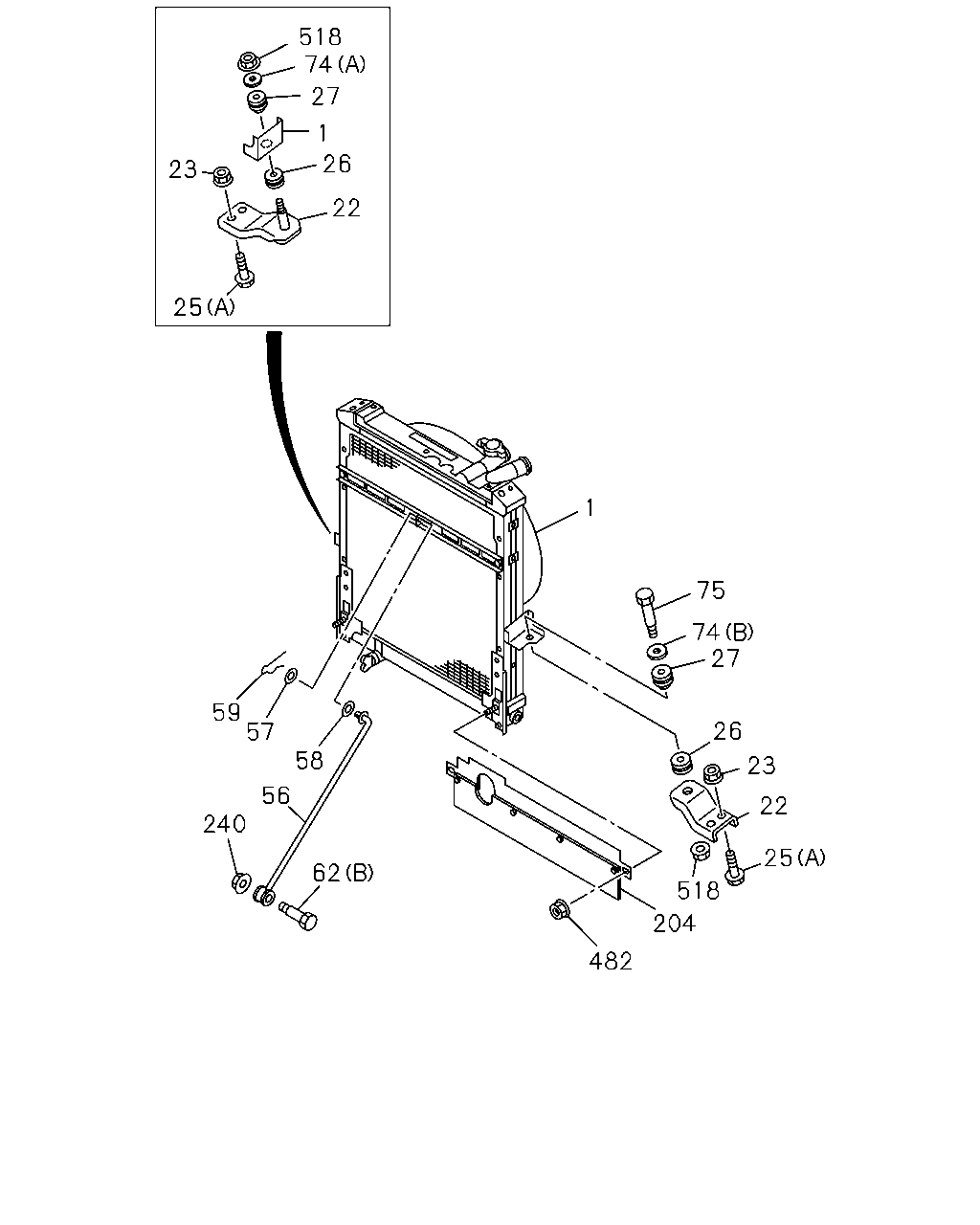

518 74 27 1 26 23 22 25 1 75 74 27 59 57 26 58 23 56 22 240 25 62 518 204 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM	8-98018-950-2	01	1	0608-	●	●
22	01.270 BRACKET; RAD MTG	8-97386-343-2	01	1	0608-	●	●
22	01.270 BRACKET; RAD MTG	8-97386-342-1	01	1	0608-	●	●
23	01.271 NUT; RAD MTG 04.085 M10 FLANGE	0-91180-210-0	04	1	0608-0909	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	0910-	●	●
25	01.271 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0608-	●	●
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0608-	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	0608-	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	0608-	●	●
56	01.270 STAY; RAD	8-97386-345-0	01	1	0608-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0608-	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	0608-	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=27.7	8-94202-777-0	01	1	0608-0610	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-	●	●
62	01.271 BOLT; STAY 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0608-	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0608-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (B) ID=10.5 OD=36	8-97031-437-0	01	1	0608-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	01	1	0608-0610	●	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	01	1	0611-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	0608-	●	●
204	01.267 GUIDE ASM; AIR	8-97383-928-1	01	1	0608-	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	0608-	●	●
482	01.277 NUT; AIR GUIDE 01.062 M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	0608-0610	●	●
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-	●	●

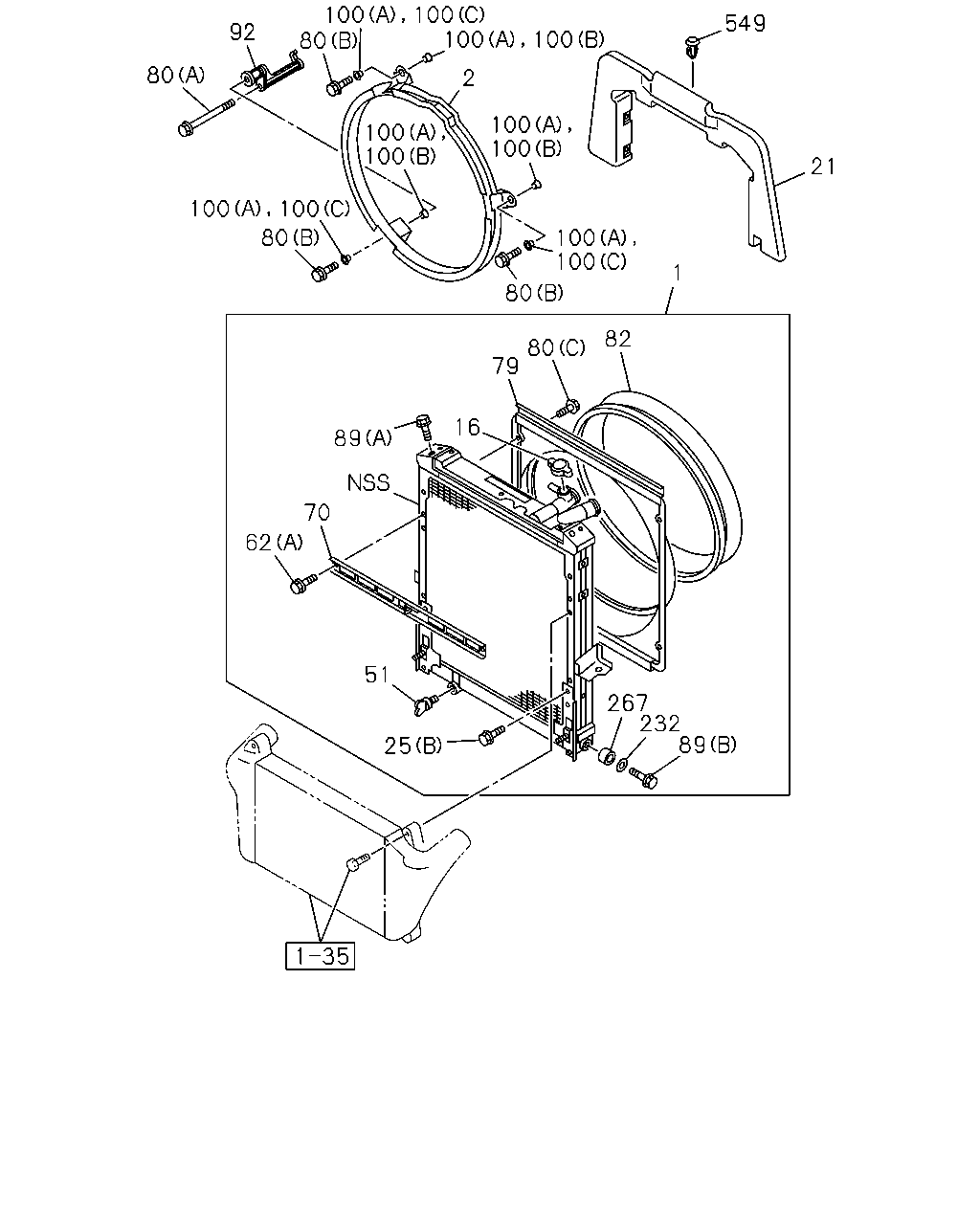

100 80 100 100 549 92 100 80 2 100 100 100 100 21 100 100 80 100 100 1 80 82 80 79 16 89 70 62 51 267 232 89 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM	8-98018-950-2	01	1	0608-	●	●
2	01.277 GUIDE; FAN	8-97381-547-2	01	1	0608-0610	●	●
2	01.277 GUIDE; FAN	8-98054-659-0	01	1	0611-	●	●
16	01.203 CAP; RAD	8-97239-187-0	01	1	0608-	●	●
21	01.276 SEAL; RAD	8-98000-817-1	01	1	0608-	●	●
25	01.271 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	04	1	0608-	●	●
25	01.271 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	0608-	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	0608-	●	●
62	01.271 BOLT; STAY 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0608-	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	0608-	●	●
70	01.271 STAY; RAD	8-98018-940-0	01	1	0608-	●	●
79	01.277 GUIDE; FAN,RAD	8-97387-081-1	01	1	0608-	●	●
80	01.277 BOLT; FAN GUIDE 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	0608-	●	●
80	01.277 BOLT; FAN GUIDE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0608-	●	●
80	01.277 BOLT; FAN GUIDE (C) M6X12	8-98039-672-0	02	1	0608-	●	●
82	01.277 COVER; FAN,RAD	8-97387-085-1	01	1	0608-	●	●
89	01.277 BOLT 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0608-	●	●
89	01.277 BOLT 01.271 (B) M8X25	1-21469-153-0	02	1	0608-	●	●
92	01.277 BRACKET; FAN GUIDE	8-97381-550-1	01	1	0608-	●	●
100	01.277 RUBBER; MTG (C)	8-98058-502-1	03	1	0701-	●	●
100	01.277 RUBBER; MTG (A)	1-09337-027-0	06	1	0608-0612	●	●
100	01.277 RUBBER; MTG (B)	8-94395-766-0	03	1	0701-	●	●
232	01.540 COLLAR; DIST,CUSHION RUBBER	1-87410-723-0	02	1	0608-	●	●
267	01.277 RUBBER; CUSHION	1-21467-023-0	02	1	0608-	●	●
549	03.438 CLIP; SEAL,RAD 01.276	8-97228-568-0	07	1	0608-	●	●
