1-01 — ACCELERATOR PEDAL AND CONTROL (#38629) — 17 parça

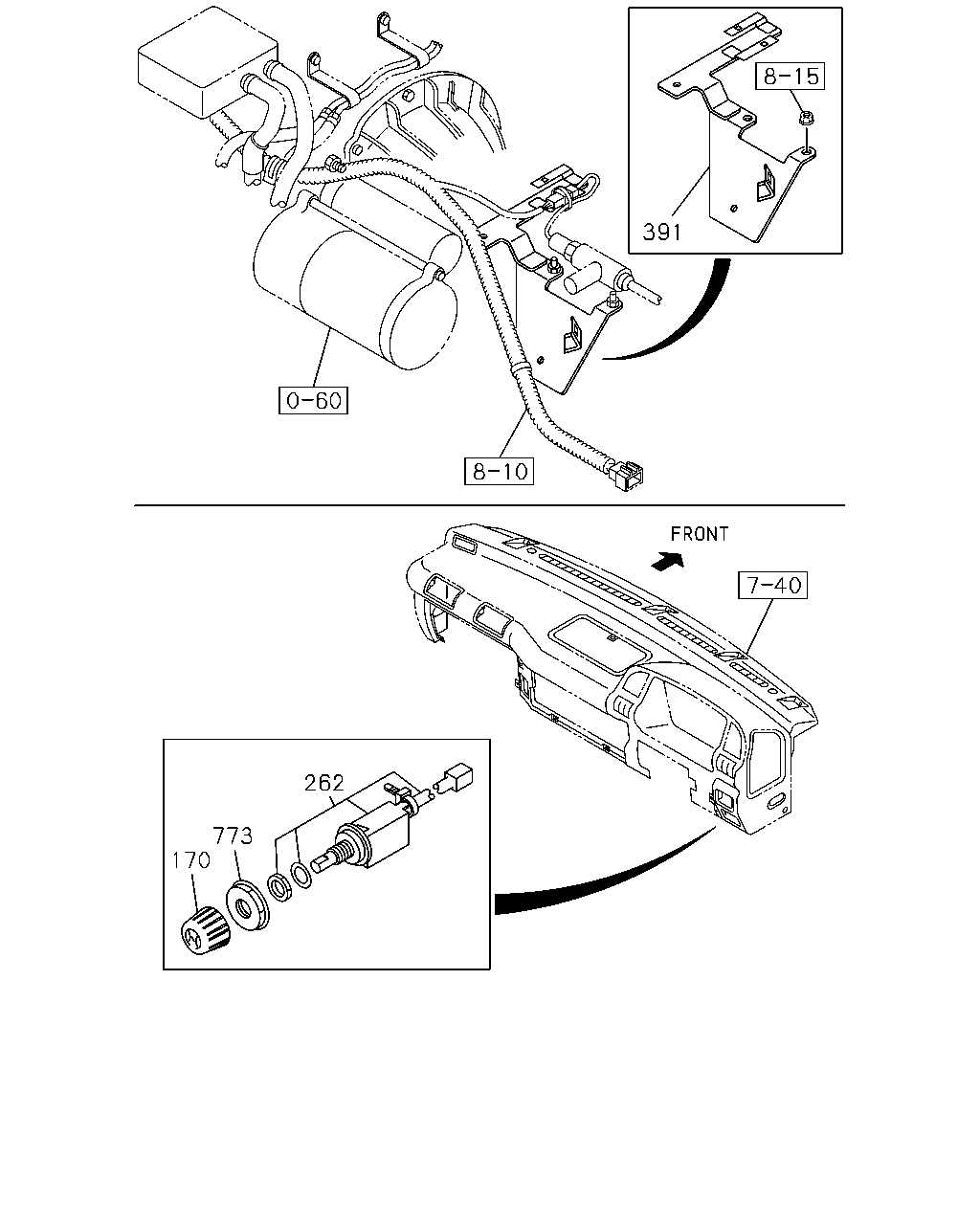

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	03.480 KNOB	8-97310-165-0	01	1	0608-	●	●
262	03.452 SWITCH; ACCEL,IDLE	8-97215-119-1	01	1	0608-	●	●
391	03.452 BRACKET; ENG CONT	8-97357-141-0	01	1	0608-	●	●
773	03.452 HOLDER; ACCEL PEDAL	8-97352-127-0	01	1	0608-	●	●

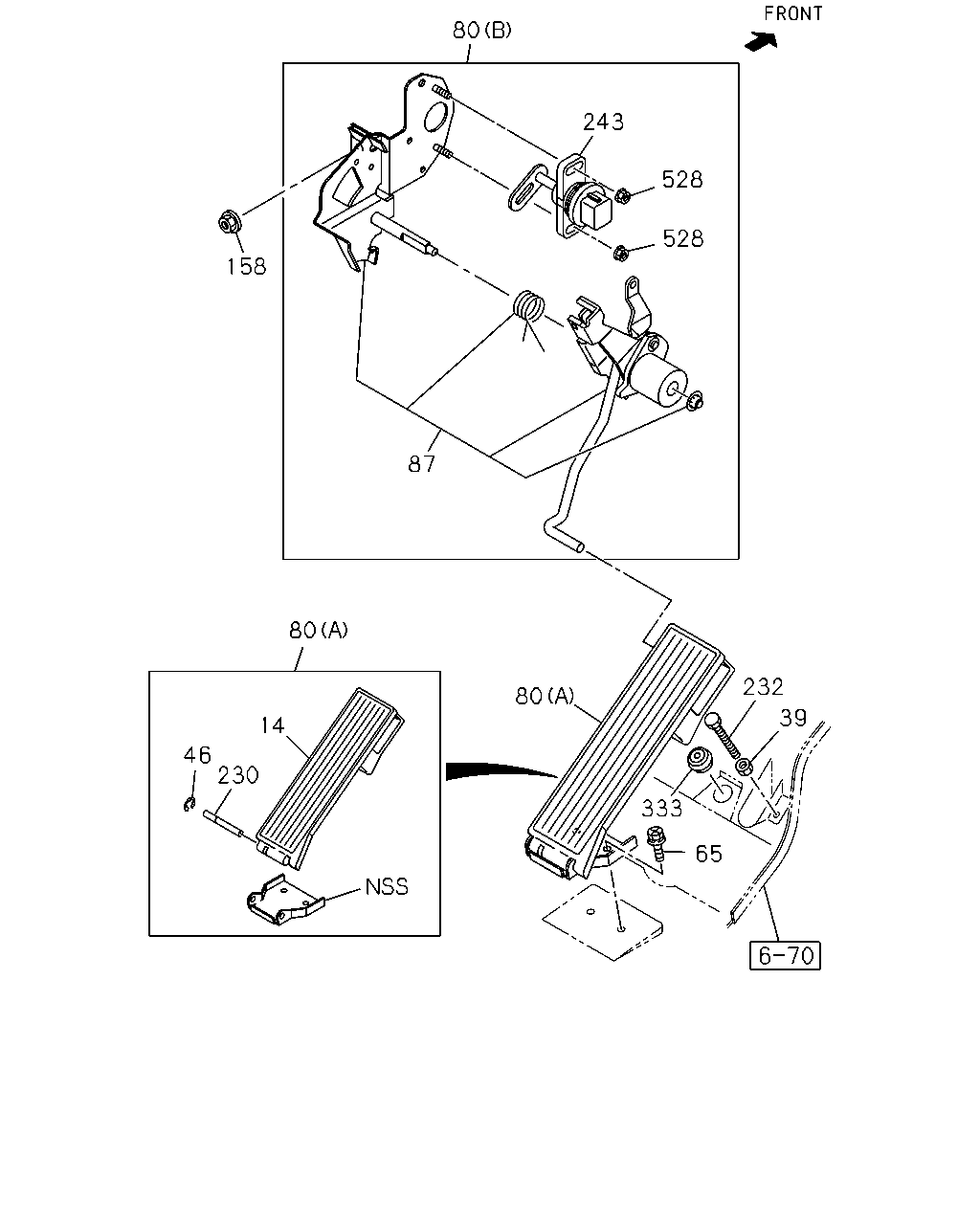

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	0608-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0608-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0608-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0608-	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-061-2	01	1	0608-	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97997-556-6	01	1	0608-	●	●
87	03.454 LINK; ENG CONT	8-97581-415-5	01	1	0608-	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0608-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0608-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0608-	●	●
243	03.425 SENSOR; ACCEL	8-97602-416-0	01	1	0608-	●	●
333	03.671 GROMMET; HOLE,CABLE 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0608-	●	●
528	03.463 NUT; ACCEL SENSOR 12.183 M5	8-94169-022-0	02	1	0608-	●	●
