◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#3862) — 48 parça

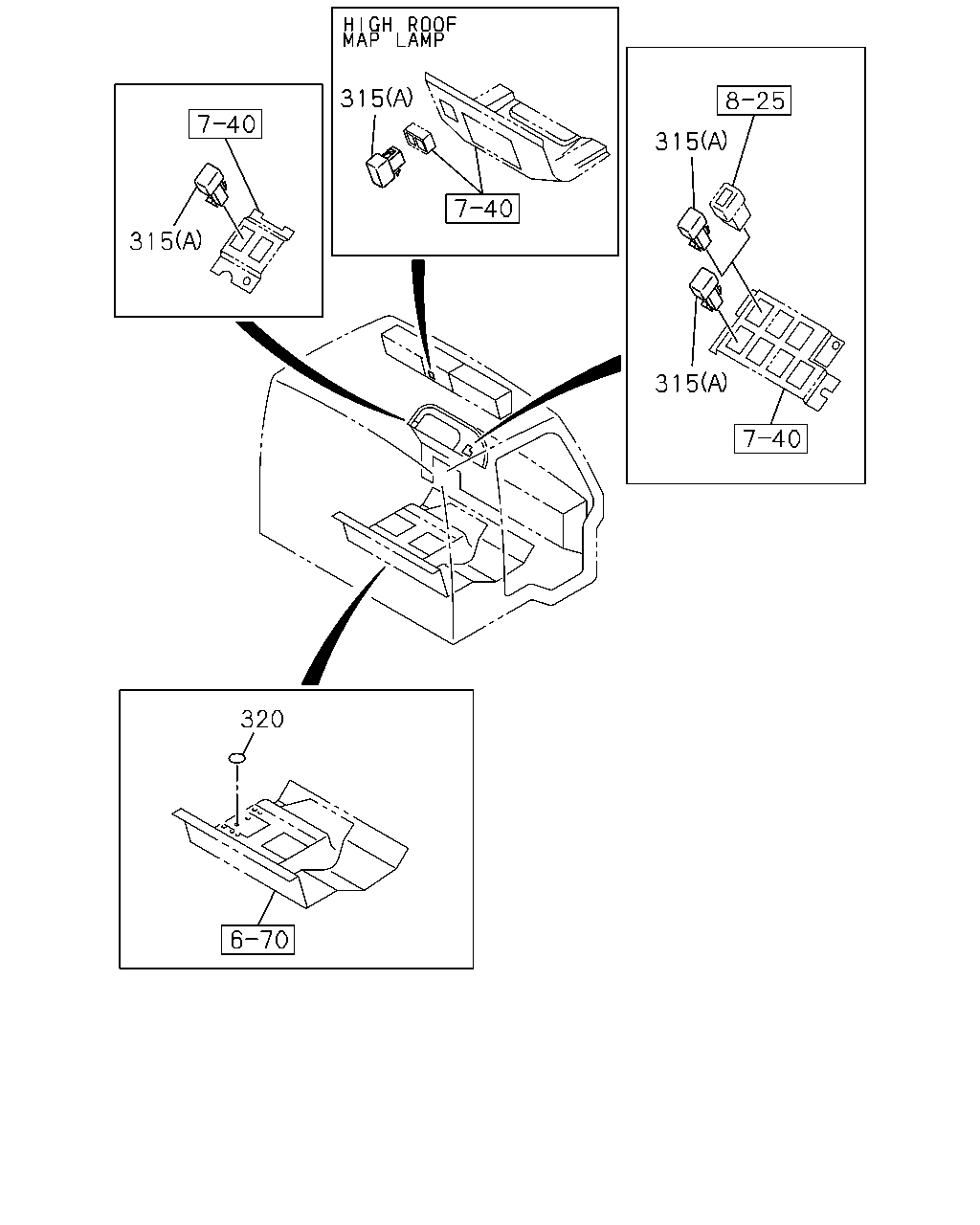

çizim 5852
315 315 315 315 320
BalonParca AdiParca NoAdetTipApplied Date A B
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9601- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601- ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 03 1 9601-0004 ●
320 SEAL; HOLE,TRAY
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 03 1 9601-0004 ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 03 1 0005- ● ●
320 SEAL; HOLE,TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK 		1-76798-019-0 04 1 9601-0004 ●

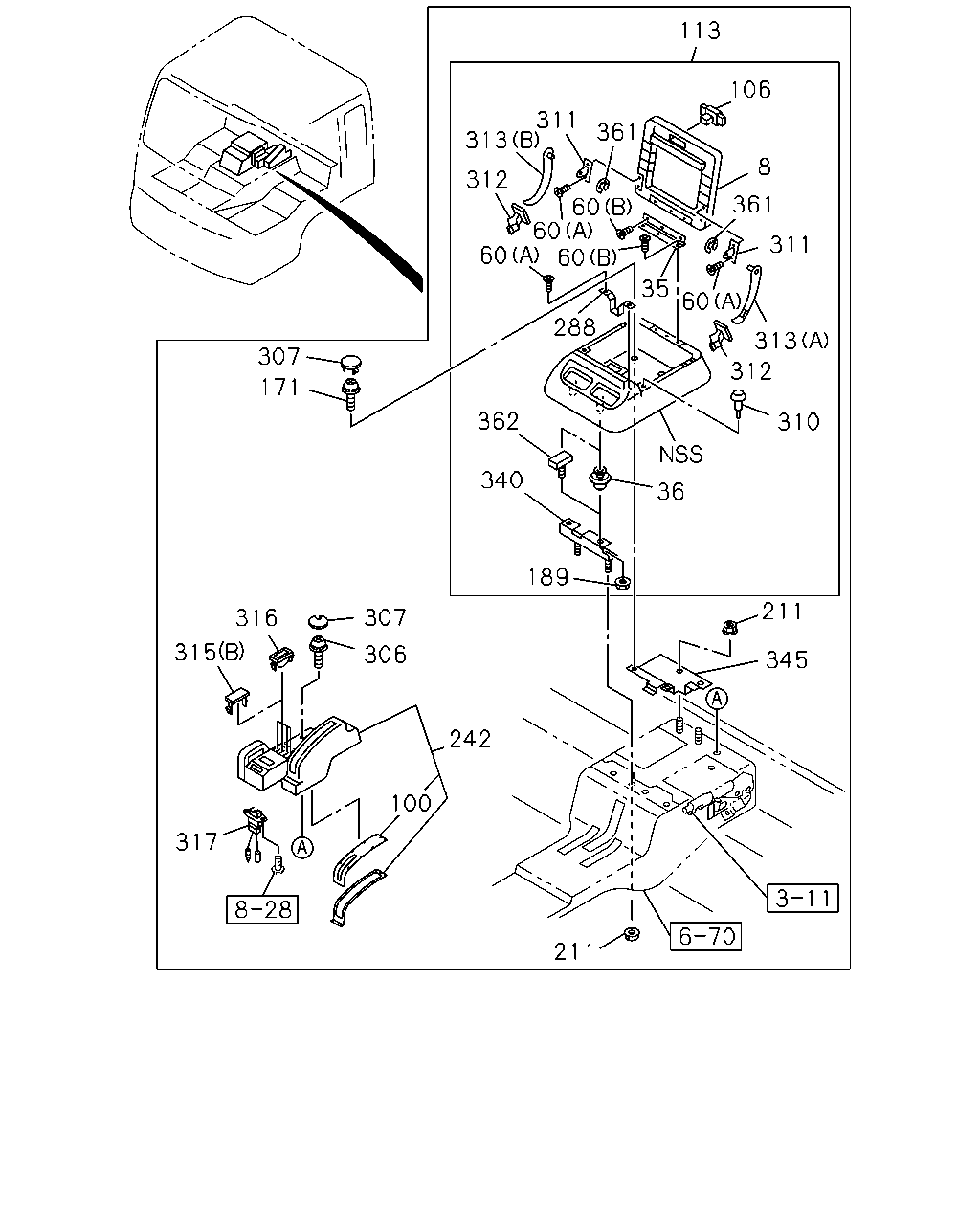

çizim 6614
113 106 311 313 361 8 312 60 60 60 361 311 60 35 60 288 313 307 312 171 362 310 340 36 189 211 307 316 315 306 345 242 100 317 211
BalonParca AdiParca NoAdetTipApplied Date A B
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-179-3 01 1 9601-0004 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-260-1 01 1 0005-0703 ● ●
8 LID; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-321-0 01 1 0704- ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 02 1 9601-9905 ● ●
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-182-1 01 1 9906- ● ●
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-09984-190-0 02 1 9601-0209 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70080-514-0 06 1 0210-0603 ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0604- ● ●
60 SCREW; BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) M5X14 		8-94279-325-0 04 1 0210- ● ●
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 9601-0004 ●
106 LOCK; CONSOLE LID
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-180-0 01 1 9601- ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-225-0 01 1 9602-9705 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-234-0 01 1 9706-0004 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-287-0 01 1 0005-0209 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-299-2 01 1 0210-0609 ● ●
113 BOX; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-317-1 01 1 0610- ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 9601-0004 ● ●
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M6X24 W/LK&PL WASHER 		8-94279-404-0 02 1 0005- ● ●
189 NUT; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE 		8-94279-518-0 02 1 0210- ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE 		8-94279-518-0 04 1 9706-0401 ● ●
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> M8 FLANGE 		1-75538-207-0 04 1 0402- ● ●
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-198-2 01 1 9601-0004 ●
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-190-0 01 1 9601- ● ●
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9601-0004 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-166-0 02 1 9601-0004 ● ●
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-166-0 02 1 9601-0004 ●
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-76337-461-0 02 1 0005- ● ●
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-187-0 02 1 9601- ● ●
311 HOLDER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-188-2 02 1 9601- ● ●
312 STOPPER; CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-186-1 02 1 9601- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (A) 		1-72538-184-3 01 1 9601- ● ●
313 ARM; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> (B) 		1-72538-185-3 01 1 9601- ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 9601- ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 9601- ● ●
316 BOX; COIN 8-94482-280-2 02 1 9803-0004 ●
316 BOX; COIN
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-94482-280-2 02 1 9803-0004 ●
316 BOX; COIN 8-94482-280-2 02 1 0005- ● ●
317 CONSENT 1-82523-020-2 01 1 9601- ● ●
340 BRACKET; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-232-1 01 1 9706- ● ●
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-233-0 01 1 9706- ● ●
361 RING; SNAP
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> ID=5 		9-09185-405-0 02 1 0210- ● ●
362 STUD; CONSOLE BOX
CENTER SEAT DELETE 2 CREWS<SP9> HIGH ROOF<S2F> 		1-72538-308-0 02 1 0210- ● ●
